Simpson Anchors | SKU: THDB62612HMGF1 | Barcode: 707392461777

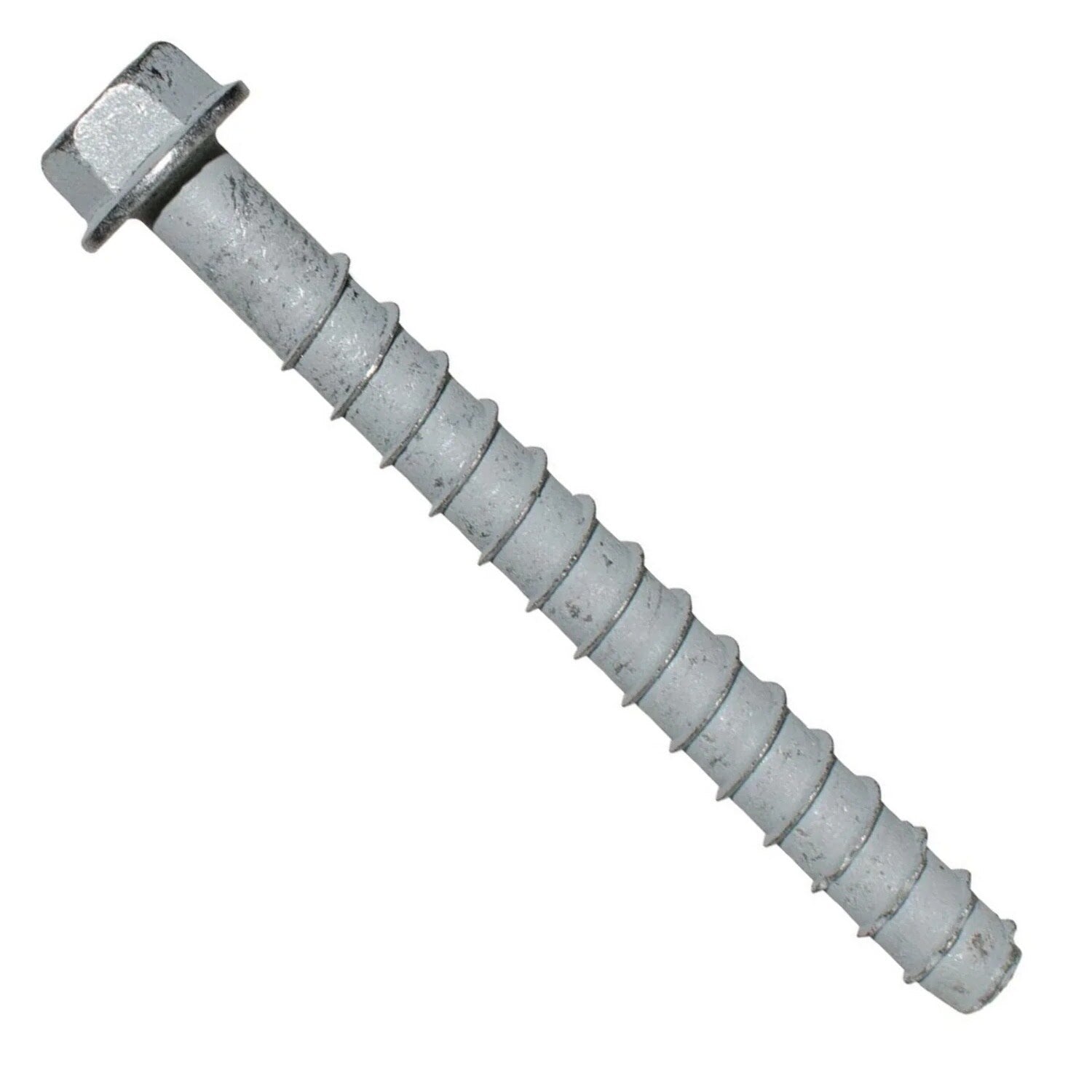

Simpson Strong-Tie THDB62612HMGF1 Titen HD (5/8" x 6-1/2") Mechanically Galvanized Heavy-Duty Screw Anchor

Name: Simpson Strong-Tie THDB62612HMGF1 Titen HD (5/8" x 6-1/2") Mechanically Galvanized Heavy-Duty Screw Anchor
Brand: Simpson Anchors
SKU: 823579
Price: 8.58 USD
Availability: InStock

$8.58

Shipping calculated at checkout.

Stock Up & Save

1-Pack

$8.58

10-Pack

10% OFF

$77.22

$85.80

10, 10,

default, percentage,

1, 10,

{ "Default Title":{"price":"858","compare_at_price":"","id":"52011036344687","quantity":"2","inv_p":"continue","inv_m":"shopify"} }

{ "Default Title":{"price":"858","compare_at_price":"","id":"52011036344687","quantity":"2","title":"Default Title","inventory_policy":"continue","inventory_management":"shopify"} }

{ "Default Title":{"id":"52011036344687"} }

Bulk Pricing Available

Need to place a large order? Request a quote

Key Specifications

Diameter: 5/8"

Finish: Galvanized

Head type: Hex Head

Length: 6-1/2"

Material: Carbon Steel

Type: Screw Anchor

Description

Simpson THDB62612HMGF1 Description

The Titen HD 5/8" x 6-1/2" Mechanically Galvanized Heavy-Duty Screw Anchor is designed for high-strength anchoring in cracked and uncracked concrete and masonry.

Simpson THDB62612HMGF1 Includes

(1) Titen HD 5/8" x 6-1/2" Mechanically Galvanized Heavy-Duty Screw Anchor

Simpson THDB62612HMGF1 Features

Head-stamped for easy identification

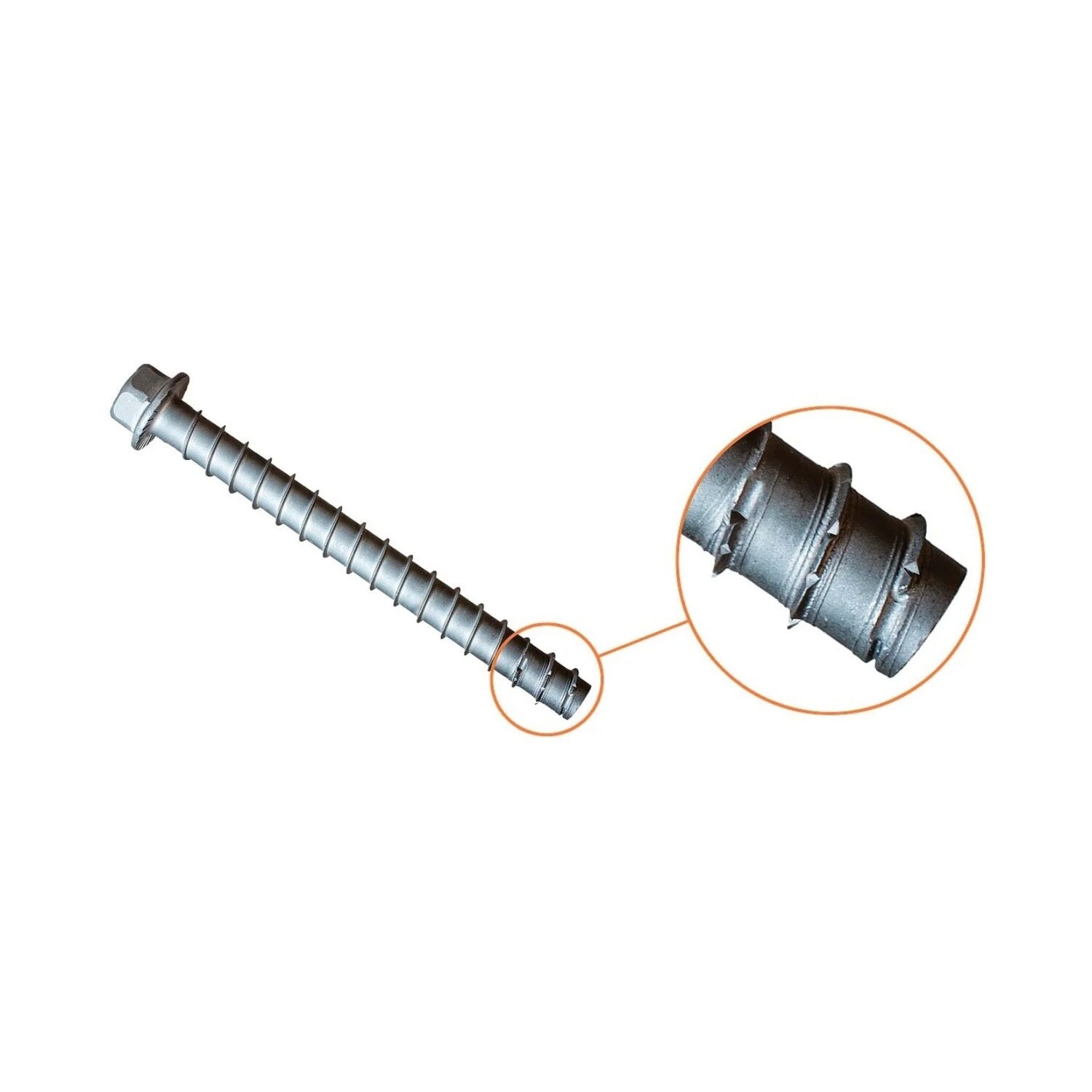

Serrated teeth on the tip facilitates cutting and reduces installation torque
Thread design undercuts to efficiently transfer the load to the base material
Standard fractional sizes, hole size equals anchor size
Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
Hex washer head requires no separate washer, unless required by code
Fully and easily removable
Code listed for exterior applications

Simpson THDB62612HMGF1 Applications

Anchorage Solutions: Ideal for securing fixtures to concrete and masonry surfaces.
Temporary Applications: Easily removable for temporary anchoring needs.
Pressure-Treated Wood Applications: Suitable for interior pressure-treated wood sill plates.

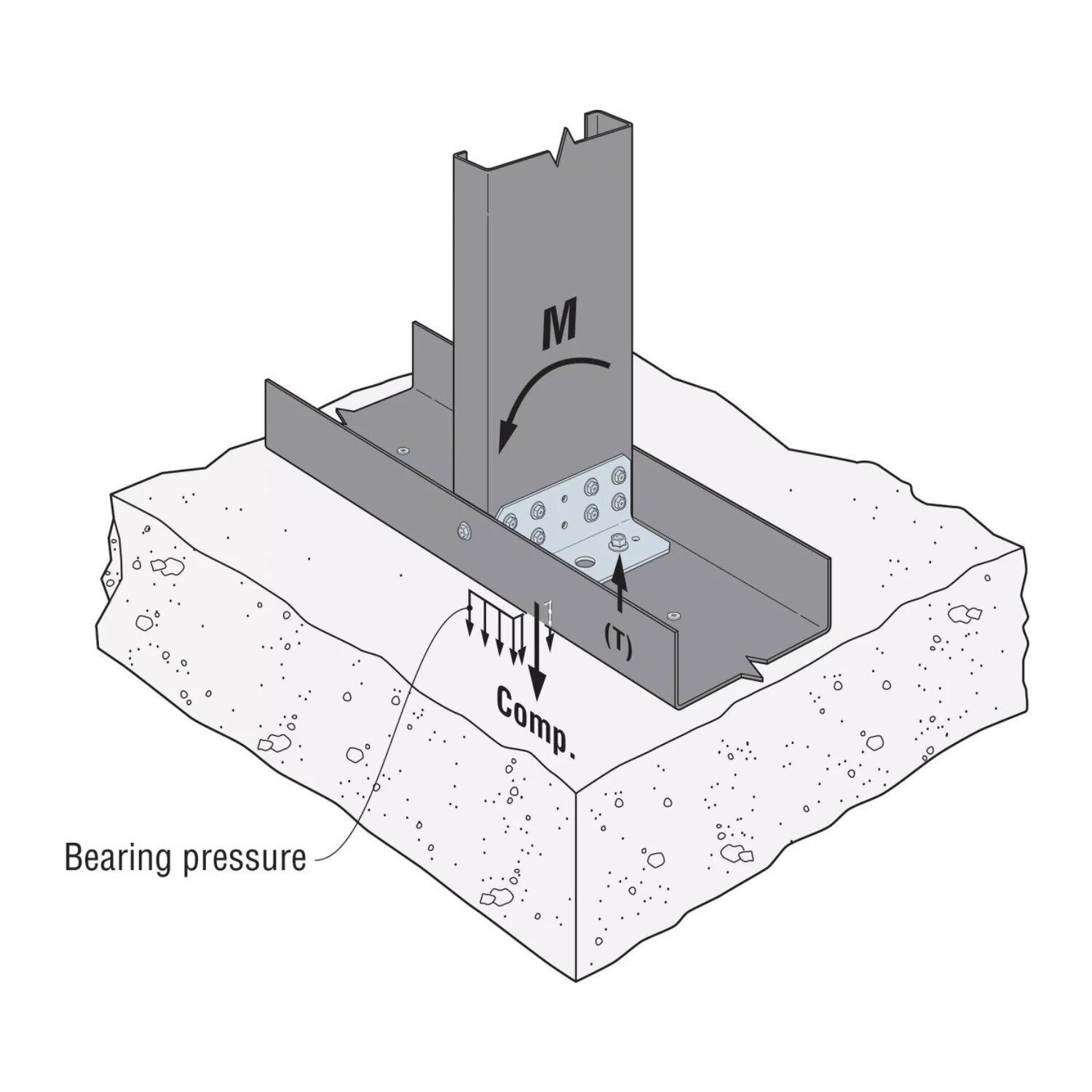

Structural Applications: Used in sill plates, ledgers, post bases, seating, and holdown applications.

Simpson THDB62612HMGF1 Installation Overview

Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
Insert the anchor through the fixture and into the hole.
Tighten the anchor into the base material until the hex-washer head contacts the fixture.

Simpson THDB62612HMGF1 Specifications

Diameter	5/8"
Finish	Mechanically Galvanized
Length	6-1/2"
Material	Carbon Steel
Drill bit size	5/8"
Drive type	15/16" Hex
Fixture hole size	3/4"-13/16"
Head type	Hex Head
Quantity	1

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
