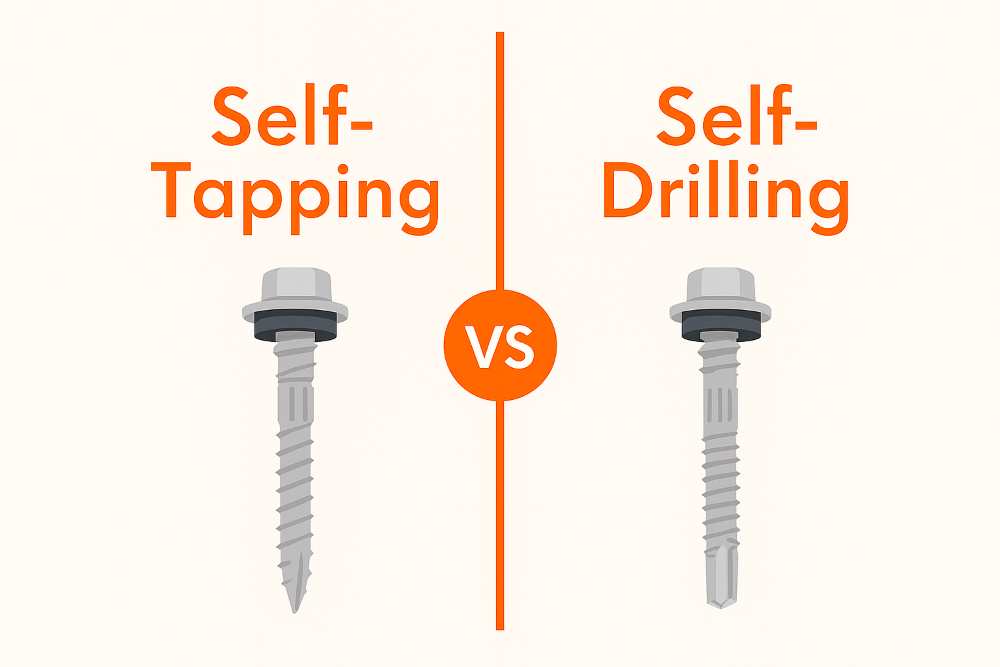

Simpson Strong-Tie Self-Drilling vs. Self-Tapping Screws: What's the Difference?

When working with structural connections and metal fastening, choosing the right screw can help teams stay on schedule without wasting time and materials.

Simpson Strong-Tie offers both self-drilling and self-tapping screws; however, many contractors use these terms interchangeably without fully understanding the difference between them. This confusion leads to professionals using incorrect fasteners, which results in failed connections, callbacks, and unnecessarily complicated installations.

The distinction between these two screw types goes beyond just terminology. Each one is made for specific applications and materials, with different installation requirements, holding power characteristics, and costs. Understanding when to use each screw type will help you work more efficiently while making sure that you maintain code-compliant, reliable connections that will last without failure or needed repairs.

Self-drilling screws are made to save time when it comes to metal-to-metal connections. These fasteners feature a drill point at the tip that acts like a small drill bit, allowing the screw to penetrate steel without any pre-drilling. The drill point bores through the material while the threaded portion follows behind, cutting or forming threads as it advances.

The key advantage of self-drilling screws lies in their ability to complete drilling, tapping, and fastening in a single action. This eliminates the need to switch between drill bits and drivers, significantly reducing installation time. The drill point is designed to maintain its position, preventing the screw from wandering off-center while drilling.

Typical applications include:

1. Metal building construction and roof panel attachment
2. HVAC ductwork connections in commercial installations
3. Structural steel connections where high strength is required
4. Electrical equipment mounting to steel structures
5. Deck attachment to steel joists in commercial construction

The thread design on self-drilling screws varies depending on the intended application. Fine threads offer better holding power in thin materials, while coarse threads are more effective in thicker sections. The drill point size is matched to the screw diameter to ensure proper hole drilling without over-drilling.

See Simpson Strong-Tie self-drilling screws in action with this how-to video featuring the Quik Drive auto-feed driving system. From drywall and decking to subfloors and tile roofing, Quik Drive makes fastening quicker, easier, and more consistent across a wide range of building materials.

Self-tapping screws require a pilot hole but are able to make their own threads as they're driven into the material. These screws have sharp, hardened threads designed to cut into softer materials or form threads in thin-gauge metals. The pilot hole guides the screw, preventing material from splitting or going off center while allowing the threads to engage.

Different point styles serve specific purposes:

1. Type A points: Sharp, needle-like points for softer materials and thin plastics

2. Type AB points: Blunt points with wide threads for sheet metal and light-gauge steel

3. Type B points: Blunt points with fine threads for harder materials and thicker sections

Common applications include:

1. Wood-to-metal connections in residential construction

2. Light-gauge steel framing connections

3. Attaching drywall track to concrete or masonry

4. HVAC equipment mounting where pre-drilling is practical

5. Electrical box mounting in metal stud walls

Self-tapping screws work the best in construction applications where precise positioning is an important piece of the project or where the substrate material can vary. The pilot hole allows for exact placement and ensures the screw starts straight. This is particularly important when working with finished surfaces or when alignment with existing holes is required.

The fundamental differences between self-drilling and self-tapping screws affect everything from installation procedure to long-term performance. Understanding these differences can help when it comes to selecting the right fastener for each specific application.

Pilot hole requirements represent the most obvious difference between the two screws. Self-drilling screws eliminate the need for a pilot hole, while self-tapping screws require a precisely sized hole for optimal performance. The pilot hole diameter typically ranges from 75% to 85% of the screw's minor diameter, depending on the material being fastened.

Material thickness limitations are also significantly different between the two types. Self-drilling screws can typically penetrate combined material thicknesses up to 0.5 inches, depending on the drill point length and screw diameter. Self-tapping screws have virtually no thickness limitation, as the pilot hole can be drilled to any required depth.

Check out our easy to read chart below for a better visual on how self-drilling and self-tapping screw differ.

Thread cutting vs. thread forming action affects holding power and installation torque. Self-drilling screws often use thread-forming action in thin materials, creating stronger connections by compressing the surrounding material. Self-tapping screws may cut or form threads depending on the specific design and application.

Pull-out strength and holding power comparisons show that both screw types can achieve similar ultimate strengths when properly installed. However, self-drilling screws often provide more consistent performance because they eliminate variables associated with pilot hole preparation. Self-tapping screws may achieve higher holding power in thick materials where longer engagement length is possible.

Cost considerations per fastener typically favor self-tapping screws for the fastener itself, but this advantage is often offset by the additional labor required for pilot hole preparation. Self-drilling screws command a premium price but can reduce total installed cost in labor-intensive applications.

Choosing the right screw type depends heavily on the specific application and working conditions. Different trades encounter situations where one type clearly outperforms the other.

Metal building construction heavily favors self-drilling screws for most applications. When attaching roof and wall panels to steel purlins and girts, the speed advantage of self-drilling screws becomes critical. These applications typically involve thousands of fasteners, resulting in substantial time savings. The consistent penetration and sealing provided by self-drilling screws also help maintain the building envelope's integrity.

HVAC ductwork applications require careful consideration of material gauge and joint requirements. For connecting 22-gauge and lighter ductwork, self-drilling screws are well-suited and speed up the installation process. However, when working with heavier gauge materials or when precise positioning is critical for damper connections, self-tapping screws with pilot holes may provide better control and alignment.

Electrical panel mounting involves both code considerations and practical installation factors. Self-tapping screws are often preferred when mounting panels to concrete or masonry with expansion anchors, as the pilot hole ensures proper engagement of the anchor. For steel structure mounting, self-drilling screws can speed installation while meeting code requirements for grounding continuity.

Structural steel connections demand careful attention to load requirements and specifications. While both screw types can meet structural requirements when properly specified, self-drilling screws often provide more consistent installation and performance. The elimination of pilot hole variables reduces the chance of installation errors that could compromise connection strength.

Proper torque specifications vary depending on the screw type and application. Self-drilling screws typically require higher installation torque because they must overcome both drilling and threading resistance simultaneously. Over-torquing can damage the drill point or strip threads, while under-torquing may not fully engage the threads or achieve proper sealing.

Avoiding over-driving and material damage requires understanding the material being fastened and adjusting the technique accordingly. Self-drilling screws can generate significant heat during installation, which may affect material properties or coatings. Self-tapping screws are more forgiving in this regard, but can still cause problems if driven too aggressively.

Tool selection considerations:

1. Impact drivers work well for self-drilling screws in most applications, providing the torque needed for penetration

2. Drill/drivers offer better speed control for self-tapping screws and delicate materials

3. Magnetic bit holders improve productivity and reduce fastener dropping

4. Proper bit selection ensures good engagement and reduces cam-out potential

Quality control and inspection points should focus on proper seating, thread engagement, and material condition around the fastener. Look for signs of over-driving, such as material dimpling or coating damage. Check that self-drilling screws have fully penetrated all materials and that drill chips are properly cleared.

Long-term performance depends on factors beyond just initial installation quality. Environmental conditions and loading patterns impact the performance of each screw type over time.

Corrosion-resistant coatings are available for both screw types; however, the application method can impact coating integrity. Self-drilling screws may experience coating damage at the drill point during installation, potentially creating sites for corrosion initiation. Self-tapping screws with pilot holes may preserve the coating better, as the threads do not cut through the material during installation.

Temperature cycling effects can cause differential expansion between fastener and substrate materials. Self-drilling screws' thread-forming action may provide better resistance to loosening under thermal cycling compared to thread-cutting self-tapping screws. However, proper initial torque is critical for both types.

Vibration resistance in mechanical applications depends largely on thread engagement and material properties. Both screw types can provide good vibration resistance when properly installed; however, self-drilling screws may have an advantage in thin materials, as their thread-forming action creates more material compression around the fastener.

Long-term reliability factors include resistance to backing out, maintaining clamping force, and resisting environmental degradation. Field experience shows that both screw types can provide decades of reliable service when properly selected and installed. The key is matching the fastener to the application requirements and following proper installation procedures.

The choice between Simpson self-drilling and self-tapping screws comes down to matching the fastener to your specific application requirements. Self-drilling screws excel in metal-to-metal connections where speed and consistency are priorities. In contrast, self-tapping screws offer versatility and cost advantages in applications where pilot holes are practical or required.

Quick reference for selection:

1. Choose self-drilling screws for repetitive metal fastening, time-critical projects, and applications requiring consistent penetration

2. Choose self-tapping screws for mixed materials, applications requiring precise positioning, and cost-sensitive projects with manageable fastener quantities.

The key takeaway is that both fastener types have their place in professional construction and mechanical trades. Understanding their strengths and limitations allows you to make informed decisions that optimize both installation efficiency and long-term performance. When in doubt, consult Simpson's technical specifications and load tables to ensure your fastener selection meets both code requirements and performance expectations for your specific application.
