Simpson Angles (Models ML24, ML26)

Simpson Strong-Tie ML24 and ML26 Angles

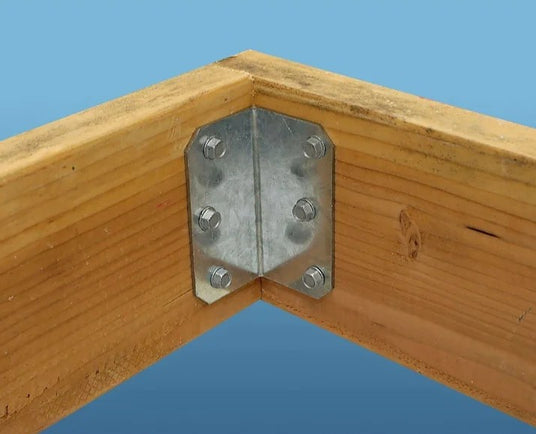

Simpson Strong-Tie ML angles provide a durable and versatile solution for creating 90-degree wood-to-wood connections. Designed with staggered fastener holes to minimize wood splitting, these angles allow back-to-back installation without interference, making them ideal for corners, joints, and intersecting framing members. Available in corrosion-resistant ZMAX® galvanized steel and stainless steel, ML angles perform reliably in standard, outdoor, and marine environments.

Compatible with Simpson Strong-Tie SDS Heavy-Duty Connector screws, ML angles offer quick, secure fastening while maintaining structural integrity. They are widely used in residential framing, decks, pergolas, and commercial projects where strong, long-lasting connections are required. Easy to install and engineered for strength, ML angles help contractors and builders achieve clean, precise, and reliable joints in a variety of wood construction applications.

Simpson Strong-Tie ML angles are engineered to provide versatile and reliable 90-degree connections in wood framing projects. These connectors are ideal for reinforcing corners, joints, and intersecting members, making them a practical solution for a wide range of residential, commercial, and outdoor applications. Available in corrosion-resistant galvanized and stainless steel options, ML angles are designed to perform in both standard and challenging environmental conditions, including marine or high-moisture applications.

Staggered fastener holes minimize the risk of wood splitting during installation, while opposing hole patterns allow two angles to be installed back-to-back without interference. Combined with Simpson Strong-Tie SDS Heavy-Duty Connector screws, ML angles provide a strong, fast, and secure method to create rigid framing connections that maintain structural integrity over time.

Features and Benefits

Versatile 90-Degree Connections: Supports corners, joints, and intersecting framing members for structural reinforcement.
Staggered Fastener Holes: Reduces splitting risk in wood during installation and ensures a strong hold.
Back-to-Back Installation: Hole patterns are designed to allow dual installation without screw interference.
Corrosion-Resistant Finishes: ZMAX® galvanized steel for general outdoor applications and stainless steel for high-corrosion environments, such as coastal or marine locations.
Strong-Drive® SDS Compatibility: Works with heavy-duty connector screws for quick, reliable fastening.

Common Applications

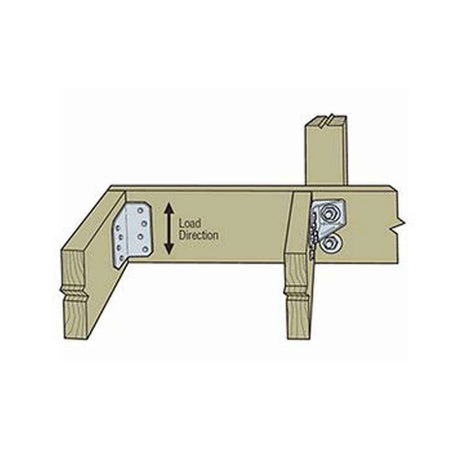

Residential framing, including post-to-beam and beam-to-beam connections
Decks, pergolas, and outdoor structures
Structural reinforcement in commercial and light industrial construction
Marine projects or coastal builds requiring stainless steel for corrosion resistance
Retrofit projects where existing framing needs added support

Installation Guidance

ML angles are simple to install when following proper fastening procedures:

Align the angle at the desired 90-degree connection.
Use all specified fasteners for maximum load performance.
Install Simpson Strong-Tie SDS Heavy-Duty Connector screws into staggered holes.
Confirm fasteners are seated fully and flush to achieve published load values.

For back-to-back installation, ensure the opposing hole patterns are properly aligned to avoid interference and maintain consistent joint performance.

Why Choose Simpson ML Angles

ML angles combine durability, versatility, and corrosion resistance to deliver a high-performing connection solution. With options suitable for standard wood framing and specialized environments like marine conditions, these angles provide long-term reliability without complicated installation. Their engineered hole patterns and compatibility with heavy-duty screws make them a trusted choice for contractors, builders, and DIY professionals looking for strength and efficiency in every 90-degree connection.

Frequently Asked Questions

What fasteners should I use with ML angles?

Use Simpson Strong-Tie SDS Heavy-Duty Connector screws in the sizes specified for the angle. Proper fasteners are critical to achieving published load capacities.

Can I use these angles for decking support beams?

Yes. They are ideal for wood framing where strong 90-degree joints are required.

Do ML angles require pre-drilling?

No pre-drilling is required when using the recommended SDS Heavy-Duty Connector screws, though pilot holes may be beneficial in extremely hard or dense woods.

What is the difference between ML24 and ML26 angles?

The main differences are length and gauge. ML26 is slightly longer and heavier-duty than ML24, providing more versatility for larger or heavier framing connections.

Can ML angles be installed in tight corners or areas with limited access?

Yes. Their design allows installation in constrained spaces, especially when using back-to-back angles or field-adjustable setups.

How do ML angles improve joint strength compared to nails alone?

The heavy-duty design, staggered holes, and engineered fasteners distribute load more evenly, reducing twisting, sagging, and splitting compared to traditional nailing or screws.

Can ML angles be installed on concrete or masonry?

They are designed primarily for wood-to-wood connections. For concrete or masonry, additional anchor solutions may be required.
