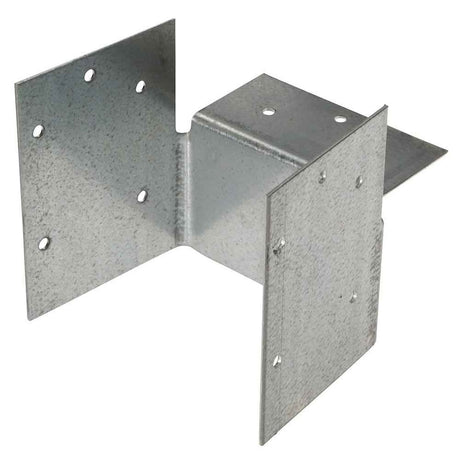

Simpson Header Hangers (Model HH)

Header & Rafter Connections You Can Rely On

Framing jobs live and die on strong connections. Headers carry the load over windows and doors, while ridge rafters tie your roof together at its highest point. Simpson Strong-Tie header hangers and ridge rafter connectors are built to keep those structural members locked in place. Engineered from heavy-gauge, galvanized steel, these connectors spread the load evenly, prevent twisting, and keep framing square through years of use.

Why These Connectors Earn Their Keep

Header hangers save time by eliminating the need for extra trimmer studs while providing a stronger seat for the header itself. That means faster installs and cleaner framing around openings. Ridge rafter connectors tackle the tricky business at the roof peak. Instead of relying on field-made cuts or toe-nailing, the connectors guide alignment, improve fastening accuracy, and ensure rafters sit flush with the ridge beam. Both products bring consistency to jobs where precision and safety matter most.

Where You’ll See Them on the Job

• Residential builds: Over door and window openings, tying rafters to the ridge beam on pitched roofs.

• Light commercial projects: Framing in large headers, storefront openings, or pitched roof assemblies.

• Outdoor structures: Deck covers, pergolas, and sheds that rely on clean ridge connections and strong headers.

• Remodeling work: Retrofits where toe-nailing won’t pass inspection or where headers need reinforcement.

Key Advantages

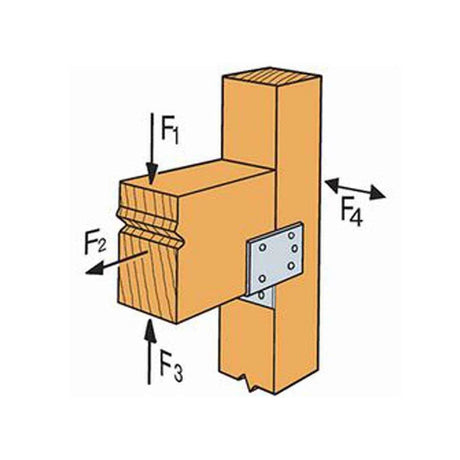

• Built to Withstand Heavy Loads: Designed to transfer significant weight from beams and rafters into supporting members without sagging or shifting.

• Galvanized Protection: Factory-applied zinc coating fights rust, keeping the connector solid even in exposed conditions.

• Simplifies Installations: Pre-punched holes for nails or bolts reduce guesswork and keep fastening points consistent.

• Speeds Up Framing: Reduces labor costs compared to traditional stick framing methods.

• Inspection-Ready: Each connector is tested and rated to meet or exceed building codes, saving headaches when inspectors show up.

How Header Hangers and Ridge Rafter Connectors are different

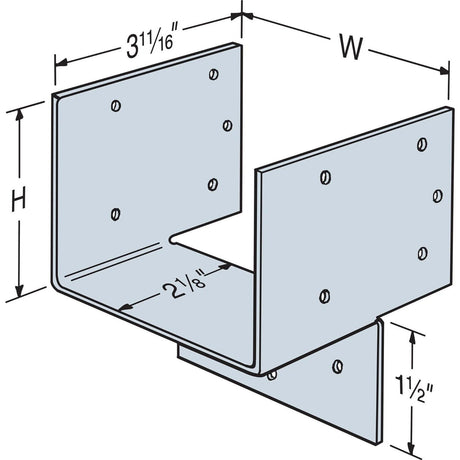

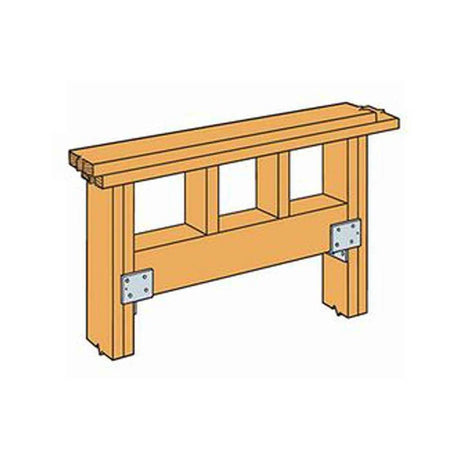

• Header Hangers: Best for setting headers over door and window openings or securing other cross members. Instead of stacking trimmers and adding bulk to the wall, the hanger supports the header directly. This not only strengthens the frame but also opens up more design flexibility.

• Ridge Rafter Connectors: Designed to align rafters at the ridge of the roof. The top flange locks over the ridge beam, helping maintain spacing and proper nailing angles. These connectors work on common rafter slopes up to 30°, giving framers a faster, safer solution than toe-nailing.


Installation Tips to Save Time

• Always verify that lumber dimensions are accurate, as nominal sizes may not always match.

• Use only the manufacturer’s recommended nails or structural screws for proper load transfer.

• Seat the beam or rafter fully into the hanger pocket before driving fasteners.

• Check alignment with a level or straightedge to avoid twist and uneven load paths.

• When working on ridges, set your connectors before lifting rafters into place for faster assembly.

Why Building Inspectors Like Them

Inspectors know that hangers and connectors eliminate weak points common in traditional framing, like split studs or poorly driven nails. By using hardware that’s already code-rated and tested, you reduce the chance of delays, rework, or failed inspections. That means smoother progress on the jobsite and fewer callbacks later.

Choosing the Right Connector

Every build is different, and sizing matters. Whether you’re dealing with a multi-ply header in a residential wall or tying rafters into a ridge on a steep-pitched roof, Simpson offers a wide range of connector options to fit. Matching the connector to your lumber size ensures the system performs exactly as designed. For builders looking beyond headers and ridges, Simpson also manufactures joist hangers, post bases, and a wide array of structural hardware for complete framing solutions.
