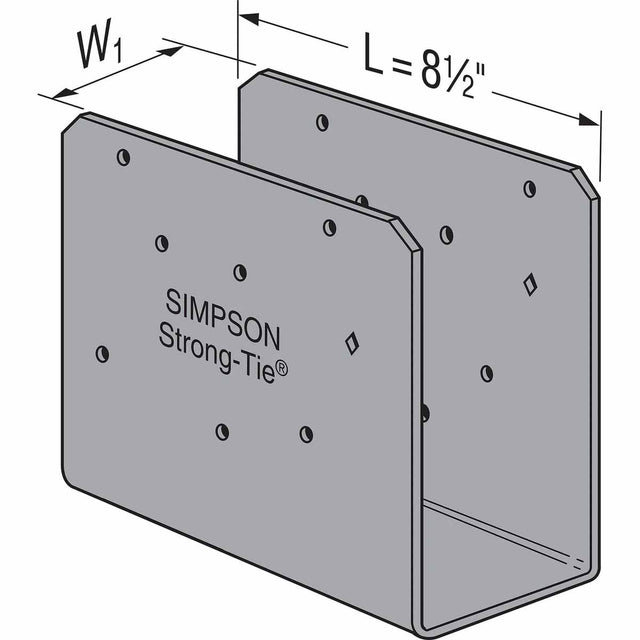

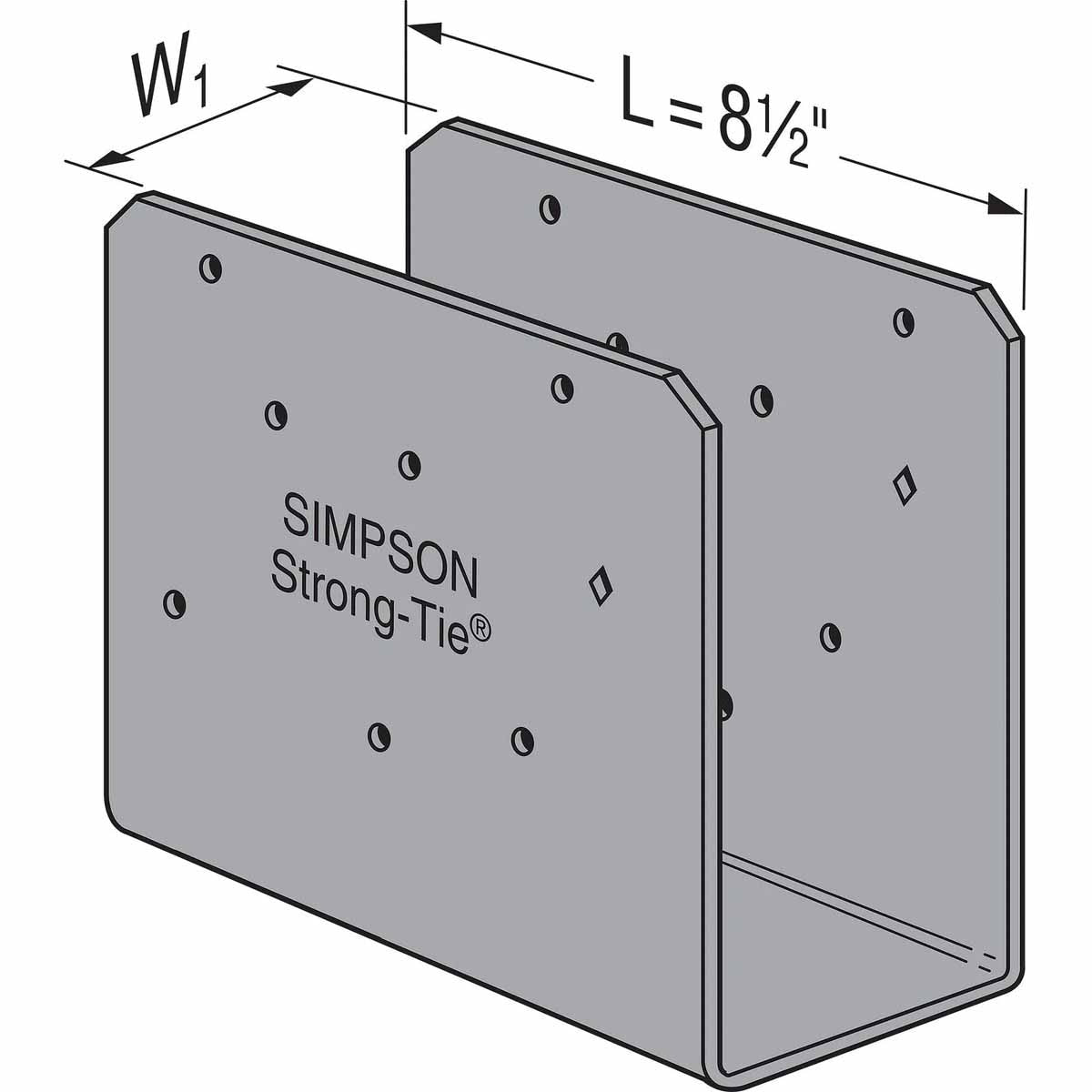

Simpson Strong-Tie ECCOQ4-SDS2.5 End Column Cap for 4x Beam, Quick-Install, No Coating
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCOQ4-SDS2.5 End Column Cap for 4x Beam, Quick-...
Key Specifications
Description
Description
Simpson Strong-Tie ECCOQ4-SDS2.5 Description
The Simpson ECCOQ4-SDS2.5 End Column Cap is designed for 4x beams, providing strong column-to-beam connections with quick installation and durable steel construction.
Simpson Strong-Tie ECCOQ4-SDS2.5 Includes
- (1) End Column Cap
- (14) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie ECCOQ4-SDS2.5 Features
- Provides strong column-to-beam connections
- Quick installation with included SDS screws
- Made from durable heavy-gauge steel
- Strapless design for field welding to steel columns
- Extended surface area for better load distribution
Simpson Strong-Tie ECCOQ4-SDS2.5 Applications
- Wood-to-wood column-to-beam connections
- Field welding to steel columns
Simpson Strong-Tie ECCOQ4-SDS2.5 Installation Overview
- Fasten with included SDS screws for secure attachment
- Align and temporarily fasten using diamond holes
- Ensure proper bolt spacing to meet NDS code requirements
Simpson Strong-Tie ECCOQ4-SDS2.5 Specifications
| Material | Steel |
| Beam size | 4x |
| Fasteners required | 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws (included) |
| Height | 7" |
| Length | 8-1/2" |
| Thickness | 7 Gauge |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
