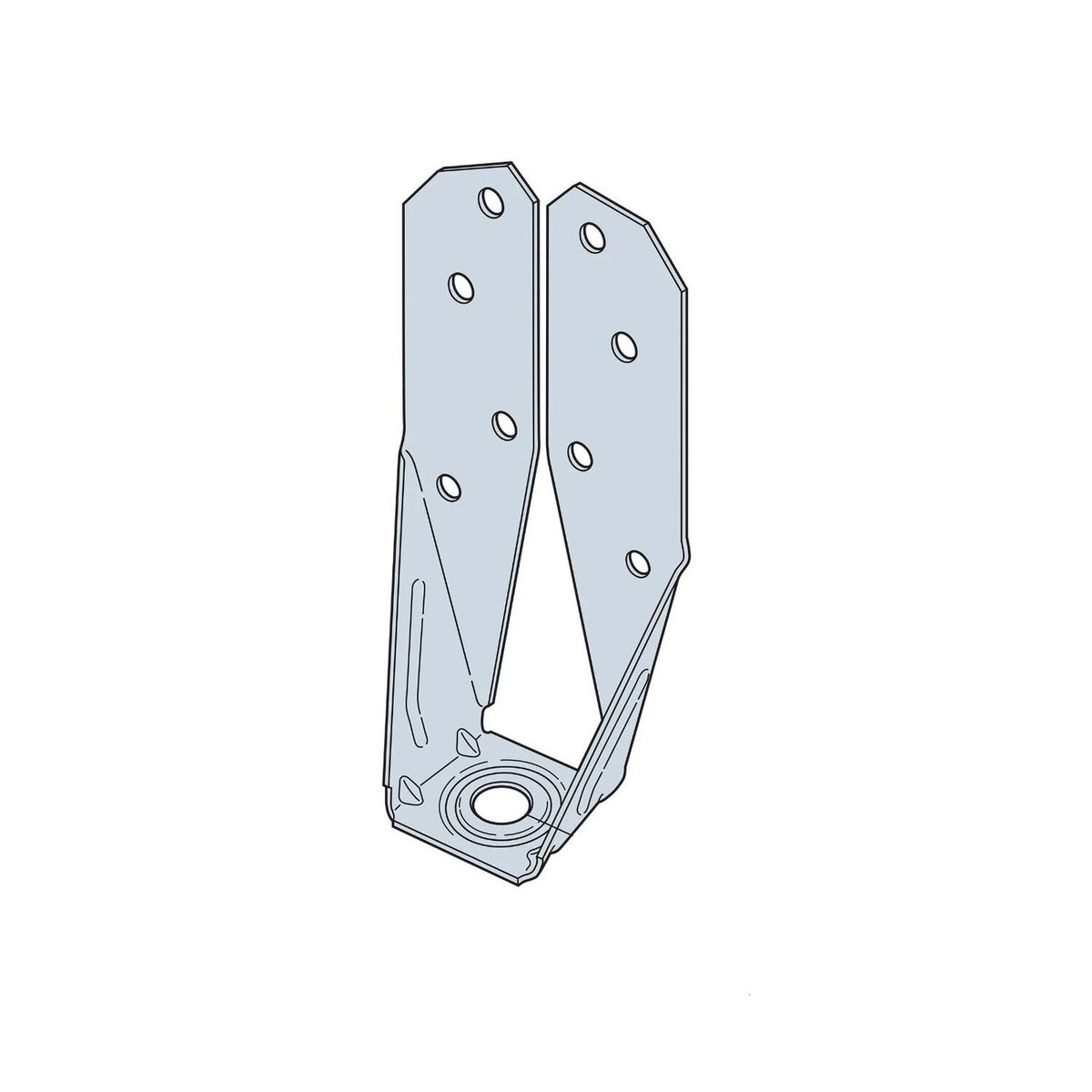

Simpson Strong-Tie S/DTT2Z Deck Tension Tie for Steel with ZMAX Finish
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie S/DTT2Z Deck Tension Tie for Steel with ZMAX Finish
Key Specifications
Description
Description
Simpson S/DTT2Z Description
The Simpson S/DTT2Z Deck Tension Tie is designed for lighter-duty hold-down applications on single or back-to-back studs, providing high-strength concrete-to-steel connections.
Simpson S/DTT2Z Includes
- (1) Deck Tension Tie
Simpson S/DTT2Z Features
- ZMAX Finish for corrosion resistance
- Suitable for lighter-duty hold-down applications
- Compatible with #14 self-drilling screws
- Includes standard cut washer
- Ideal for retrofit or new construction projects
Simpson S/DTT2Z Applications
- Retrofit construction projects requiring tension ties
- New construction projects for concrete-to-steel connections
- Lighter-duty hold-down applications on single or back-to-back studs

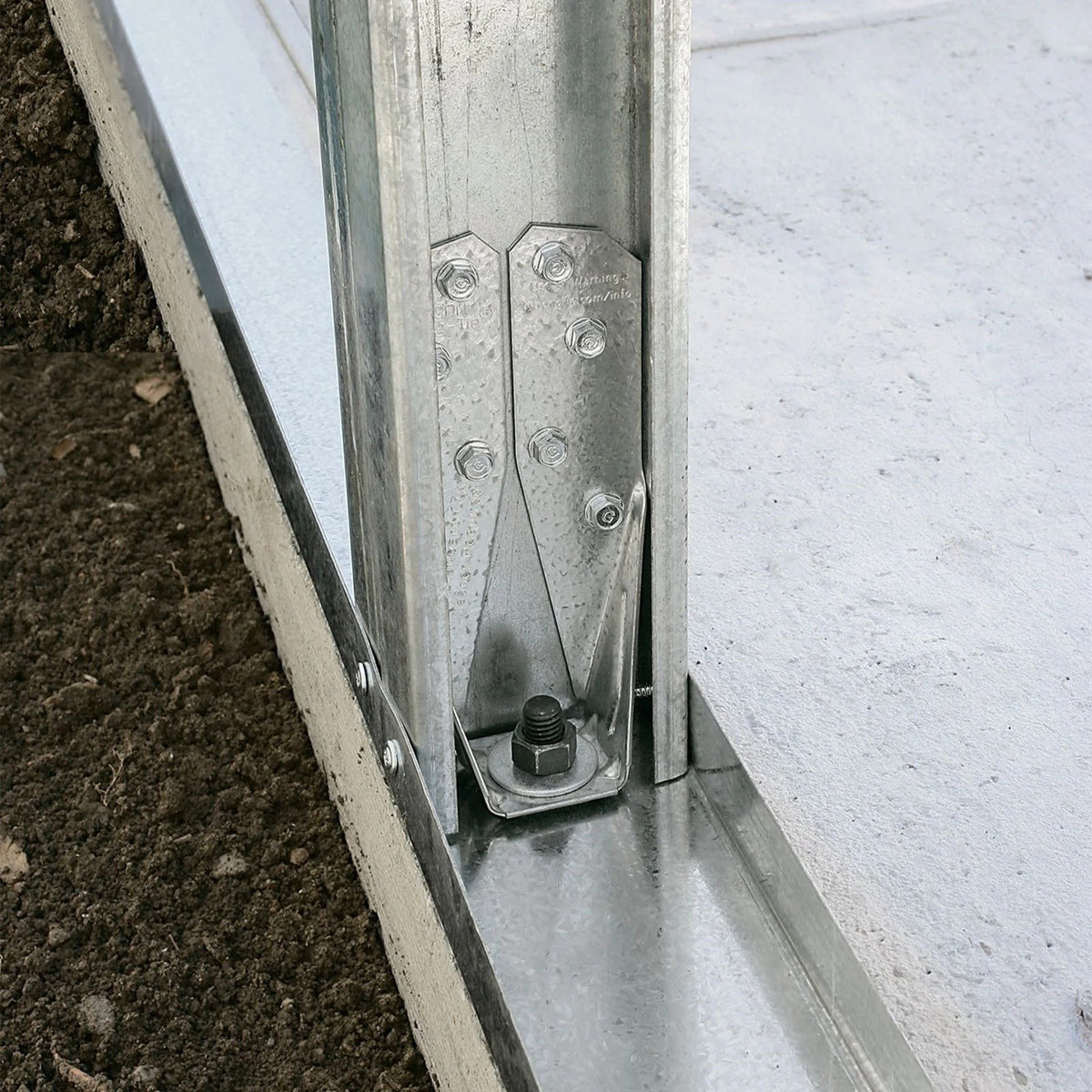

Simpson S/DTT2Z Installation Overview
- Use all specified fasteners
- Attach the strap portion to the steel stud using the specified screws
- Bolt the base to the wall or foundation with a suitable anchor
- Install the included standard cut washer between the nut and the seat
Simpson S/DTT2Z Specifications
| Height | 6-15/16" |
| Weight | 0.5 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
