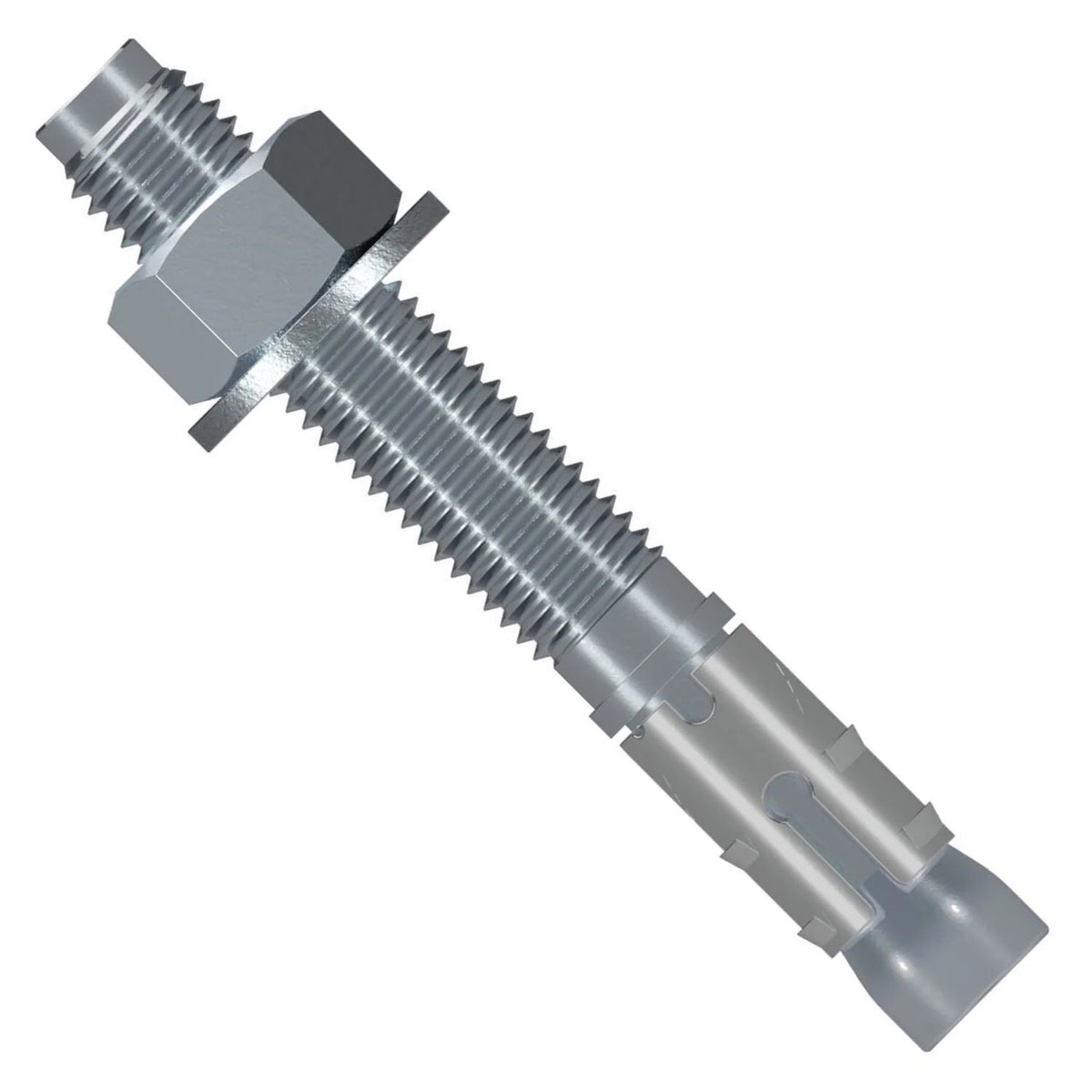

Simpson Strong-Tie STB2-75434R10 Strong-Bolt (3/4" x 4-3/4") Zinc-Plated Carbon Steel Wedge Anchor (10 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-75434R10 Strong-Bolt (3/4" x 4-3/4&quo...
Key Specifications
Description
Description
Simpson STB2-75434R10 Description
The Strong-Bolt 2 Wedge Anchor Zinc Plated is designed for reliable anchoring in concrete and lightweight concrete-over-steel deck applications. It is suitable for static and seismic loading conditions.
Simpson STB2-75434R10 Includes
- (10) Strong-Bolt 2 Wedge Anchor
Simpson STB2-75434R10 Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193
Simpson STB2-75434R10 Applications
- Concrete anchoring for structural support
- Lightweight concrete-over-steel deck applications
- Seismic design categories A through F
Simpson STB2-75434R10 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Drive the anchor into the hole until tight against the fixture
- Tighten to the specified installation torque
Simpson STB2-75434R10 Specifications
| Material | Zinc-plated carbon steel |
| Minimum Concrete Thickness | 3 1/4" |
| Lightweight Concrete Thickness | 2 1/2" and 3 1/4" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
