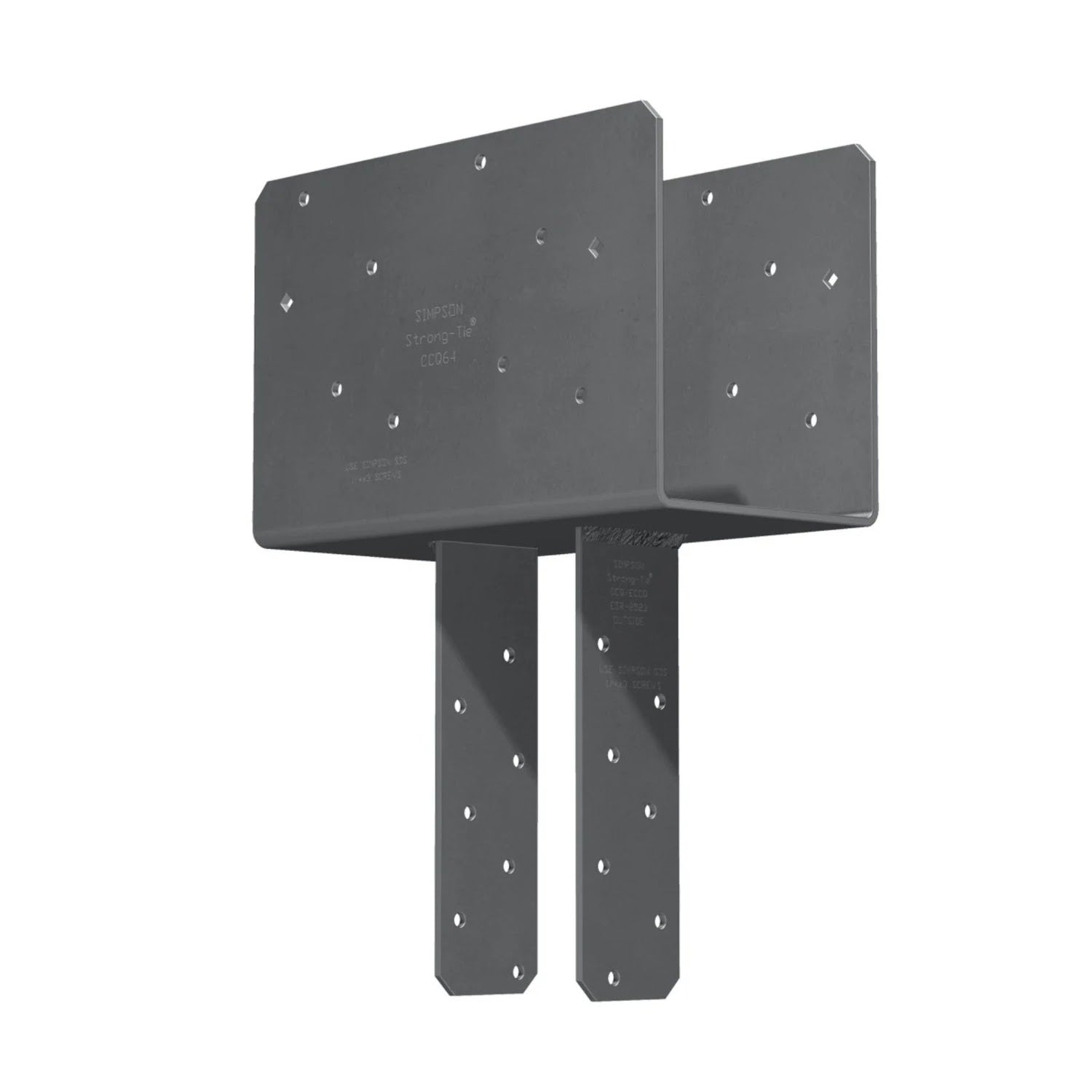

Simpson Strong-Tie CCQ64SDS2.5 (6x Beam, 4x Post) Column Cap with Strong-Drive SDS Screws
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CCQ64SDS2.5 (6x Beam, 4x Post) Column Cap with S...
Key Specifications
Description
Description
Simpson CCQ64SDS2.5 Description

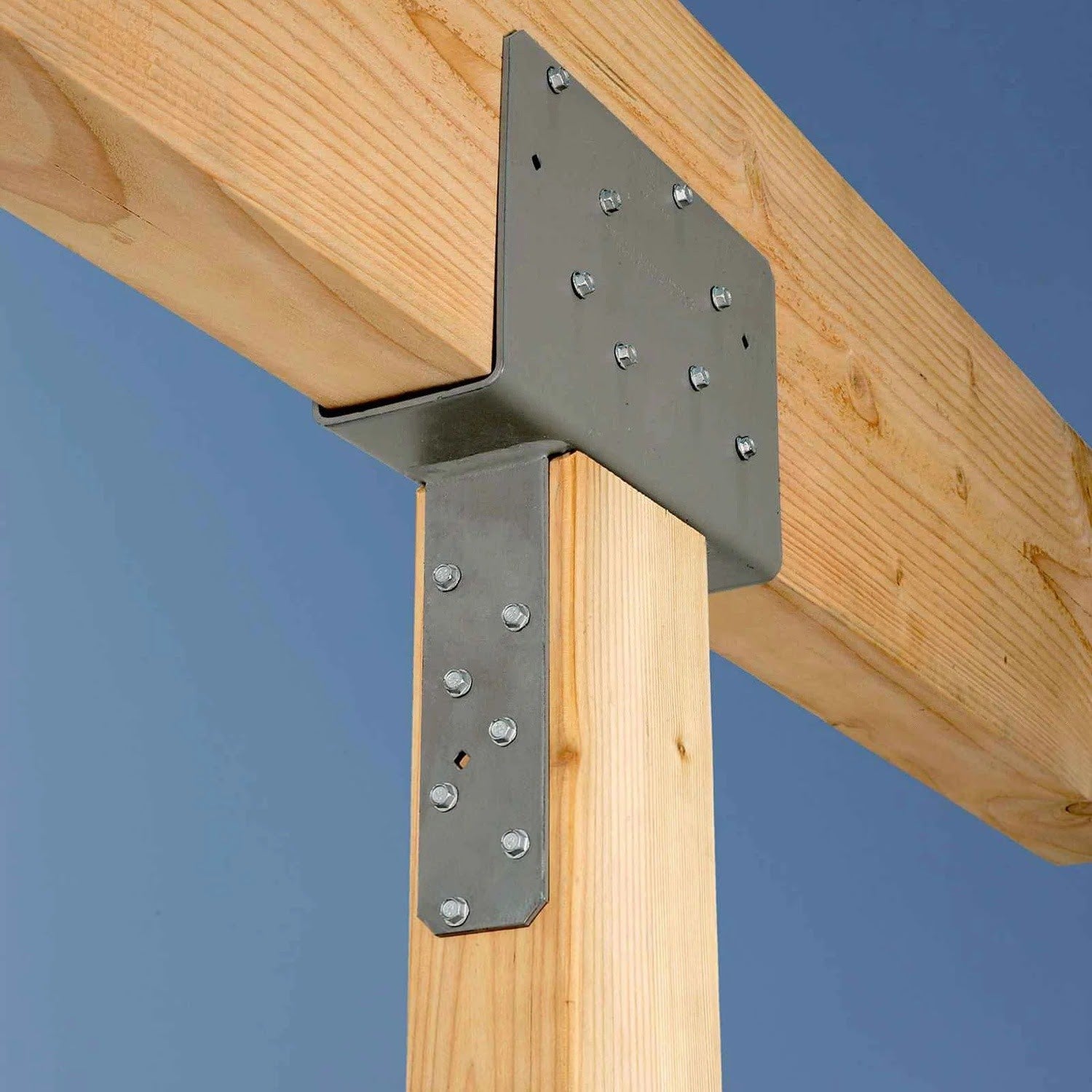

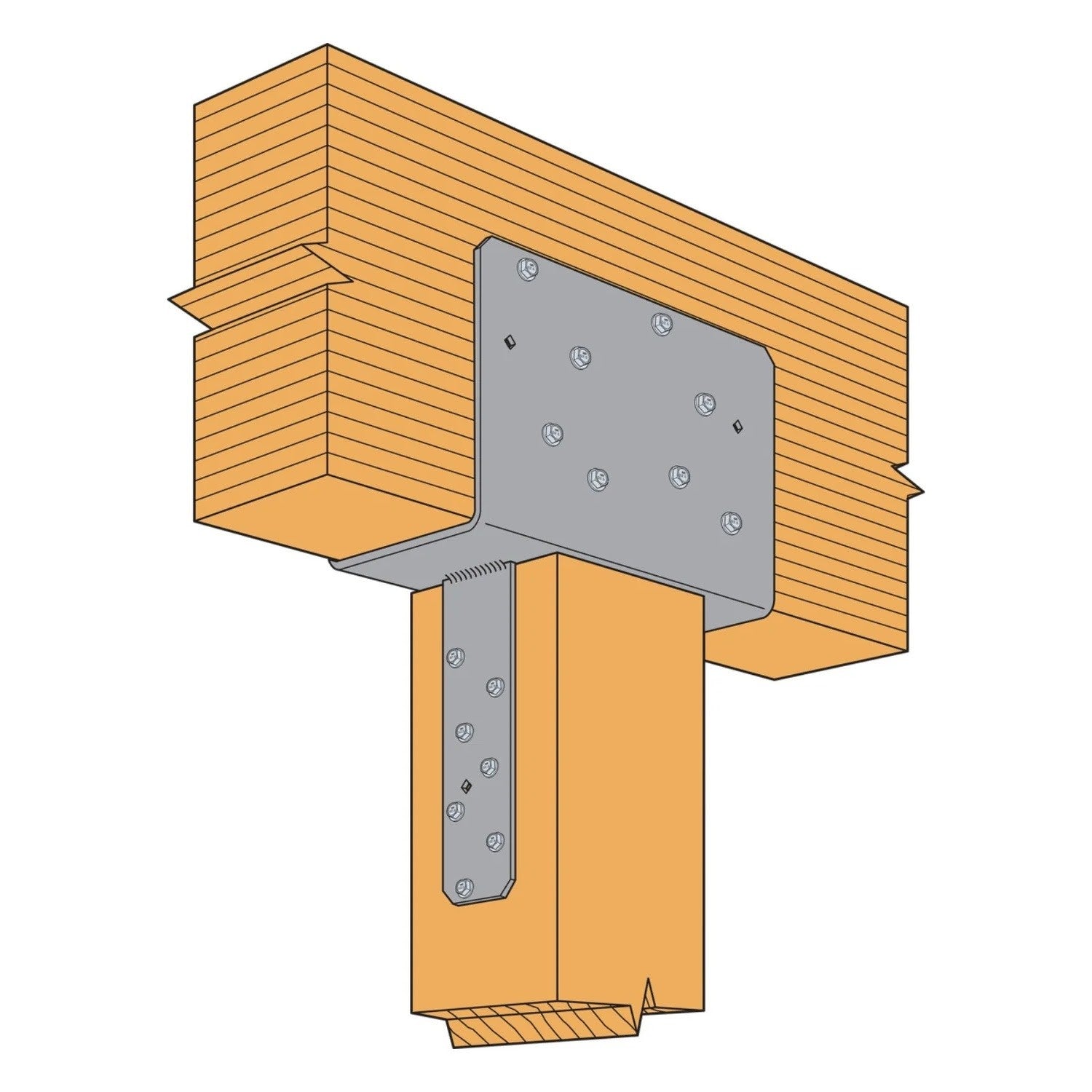

The Simpson CCQ64SDS2.5 Column Cap enhances the strength and stability of wood construction projects, providing reliable column-to-beam connections.

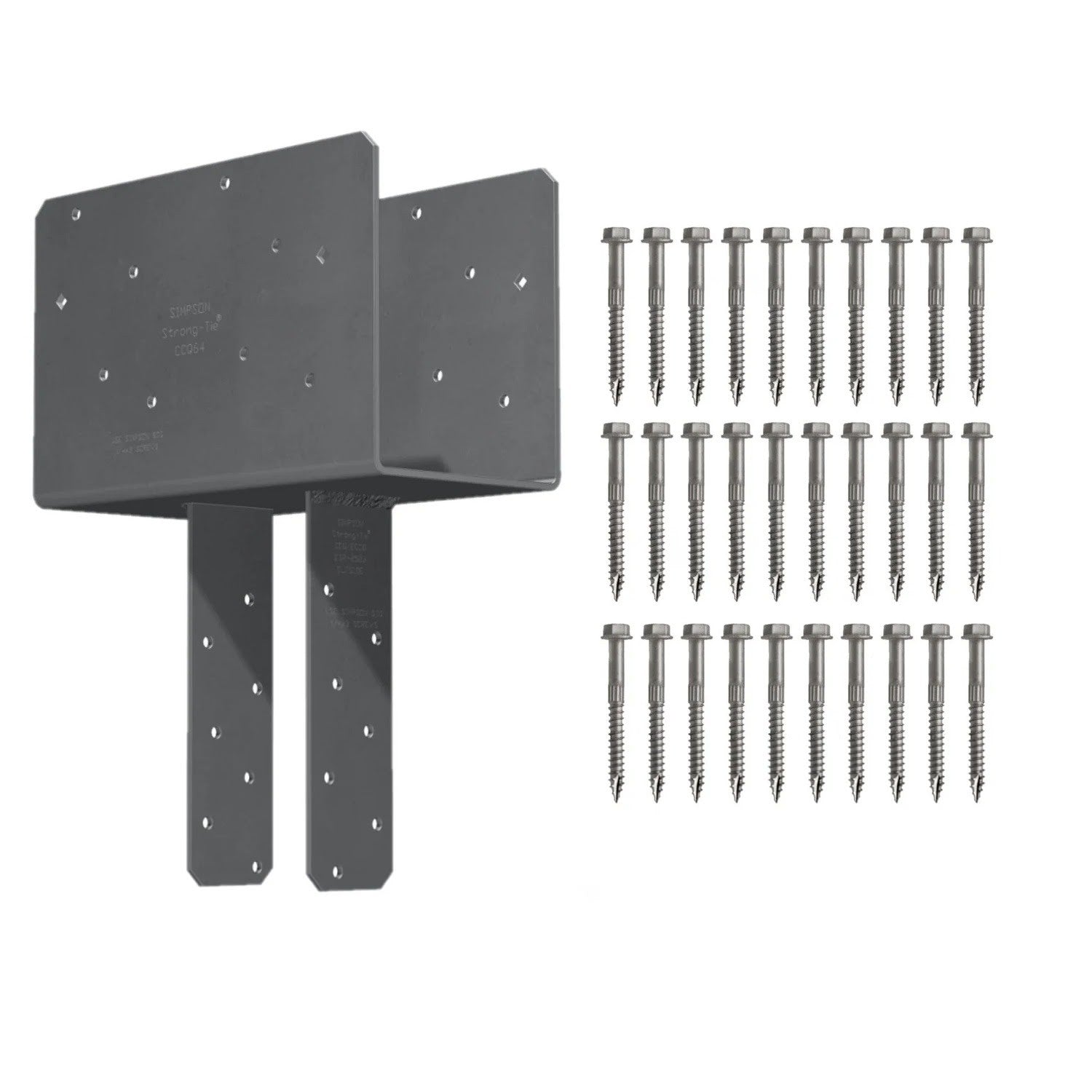

Simpson CCQ64SDS2.5 Includes
- (1) Column Cap for 6x Beam, 4x Post
- (1) Set of Strong-Drive SDS Screws
Simpson CCQ64SDS2.5 Features
- Provides strong column-to-beam connection
- Extended column seat for additional bearing surface
- Made from durable heavy-gauge steel
- Finished with Gray Paint coating
- Certified welds for increased strength and loading
- Includes Strong-Drive SDS screws for quick installation
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson CCQ64SDS2.5 Applications
- Wood construction requiring column-to-beam connections
- Projects needing enhanced load distribution
- Structures exposed to earthquake or wind loading
Simpson CCQ64SDS2.5 Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using diamond holes
- Fasten permanently with included SDS screws
- Ensure bolt spacing complies with NDS code requirements
Simpson CCQ64SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 6x |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
