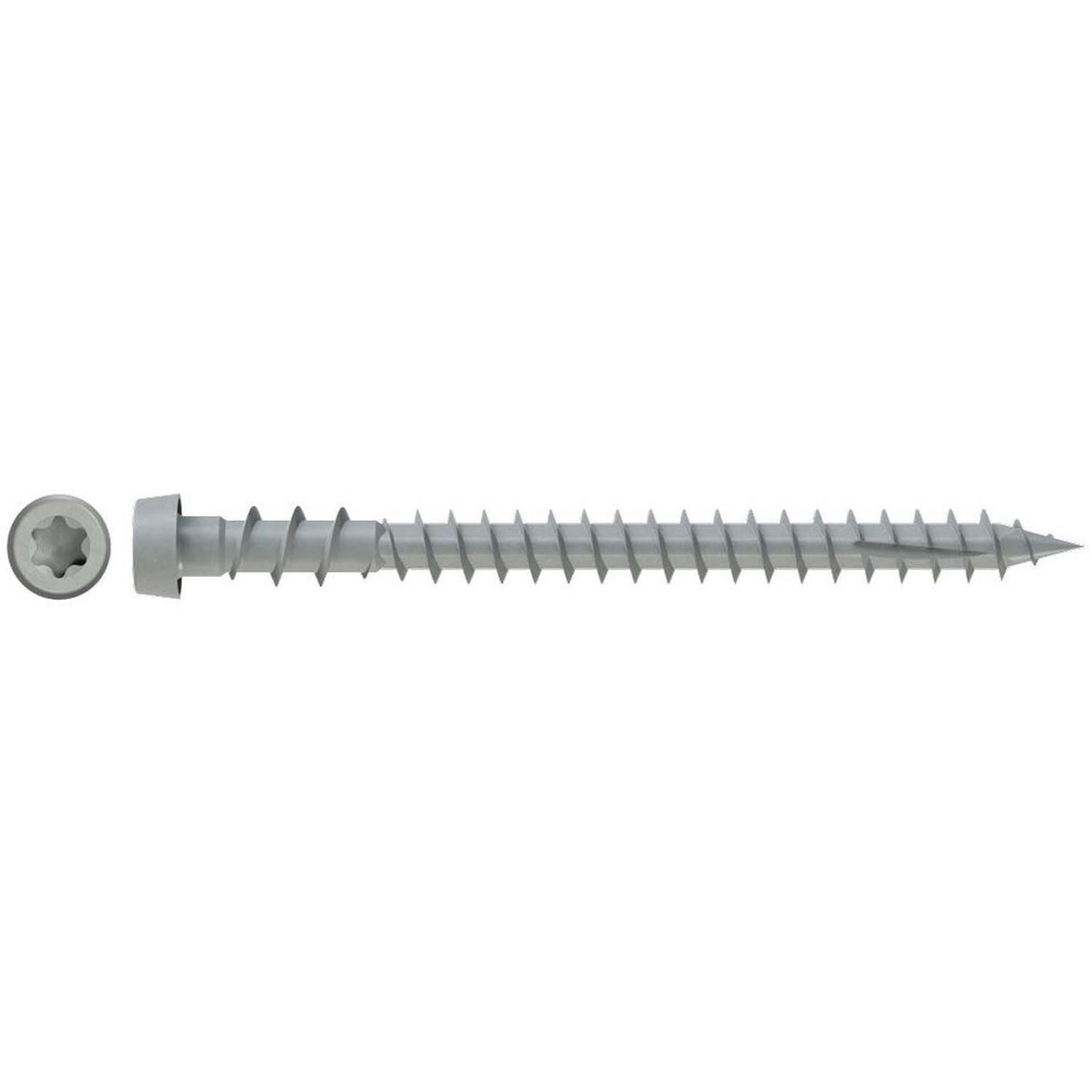

Simpson Strong-Tie DCU238SGR Deck-Drive (#10 x 2-3/4") T20 DCU Quik Guard Composite Collated Screw, Gray (1000 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie DCU238SGR Deck-Drive (#10 x 2-3/4") T20 DCU...
Key Specifications
Description
Description
Simpson Strong-Tie DCU238SGR Description
The Deck-Drive DCU Composite Screw is designed for fastening composite decking boards with a clean finish and high corrosion resistance.
Simpson Strong-Tie DCU238SGR Includes
- (1000) Deck-Drive DCU Composite Screws
Simpson Strong-Tie DCU238SGR Features
- Available in carbon steel, as well as Type 305 and Type 316 stainless steel for high to severe levels of corrosion resistance
- Tri-lobe thread design reduces damage to the composite board while driving
- Inverted upper threads clear excess material to ensure that the screw has a clean finish
- Unique cut point penetrates composite decking with ease for fast starts
- Cap-head prevents mushrooming and material from rising up above the deck for a smoother, clean-looking installation
- Approved fastener for Trex composite decking

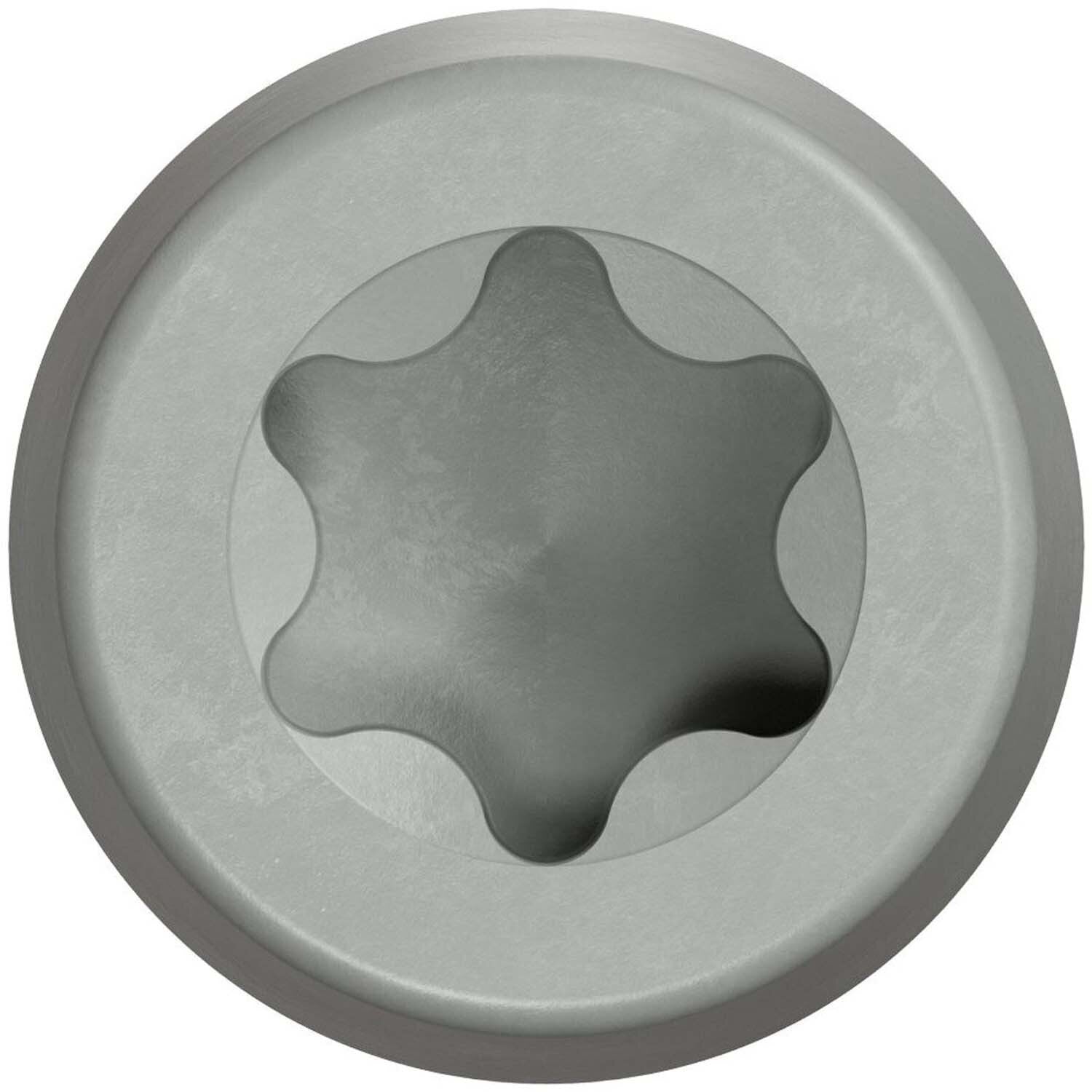

- 6-lobe drive recess for secure driving
- When used with sleeper assemblies, the 2 3/8" DCU Composite screws should have a minimum penetration of 1" into the wooden roof deck sleeper and should not penetrate through the roof deck sleeper
- When countersinking for DCU plug solutions, use the Quik Drive Auto-Set Driver Bit (model BITTX20-PL-RC3) with depth set to maximum
Simpson Strong-Tie DCU238SGR Applications
- Fastening composite decking boards
- Fastening roof sleeper assemblies
Simpson Strong-Tie DCU238SGR Specifications
| Fastener Type | Quik Drive® Collated Screw |
| Application | Decks — Deck Boards Composite |
| API Approval | Approved - Full |
| Screw Size | #10 |
| Length (in.) | 2 3/8 |
| Head Diameter (in.) | 0.23 |
| Drive Type | T20 6-Lobe |
| Head Type | Cap Head |
| Thread Type | Tri-Lobe Threads |
| Point Type | Type-17 Point |
| Color | Gray |
| Compatible Tools | Quik Drive® PRO300SG2 |
| Packaging Qty. | 1000 |
