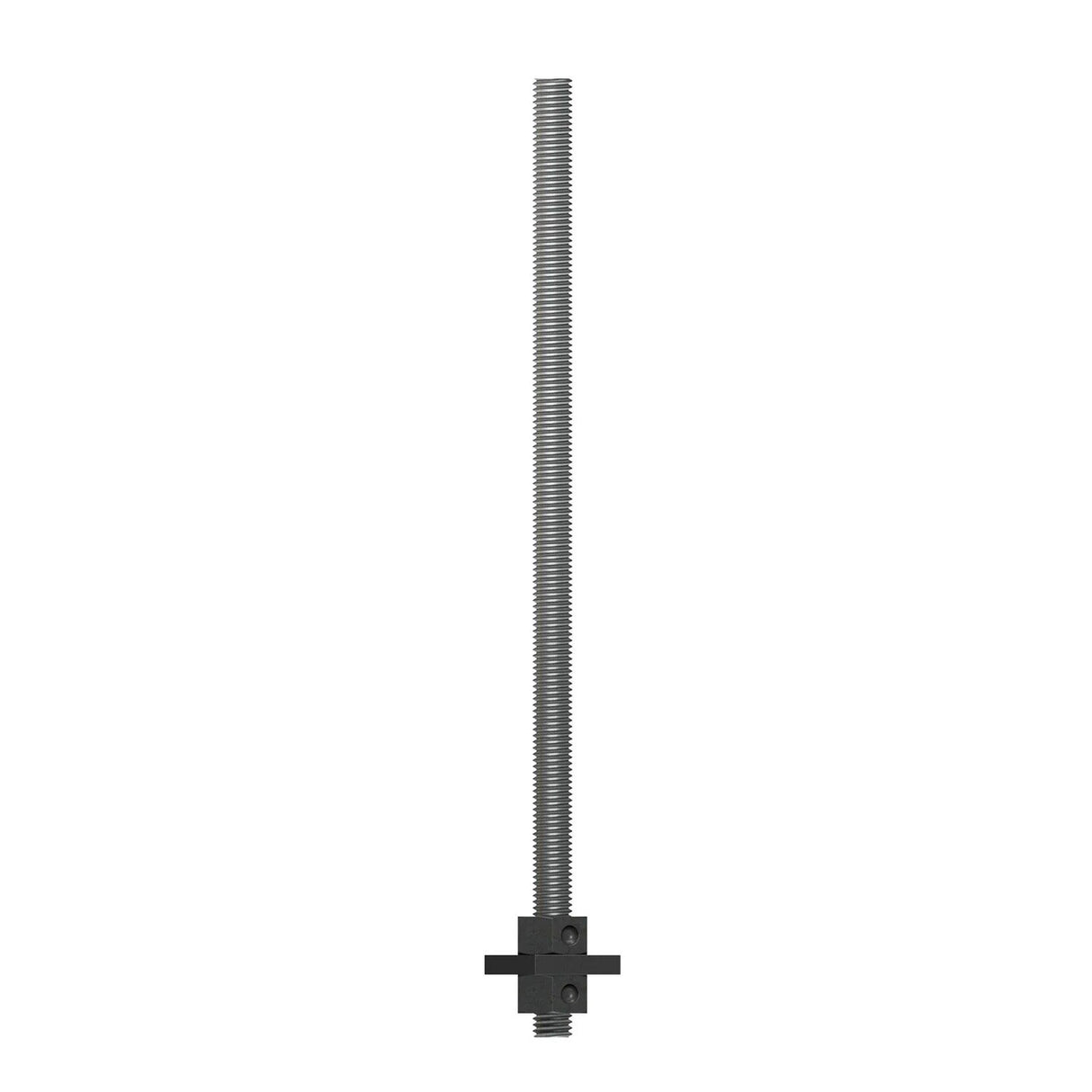

Simpson Strong-Tie PAB4-12-HDG (1/2" x 12") Hot-Dip Galvanized Preassembled Anchor Bolt with Washer
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie PAB4-12-HDG (1/2" x 12") Hot-Dip Galva...
Key Specifications
Description
Description
Simpson Strong-Tie PAB4-12-HDG Description
The Simpson Strong-Tie PAB anchor bolt is a cast-in-place anchor bolt designed for high-tension-load applications such as shearwalls and rod systems. It features a hot-dip galvanized coating for enhanced corrosion resistance and includes a plate washer sandwiched between two fixed hex nuts.
Simpson Strong-Tie PAB4-12-HDG Includes
- (1) 1/2" x 12" Hot-Dip Galvanized Preassembled Anchor Bolt
Simpson Strong-Tie PAB4-12-HDG Features
- Hot-dip galvanized coating for enhanced corrosion resistance
- Preassembled with plate washer and fixed hex nuts
- Made from ASTM F1554 Grade 36 steel
- Designed for high-tension-load applications
Simpson Strong-Tie PAB4-12-HDG Applications
- Shearwalls requiring high-tension load support
- Rod systems in construction projects
- General anchoring applications in concrete
Simpson Strong-Tie PAB4-12-HDG Installation Overview
- Position the anchor bolt in the desired location before pouring concrete.
- Ensure the embedded end with the plate washer is properly aligned.
- Pour concrete around the anchor bolt and allow it to set.
- Attach the required components to the exposed end of the bolt.
Simpson Strong-Tie PAB4-12-HDG Specifications
| Diameter | 1/2" |
| Finish | Hot Dip Galvanized |
| Length | 12" |
| Material | Carbon Steel |
| Weight | 0.8 lb |
