Simpson Strong-Tie SDPW14312-R50 Strong-Drive (0.140" x 3-1/2") T25 SDPW E-coat Deflector Screw, Washer Head, Blue (50 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SDPW14312-R50 Strong-Drive (0.140" x 3-1/2&...
Key Specifications
Description
Description
Simpson Strong-Tie SDPW14312-R50 Description

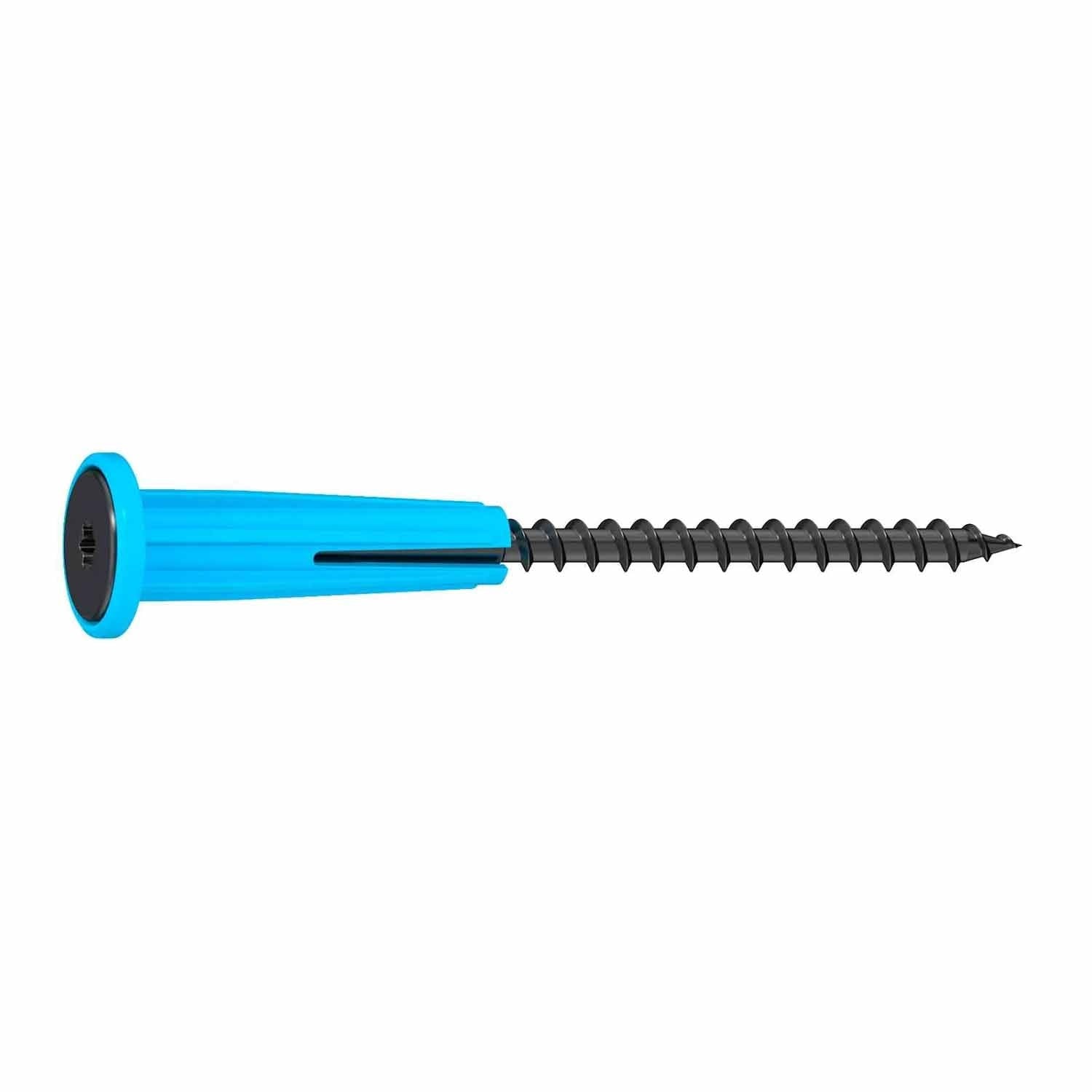

The SDPW Deflector Screw by Simpson Strong-Tie is a premium structural screw designed to provide a strong connection from non-load-bearing walls to trusses and joists. This screw is lateral load tested to meet building code requirements.
Simpson Strong-Tie SDPW14312-R50 Includes
- (50) 0.140 in. x 3-1/2 in. Strong-Drive SDPW Deflector Screw
- (1) Offset Driver Bit
- (1) 3/8 in. Predrill Bit
Simpson Strong-Tie SDPW14312-R50 Features

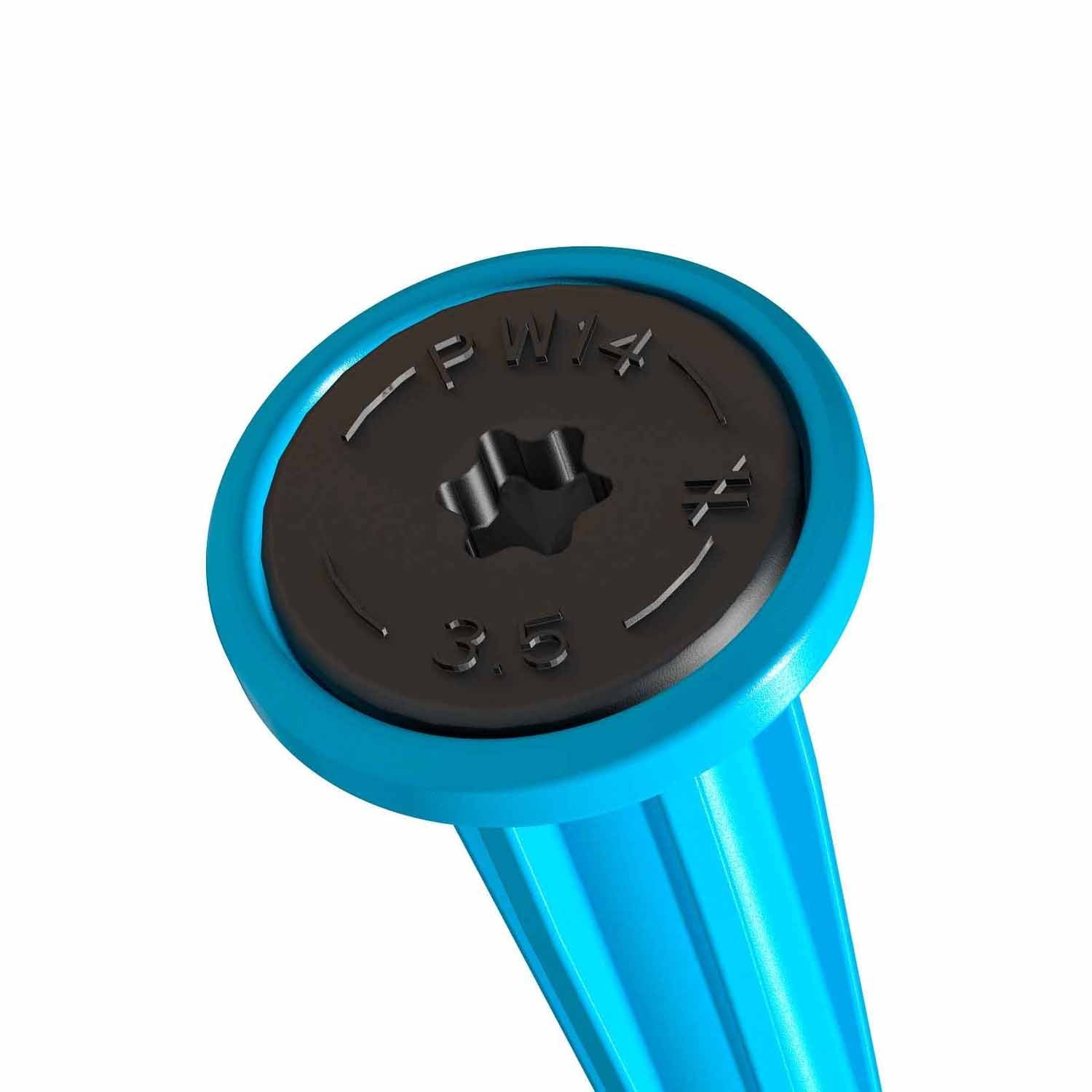

- Deep 6-lobe recess for secure driving
- Polymer sleeve allows for deflection without squeaks
- Interior-grade E-coat for dry service applications
- Offset driver bit (6-lobe) drives SDPW Deflector screw to predetermined screw depth
- Available in 3 1/2", 5" and 6" lengths
Simpson Strong-Tie SDPW14312-R50 Applications

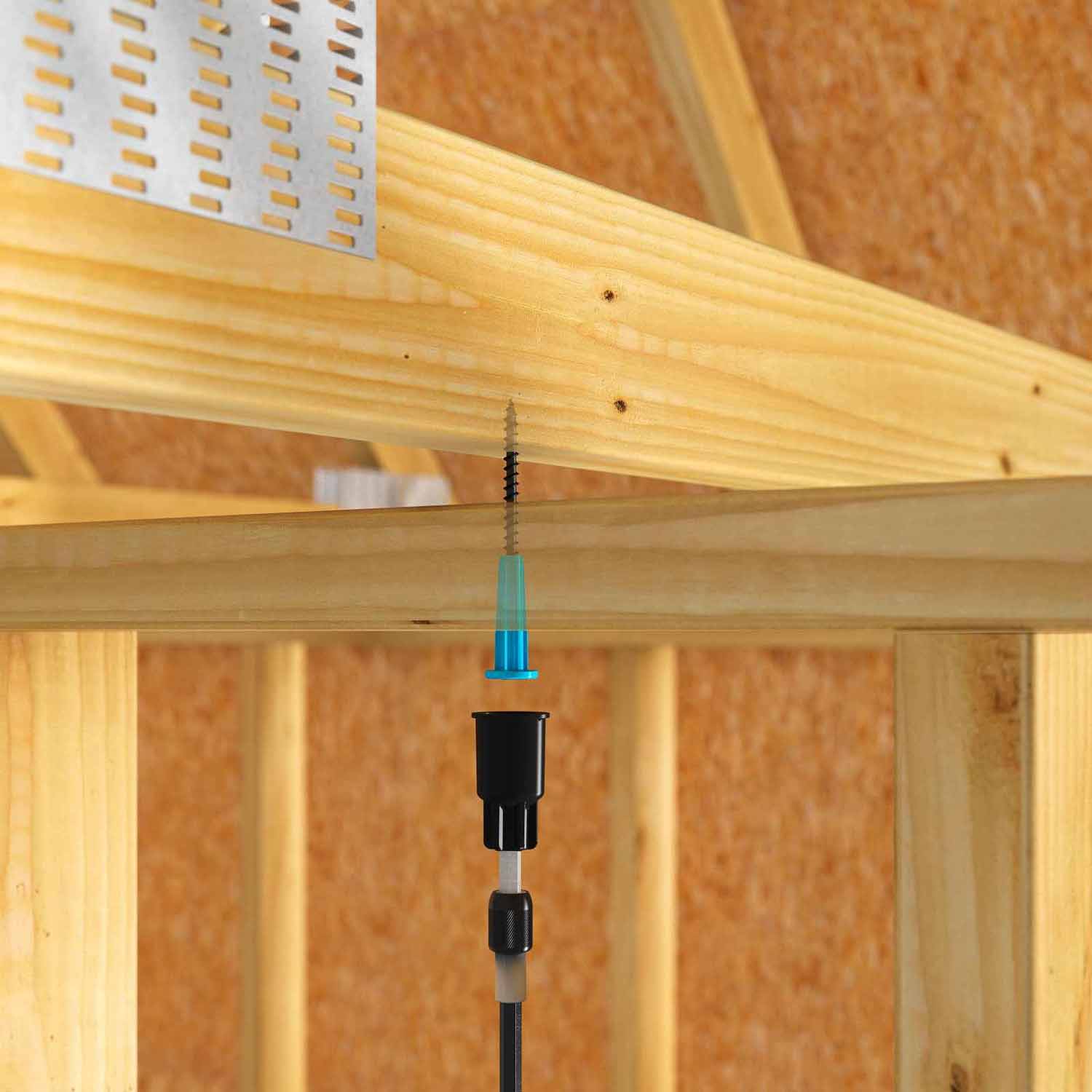

- Non-load-bearing partition walls to trusses and joists
Simpson Strong-Tie SDPW14312-R50 Specifications
| Diameter | 0.140 in. |
| Length | 3-1/2 in. |
| Material | Carbon Steel |
| Color | Blue |
| Drive type | T25 Star Drive |
| Head diameter | 0.440 in. |
| Point type | Type 17 |
| Thread type | Coarse |
| Quantity | 50 |
