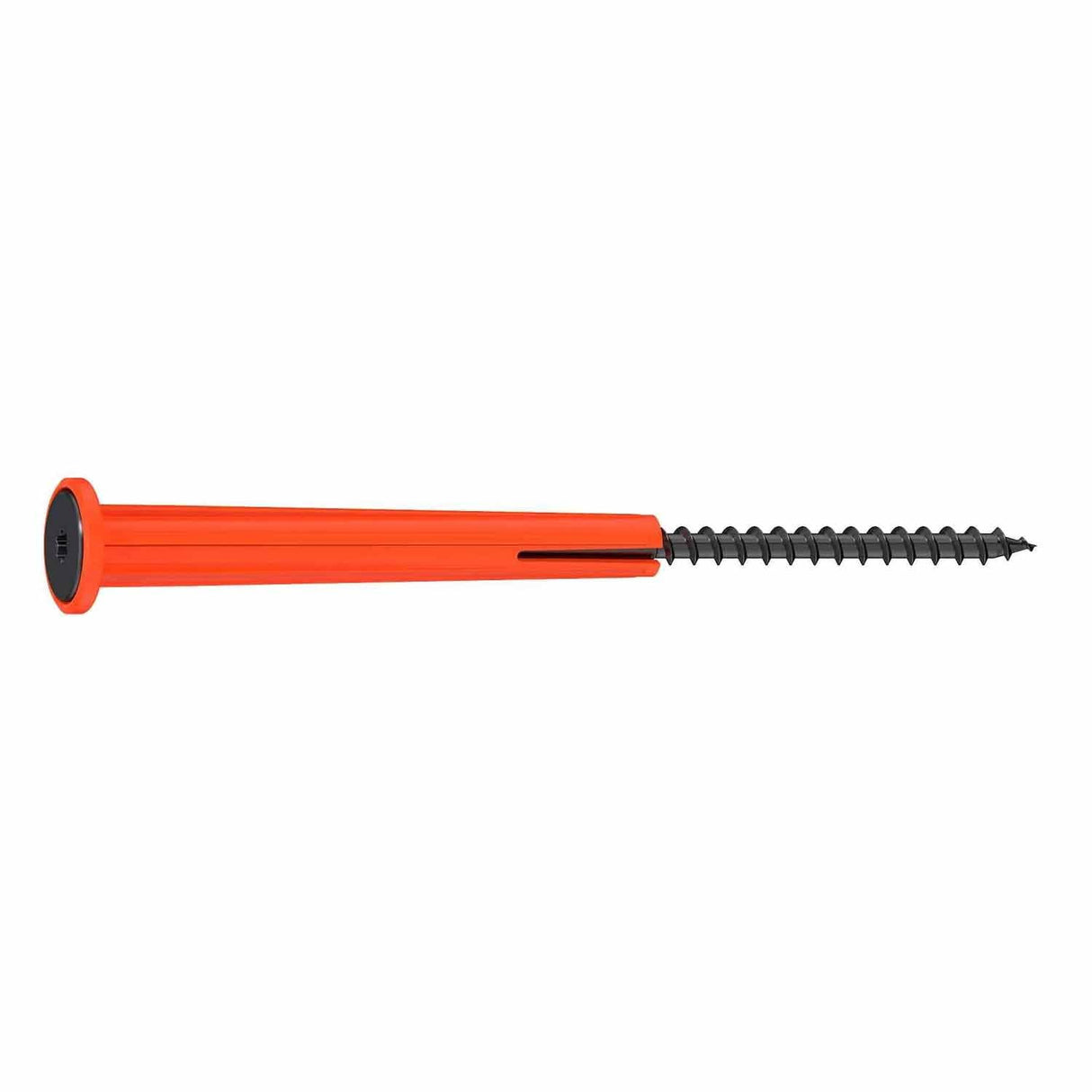

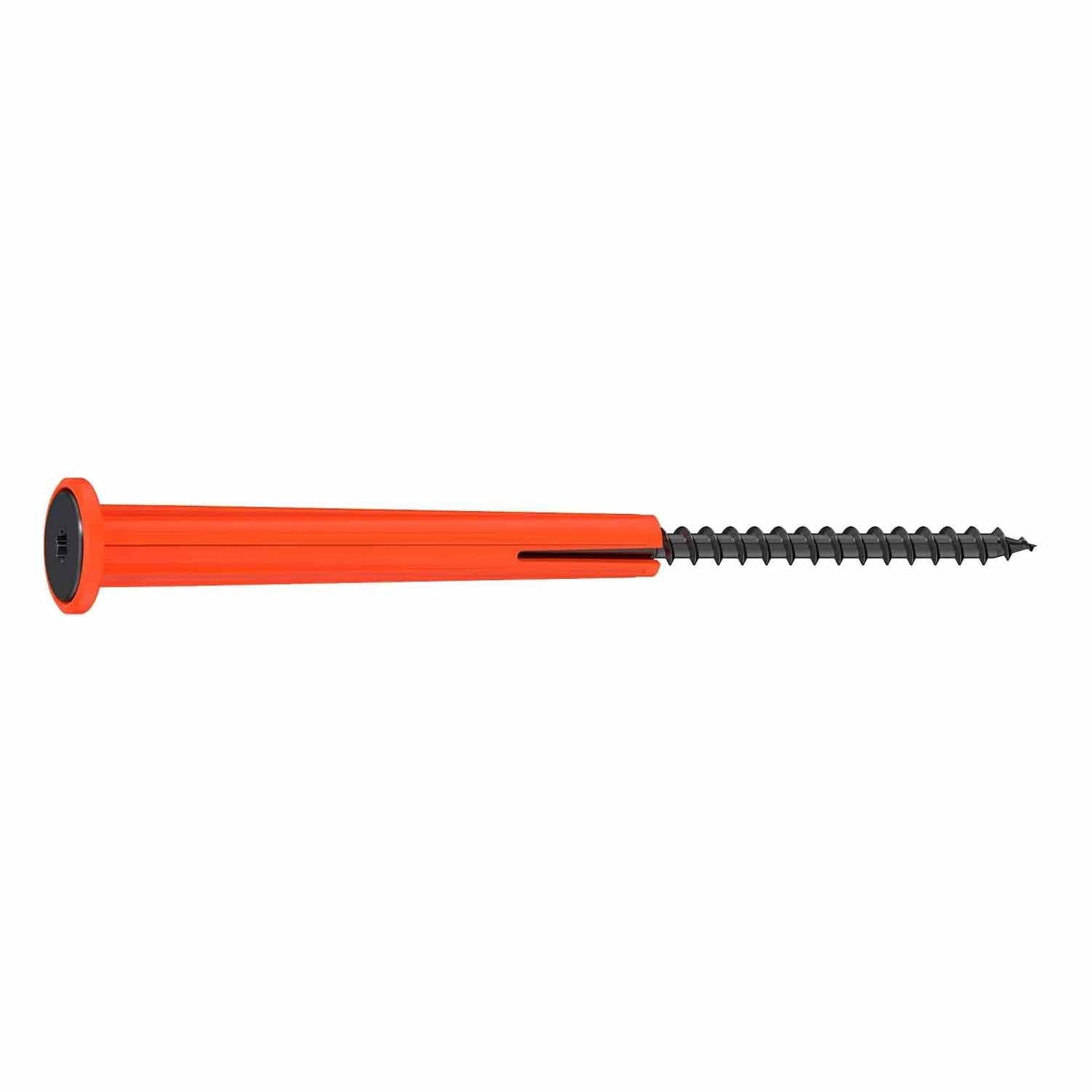

Simpson Strong-Tie SDPW14500-R50 Strong-Drive (0.140" x 5") T25 SDPW E-coat Deflector Screw, Washer Head, Orange (50 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SDPW14500-R50 Strong-Drive (0.140" x 5"...
Key Specifications
Description
Description
Simpson Strong-Tie SDPW14500-R50 Description
The Strong-Drive SDPW Deflector Screw is designed for fastening truss/rafter-to-plate connections, featuring a deep 6-lobe recess for secure driving and a polymer sleeve for deflection without squeaks.
Simpson Strong-Tie SDPW14500-R50 Includes
- (50) Strong-Drive SDPW Deflector Screw
Simpson Strong-Tie SDPW14500-R50 Features

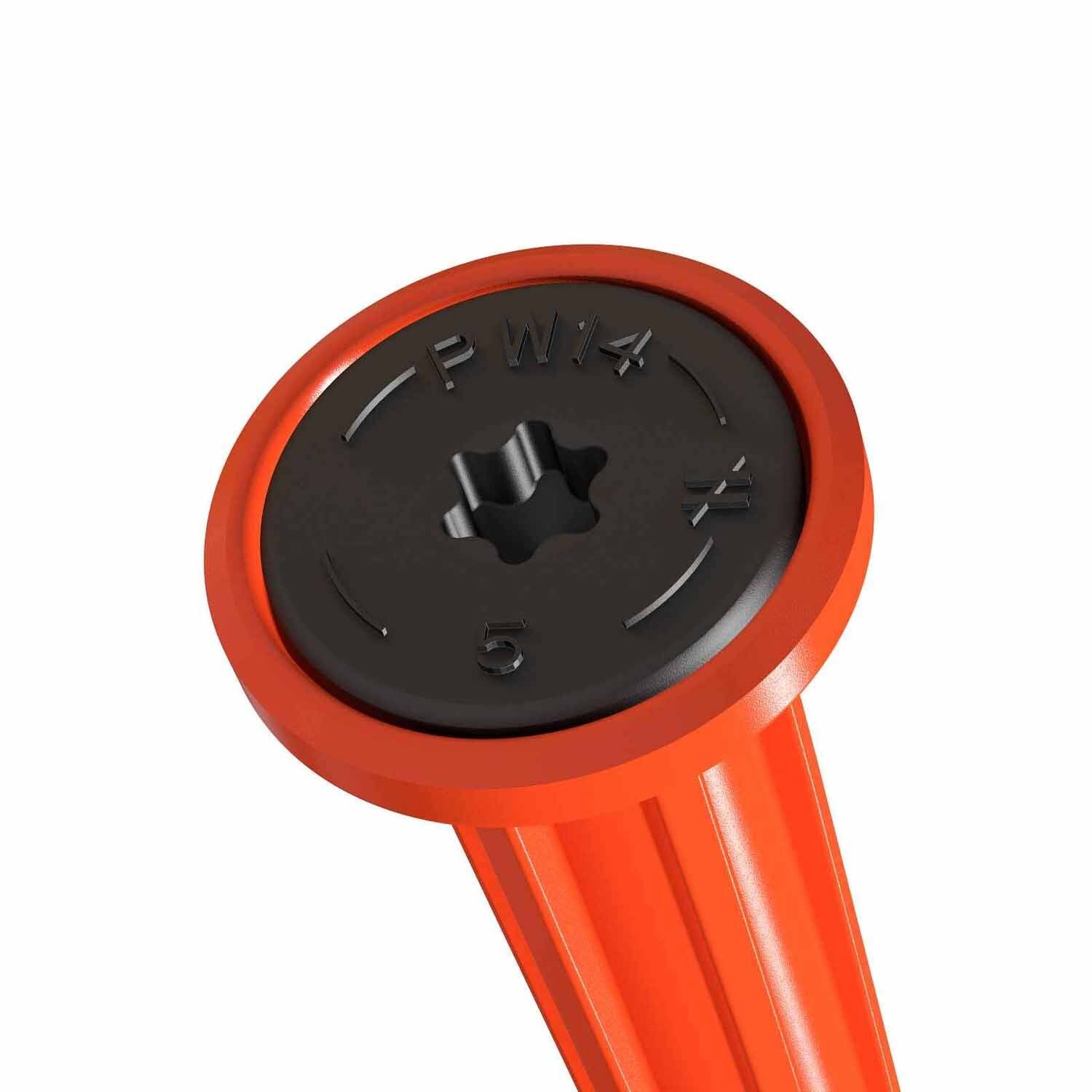

- Deep 6-lobe recess for secure driving
- Polymer sleeve allows for deflection without squeaks
- Interior-grade E-coat for dry service applications

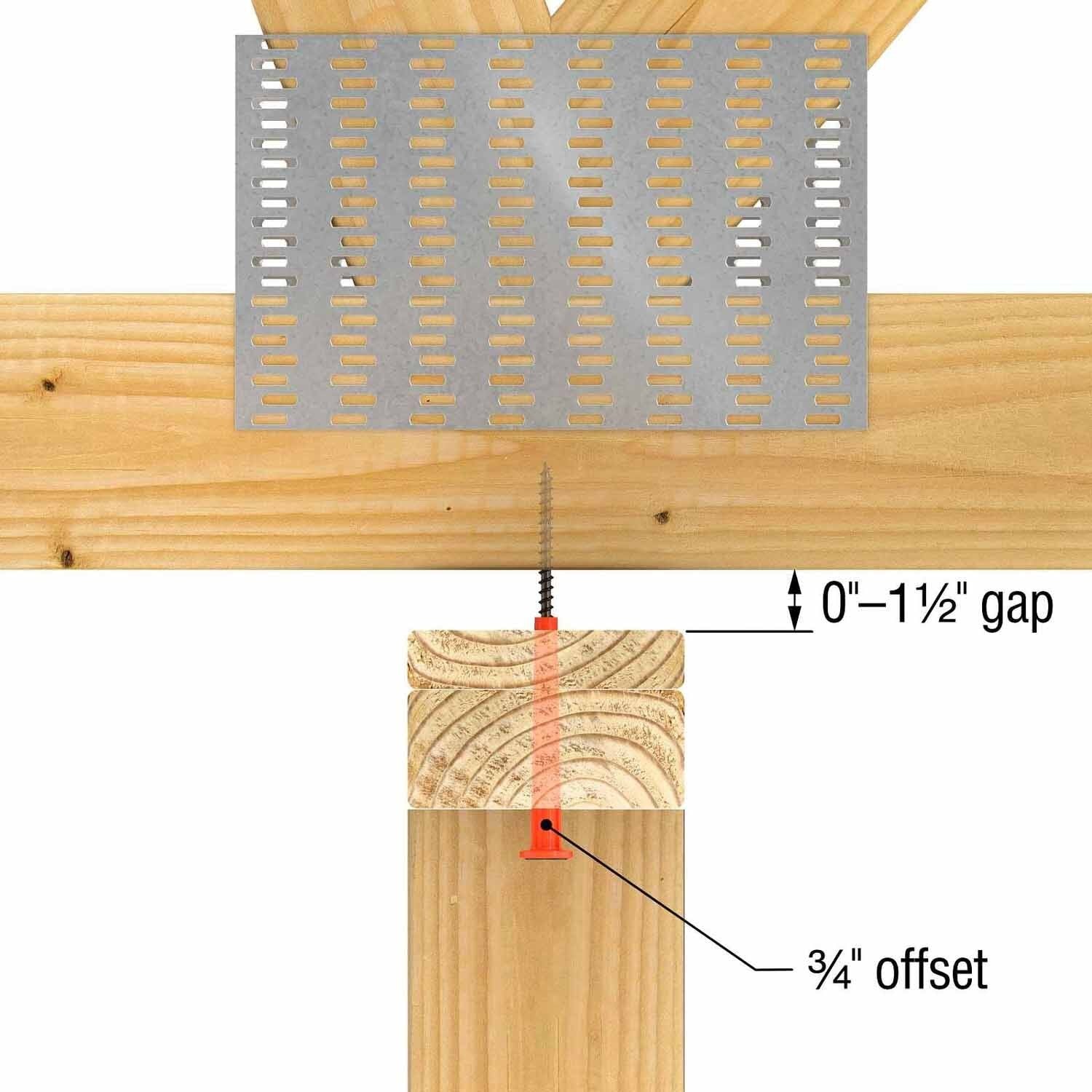

- Offset driver bit drives SDPW Deflector screw to predetermined screw depth
- Available in 3 1/2", 5" and 6" lengths
Simpson Strong-Tie SDPW14500-R50 Applications

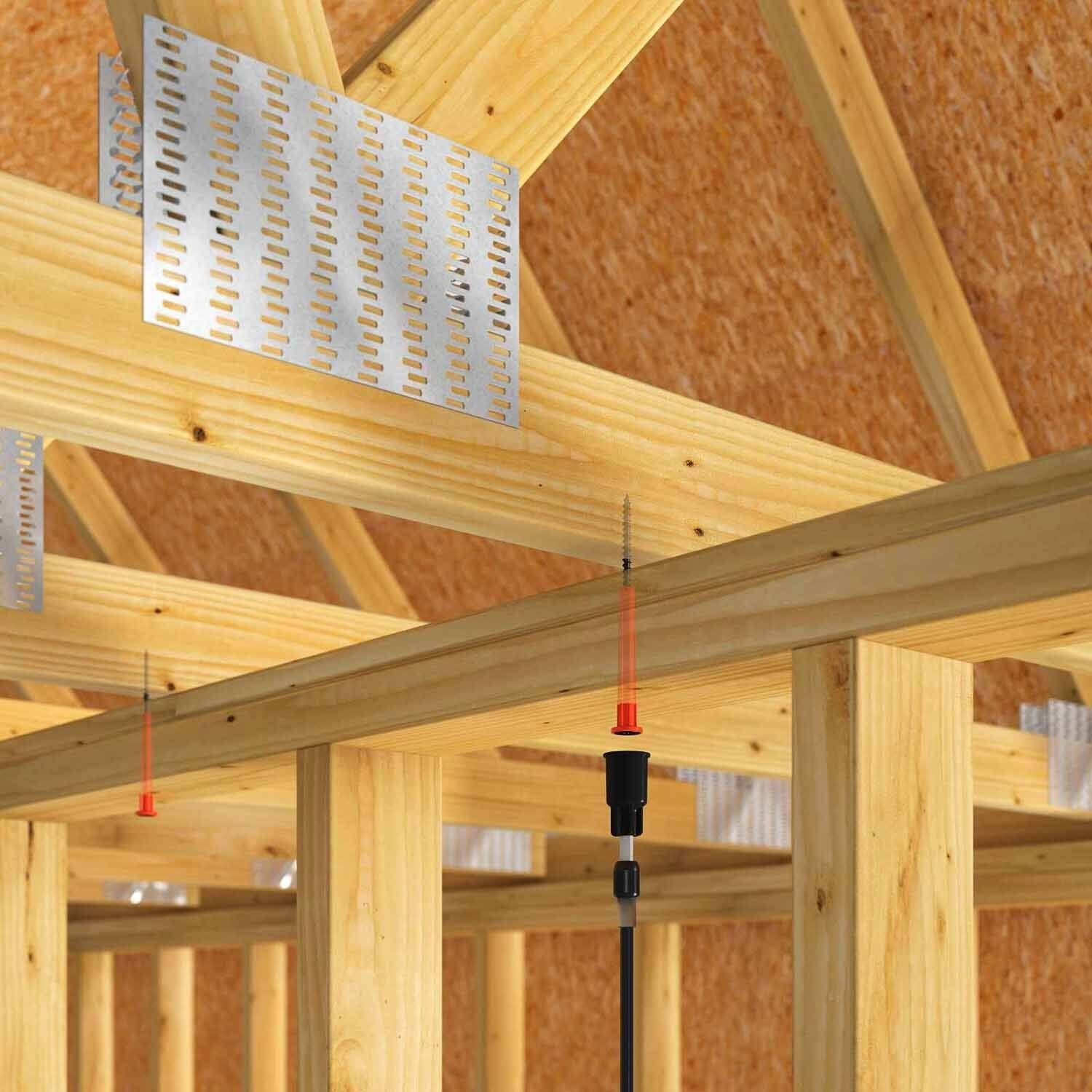

- Non-load-bearing partition walls to trusses and joists
Simpson Strong-Tie SDPW14500-R50 Installation Overview
- Refer to the installation guide for detailed instructions.
Simpson Strong-Tie SDPW14500-R50 Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening Truss/Rafter-to-Plate |
| Coating/Material | E-coat Electrocoating |
| Length (in.) | 5 |
| Head Diameter (in.) | 0.55 |
| Shank Diameter (in.) | 0.14 |
| Drive Type | T25 6-Lobe |
| Head Type | Washer Head |
| Thread Type | Coarse Threads |
| Thread Length (in.) | 2 |
| Point Type | Type-17 Point |
| Color | Orange |
| Packaging Qty. | 50 |
NOTE: Ensure the screws are installed using the specified offset driver bit for optimal performance.
