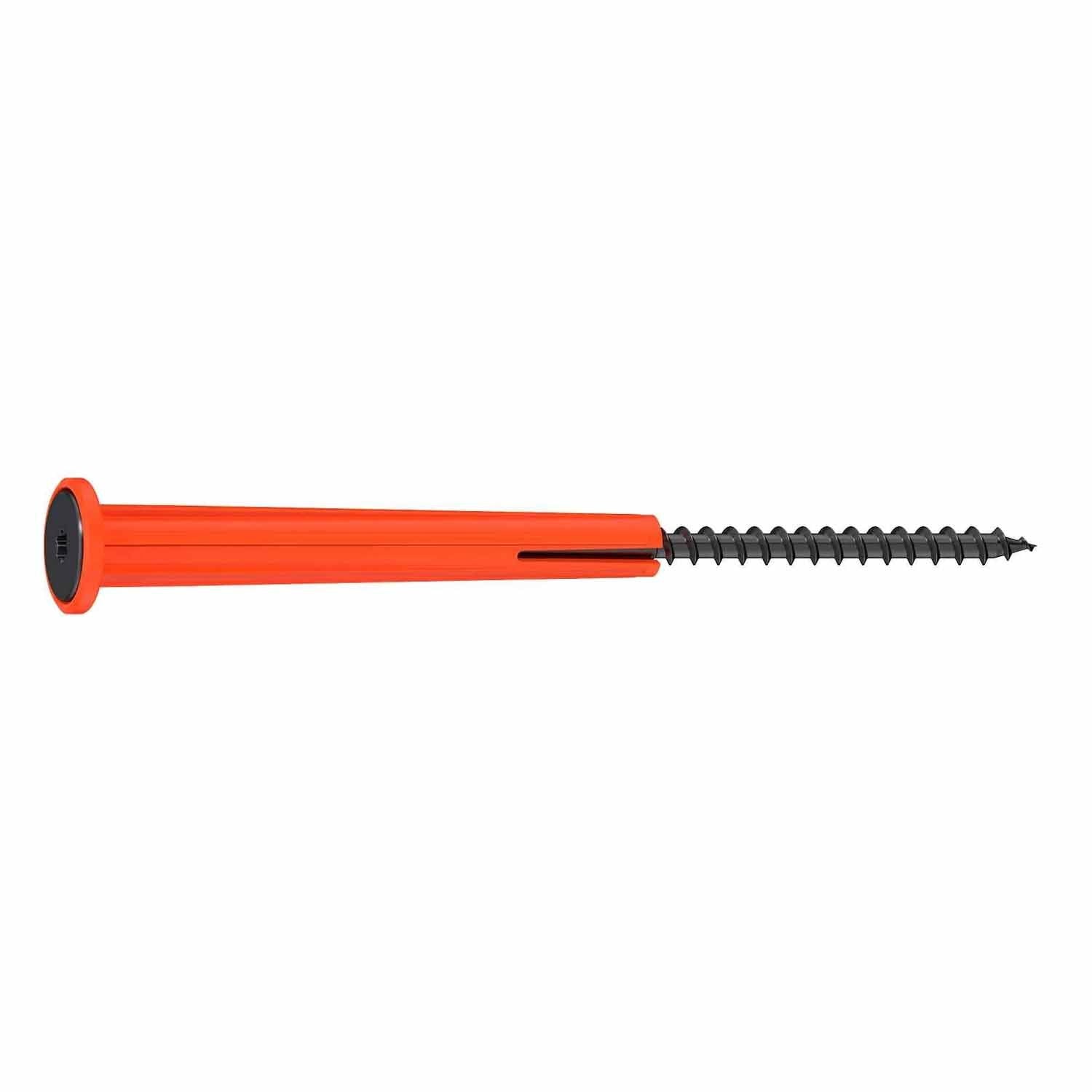

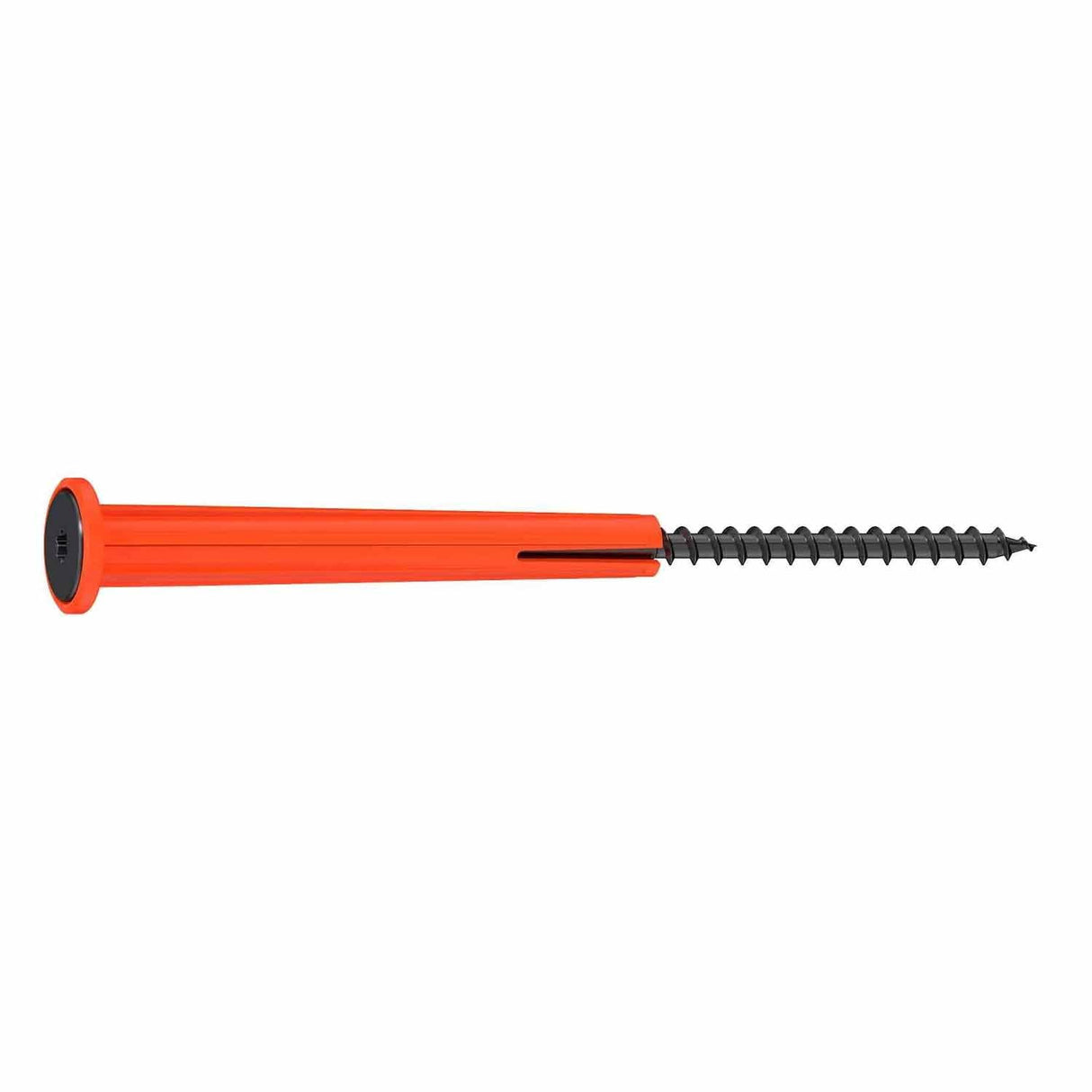

Simpson Strong-Tie SDPW14500MB Strong-Drive (0.140" x 5") T25 SDPW E-coat Deflector Screw, Washer Head, Orange (500 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SDPW14500MB Strong-Drive (0.140" x 5")...
Key Specifications
Description
Description
Simpson Strong-Tie SDPW14500MB Description
The SDPW Deflector Screw by Simpson Strong-Tie is a premium structural screw designed to provide a strong connection from non-load-bearing walls to trusses and joists. This screw is lateral load tested to meet building code requirements.
Simpson Strong-Tie SDPW14500MB Includes
- (500) 0.140 in. x 5 in. Strong-Drive SDPW Deflector Screws
- (2) Offset Driver Bits
- (2) 3/8 in. Predrill Bits
Simpson Strong-Tie SDPW14500MB Features

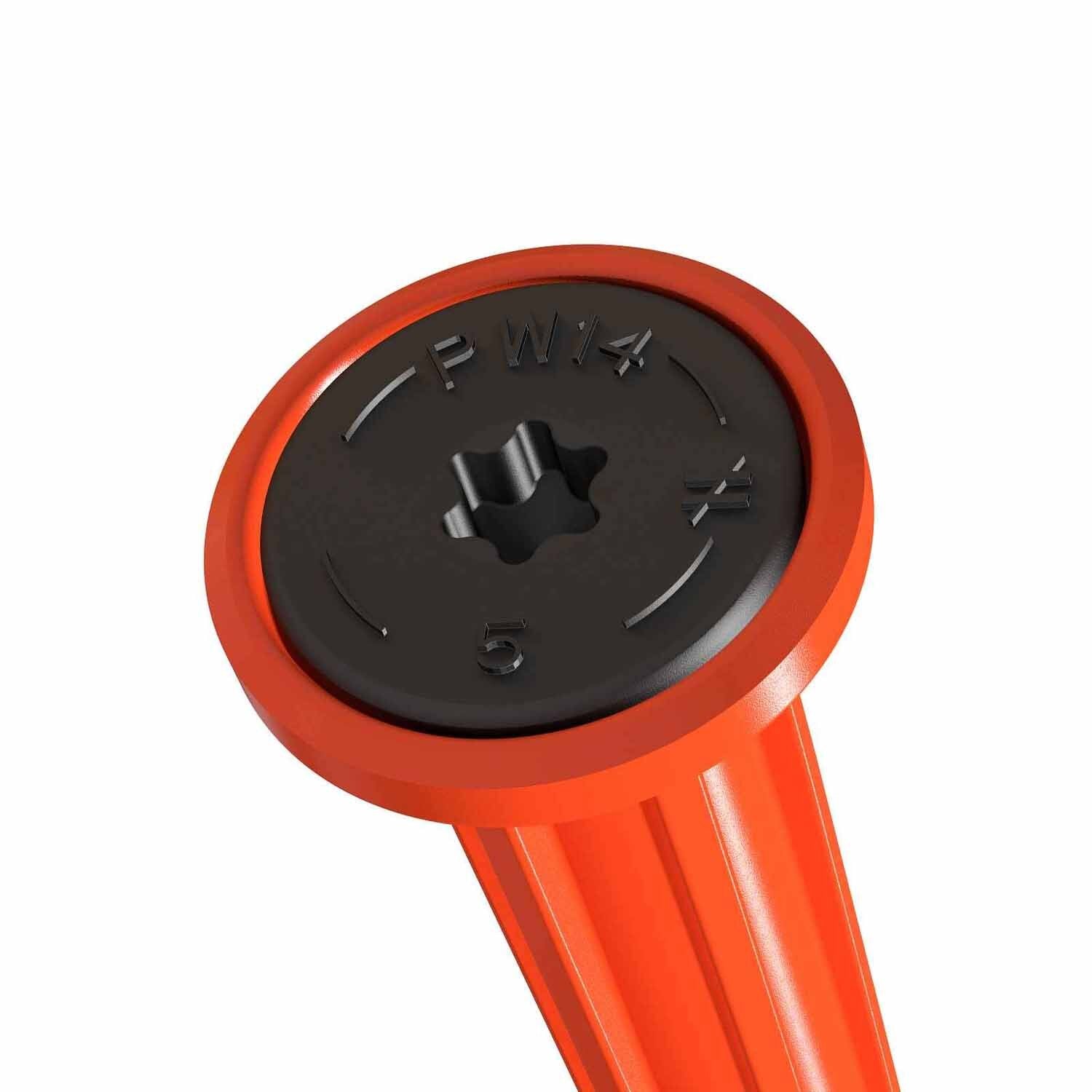

- Deep 6-lobe recess for secure driving
- Polymer sleeve allows for deflection without squeaks
- Interior-grade E-coat for dry service applications

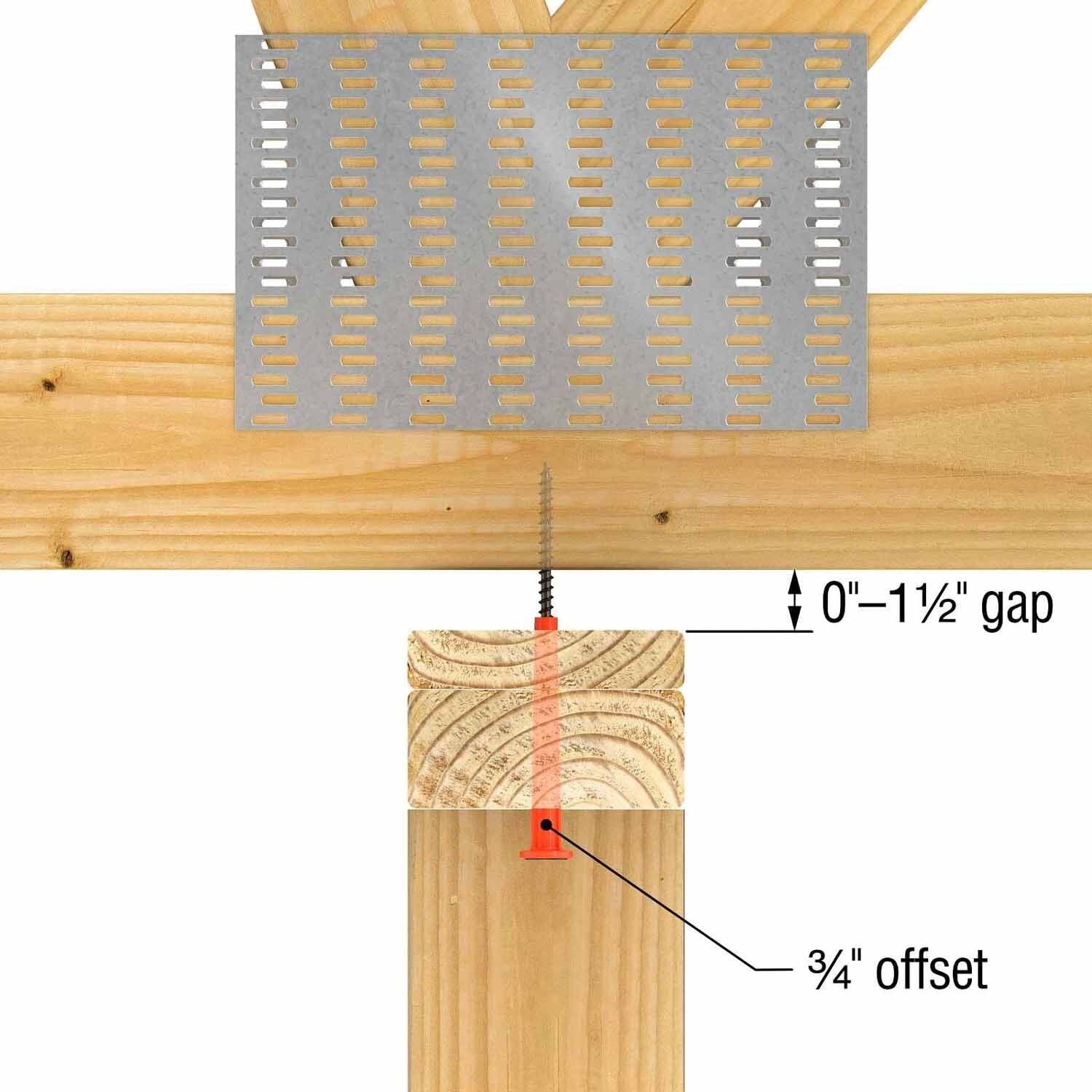

- Offset driver bit drives SDPW Deflector screw to predetermined screw depth
- Available in 3 1/2", 5", and 6" lengths
Simpson Strong-Tie SDPW14500MB Applications

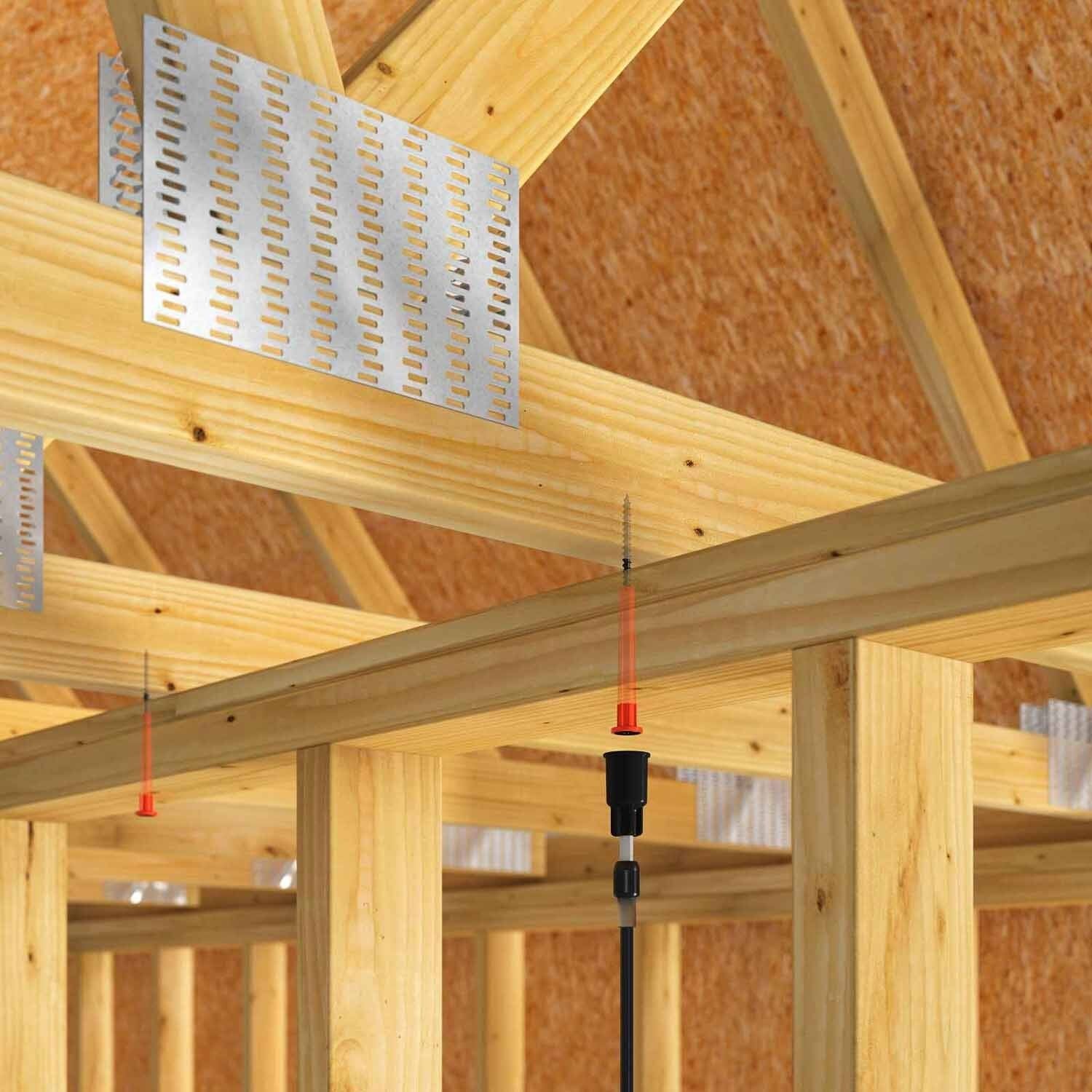

- Non-load-bearing partition walls to trusses and joists
Simpson Strong-Tie SDPW14500MB Specifications
| Diameter | 0.140 in. |
| Length | 5 in. |
| Color | Orange |
| Drive Type | T25 Star Drive |
| Head Type | Washer Head |
| Point Type | Type 17 |
| Thread Type | Coarse |
| Finish | E-Coat |
