Simpson Strong-Tie SDPW19600-R50 Strong-Drive (0.140" x 6") T25 SDPW E-coat Deflector Screw, Washer Head, Gray (50 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SDPW19600-R50 Strong-Drive (0.140" x 6"...
Key Specifications
Description
Description
Simpson Strong-Tie SDPW19600-R50 Description

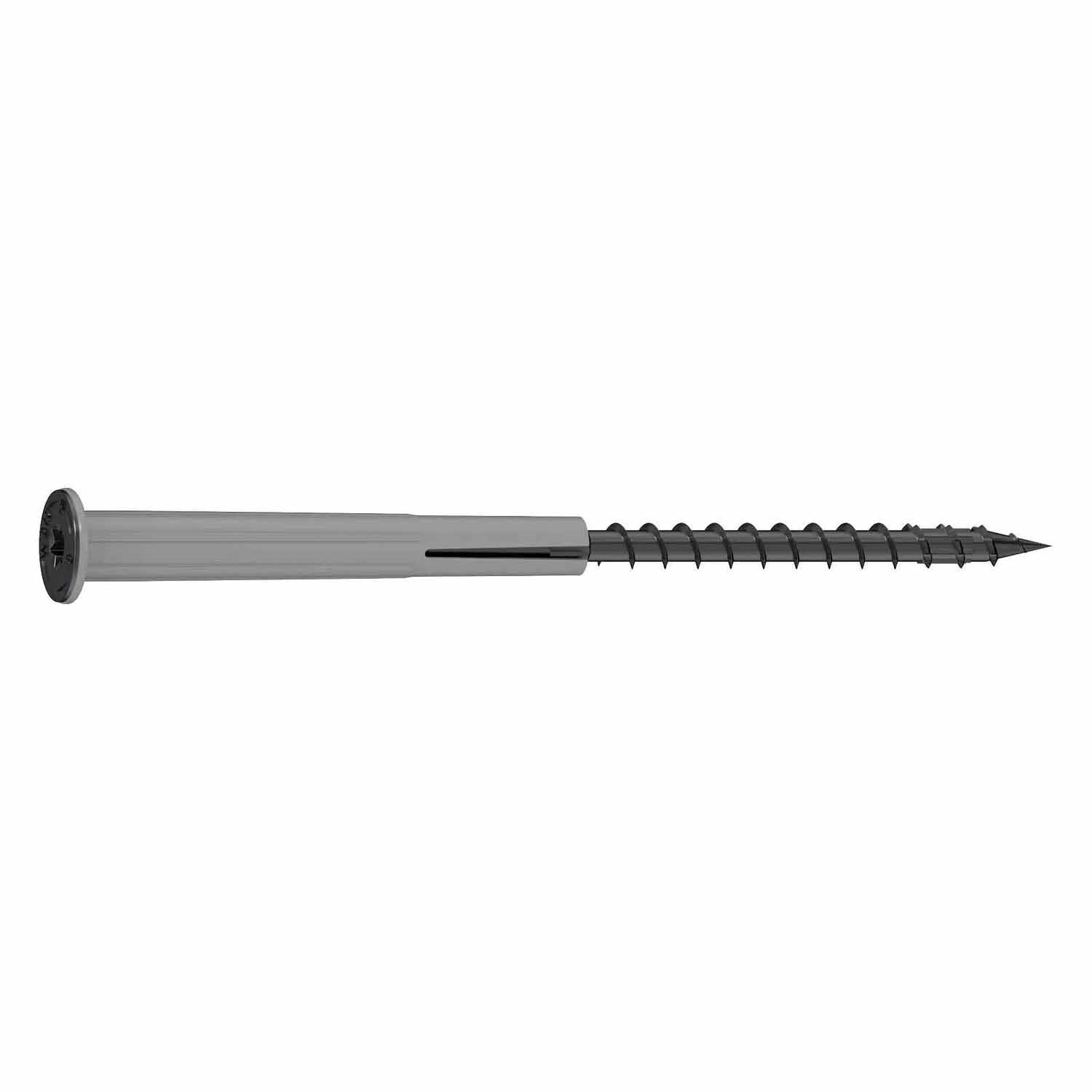

The SDPW Deflector Screw by Simpson Strong-Tie is a premium structural screw designed to provide a strong connection from non-load-bearing walls to trusses and joists.
Simpson Strong-Tie SDPW19600-R50 Includes
- (50) 0.195" x 6" SDPW Deflector Screws
- (2) Offset Driver Bits
- (2) 3/8" Predrill Bits
Simpson Strong-Tie SDPW19600-R50 Features
- Interior-grade E-Coating for dry service applications
- Polymer sleeve for sliding without squeaks during deflection
- Lateral load tested to meet building code requirements
- Includes offset driver bits and predrill bits for improved installation
Simpson Strong-Tie SDPW19600-R50 Applications

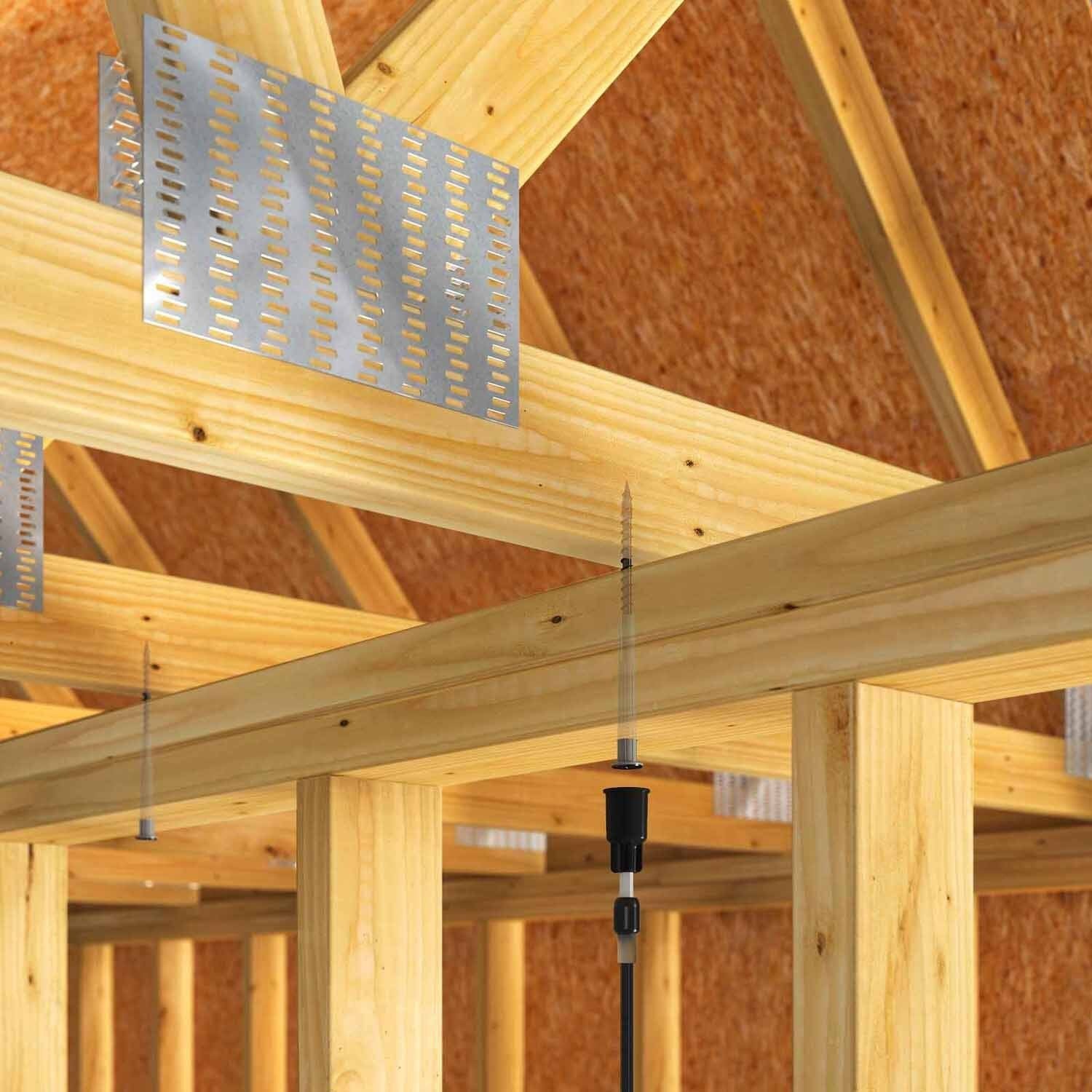

- Connecting non-load-bearing walls to trusses and joists
- Dry service applications requiring structural screws
Simpson Strong-Tie SDPW19600-R50 Installation Overview
- Prepare the wall and truss or joist for connection
- Use the predrill bit to create pilot holes
- Insert the SDPW Deflector Screw using the offset driver bit
- Ensure the screw is securely fastened
Simpson Strong-Tie SDPW19600-R50 Specifications
| Diameter | .195" |
| Length | 6" |
| Color | Gray |
| Drive type | T40 Star Drive |
| Fasteners required | All Fasteners Included |
| Point type | Sawtooth |
| Quantity | 50 |
| Thread type | Serrated |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
