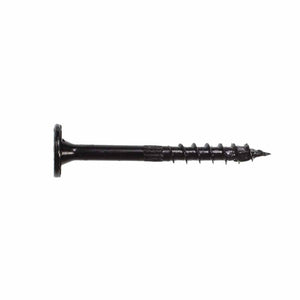

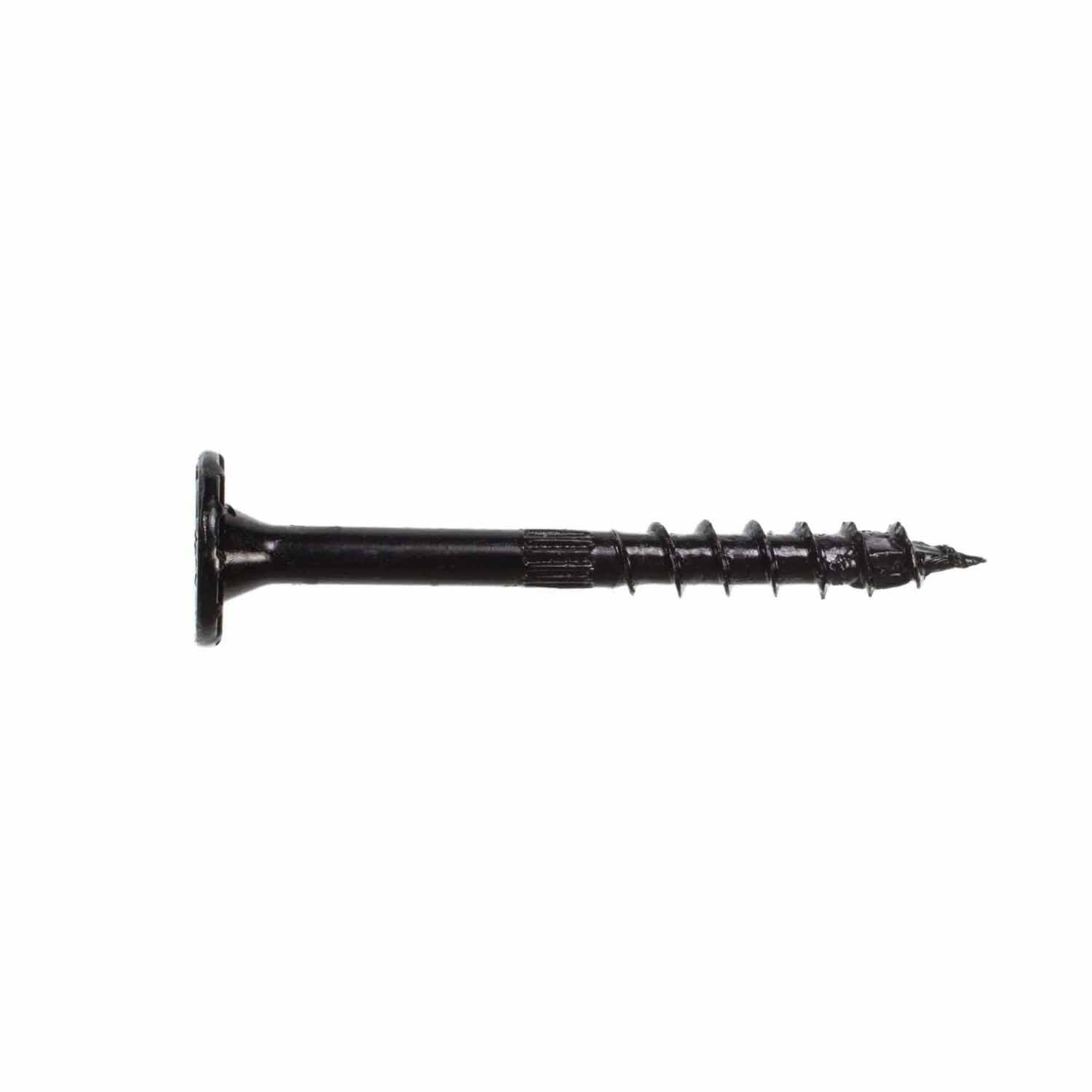

Simpson Strong-Tie SDW22300MB Strong-Drive (.220 in. x 3") T40 E-coat Truss-Ply Screw, Low Profile Head (250 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SDW22300MB Strong-Drive (.220 in. x 3") T40...
Key Specifications
Description
Description
Simpson Strong-Tie SDW22300MB Description
The Strong-Drive SDW Truss-Ply Screw is designed for joining plated trusses and solid sawn lumber, offering optimized lengths for fastening multi-ply trusses and beams.
Simpson Strong-Tie SDW22300MB Includes
- (250) 2-15/16 in. Strong-Tie SDW22300MB Truss-Ply Screws
Simpson Strong-Tie SDW22300MB Features

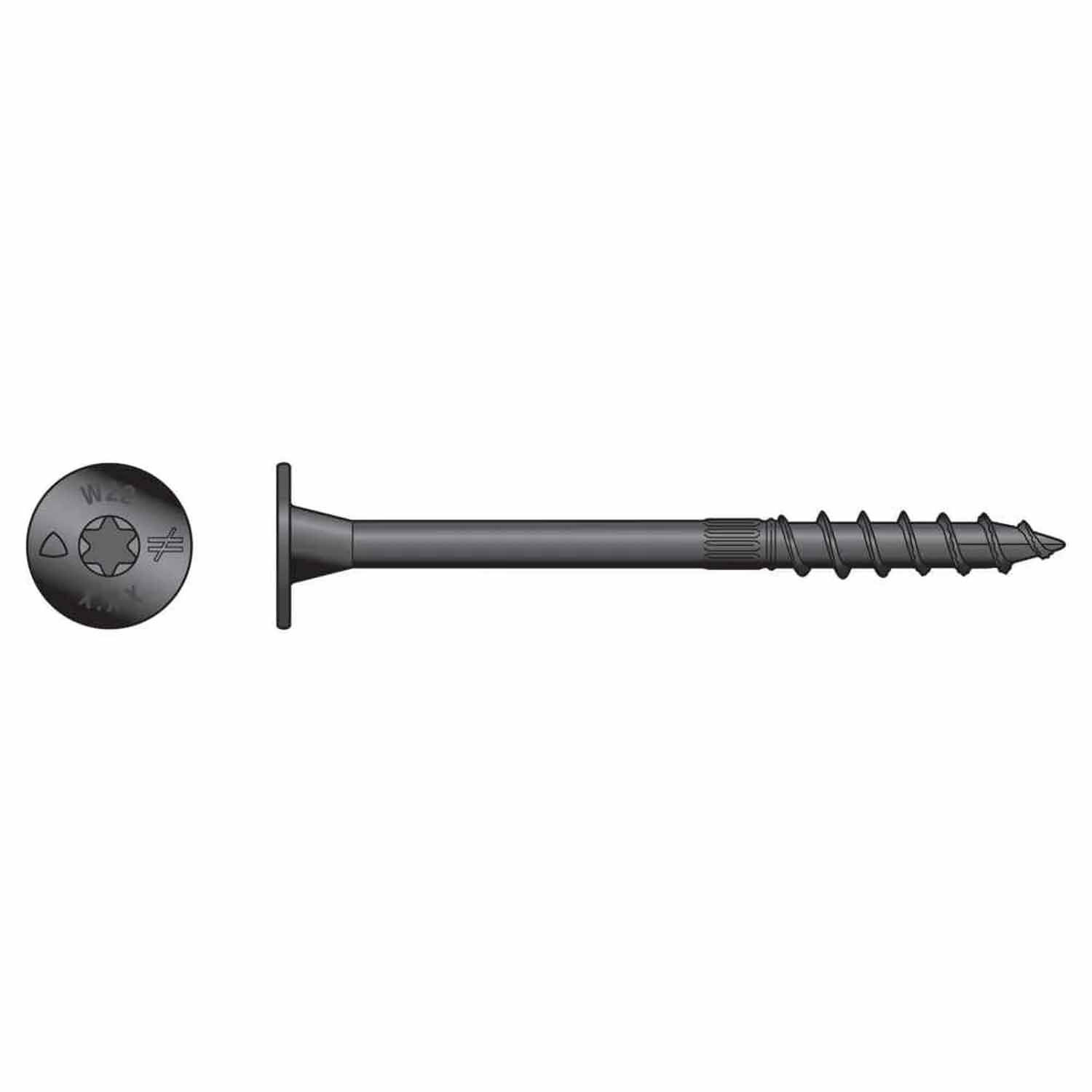

- Large washer head with nibs for maximum bearing area
- 6-lobe, T40 drive for positive engagement
- Low-profile head for reduced interference
- Higher shear values for wider spacing
- Bold thread design for superior holding power
- SawTooth point for fast starts and reduced torque
Simpson Strong-Tie SDW22300MB Applications
- Truss-ply fastening
- Joining plated trusses and solid sawn lumber
Simpson Strong-Tie SDW22300MB Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening Wood-to-Wood |
| Coating/Material | E-Coat Electrocoating |
| Length | 2-15/16 inches |
| Head Diameter | 0.760 inches |
| Shank Diameter | 0.220 inches |
| Drive Type | T40 6-Lobe |
| Head Type | Low Profile Head |
| Thread Length | 1-7/16 inches |
| Point Type | SawTooth Point |
| Packaging Quantity | 250 |
NOTE: If assembly is less than or equal to 4 9/16 inches thick, use the SDW22438. If assembly is less than or equal to 6 3/16 inches thick, use the SDW22600.
