Simpson Strong-Tie SDWS22300DB-R12 Strong-Drive (0.220" x 3") T40 SDWS Timber Screw (Exterior Grade) Tan (12 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SDWS22300DB-R12 Strong-Drive (0.220" x 3&qu...
Key Specifications
Description
Description
Simpson Strong-Tie SDWS22300DB-R12 Description

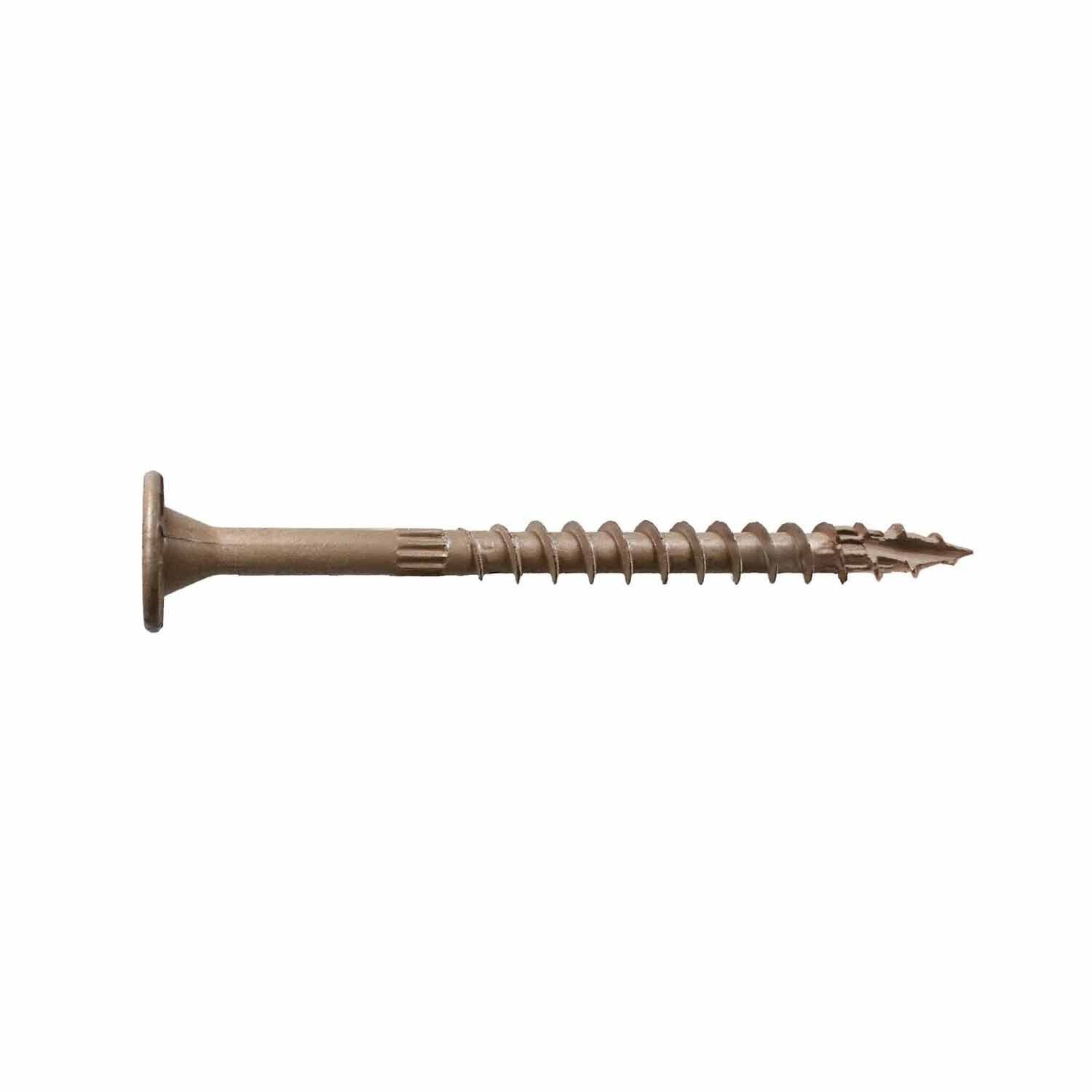

The Strong-Tie SDWS Timber Screws are designed for superior wood-to-wood fastening, featuring a 4CUT tip for no pre-drilling and a double barrier coating for corrosion resistance.
Simpson Strong-Tie SDWS22300DB-R12 Includes

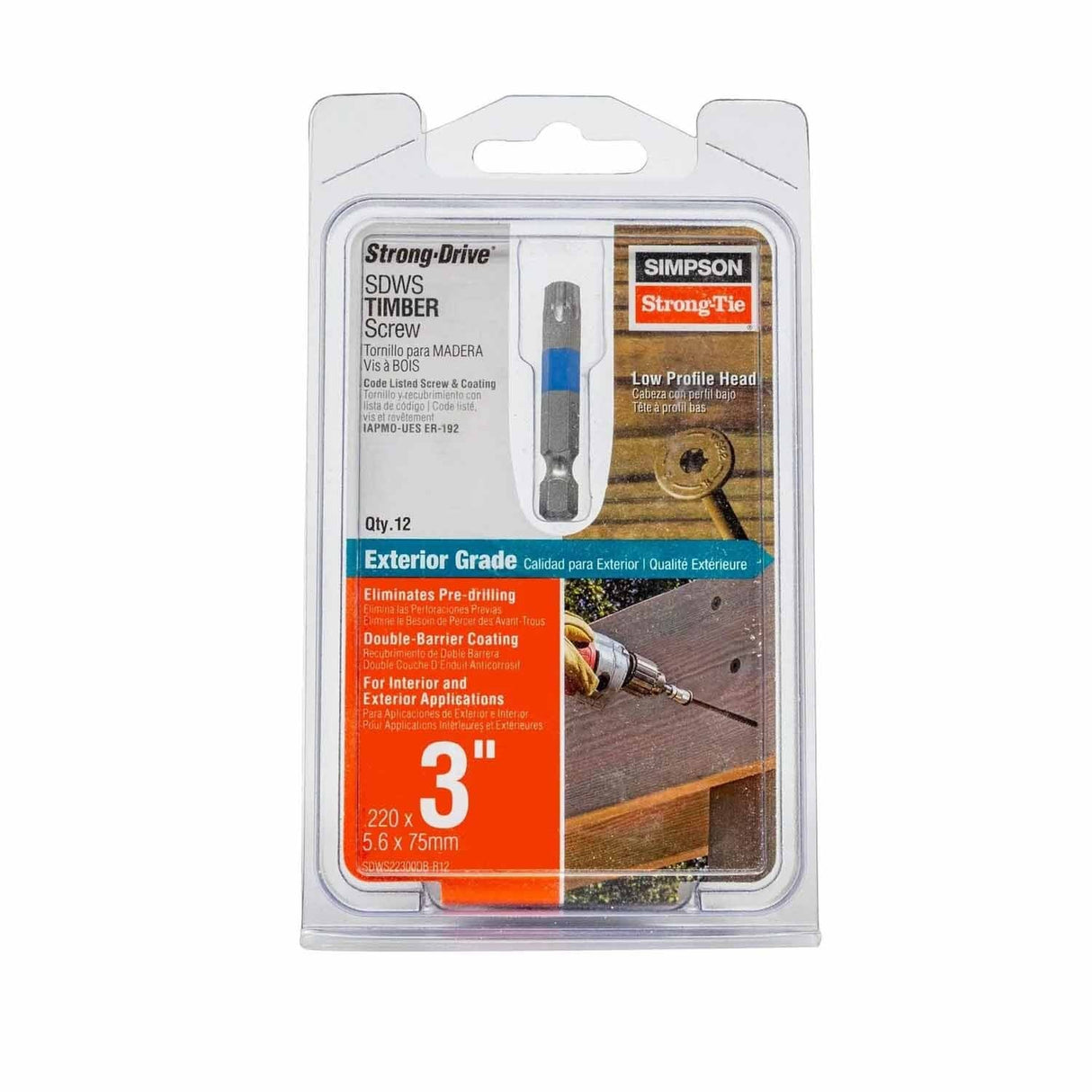

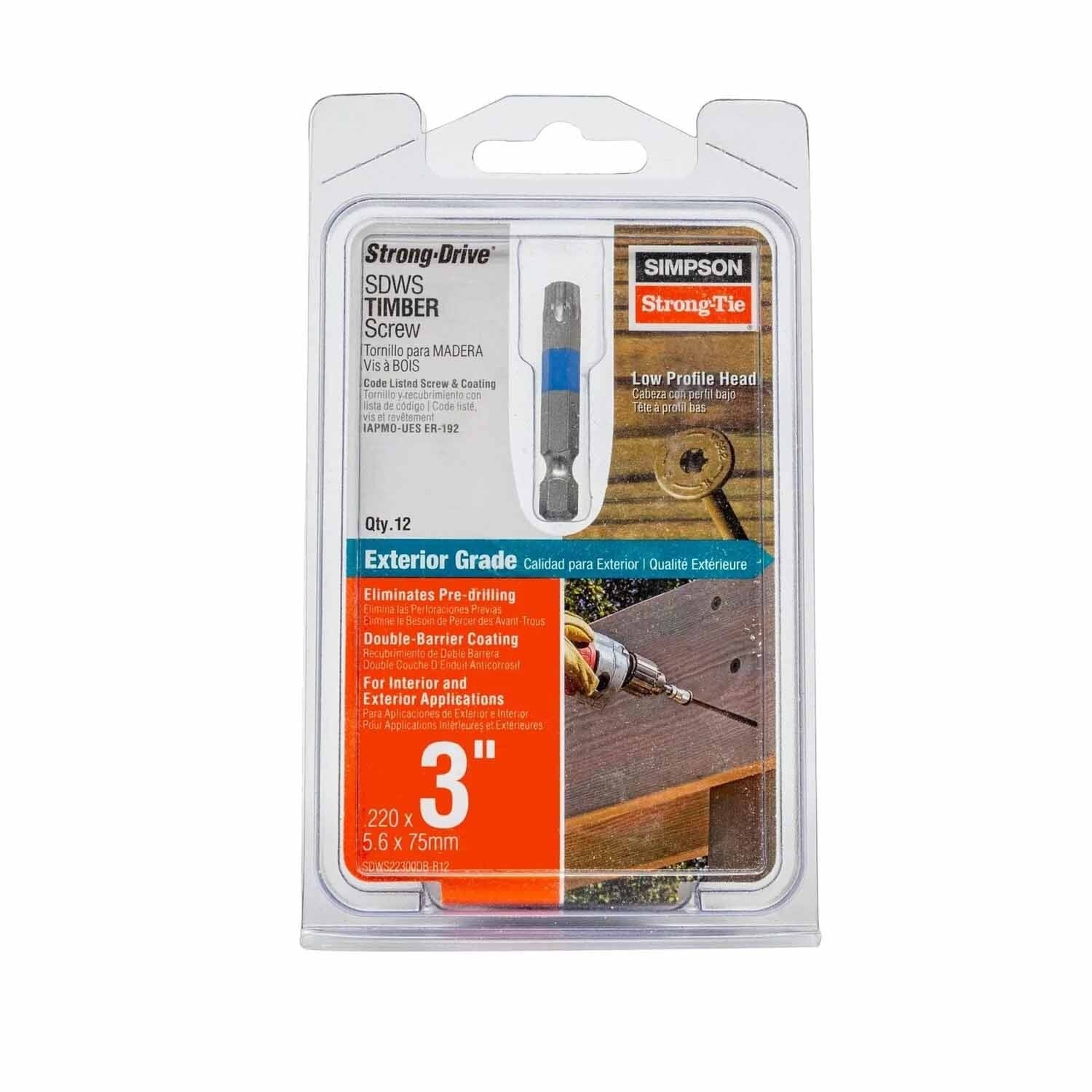

- (12) Strong-Drive SDWS Timber Screw Exterior Grade T40 Tan
Simpson Strong-Tie SDWS22300DB-R12 Features
- Bold thread design for superior holding power
- SawTooth point for fast starts and reduced installation torque
- Underhead nibs for flush driving and reduced splintering
- Large washer head for a large bearing area
- Size identification on all screw heads
- 6-lobe T40 drive for positive engagement and improved bit life
- Double-barrier coating for corrosion resistance
Simpson Strong-Tie SDWS22300DB-R12 Applications

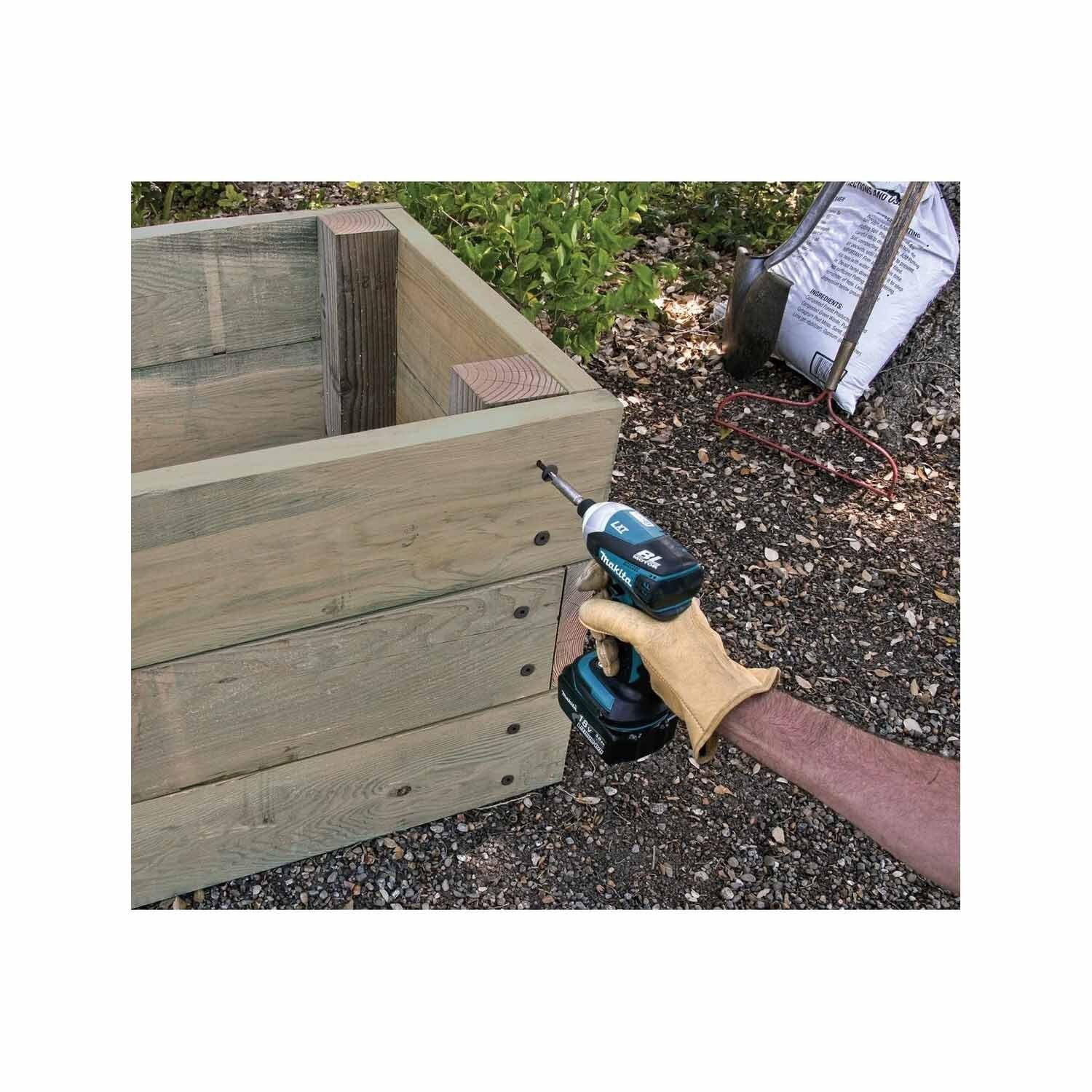

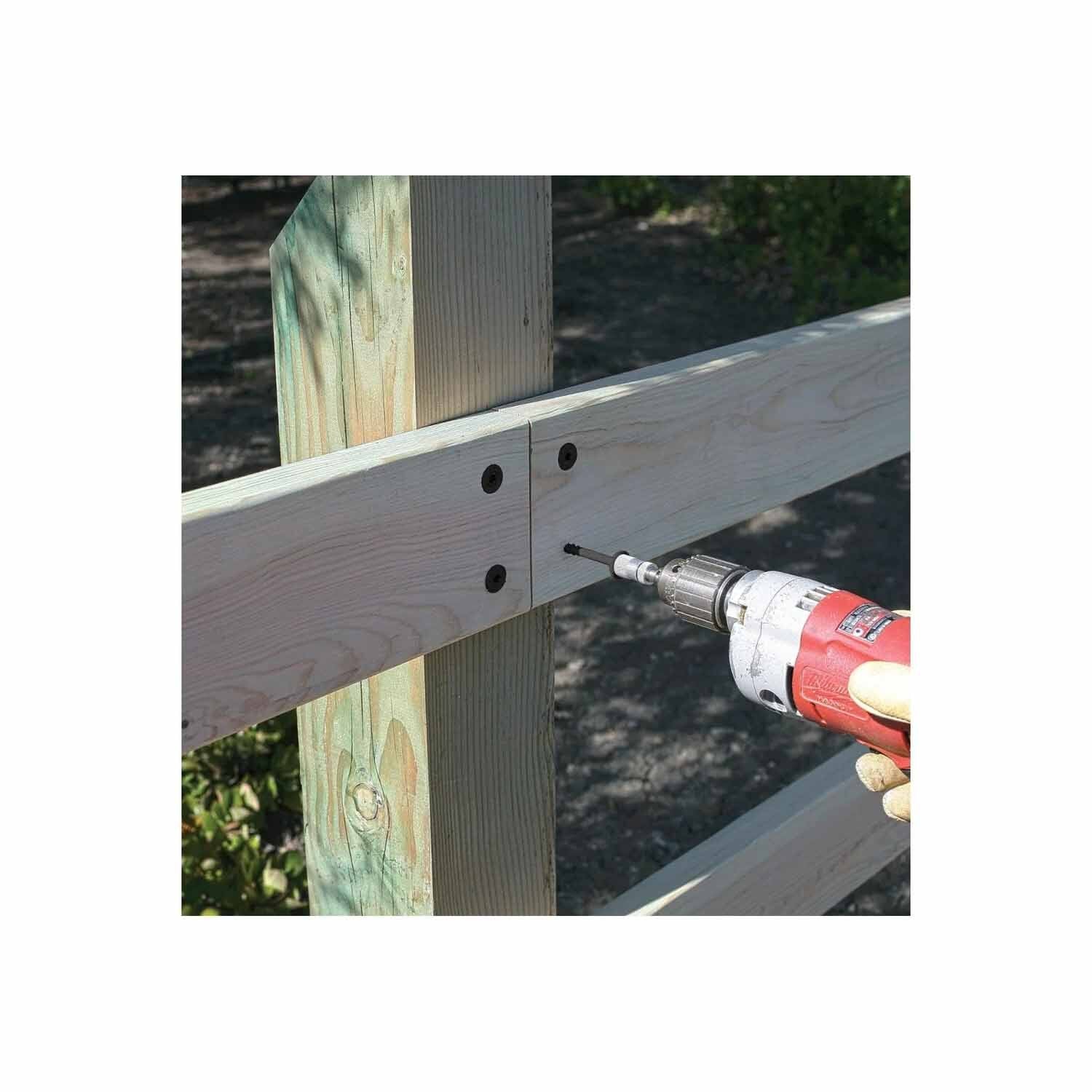

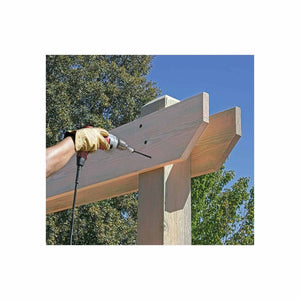

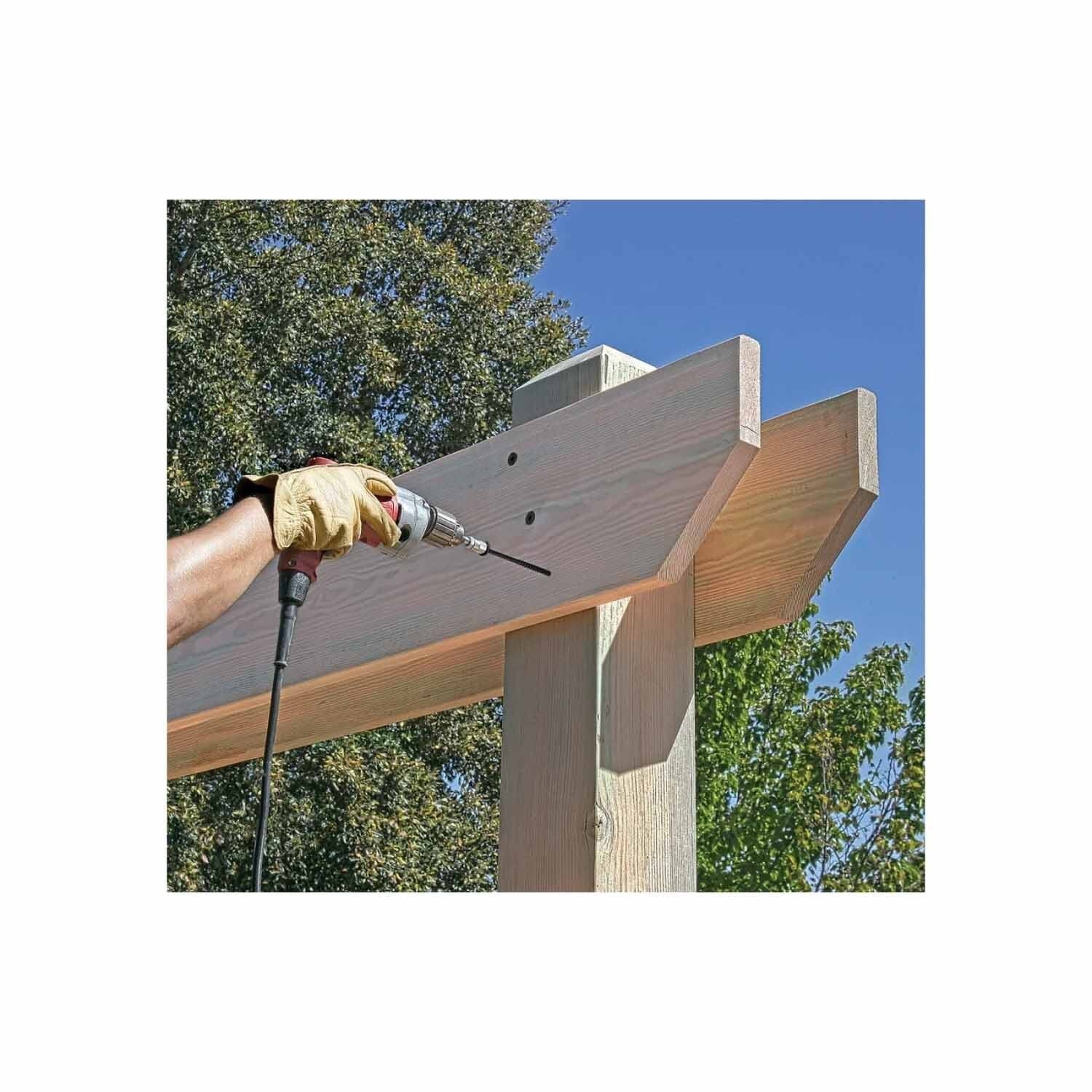

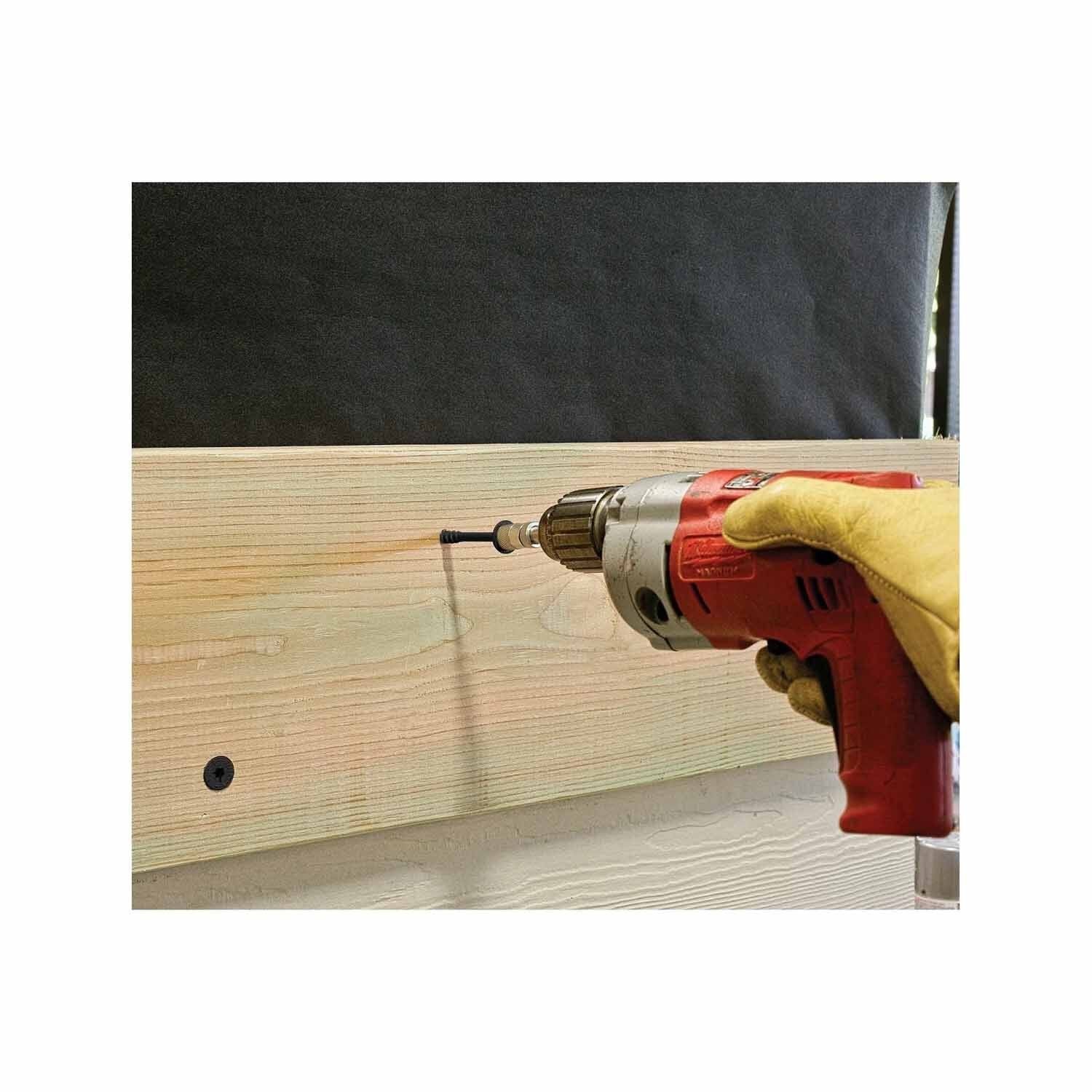

- Structural wood-to-wood fastening
- Mass timber connections including CLT wall-to-wall and floor-to-floor
- Surface splines and lap joints
Simpson Strong-Tie SDWS22300DB-R12 Specifications
| Diameter | 0.220" |
| Finish | Tan Double Barrier Coating |
| Length | 3" |
| Material | Carbon Steel |
| Color | Tan |
| Drive type | T40 6-Lobe |
| For Treated Lumber | Yes |
| Head diameter | 0.760" |
| Point type | SawTooth Point |
| Quantity | 12 |
| Thread length | 1-1/2" |
