Simpson Strong-Tie SSTB20L (5/8 in. x 24-5/8 in.) Anchor Bolt for Holdowns and Shearwalls
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SSTB20L (5/8 in. x 24-5/8 in.) Anchor Bolt for H...
Key Specifications
Description
Description
Simpson Strong-Tie SSTB20L Description
The SSTB20L Anchor Bolt by Simpson Strong-Tie is designed for holdowns and shearwalls, offering high tensile capacity and corrosion resistance.
Simpson Strong-Tie SSTB20L Includes
- (1) SSTB20L Anchor Bolt
Simpson Strong-Tie SSTB20L Features

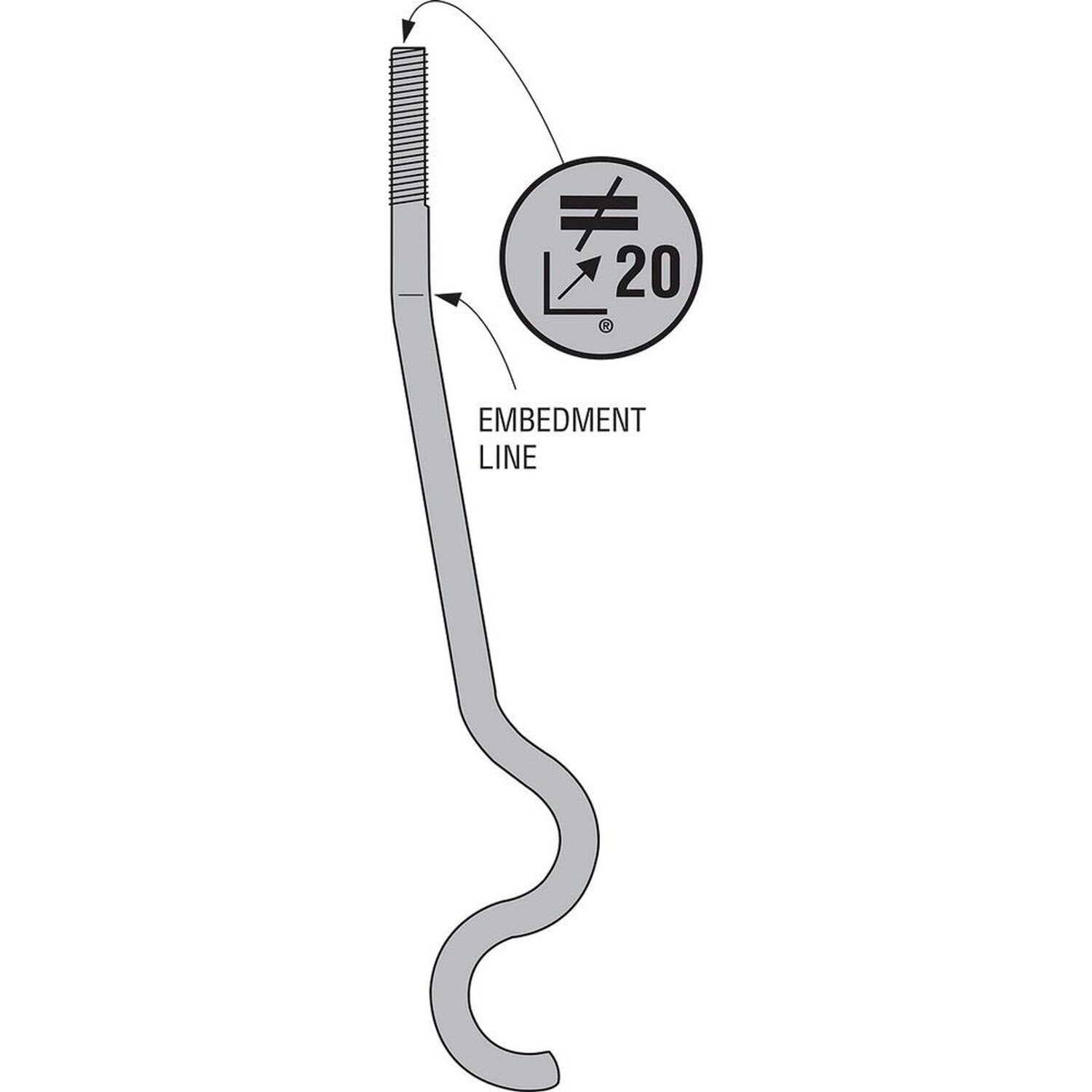

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB20L Applications
- Holdowns and shearwalls in concrete construction
- General anchoring applications requiring high tensile strength
Simpson Strong-Tie SSTB20L Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders
- Ensure minimum concrete compressive strength of 2,500 psi
- Follow plan view details for proper alignment and embedment
Simpson Strong-Tie SSTB20L Specifications
| Diameter | 5/8" |
| Length | 24-5/8" |
| Thread length | 6-1/2" |
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG. |
