Simpson Strong-Tie SSTB24-R Description

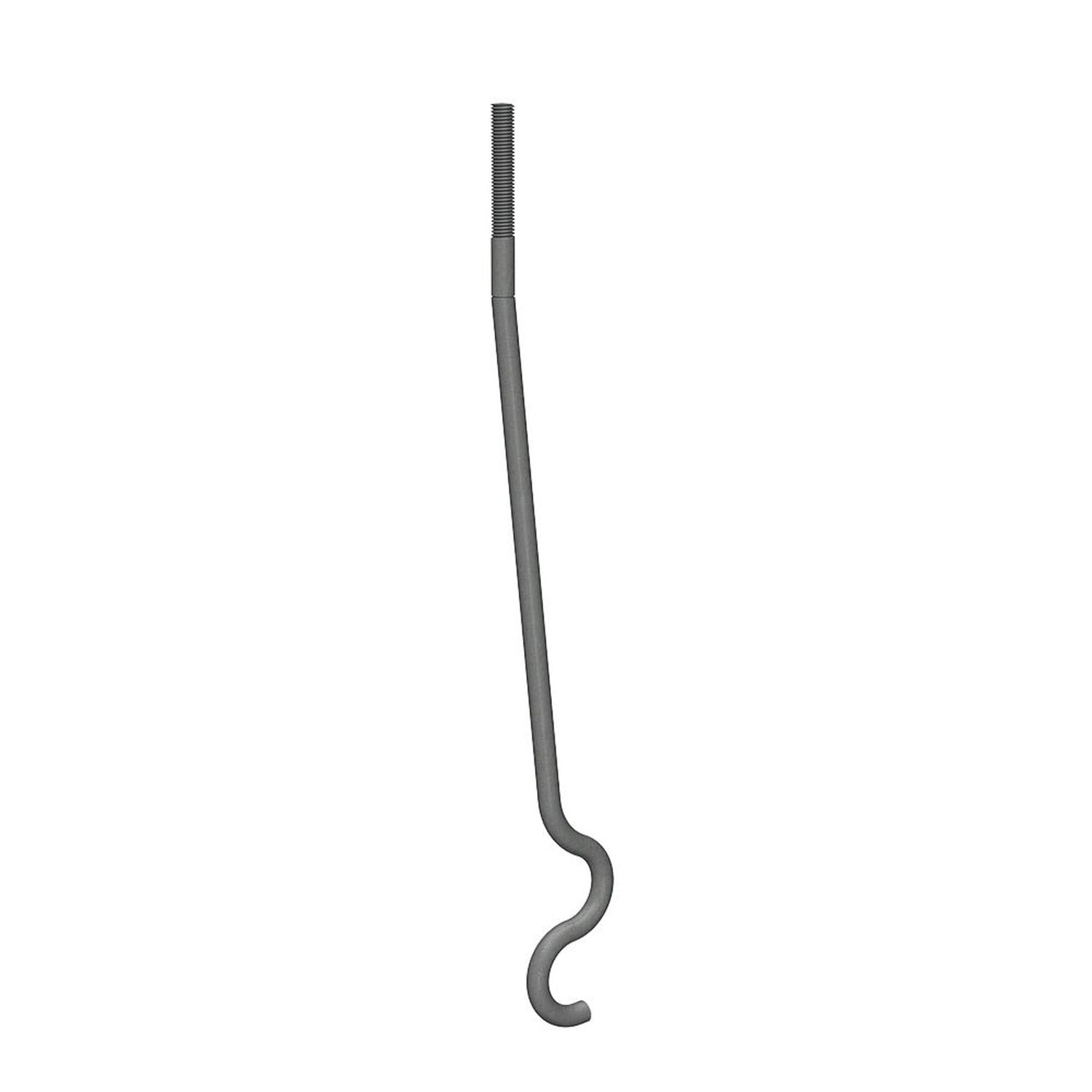

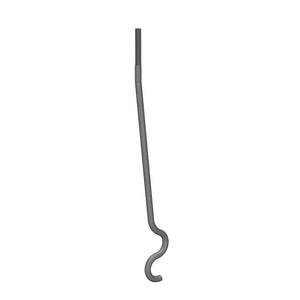

The SSTB24-R Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson Strong-Tie SSTB24-R Includes
- (1) Simpson Anchors SSTB24-R
Simpson Strong-Tie SSTB24-R Features

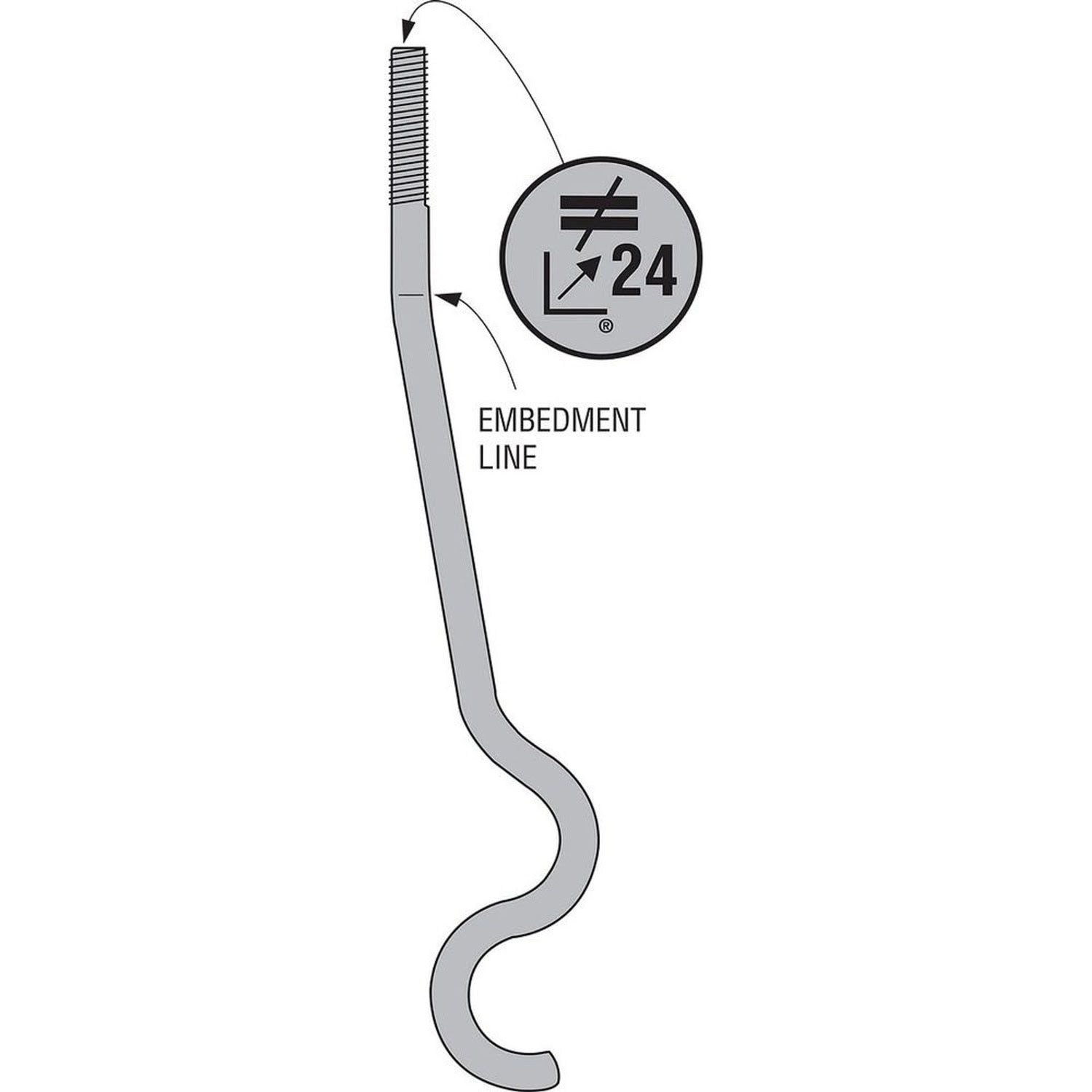

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB24-R Applications
- Concrete applications requiring secure anchoring
- Use in monolithic and two-pour concrete setups
- Suitable for grout-filled concrete masonry units (GFCMU)
Simpson Strong-Tie SSTB24-R Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders
- Ensure minimum concrete compressive strength of 2,500 psi
- Follow plan view detail for proper alignment and positioning
Simpson Strong-Tie SSTB24-R Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG. |
