Simpson Strong-Tie SSTB36HDG (7/8" x 36-7/8") Hot-Dip Galvanized Anchor Bolt
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SSTB36HDG (7/8" x 36-7/8") Hot-Dip Gal...
Key Specifications
Description
Description
Simpson Strong-Tie SSTB36HDG Description

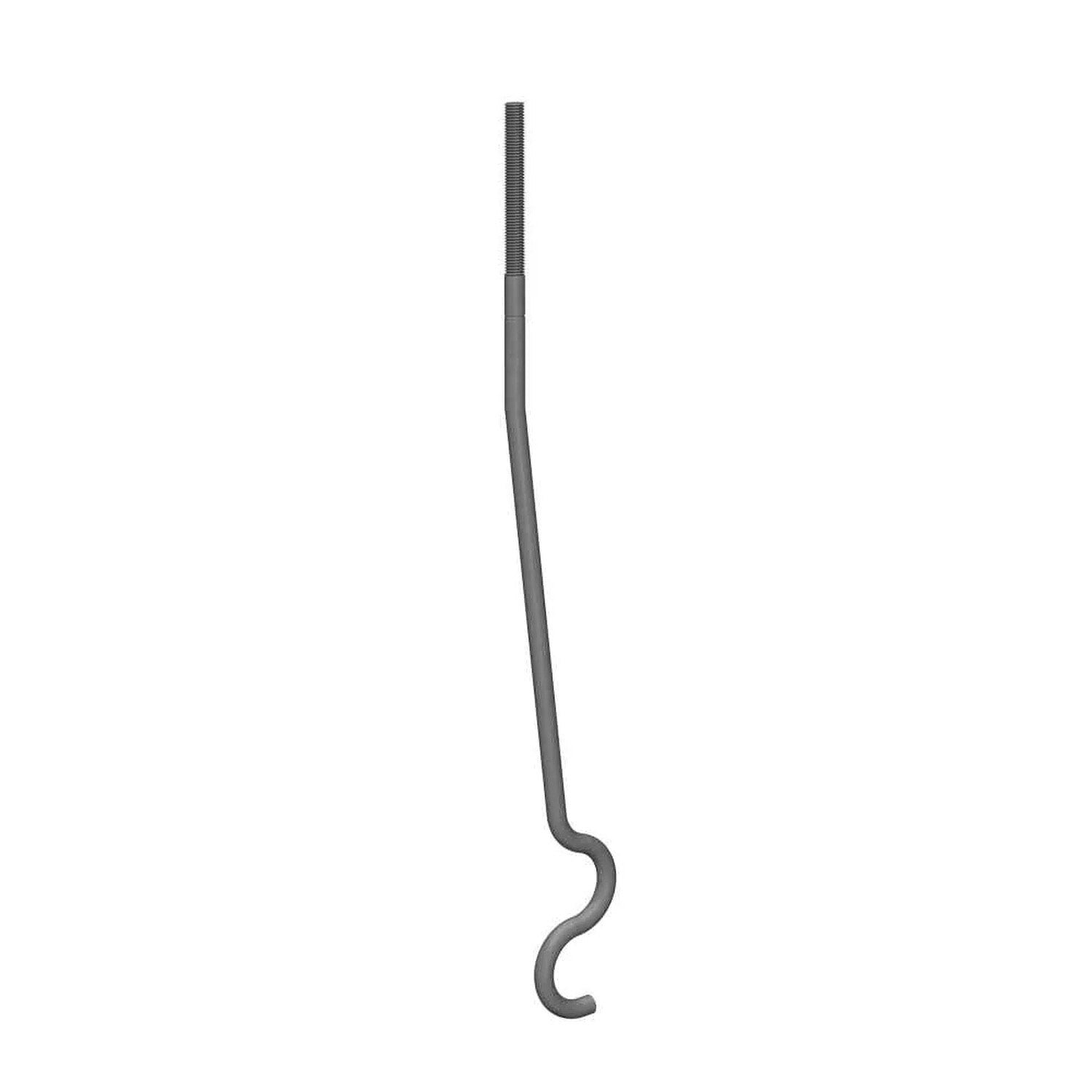

The Simpson Strong-Tie SSTB36HDG Anchor Bolt is designed for concrete applications, offering high performance and corrosion resistance.
Simpson Strong-Tie SSTB36HDG Includes
- (1) 7/8" x 36-7/8" SSTB Anchor Bolt
Simpson Strong-Tie SSTB36HDG Features
- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting, and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson Strong-Tie SSTB36HDG Applications

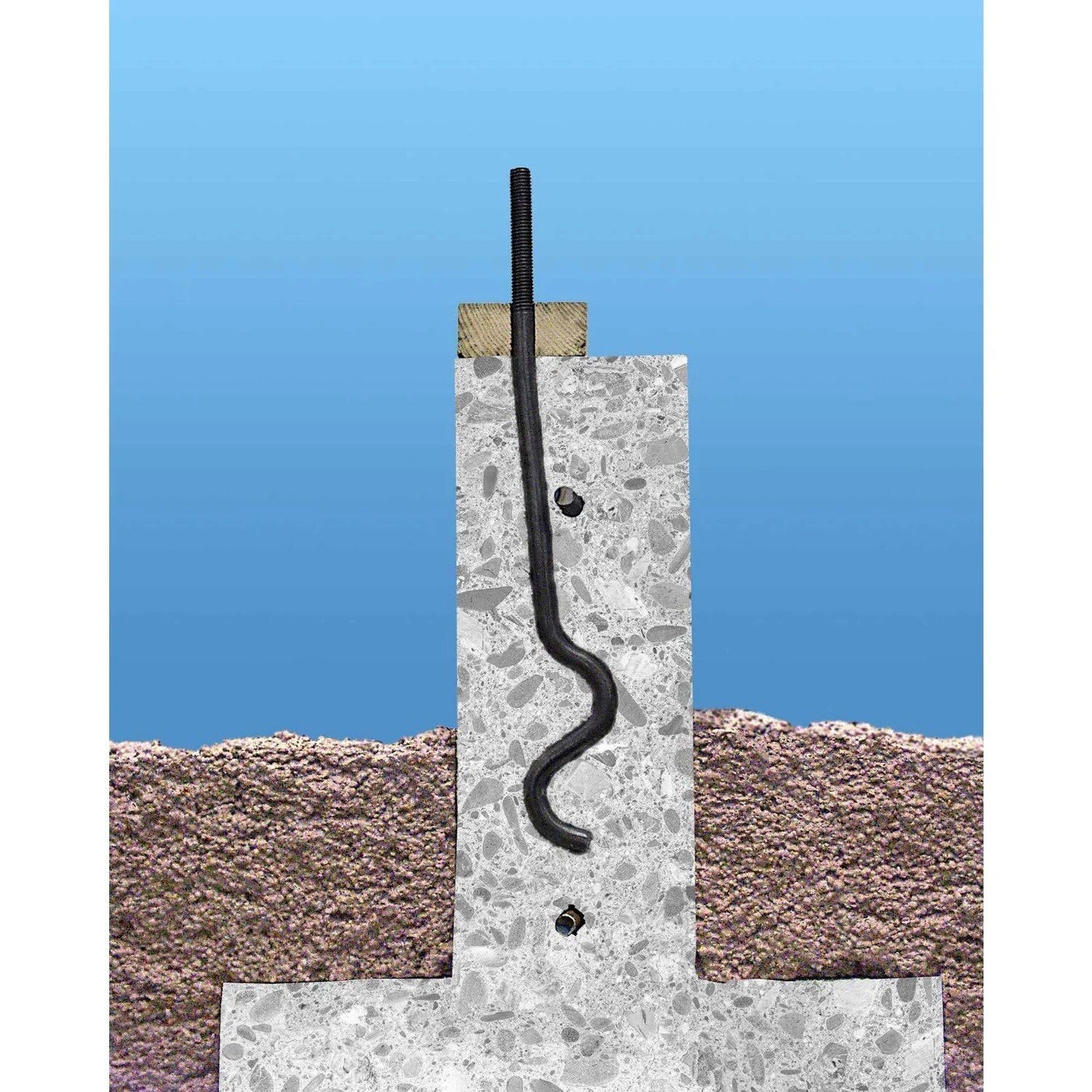

- Concrete anchoring for structural holdowns
- Suitable for monolithic and two-pour concrete applications
- Used in grout-filled concrete masonry units (GFCMU)
Simpson Strong-Tie SSTB36HDG Installation Overview
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Minimum concrete compressive strength is 2,500 psi.
- Nuts and washers for holdown attachment are not supplied; install standard nuts, couplers, and/or washers as required.
- On HDG SSTB anchors, chase the threads to use standard nuts or couplers or use overtapped products in accordance with ASTM A563.
- Order SSTBL models for longer thread length if required.
Simpson Strong-Tie SSTB36HDG Specifications
| Diameter | 7/8" |
| Finish | Hot Dip Galvanized |
| Length | 36-7/8" |
| Material | Steel |
| Thread length | 6-1/2" |
| Weight | 5.7 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
