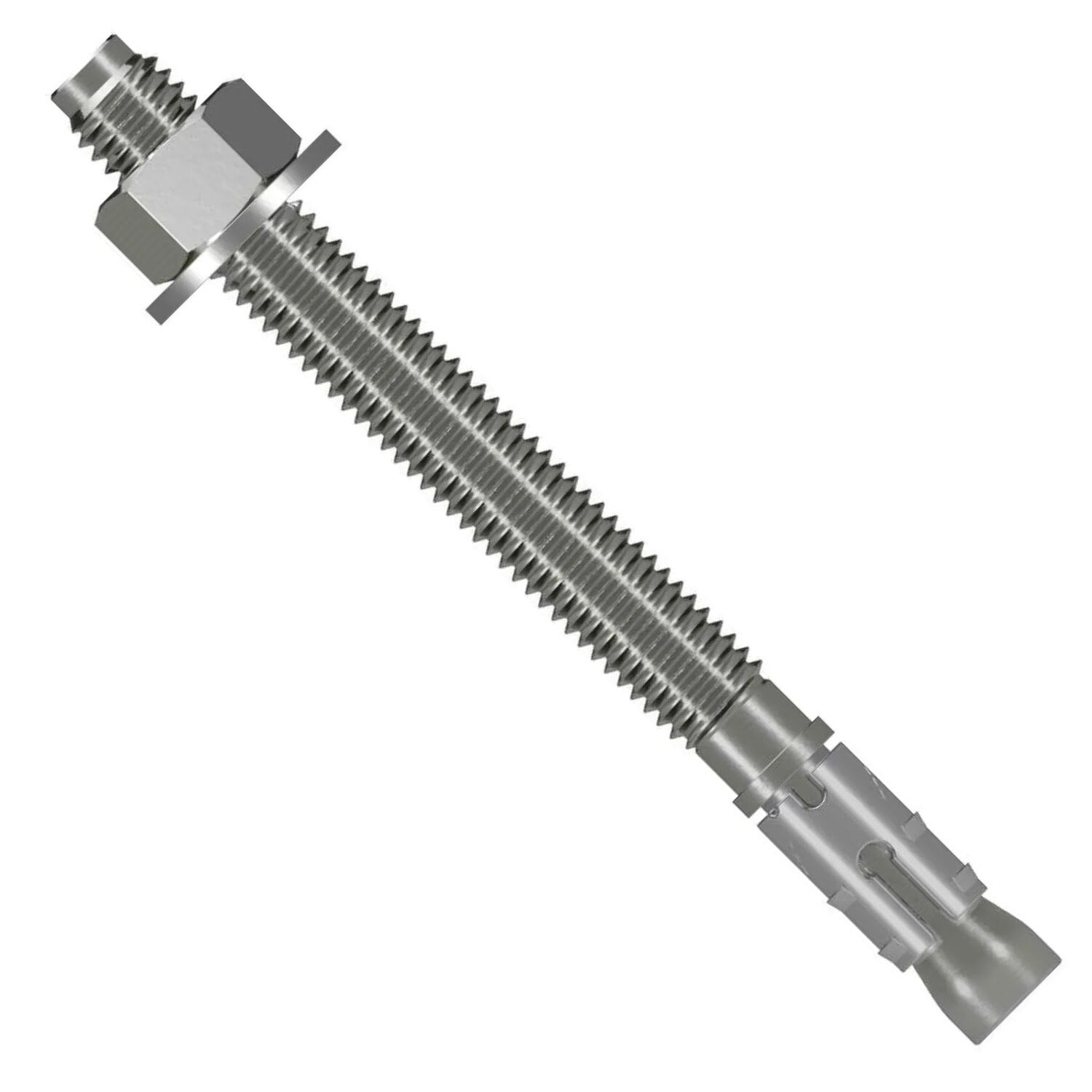

Simpson Strong-Tie STB2-505124SS Strong Bolt (1/2" x 5-1/2") Stainless-Steel Wedge Anchor - Unassembled (25 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-505124SS Strong Bolt (1/2" x 5-1/2&quo...
Key Specifications
Description
Description
Simpson STB2-505124SS Description
The Simpson Strong-Bolt 2 Wedge Anchor is a reliable solution for anchoring in cracked or uncracked concrete, featuring 304 stainless steel construction for durability and resistance.
Simpson STB2-505124SS Includes
- (25) Strong-Bolt 2 Wedge Anchor
Simpson STB2-505124SS Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193 standards
Simpson STB2-505124SS Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic design applications
- Horizontal, vertical, and overhead installations

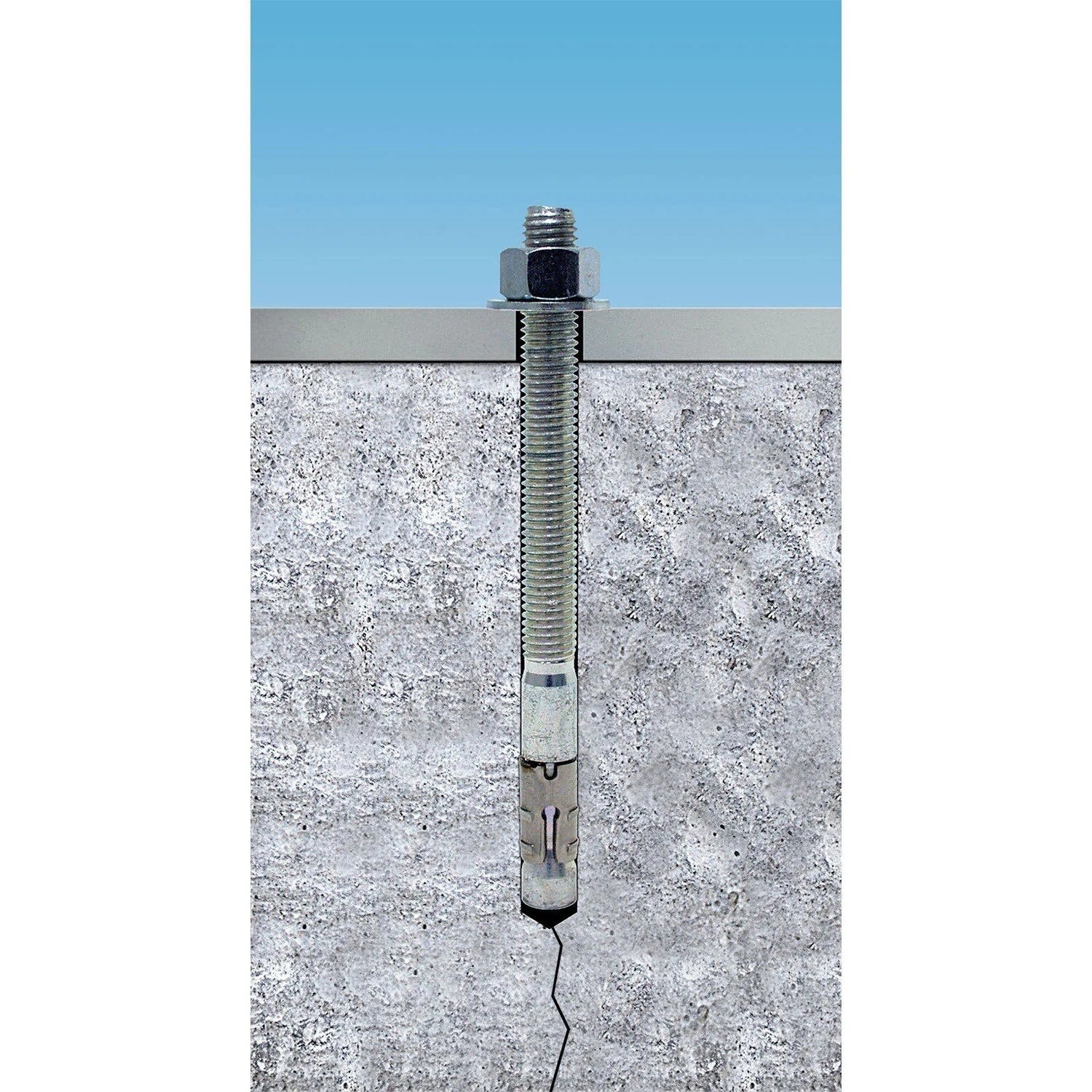

Simpson STB2-505124SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Insert the anchor into the hole and tighten to specified torque
Simpson STB2-505124SS Specifications
| Diameter | 1/2" |
| Length | 5-1/2" |
| Material | 304 Stainless Steel |
| Drill Bit Size | 1/2" |
| Installation Torque | 65 ft. lbs |
| Thread Length | 3-13/16" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
