Simpson Strong-Tie STB2-62700S6F20 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for maximum performance in corrosive environments, offering high-strength fastening for cracked or uncracked concrete.
Simpson Strong-Tie STB2-62700S6F20 Includes

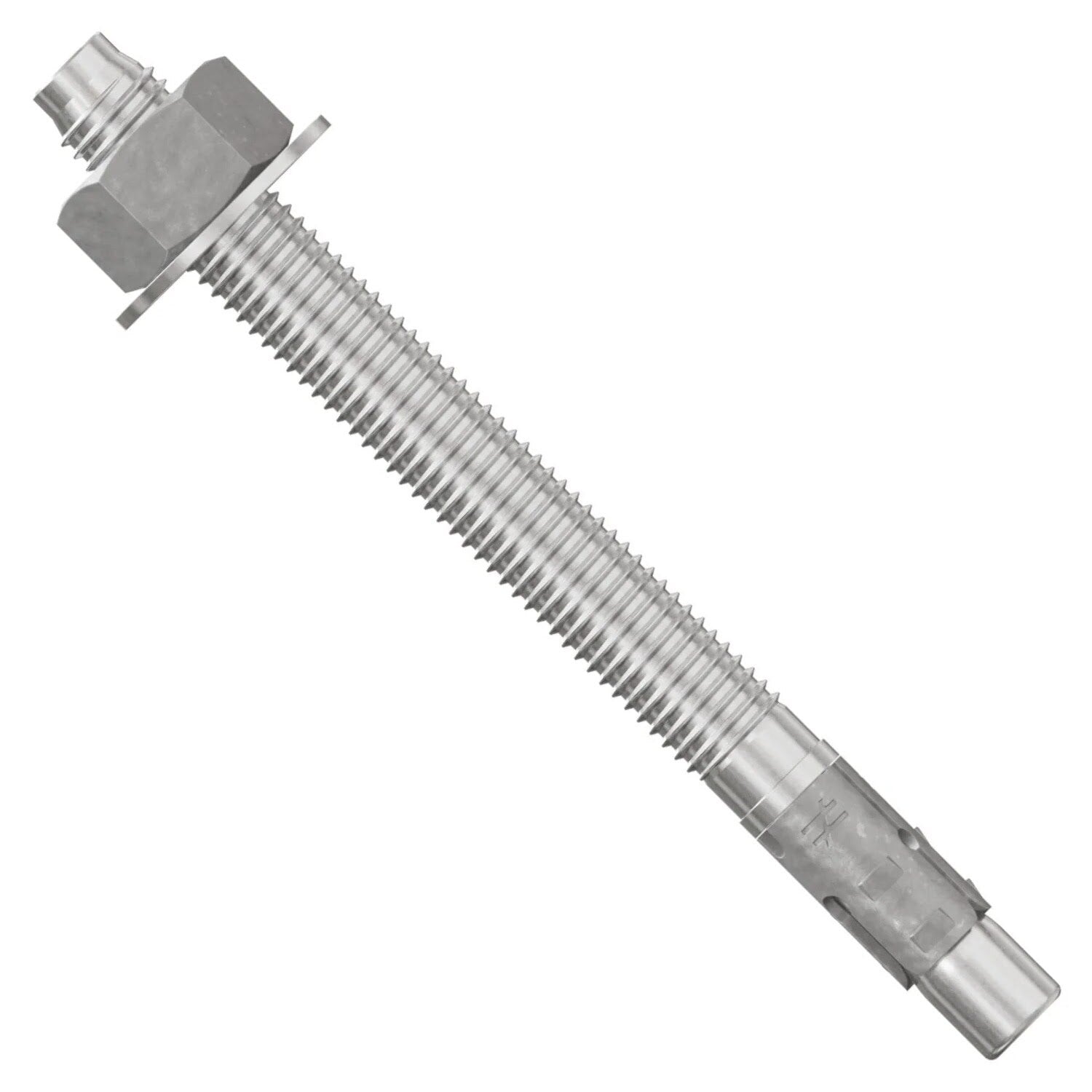

- (20) 5/8 in. x 7 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-62700S6F20 Features
- 316 Stainless Steel Construction for exceptional corrosion resistance
- Fully assembled with nut and washer for ease of installation

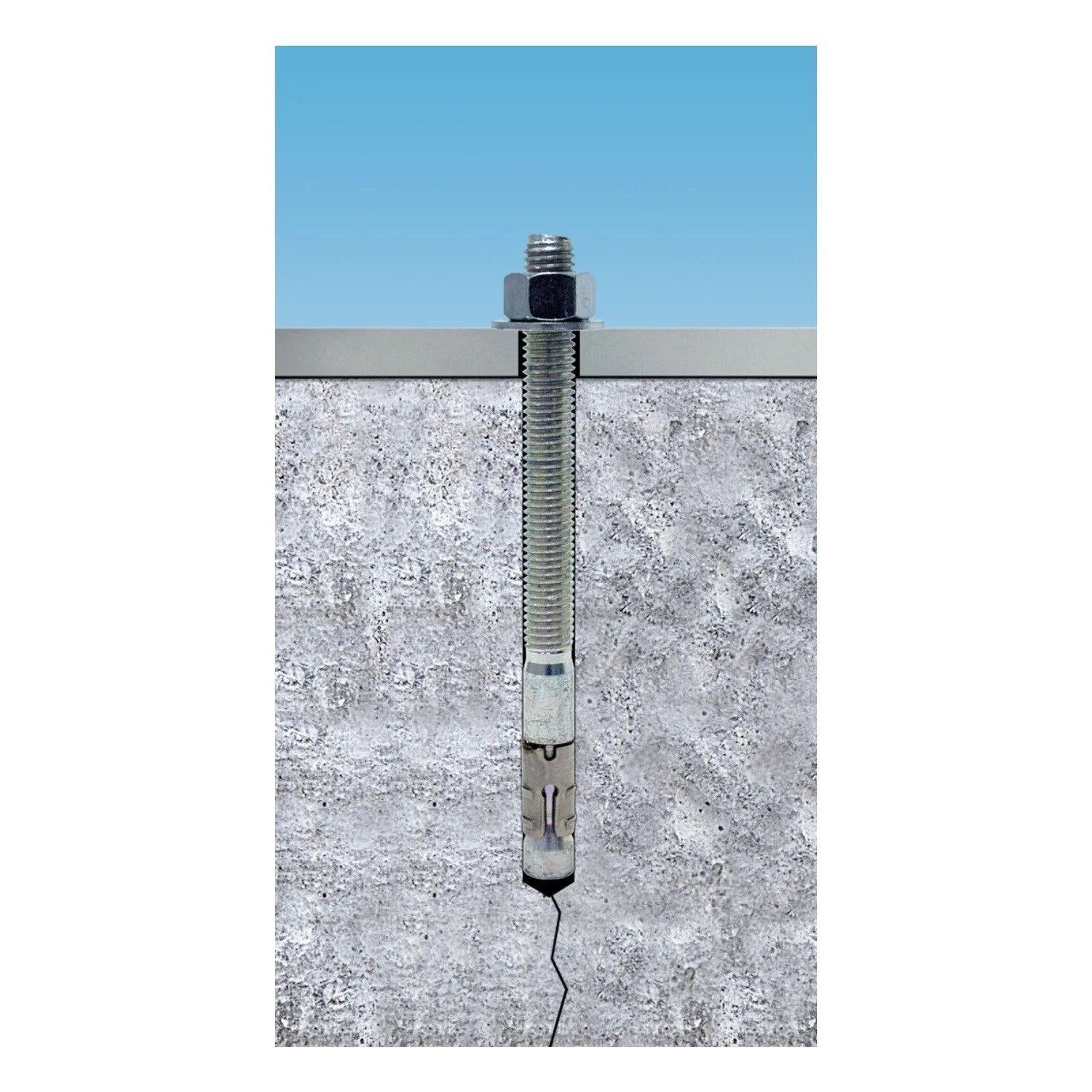

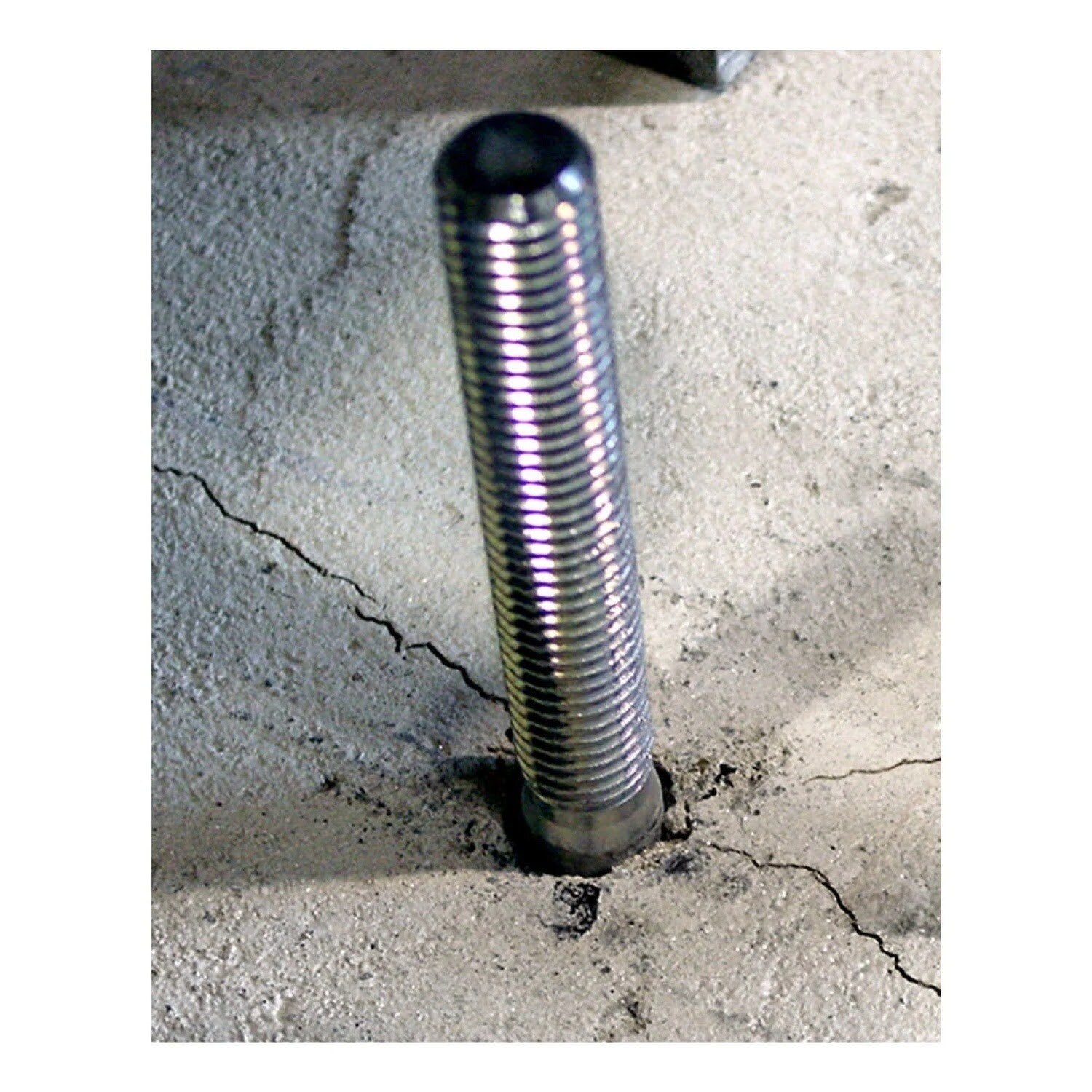

- ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications
- Suitable for anchoring structural supports, machinery, and railing systems
- Available in multiple diameter and length options
Simpson Strong-Tie STB2-62700S6F20 Applications
- Marine environments: Ideal for coastal and offshore applications
- Wastewater facilities: Resistant to chemical exposure
- Structural connections: Reinforces heavy-duty builds
- Residential and commercial anchoring: Suitable for handrails and machinery

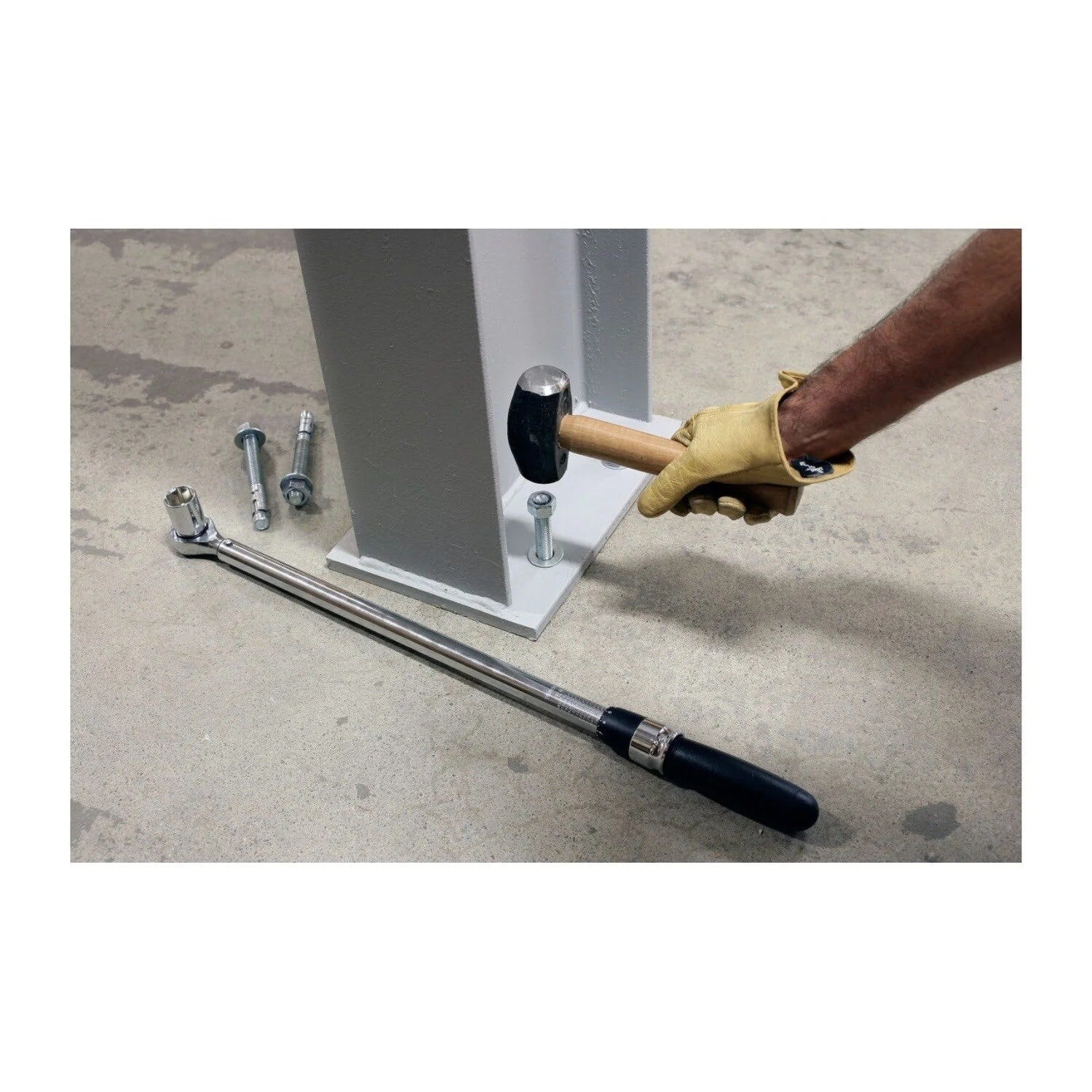

Simpson Strong-Tie STB2-62700S6F20 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth.
- Assemble the anchor with the nut and washer, ensuring the nut is flush with the anchor top.

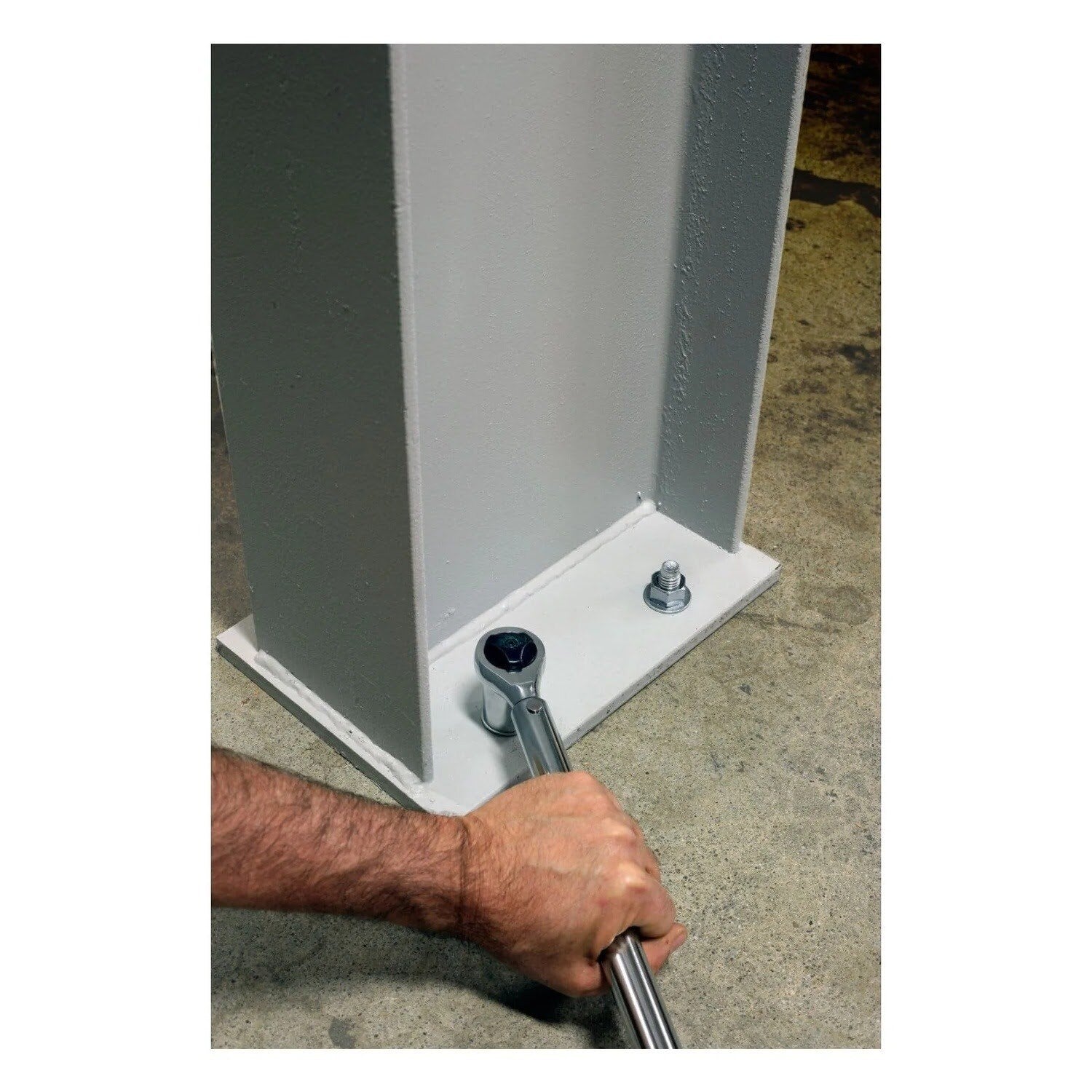

- Insert the anchor into the hole and tighten to the required torque.
Simpson Strong-Tie STB2-62700S6F20 Specifications
| Diameter | 5/8 in. |
| Length | 7 in. |
| Material | 316 Stainless Steel |
| Drill bit size | 5/8 in. |
| Fixture hole size | 11/16 in. |
| Installation torque | 60 ft. lbf. |
| Thread length | 4-15/16 in. |
| Wrench size | 15/16 in. |
