Simpson THD37500HMG Description

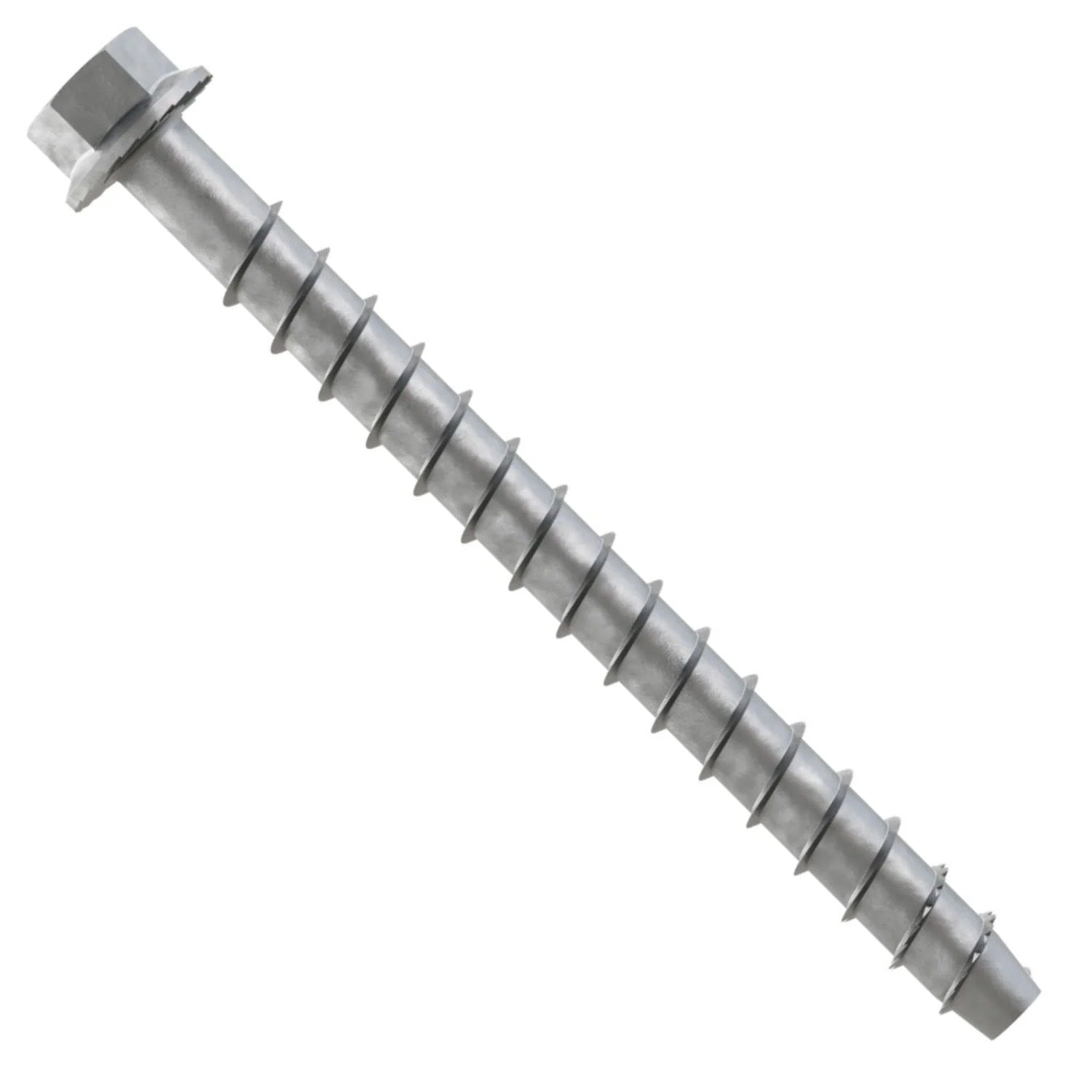

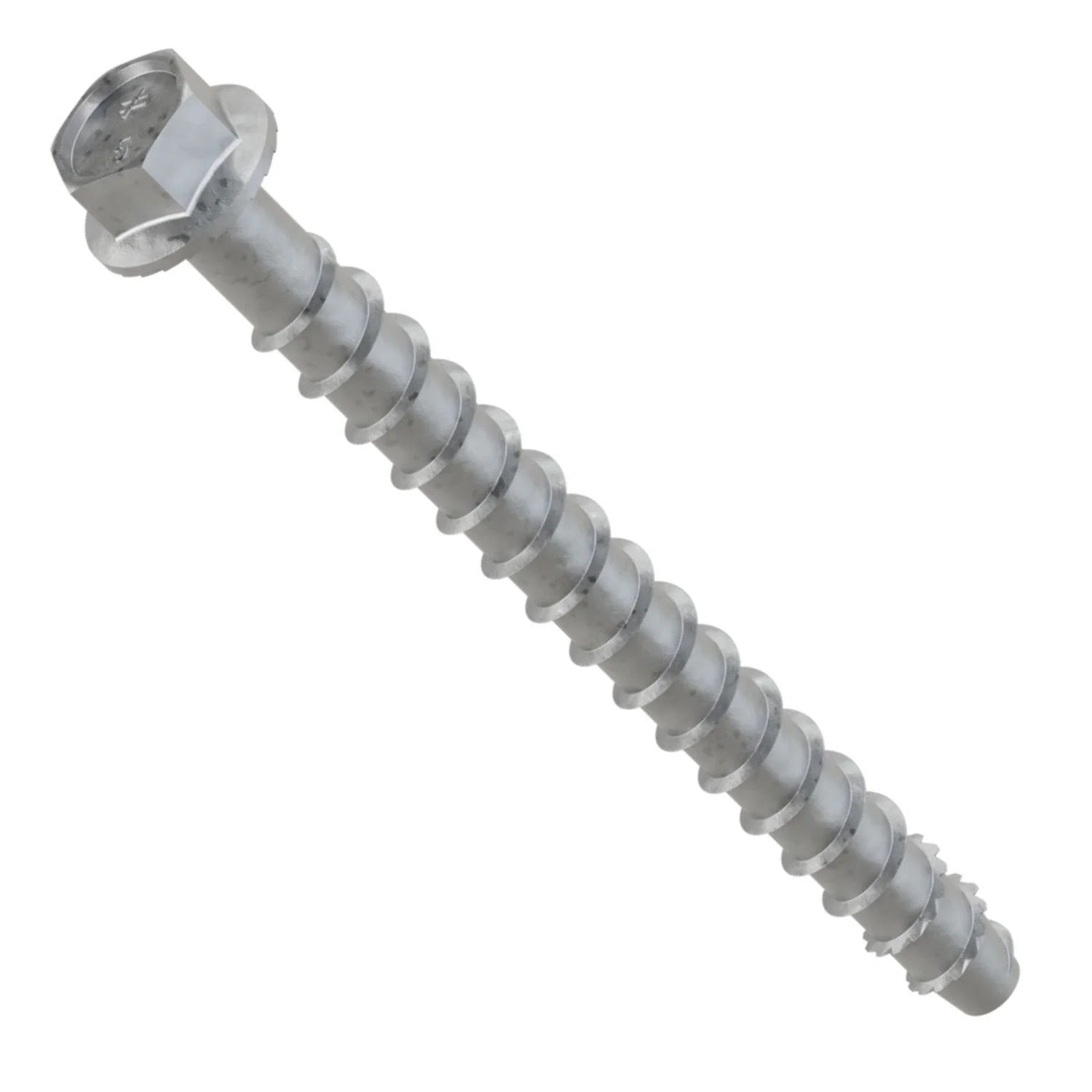

The Titen HD Screw Anchor Mechanically Galvanized is a high-strength anchor designed for quick and easy installation in concrete and masonry. It features a patented thread design for efficient load transfer and serrated cutting teeth for reduced installation torque.
Simpson THD37500HMG Includes
- (50) 3/8" x 5" Titen HD Screw Anchor Mechanically Galvanized
Simpson THD37500HMG Features

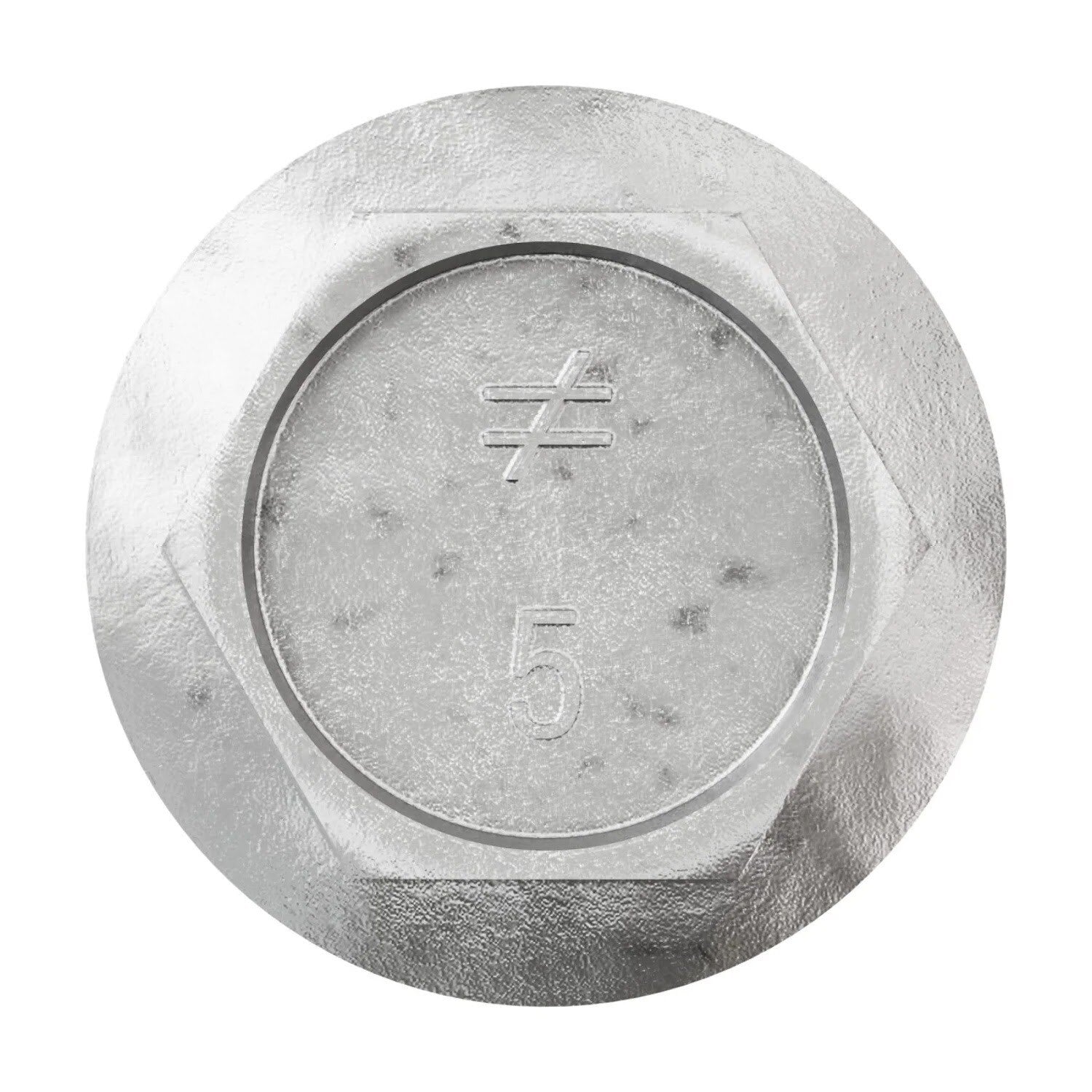

- Head-stamped for easy identification
- Serrated teeth on the tip for reduced installation torque
- Thread design undercuts for efficient load transfer
- Standard fractional sizes with hole size equal to anchor size
- Specialized heat-treating process for better cutting without compromising ductility
- Hex washer head requires no separate washer
- Fully and easily removable
- Code listed for exterior applications
Simpson THD37500HMG Applications
- Anchorage Solutions: Ideal for securing fixtures in concrete and masonry
- Sill Plates: Provides reliable anchoring for wood sill plates
- Ledgers: Ensures secure attachment of ledgers to concrete

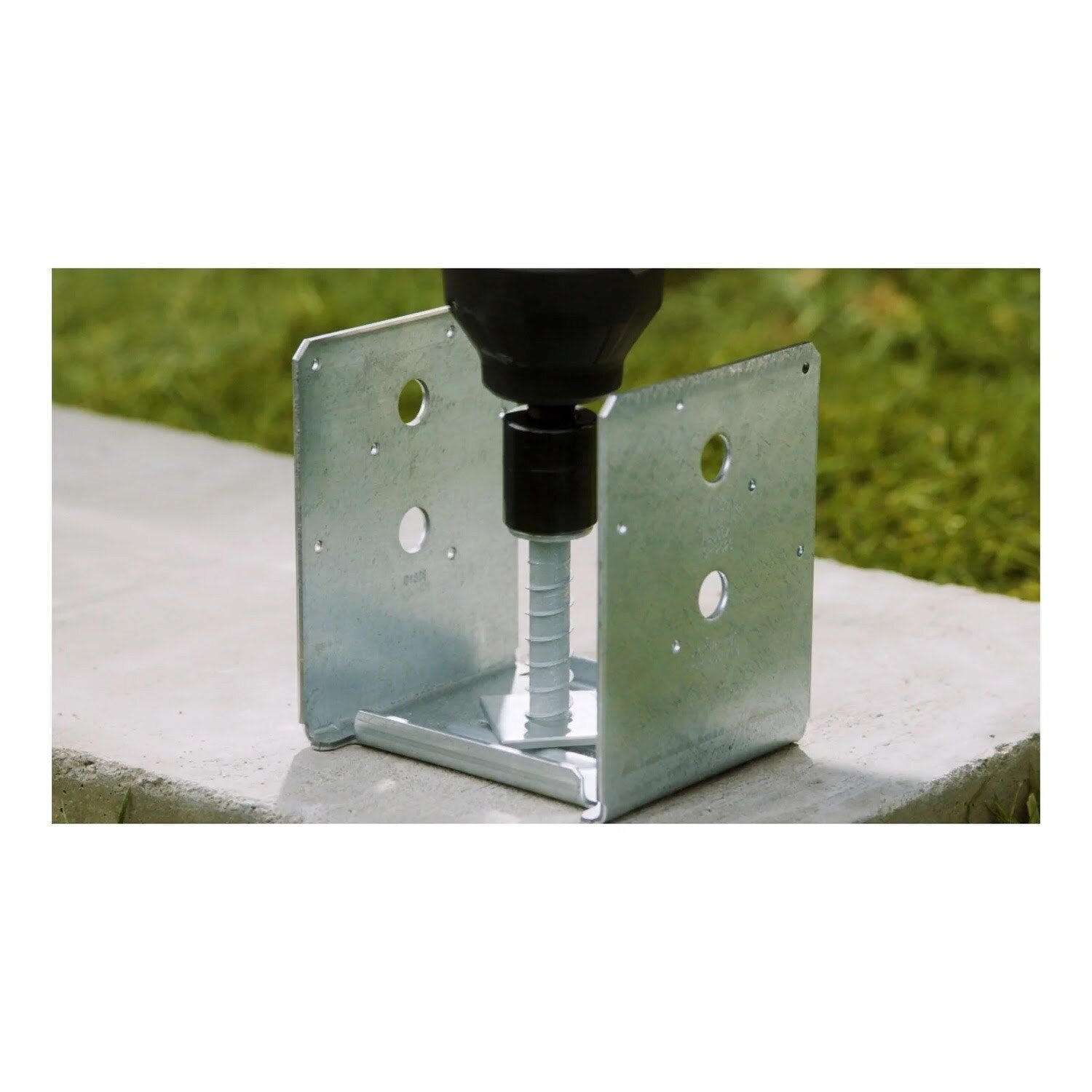

- Post Bases: Suitable for anchoring post bases
- Seating: Can be used for seating applications
- Holdown Applications: Effective for various holdown needs
Simpson THD37500HMG Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson THD37500HMG Specifications
| Material | Carbon steel |
| Finish | Mechanically galvanized |
| Diameter | 3/8" |
| Length | 5" |
| Drill Bit Diameter | 3/8" |
| Drive Type | 9/16" Hex |
| Fixture Hole Size | 1/2"-9/16" |
| Head Type | Hex Head |
| Quantity | 50 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values
