Simpson Strong-Tie THD50300H4SS Titen HD (1/2" x 3") Heavy Duty SS Screw Anchor - Type 304 (25 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THD50300H4SS Titen HD (1/2" x 3") Heav...
Key Specifications
Description
Description
Simpson THD50300H4SS Description

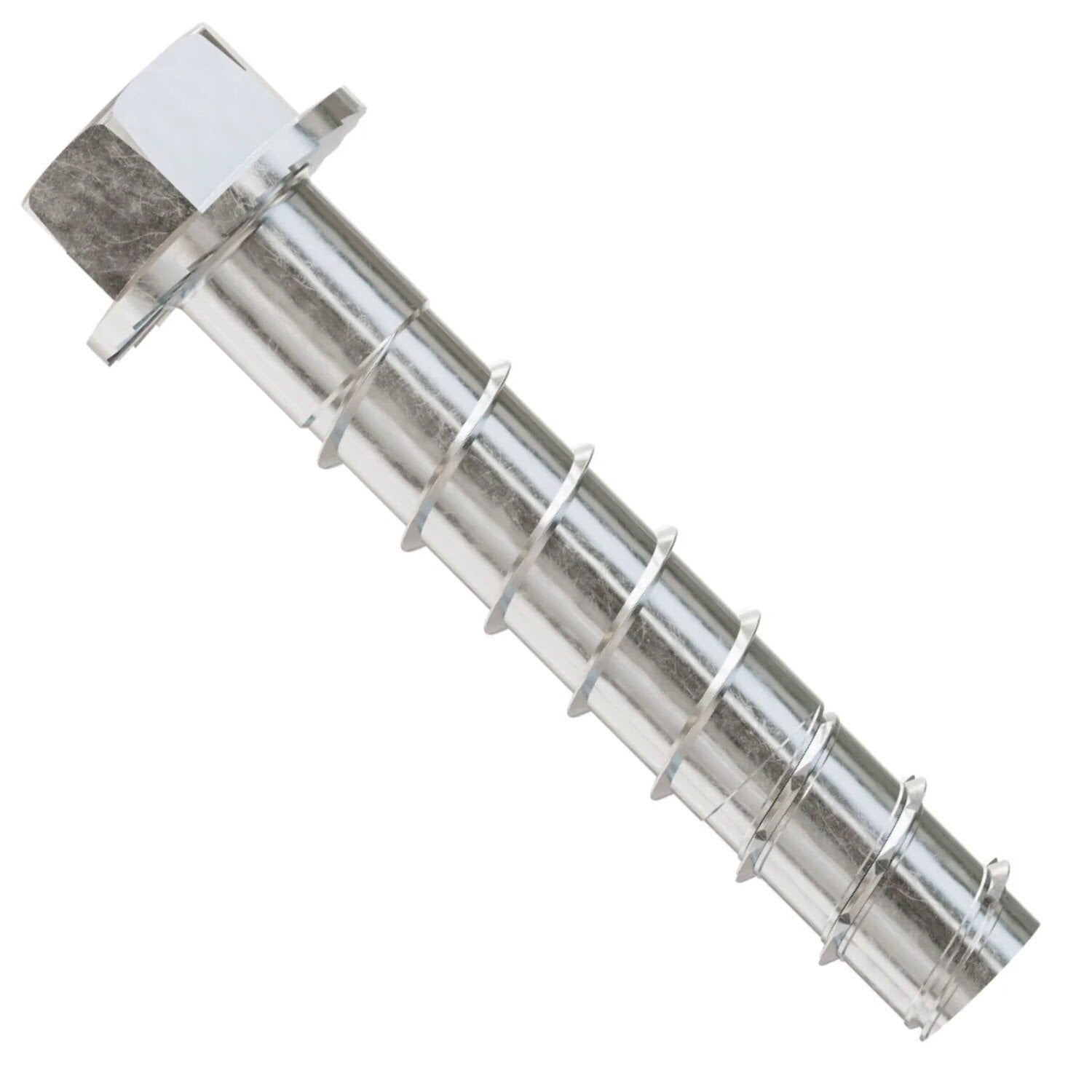

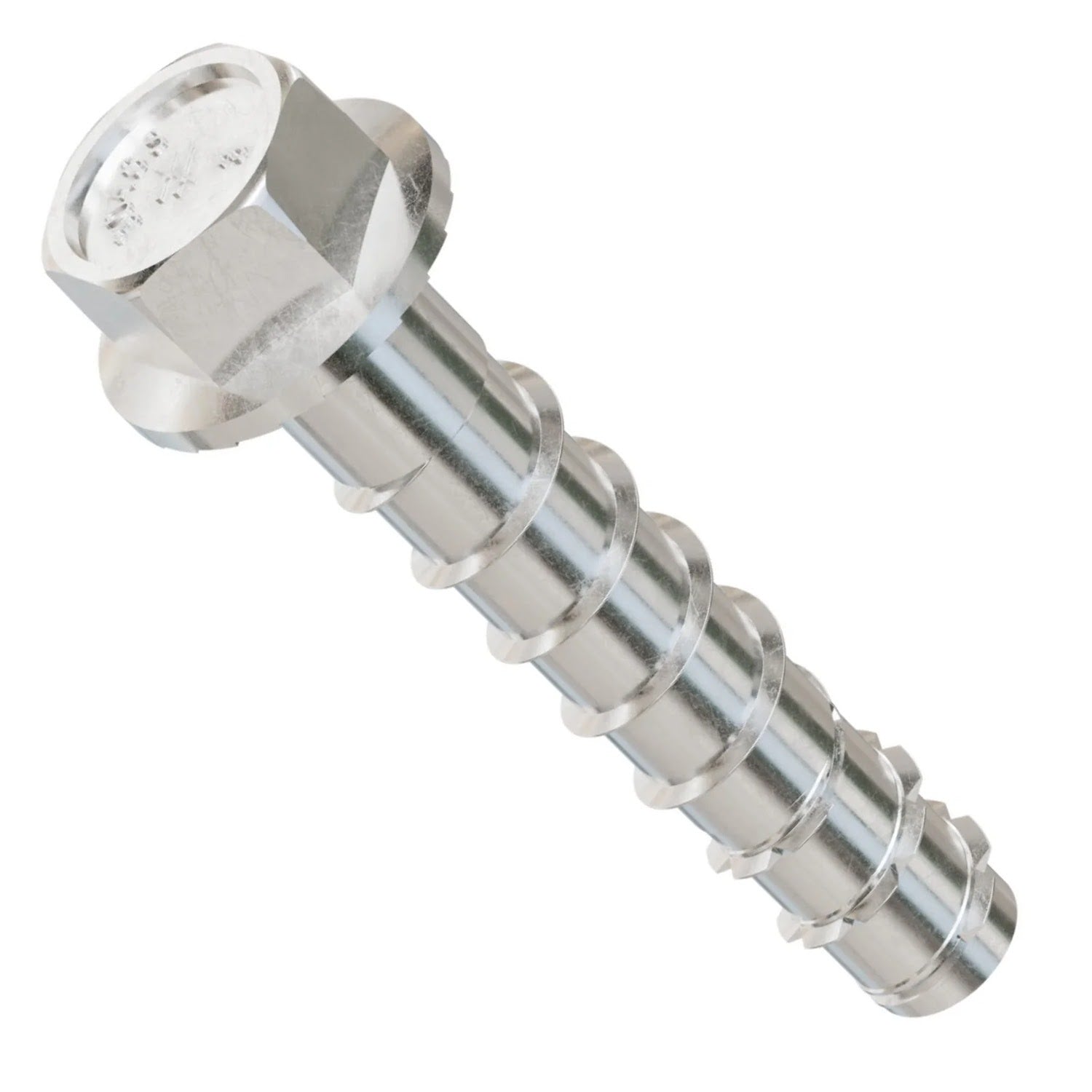

The Titen HD Screw Anchor is a high-performance mechanical anchor made of 304 stainless steel, ideal for exterior applications.
Simpson THD50300H4SS Includes
- (25) 1/2 in. x 3 in. Titen HD Screw Anchor
Simpson THD50300H4SS Features
- Ideal for exterior or corrosive environments
- Installs with an impact wrench or by hand tool
- Tested in accordance with ACI355.2, AC193 and AC106
Simpson THD50300H4SS Applications
- Exterior construction requiring corrosion-resistant anchoring
- Mechanical, electrical, and plumbing installations
- General anchoring in concrete and masonry

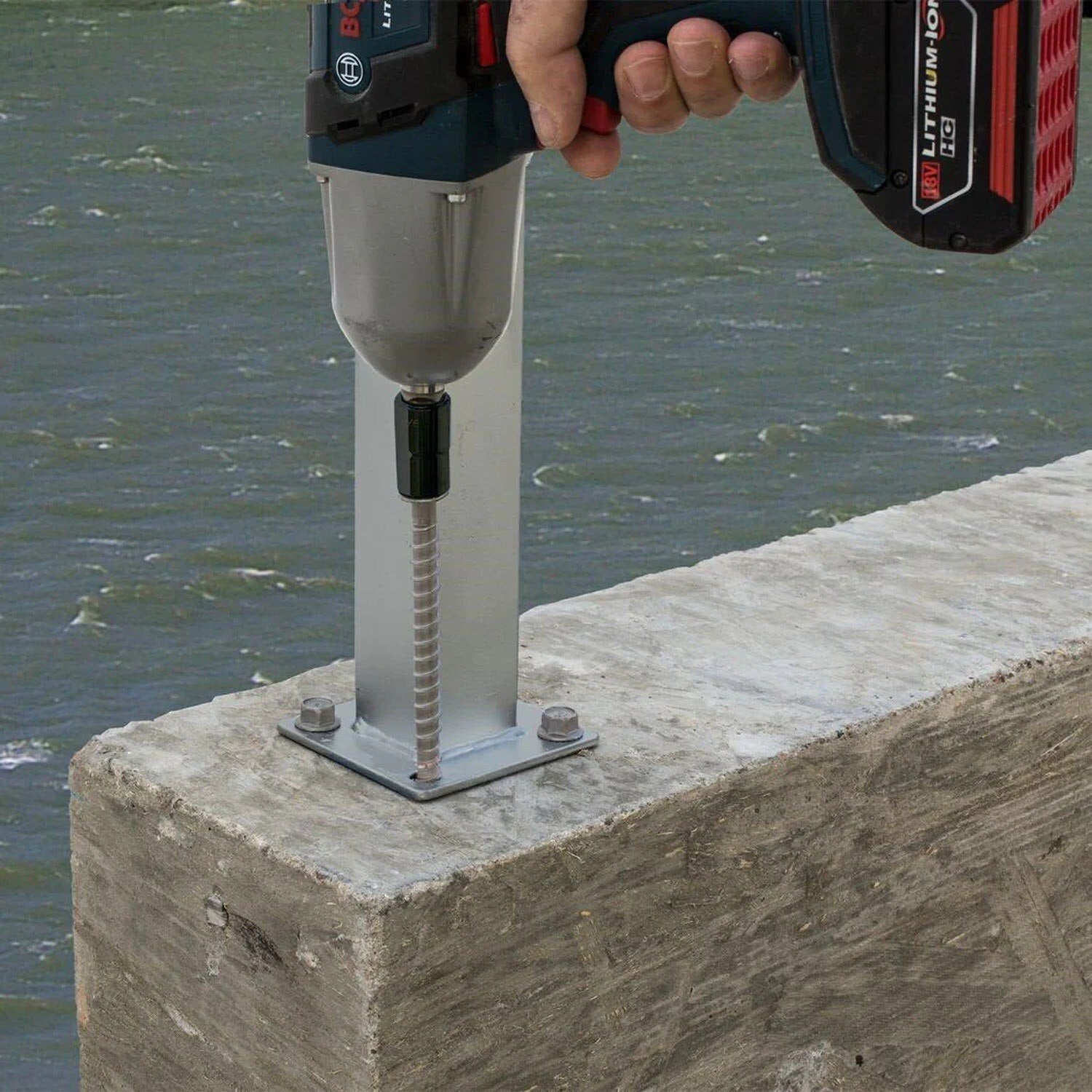

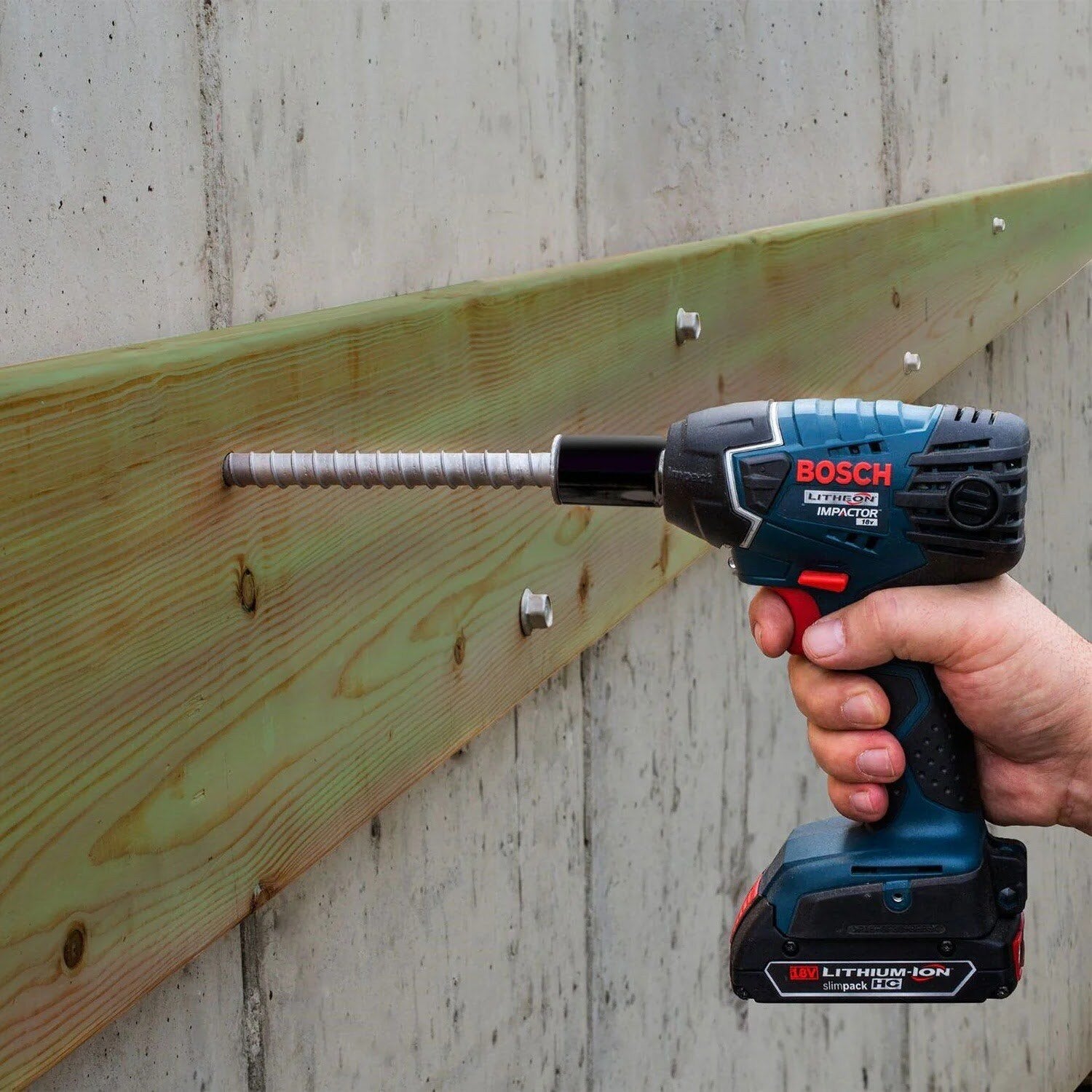

Simpson THD50300H4SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD50300H4SS Specifications
| Diameter | 1/2 in. |
| Length | 3 in. |
| Material | 304 Stainless Steel |
| Drill Bit Size | 1/2 in. |
| Drive Type | 3/4 in. Hex |
| Fixture Hole Size | 5/8 in. - 11/16 in. |
| Head Type | Hex Head |
| Quantity | 25 |
NOTE: Use the correct fixture hole sizes and avoid reusing the anchor to maintain load capacity
