Simpson Strong-Tie THD50400H6SS Titen HD (1/2" x 4") Heavy Duty SS Screw Anchor - Type 316 (20 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THD50400H6SS Titen HD (1/2" x 4") Heav...
Key Specifications
Description
Description
Simpson THD50400H6SS Description

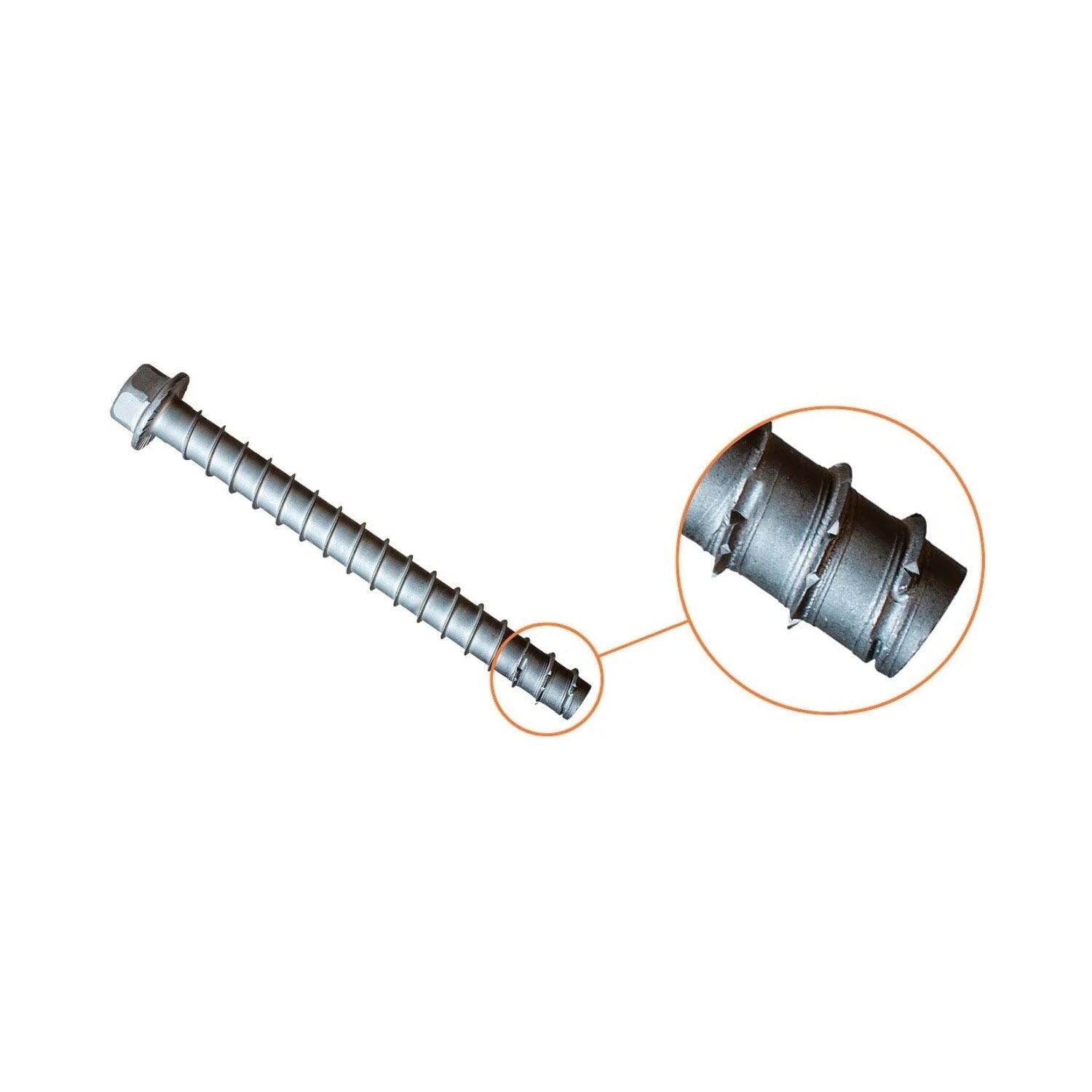

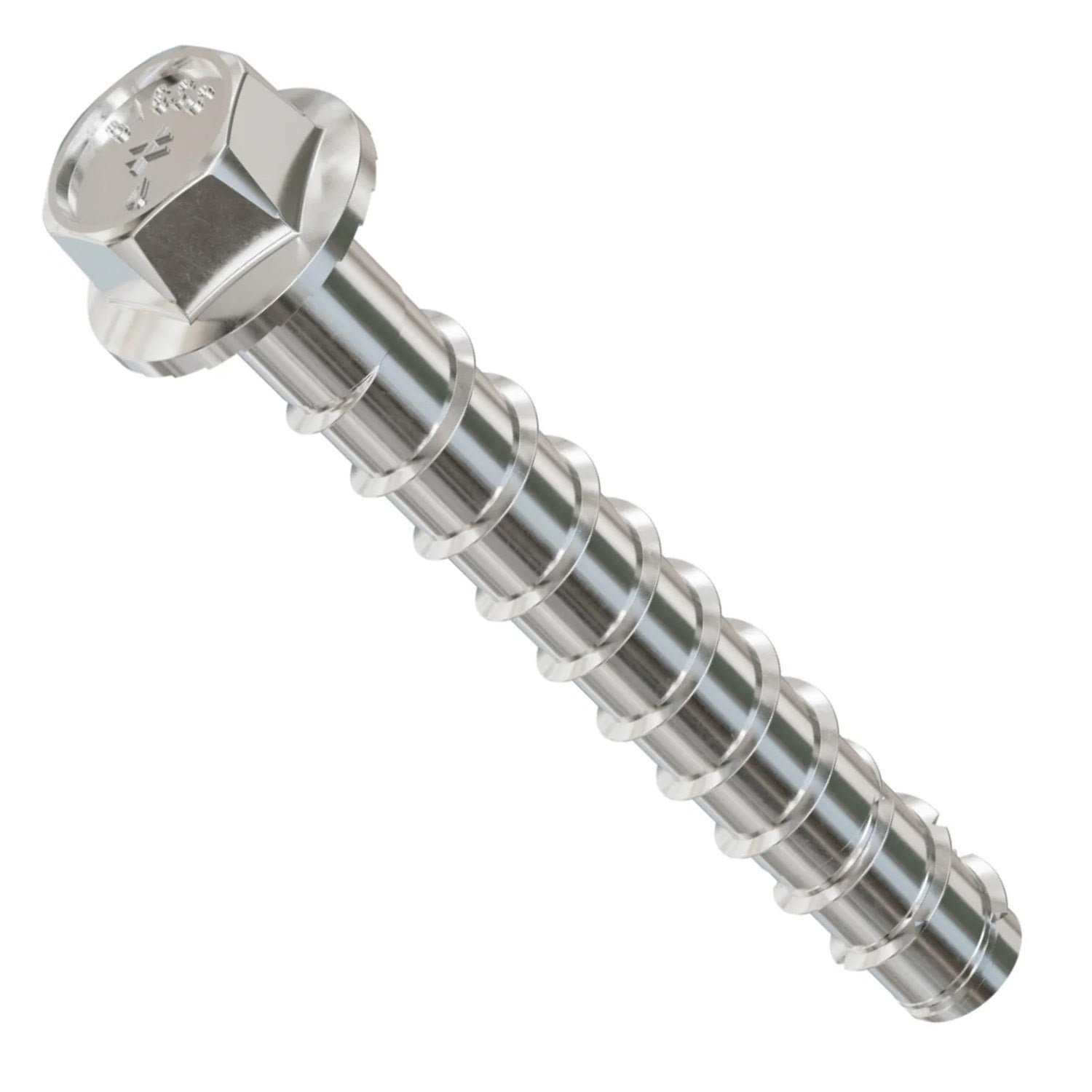

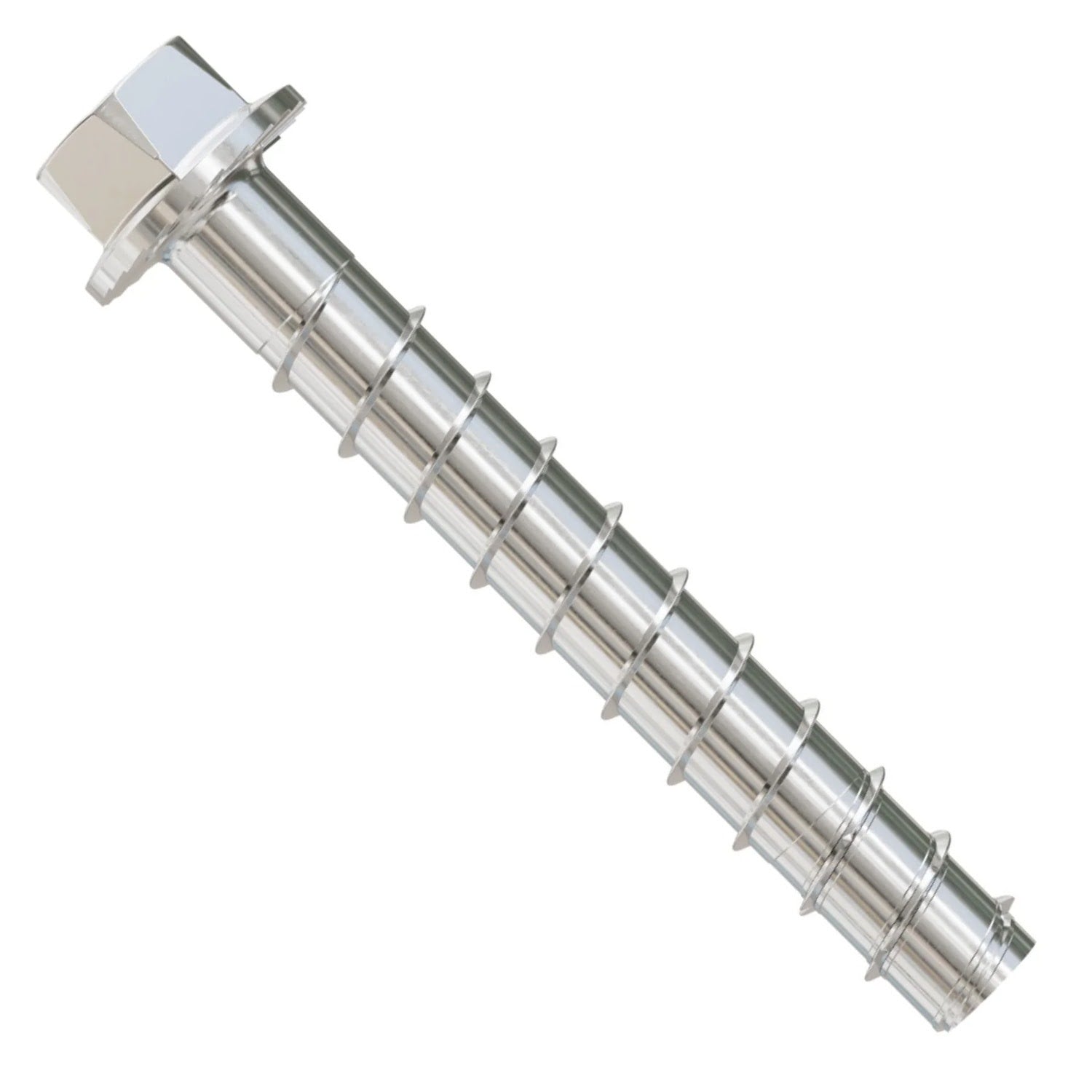

The Simpson Titen HD Screw Anchor is a high-performance, corrosion-resistant anchor designed for exterior or corrosive environments. Made from 316 stainless steel, it ensures durability and reliability.
Simpson THD50400H6SS Includes
- (20) 1/2 in. x 4 in. Titen HD Screw Anchor
Simpson THD50400H6SS Features
- Ideal for exterior or corrosive environments
- Installs with an impact wrench or by hand tool
- Tested in accordance with ACI355.2, AC193 and AC106
- Made from Type 316 stainless steel for superior corrosion resistance
Simpson THD50400H6SS Applications
- Mechanical applications requiring secure anchoring
- Electrical installations needing reliable fastening
- Plumbing setups in corrosive environments

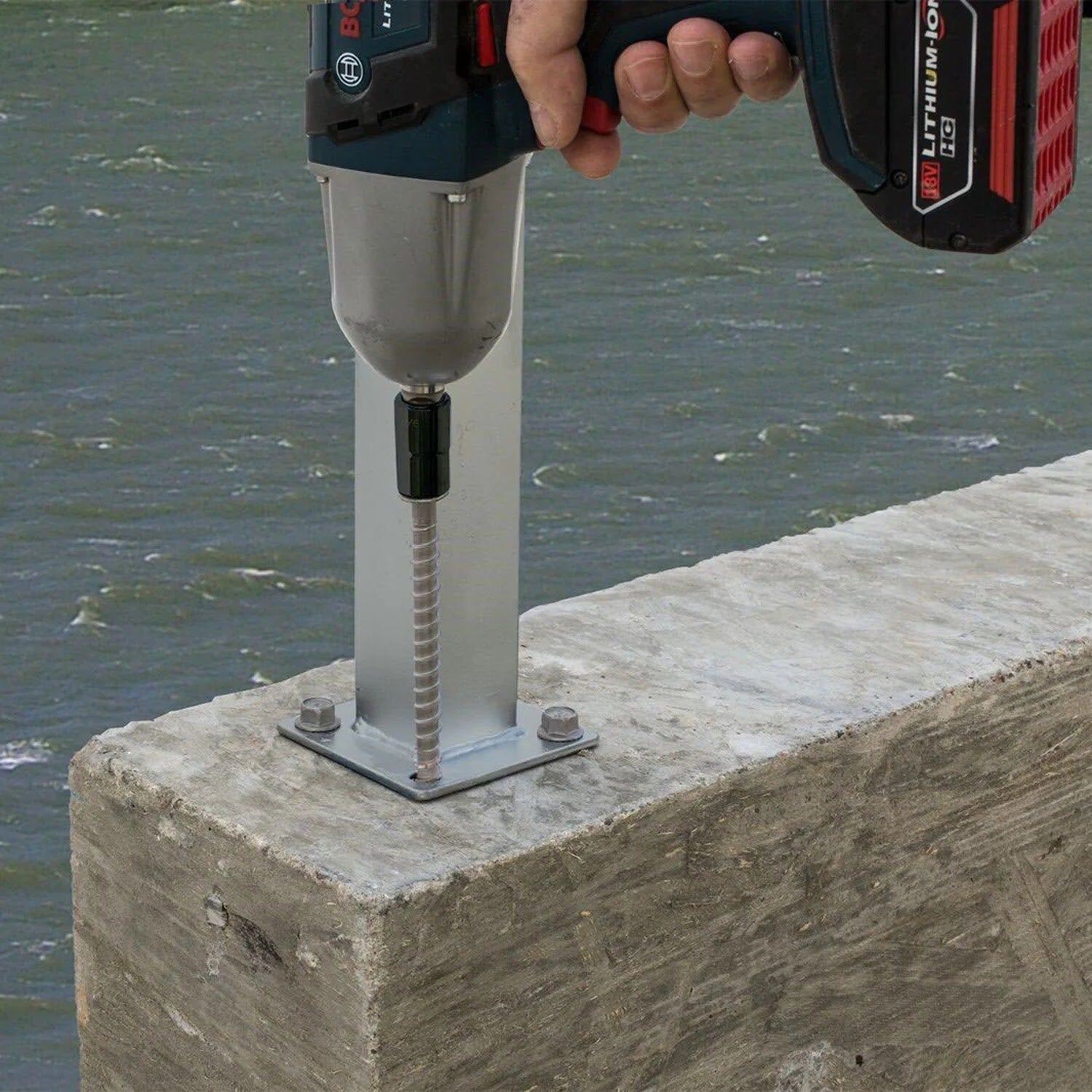

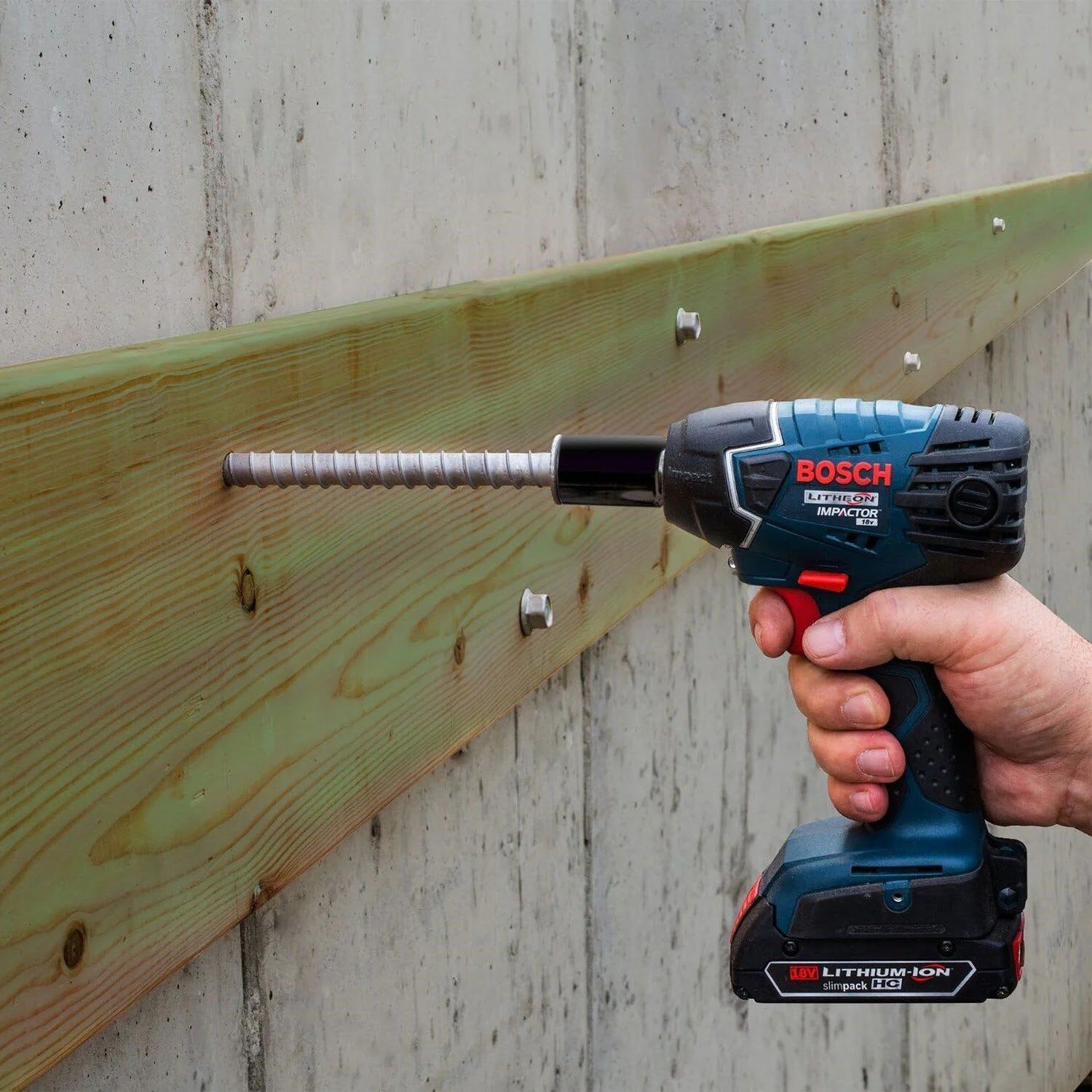

Simpson THD50400H6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
Simpson THD50400H6SS Specifications
| Diameter | 1/2 in. |
| Length | 4 in. |
| Drill Bit Size | 1/2 in. |
| Drive Type | 3/4 in. Hex |
| Fixture Hole Size | 5/8 in. - 11/16 in. |

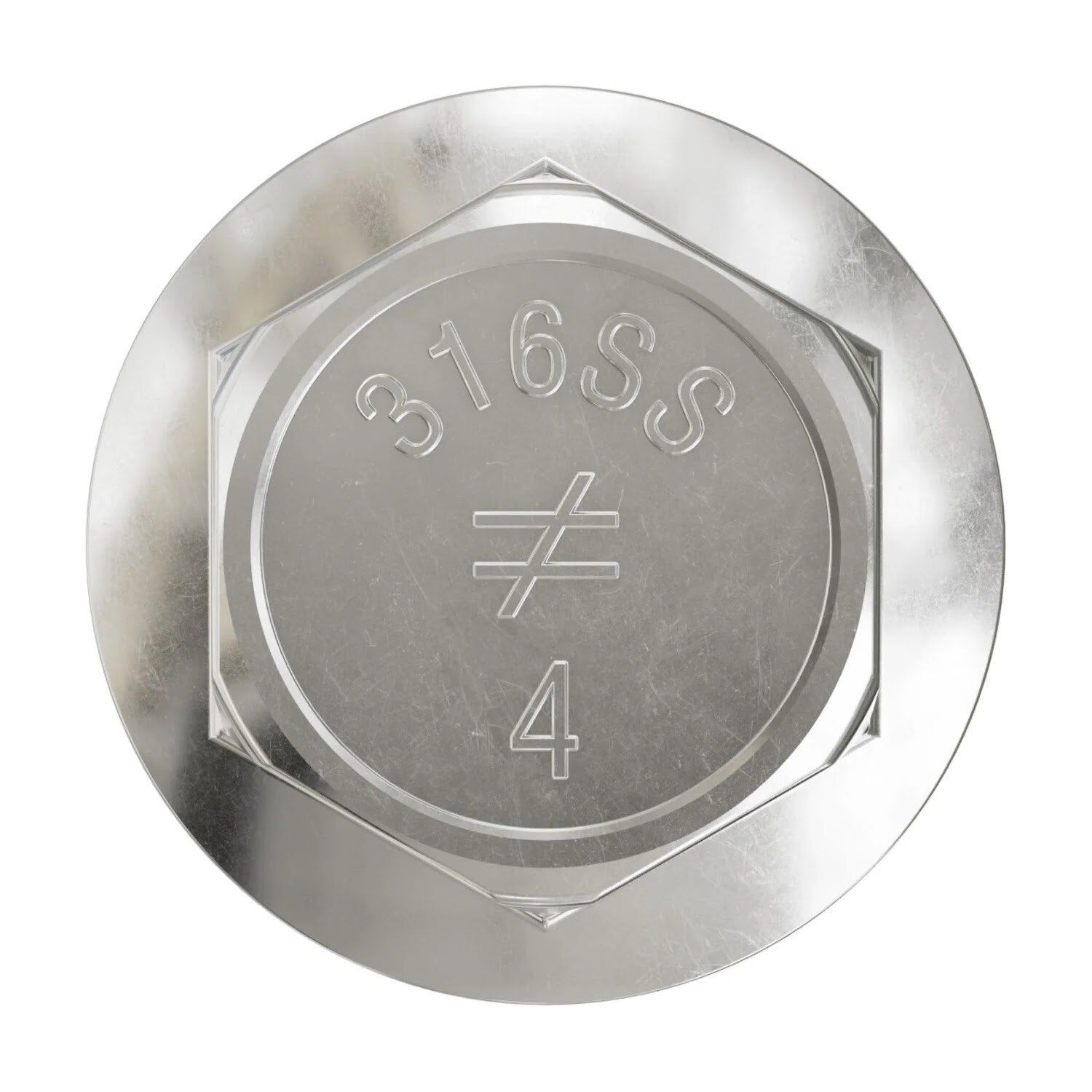

| Head Type | Hex Head |
| Material | 316 Stainless Steel |
| Quantity | 20 |
NOTE: Use the correct fasteners installed in the correct position to achieve published load values
