Simpson Strong-Tie THD50400HF1 Titen HD (1/2" x 4") Heavy-Duty Screw Anchor - Zinc Plated
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THD50400HF1 Titen HD (1/2" x 4") Heavy...
Key Specifications
Description
Description
Simpson THD50400HF1 Description

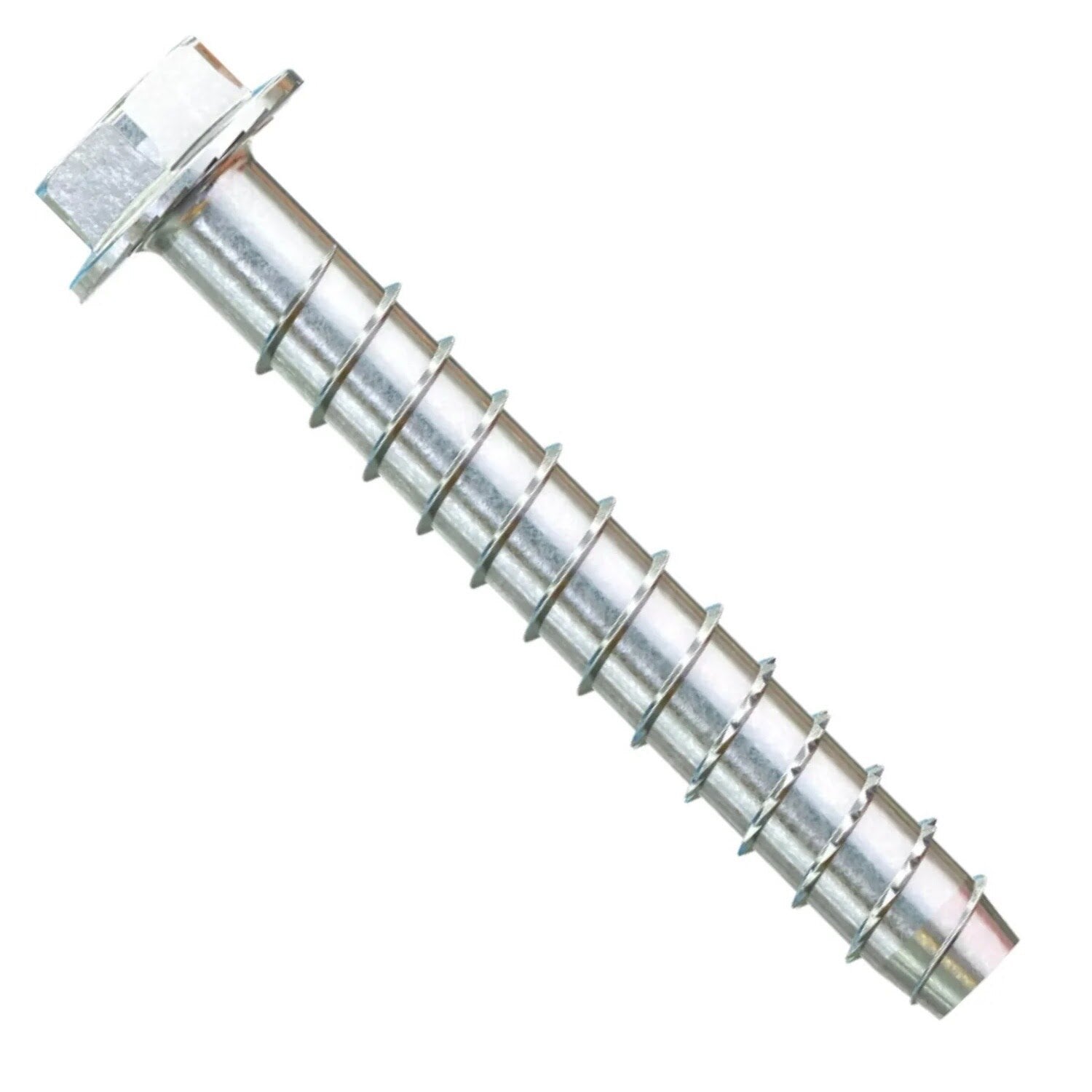

The Titen HD Heavy-Duty Screw Anchor Zinc Plated is a high-strength anchor designed for quick and easy installation in cracked and uncracked concrete applications.
Simpson THD50400HF1 Includes
- (1) Heavy-Duty Screw Anchor Zinc Plated 1/2 in. x 4 in.
Simpson THD50400HF1 Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions

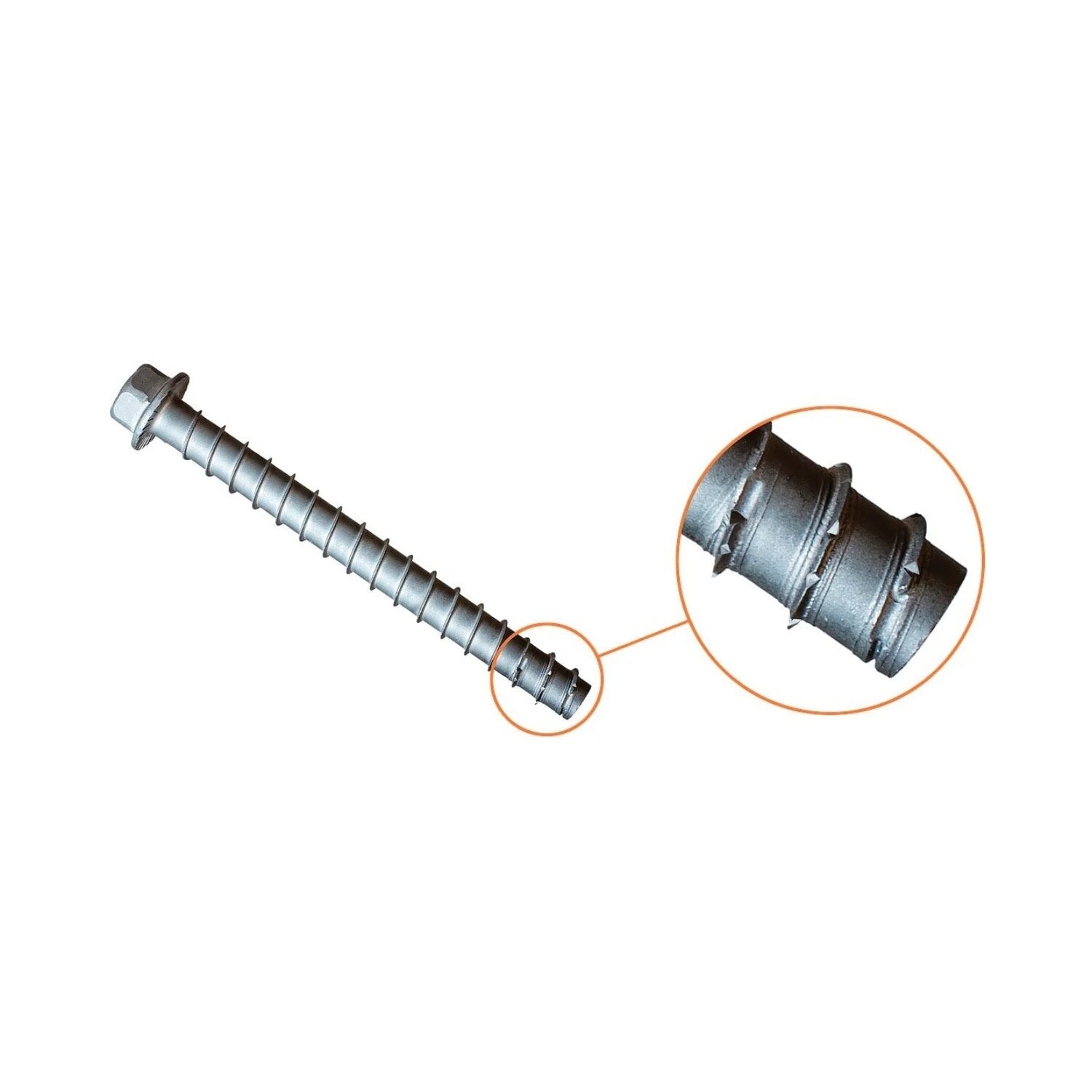

- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required
- Hex-washer head requires no separate washer
- Removable, ideal for temporary anchoring
- Use in dry interior environments only
Simpson THD50400HF1 Applications
- Concrete anchoring in cracked and uncracked conditions
- Temporary anchoring for formwork and bracing
- Dry interior environments

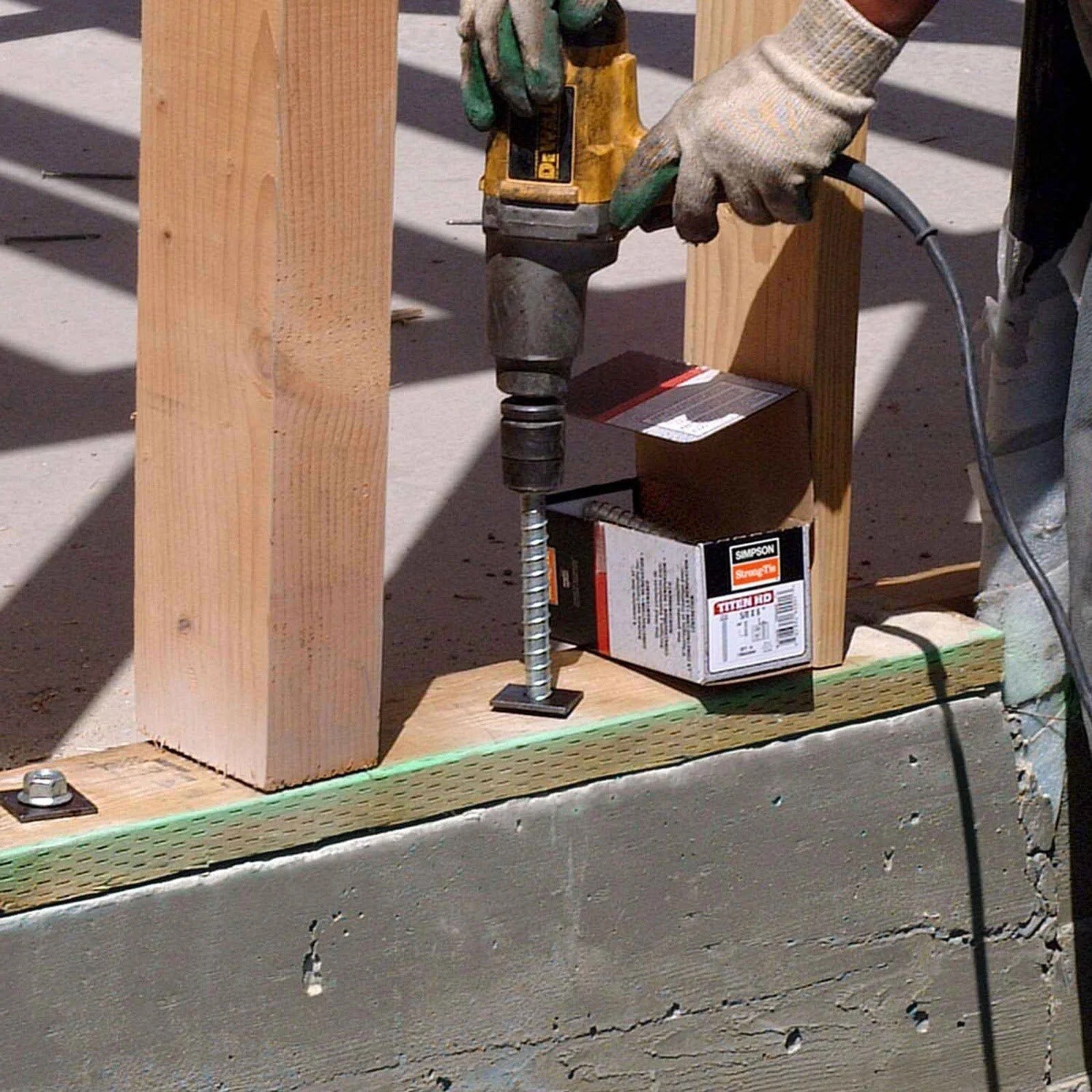

Simpson THD50400HF1 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD50400HF1 Specifications
| Diameter | 1/2" |
| Finish | Zinc |
| Length | 4" |
| Material | Carbon Steel |
| Drill bit size | 1/2" |
| Drive type | 3/4" Hex |
| Fixture hole size | 5/8"-11/16" |
| Head type | Hex Head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
