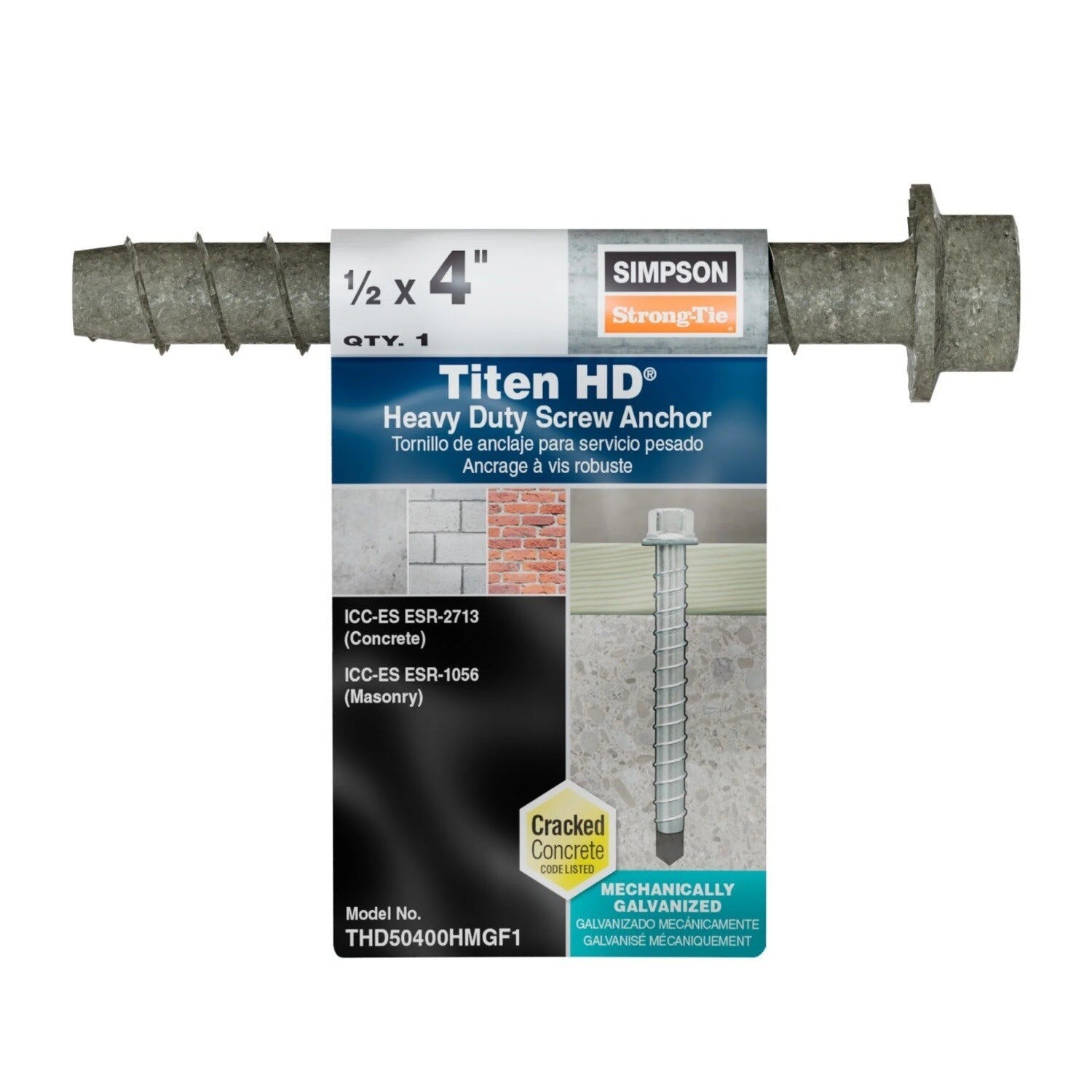

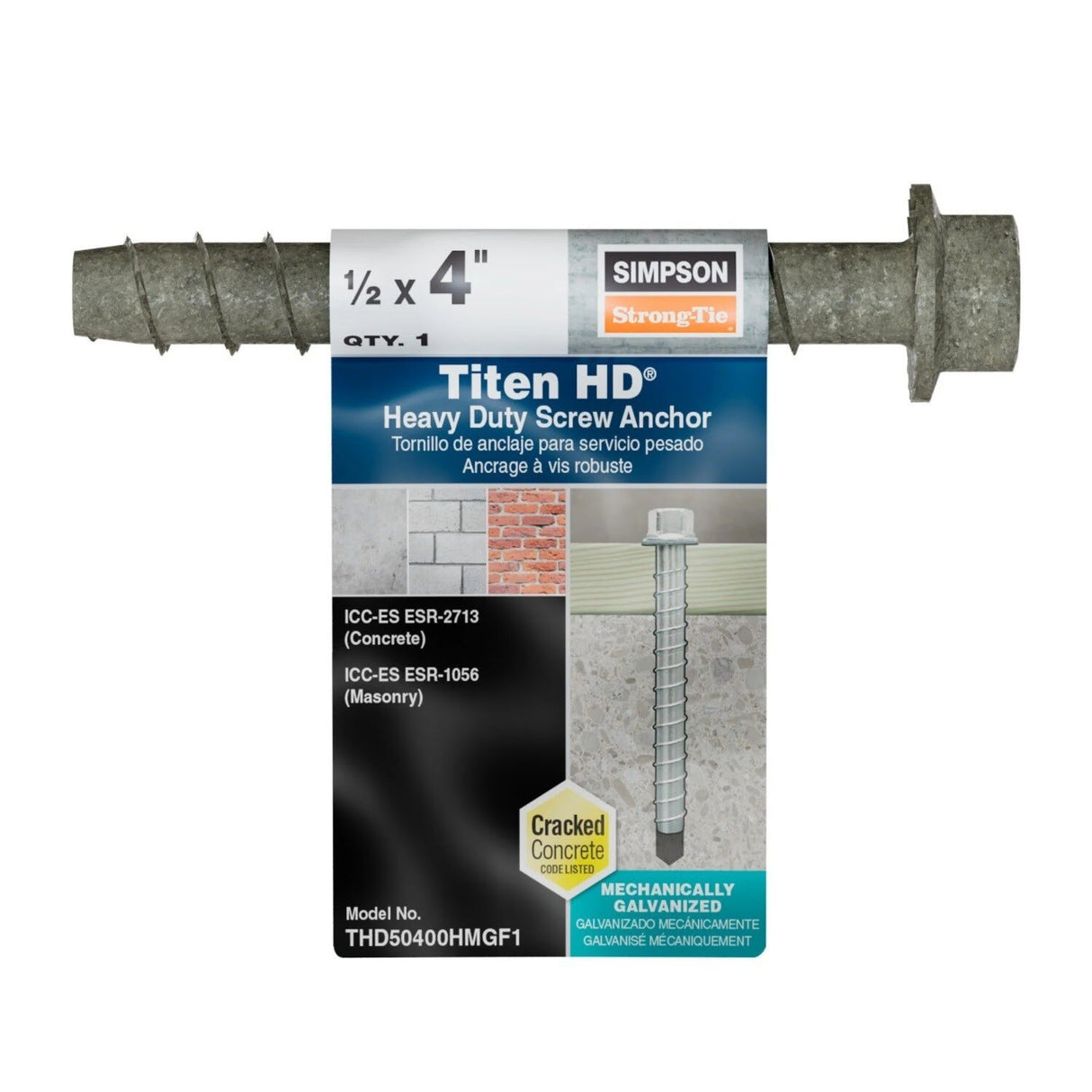

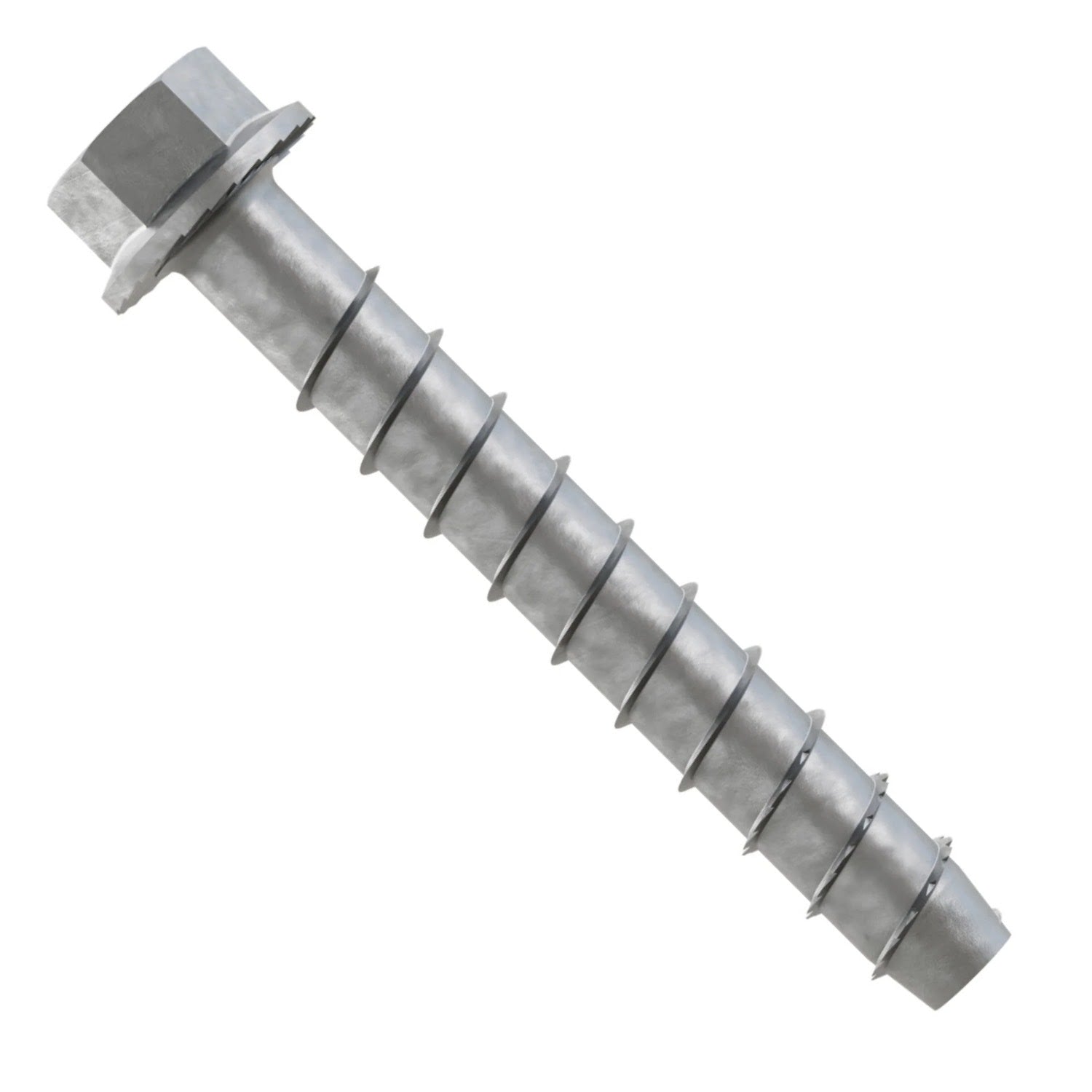

Simpson Strong-Tie THD50400HMGF1 Titen HD (1/2" x 4") Mechanically Galvanized Heavy-Duty Screw Anchor
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THD50400HMGF1 Titen HD (1/2" x 4") Mec...
Key Specifications
Description
Description
Simpson Strong-Tie THD50400HMGF1 Description
The Simpson Strong-Tie Titen HD Mechanically Galvanized Screw Anchor is designed for heavy-duty anchoring in concrete and masonry, offering superior holding power and corrosion resistance.
Simpson Strong-Tie THD50400HMGF1 Includes
- (1) 1/2" x 4" Mechanically Galvanized Screw Anchor
Simpson Strong-Tie THD50400HMGF1 Features

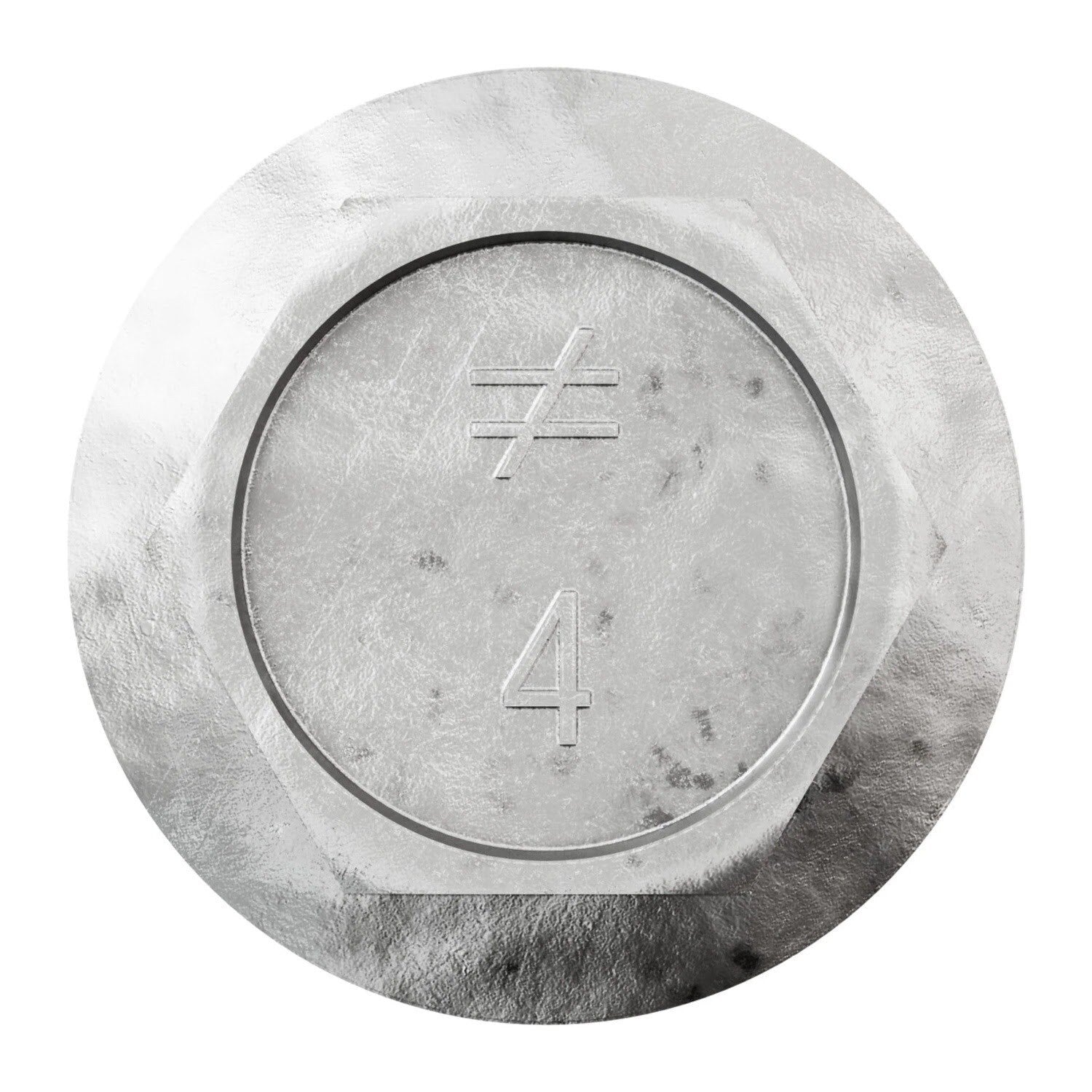

- Head-stamped for easy identification

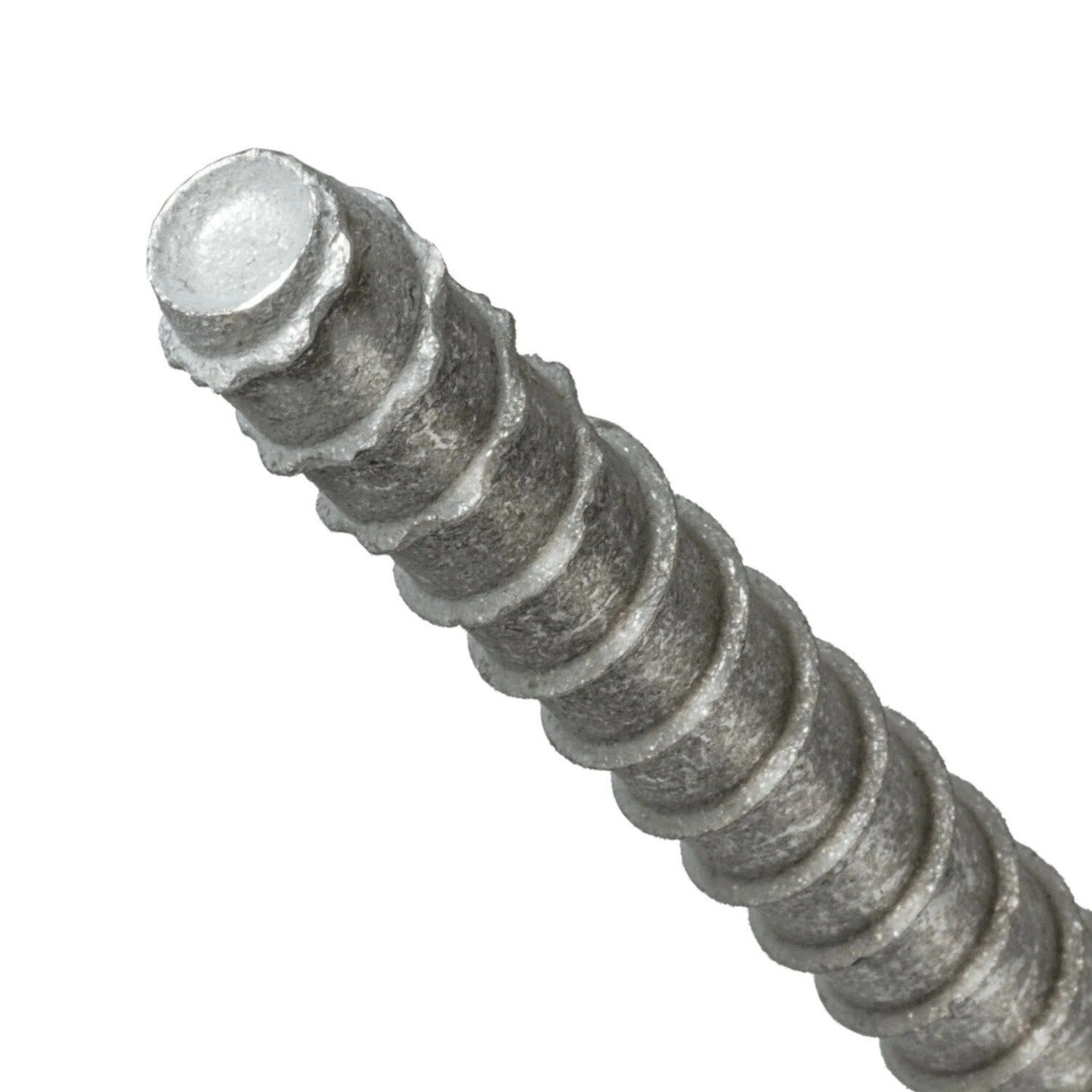

- Serrated teeth on the tip for reduced installation torque
- Thread design efficiently transfers load to base material
- Standard fractional sizes with matching hole size
- Specialized heat-treating for enhanced tip hardness
- Hex washer head eliminates need for separate washer
- Fully removable
- Code listed for exterior applications
Simpson Strong-Tie THD50400HMGF1 Applications
- Anchoring sill plates on foundations
- Ledger board installations for decks or balconies

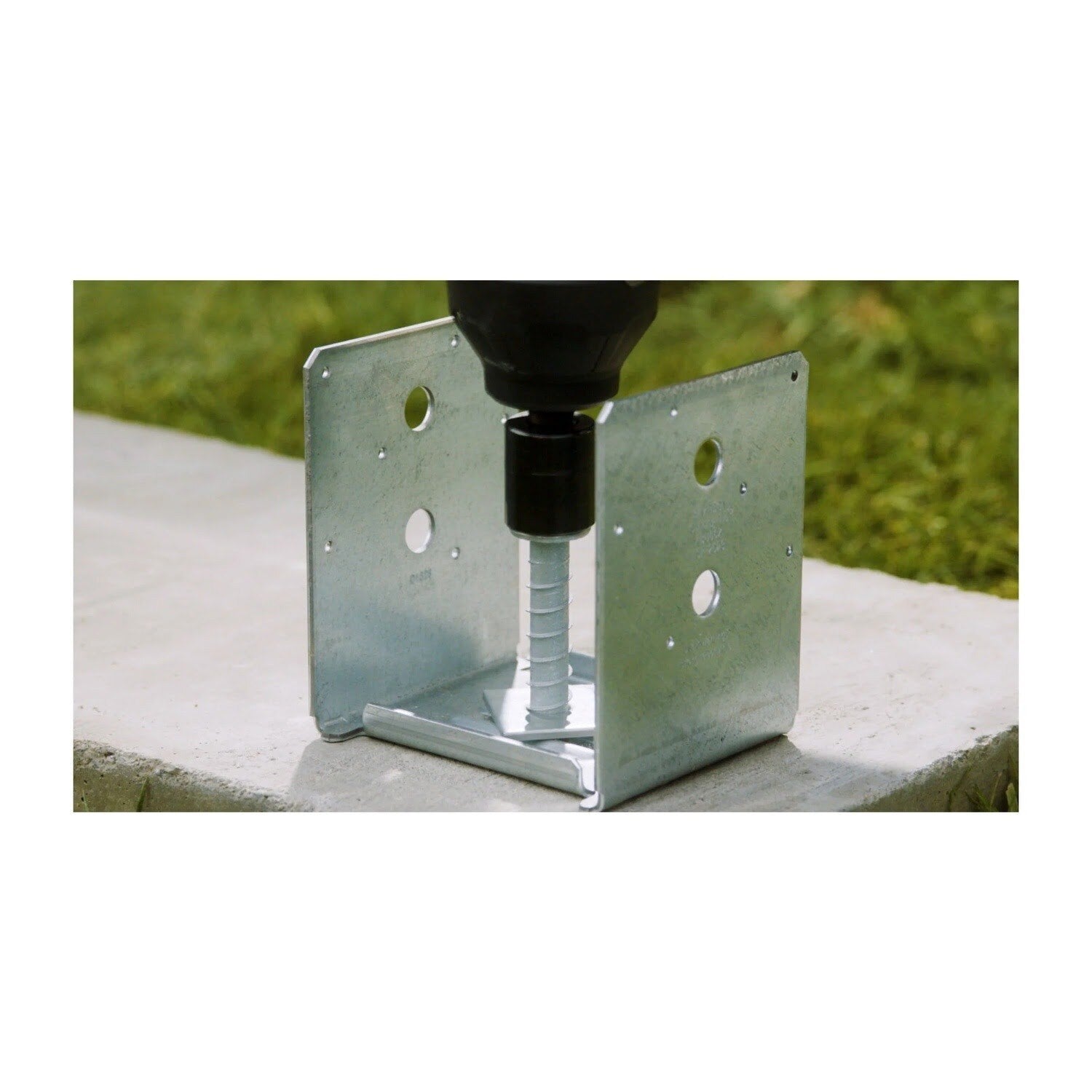

- Securing post bases for interior or exterior use
- Connecting wood or metal to concrete or masonry
- Temporary setups like bracing or forms
Simpson Strong-Tie THD50400HMGF1 Installation Overview
- Drill a hole to the specified diameter and depth.
- Clean the hole to remove dust and debris.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
- Verify the anchor is securely installed.
Simpson Strong-Tie THD50400HMGF1 Specifications
| Diameter | 1/2" |
| Length | 4" |
| Material | Carbon Steel |
| Finish | Mechanically Galvanized |
| Drill bit size | 1/2" |
| Fixture hole size | 5/8" - 11/16" |
| Thread length | 3-1/2" |
| Wrench size | 3/4" |
NOTE: Use the correct drill bit size and ensure the hole is clean before installation to achieve optimal performance.
