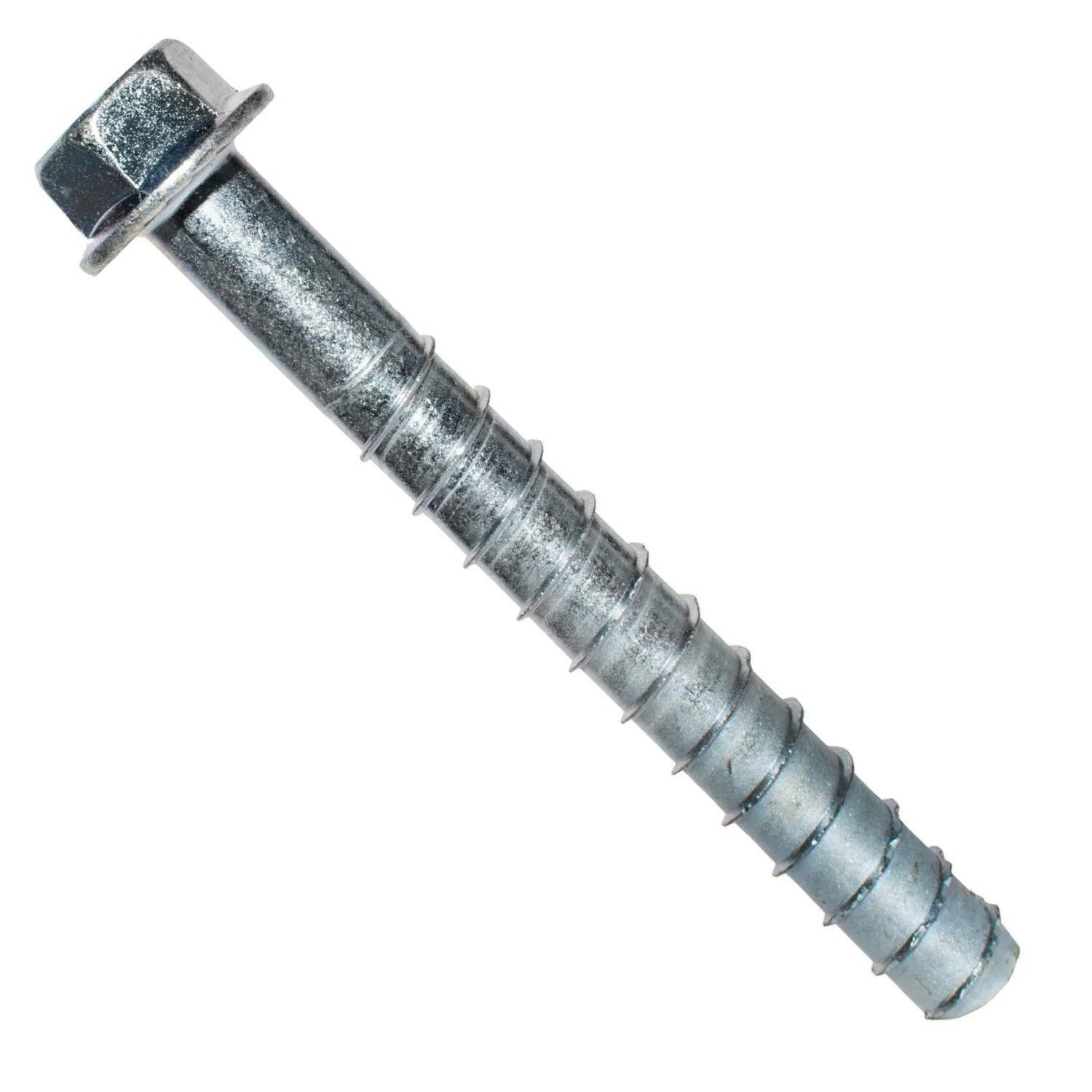

Simpson Strong-Tie THD75700H Titen HD (3/4" x 7") Heavy-Duty Screw Anchor - Zinc Plated (5 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THD75700H Titen HD (3/4" x 7") Heavy-D...
Key Specifications
Description
Description
Simpson Strong-Tie THD75700H Description
The Titen HD Screw Anchor is a high-strength, zinc-plated anchor designed for quick and easy installation in cracked and uncracked concrete applications. Ideal for dry, interior environments.
Simpson Strong-Tie THD75700H Includes
- (5) Titen HD Screw Anchor Zinc Plated 3/4 in. x 7 in.
Simpson Strong-Tie THD75700H Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions

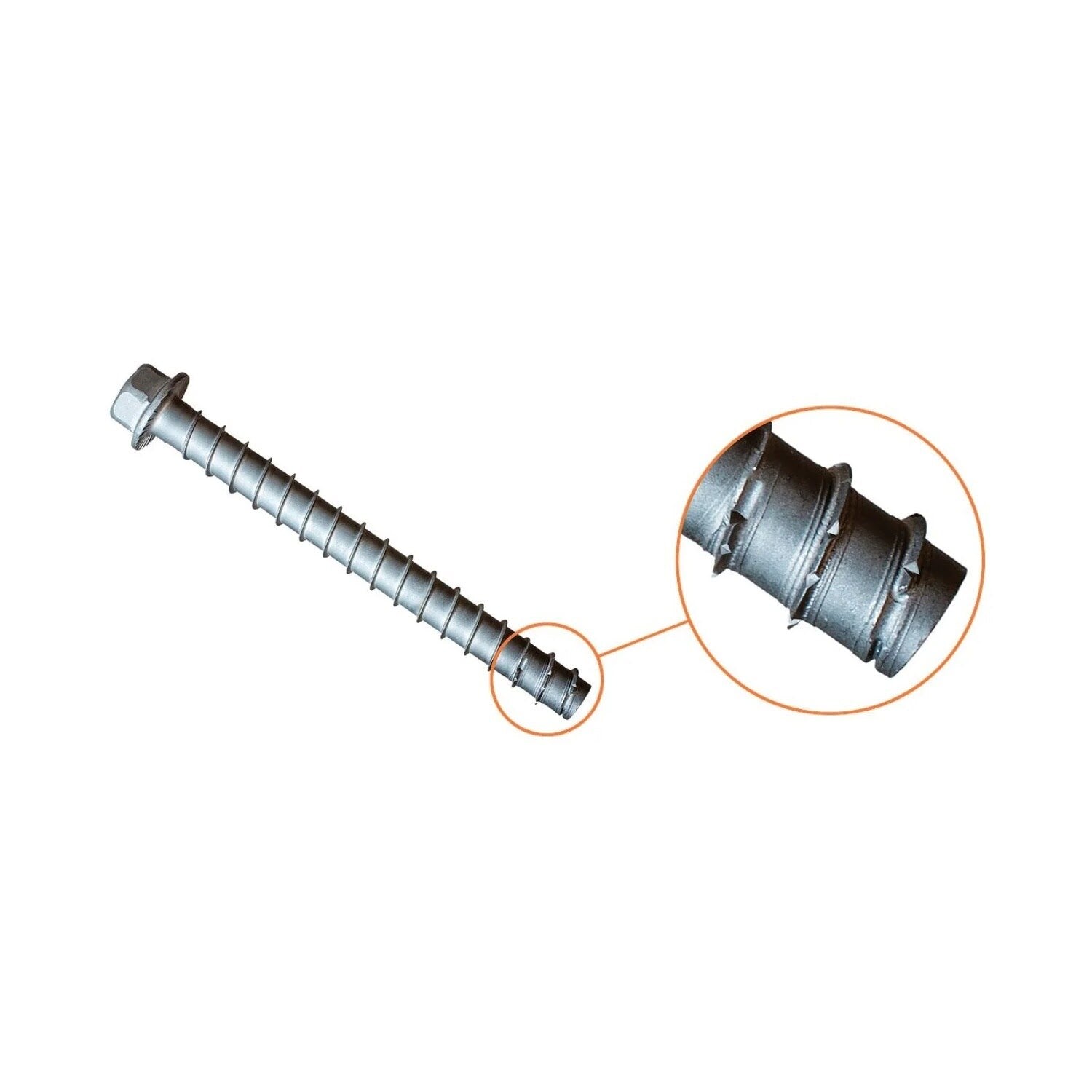

- Thread design undercuts to efficiently transfer the load to the base material
- Specialized heat-treating process for enhanced tip hardness
- Hex-washer head provides a clean installed appearance
- Removable for temporary anchoring applications
- Designed for use in dry interior environments
Simpson Strong-Tie THD75700H Applications
- Concrete anchoring in cracked and uncracked conditions
- Temporary anchoring for formwork or bracing
- Mechanical, electrical, and plumbing installations

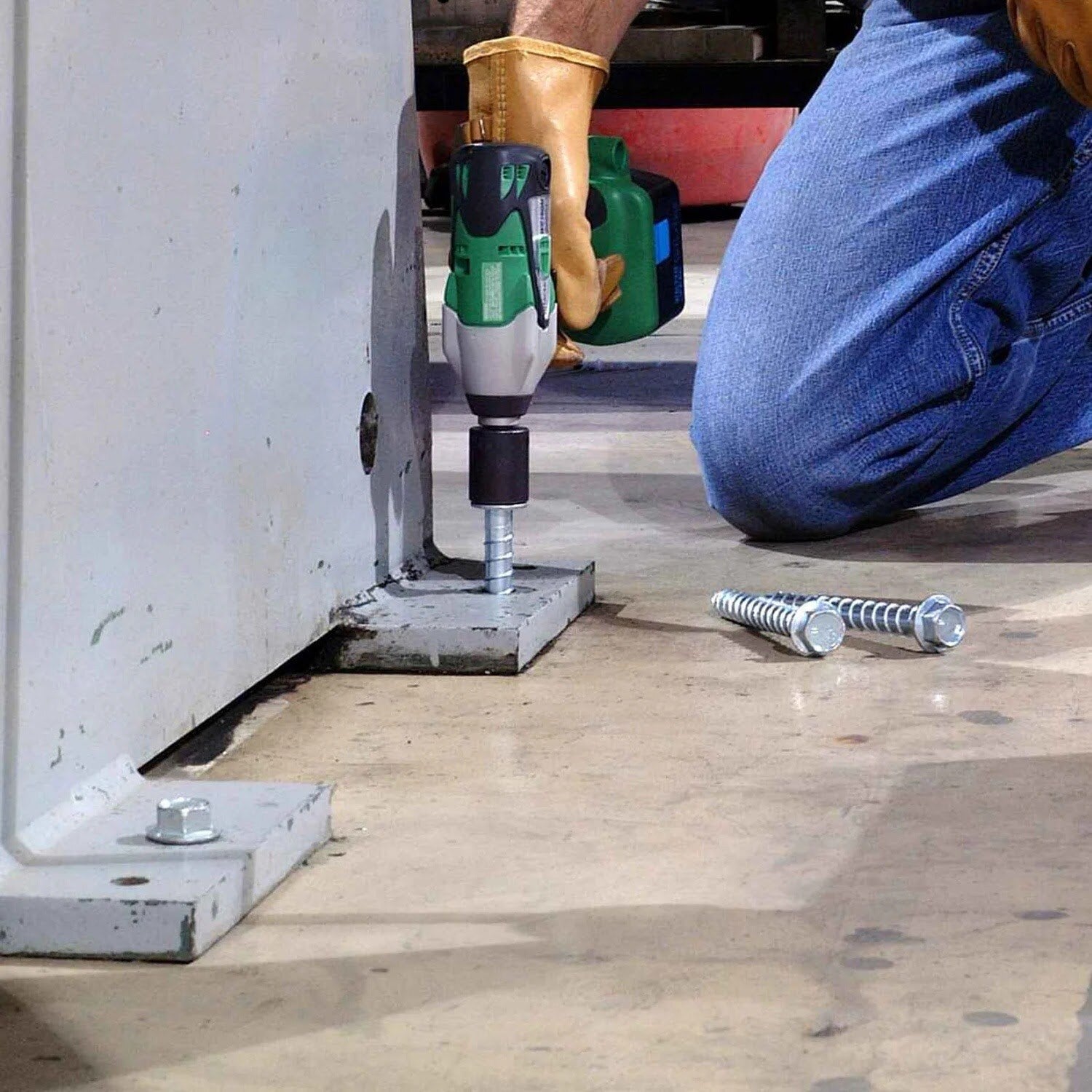

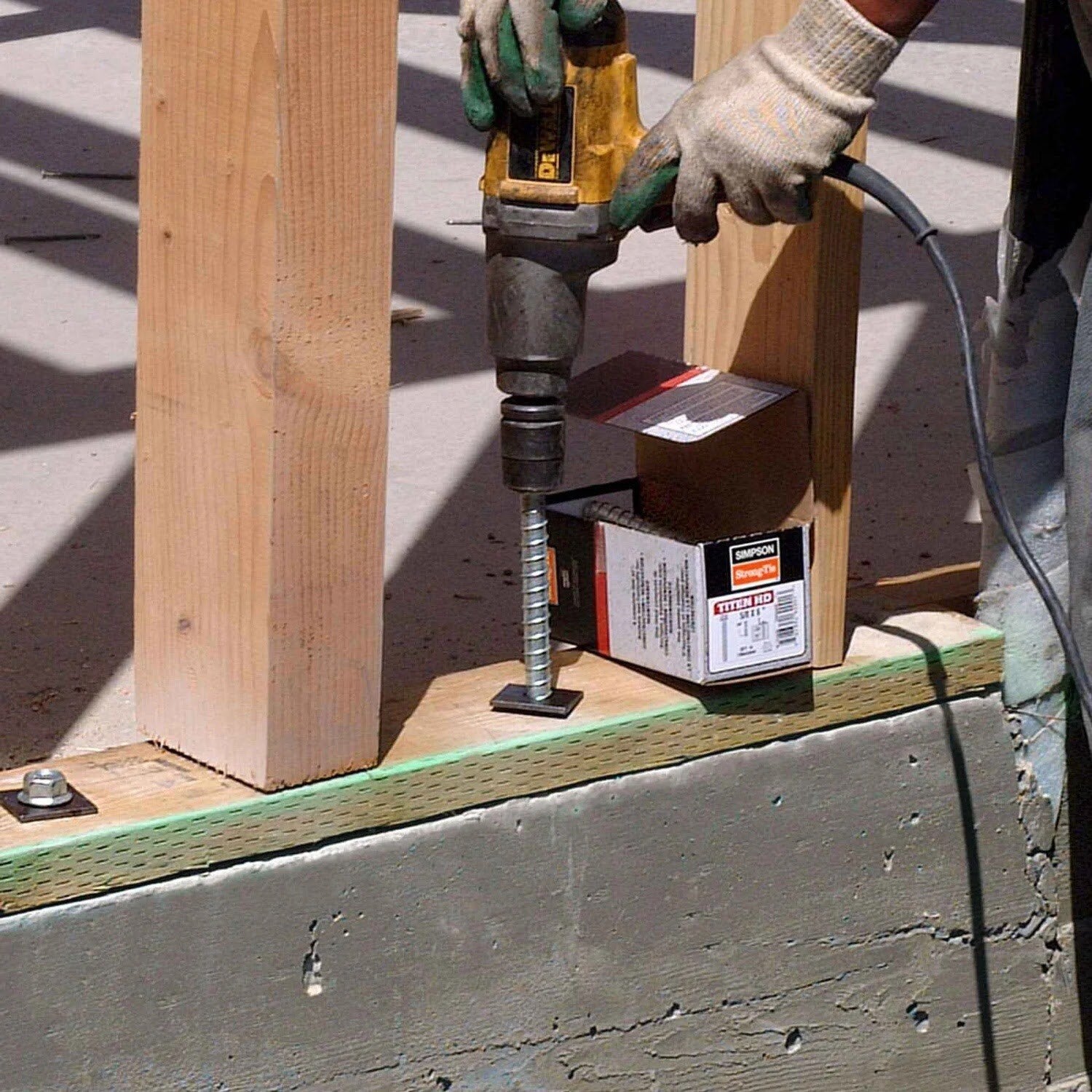

Simpson Strong-Tie THD75700H Installation Overview
- Drill a hole in the base material using a drill bit matching the anchor diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson Strong-Tie THD75700H Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 3/4 in. |
| Length | 7 in. |
| Drill Bit Size | 3/4 in. |
| Drive Type | 1-1/8 in. Hex |
| Fixture Hole Size | 7/8 in. - 15/16 in. |
| Head Type | Hex Head |
| Quantity | 5 |
