Simpson Strong-Tie THD75812HMG Titen HD (3/4" x 8-1/2") Mechanically Galvanized Heavy-Duty Screw Anchor (5 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THD75812HMG Titen HD (3/4" x 8-1/2") M...
Key Specifications
Description
Description
Simpson THD75812HMG Description

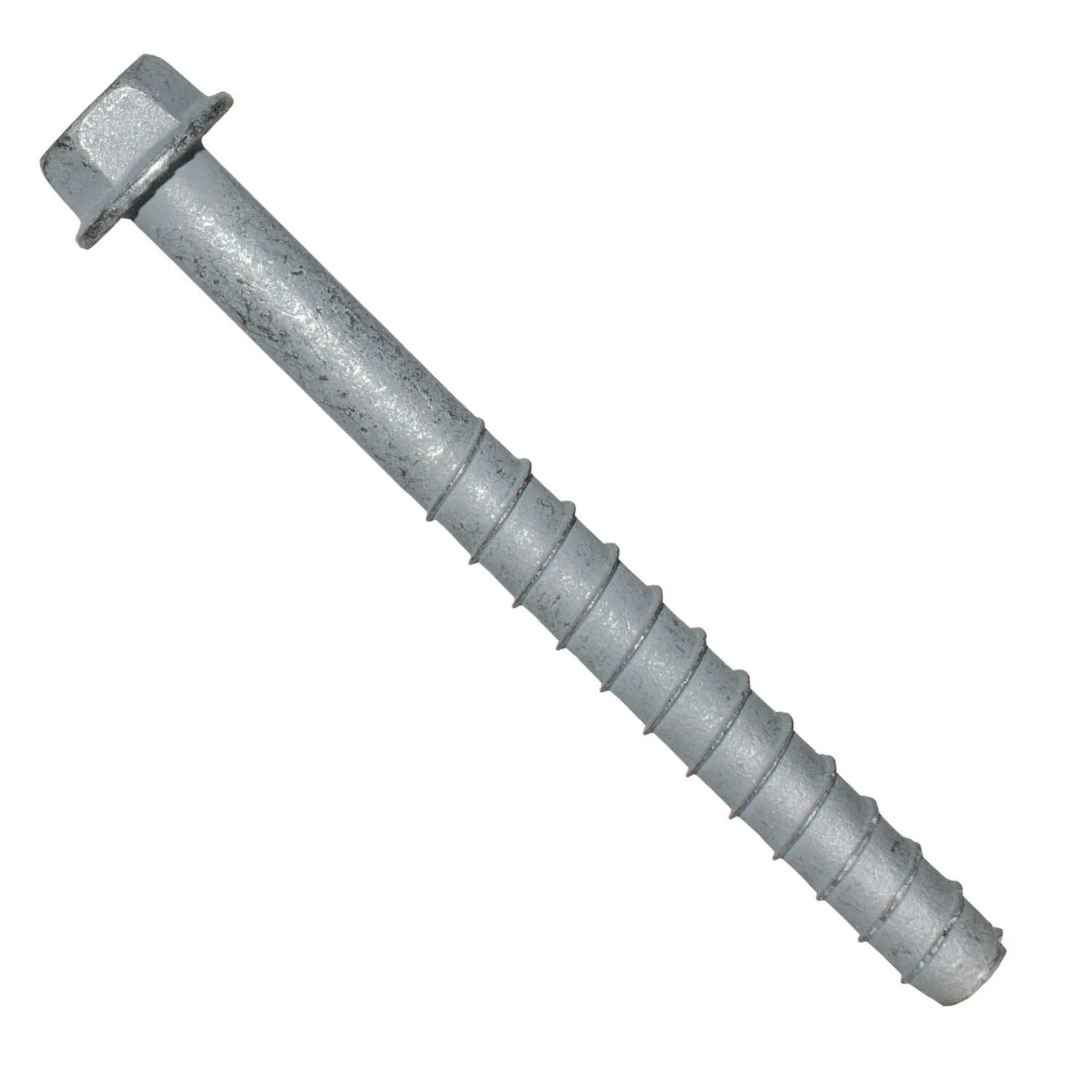

The Titen HD Screw Anchor is a high-strength, mechanically galvanized anchor designed for quick installation in concrete and masonry.
Simpson THD75812HMG Includes
- (5) Titen HD Screw Anchor Mechanically Galvanized 3/4" x 8-1/2"
Simpson THD75812HMG Features
- Head-stamped for easy identification

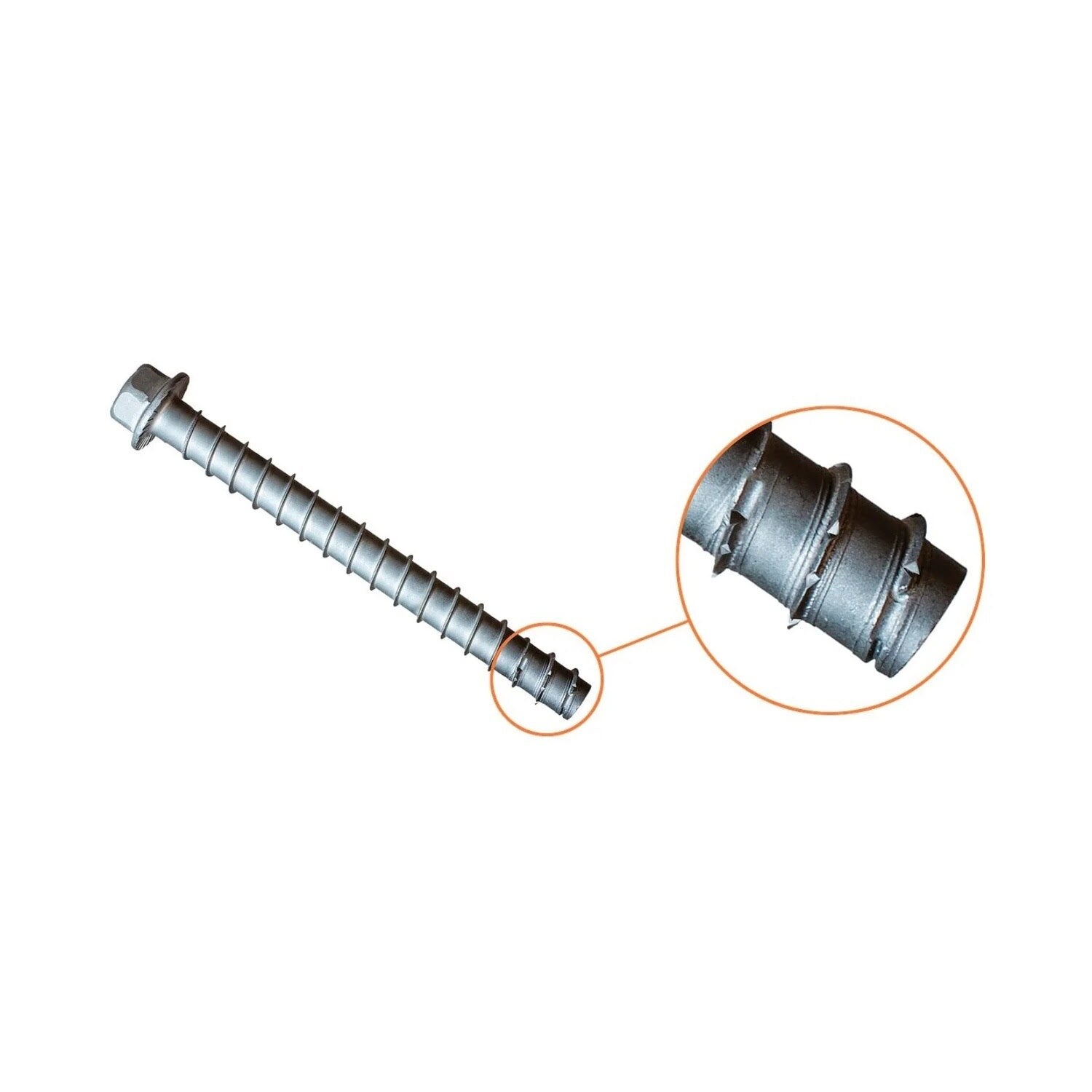

- Serrated teeth on the tip facilitates cutting and reduces installation torque
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes, hole size equals anchor size
- Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
- Hex washer head requires no separate washer, unless required by code
- Fully and easily removable
- Code listed for exterior applications
Simpson THD75812HMG Applications
- Anchorage Solutions: Ideal for securing fixtures in concrete and masonry.
- Sill Plates: Provides reliable anchoring for sill plates.
- Ledgers: Ensures secure attachment of ledgers.

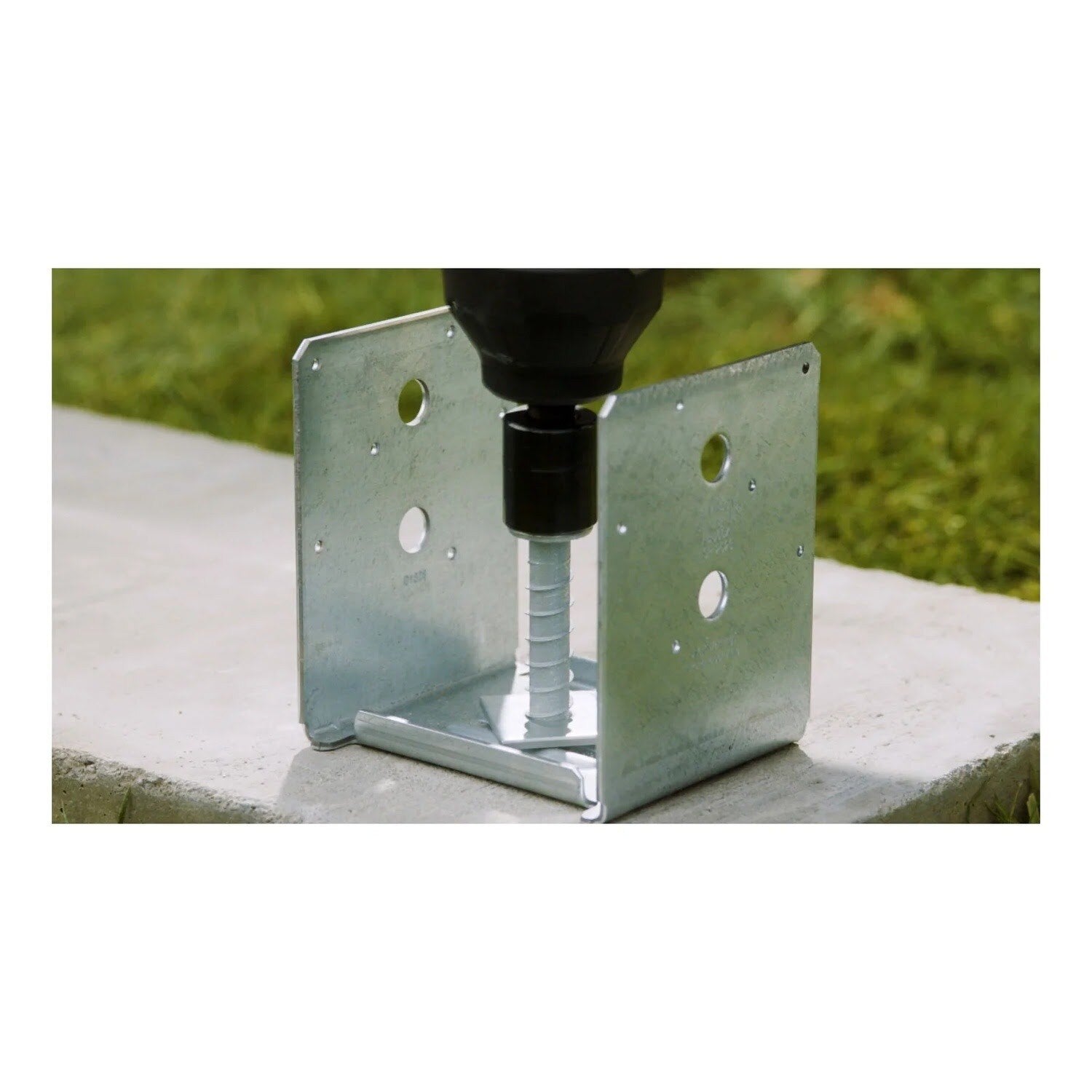

- Post Bases: Suitable for anchoring post bases.
- Seating: Can be used for seating applications.
- Holdown Applications: Effective for various holdown needs.
Simpson THD75812HMG Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor's nominal diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THD75812HMG Specifications
| Material | Carbon steel |
| Finish | Mechanically galvanized |
| Diameter | 3/4" |
| Length | 8-1/2" |
| Drill Bit Diameter | 3/4" |
| Drive Type | 1-1/8" Hex |
| Fixture Hole Size | 7/8"-15/16" |
| Head Type | Hex Head |
| Quantity | 5 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
