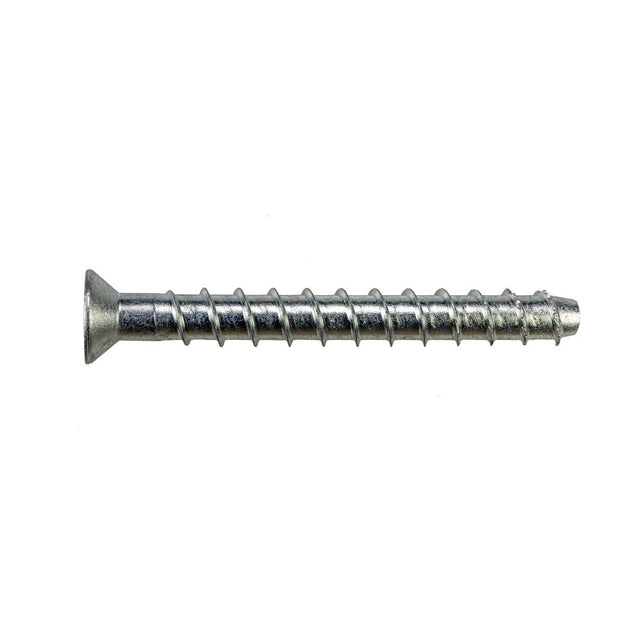

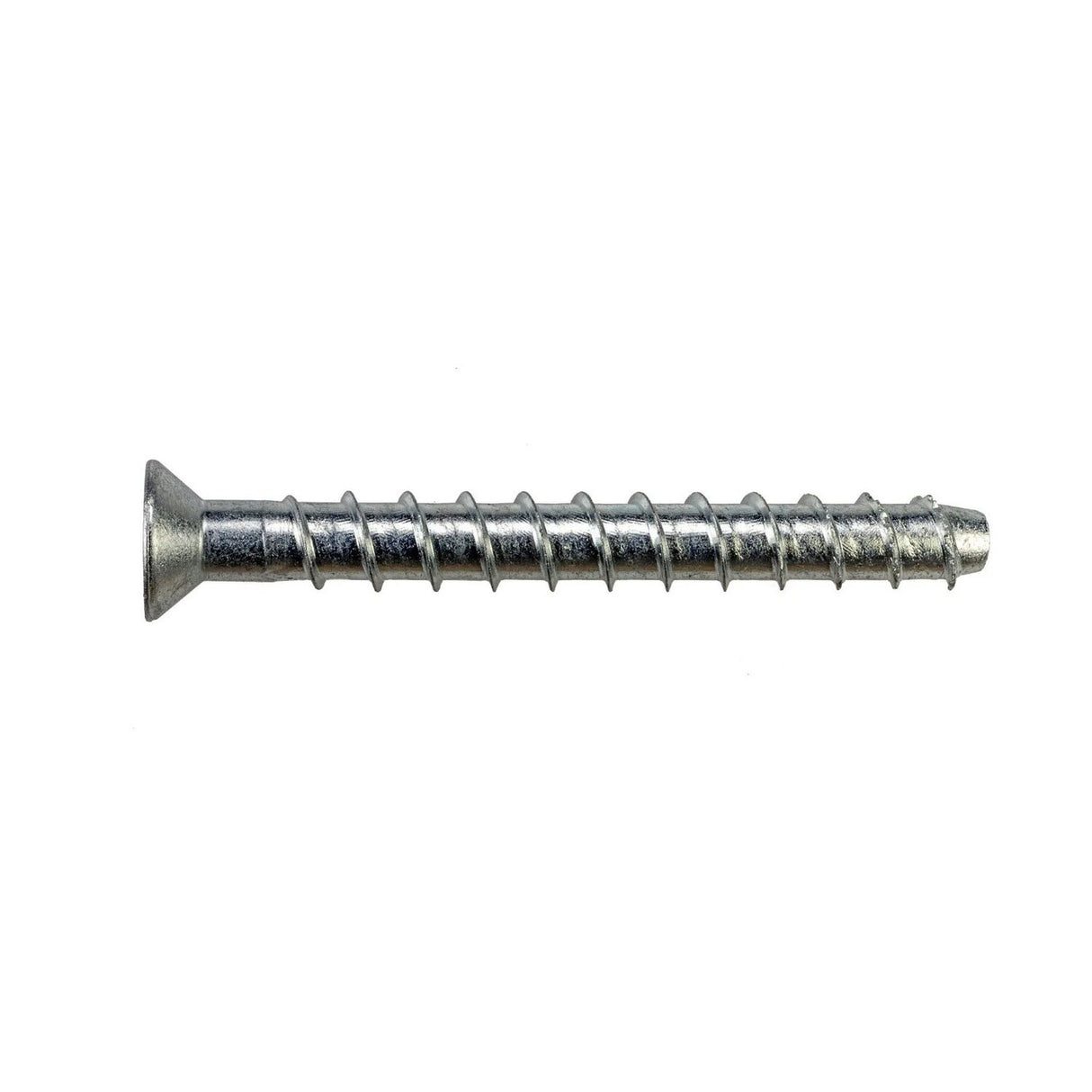

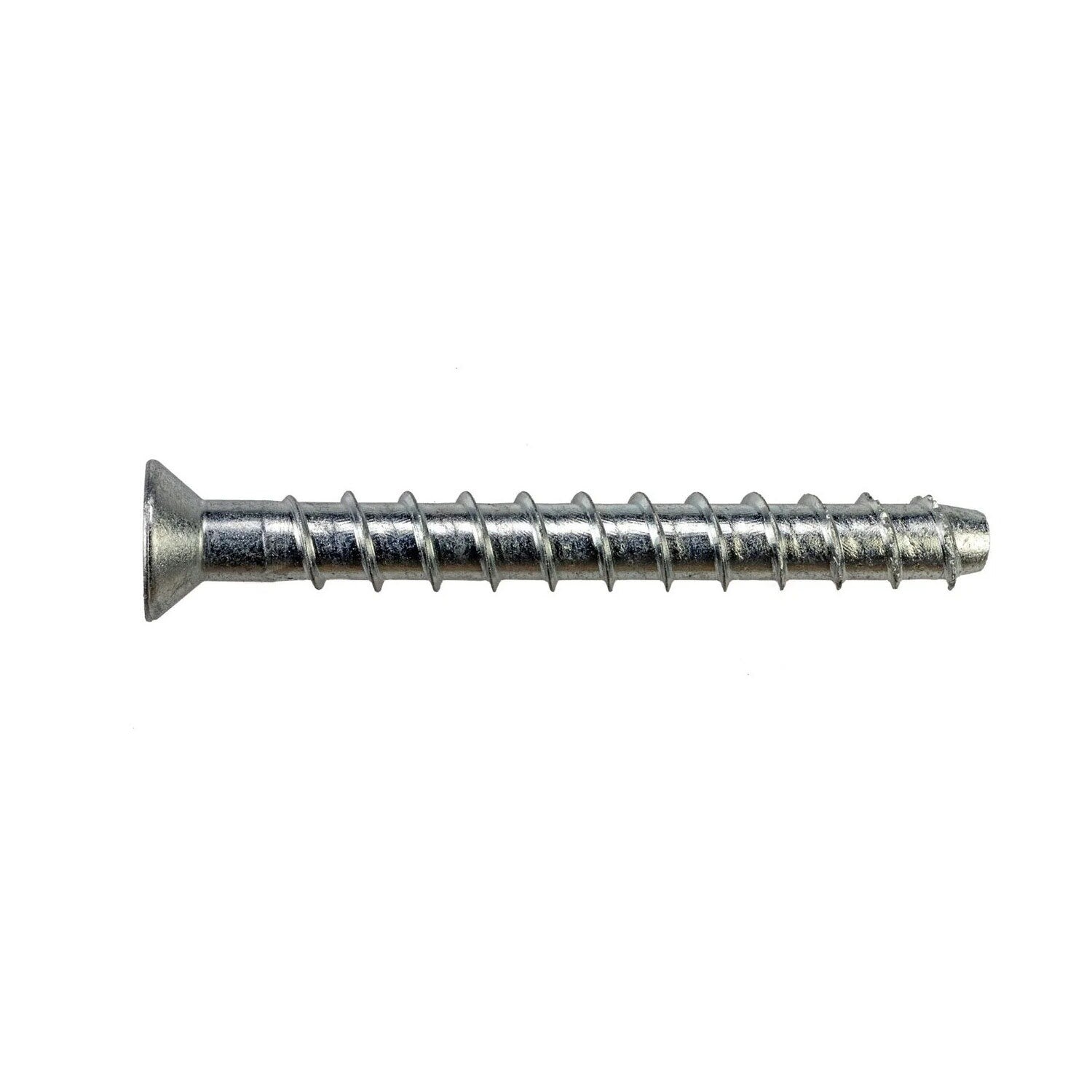

Simpson Strong-Tie THDB25312CS Titen HD (1/4" x 3-1/2") Zinc-Plated Countersunk Head Heavy-Duty Screw Anchor (50 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THDB25312CS Titen HD (1/4" x 3-1/2") Z...
Key Specifications
Description
Description
Simpson Strong-Tie THDB25312CS Description
The Titen HD Zinc-Plated Countersunk Head Heavy-Duty Screw Anchor is designed for secure and reliable anchoring in various applications. Its countersunk head allows for flush installation, and the zinc plating ensures durability in dry, interior environments.
Simpson Strong-Tie THDB25312CS Includes
- (50) Zinc-Plated Countersunk Head Heavy-Duty Screw Anchor
Simpson Strong-Tie THDB25312CS Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Standard fractional sizes with hole size same as anchor size
- No special drill bit required
- Removable for temporary anchoring or movable fixtures
- 6-lobe drive reduces driver-bit cam-outs
- Countersunk head for flush installation
Simpson Strong-Tie THDB25312CS Applications
- Mechanical anchoring in concrete and masonry
- Temporary anchoring for movable fixtures
- Seismic and wind load applications
Simpson Strong-Tie THDB25312CS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the countersunk head contacts the fixture.
Simpson Strong-Tie THDB25312CS Specifications
| Material | Carbon Steel |
| Finish | Zinc-Plated |
| Diameter | 1/4" |
| Length | 3-1/2" |
| Drive Type | T30 6-Lobe |
| Fixture Hole Size | 3/8" to 7/16" |
