Simpson Strong-Tie THDB62500H4SSF1 Titen HD (5/8" x 5") Heavy Duty SS Screw Anchor - Type 304
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THDB62500H4SSF1 Titen HD (5/8" x 5") H...
Key Specifications
Description
Description
Simpson Strong-Tie THDB62500H4SSF1 Description

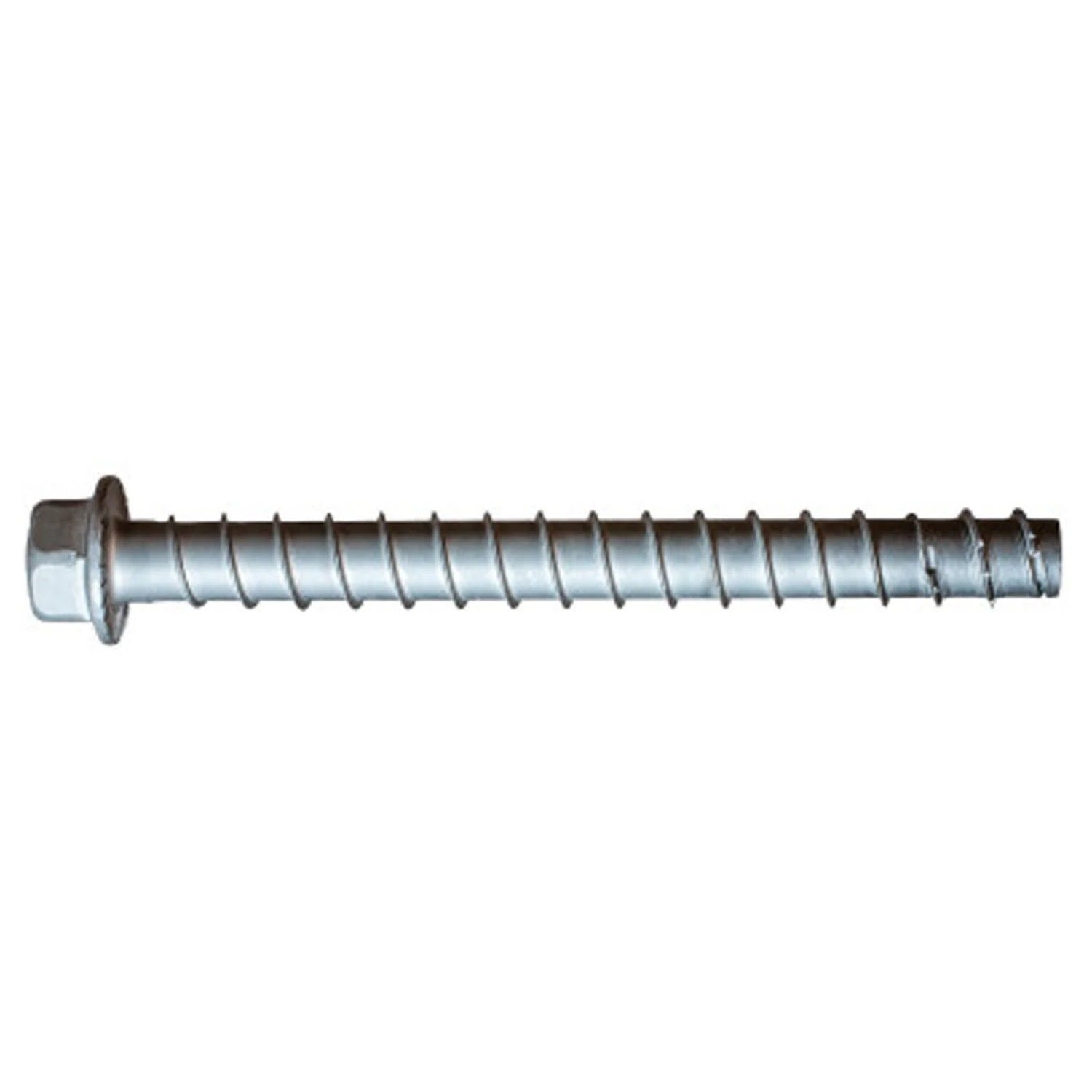

The Simpson Strong-Tie THDB62500H4SSF1 Titen HD Screw Anchor is a heavy-duty, stainless steel anchor designed for concrete and masonry applications, offering superior corrosion resistance and easy installation.
Simpson Strong-Tie THDB62500H4SSF1 Includes
- (1) Titen HD Screw Anchor
Simpson Strong-Tie THDB62500H4SSF1 Features
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Hex-washer head requires no separate washer and provides a clean installed appearance
- Innovative carbon-steel thread effectively cuts the concrete while limiting carbon steel in the anchor
- Size: 5/8 in. x 5 in.
- Made from Type 304 stainless steel
- Caution: Use a Titen HD screw anchor one time only; installing the anchor multiple times may result in excessive thread wear and reduce load capacity
Simpson Strong-Tie THDB62500H4SSF1 Applications
- Concrete and masonry anchoring
- General exterior applications
- Structural support in damp or moist environments

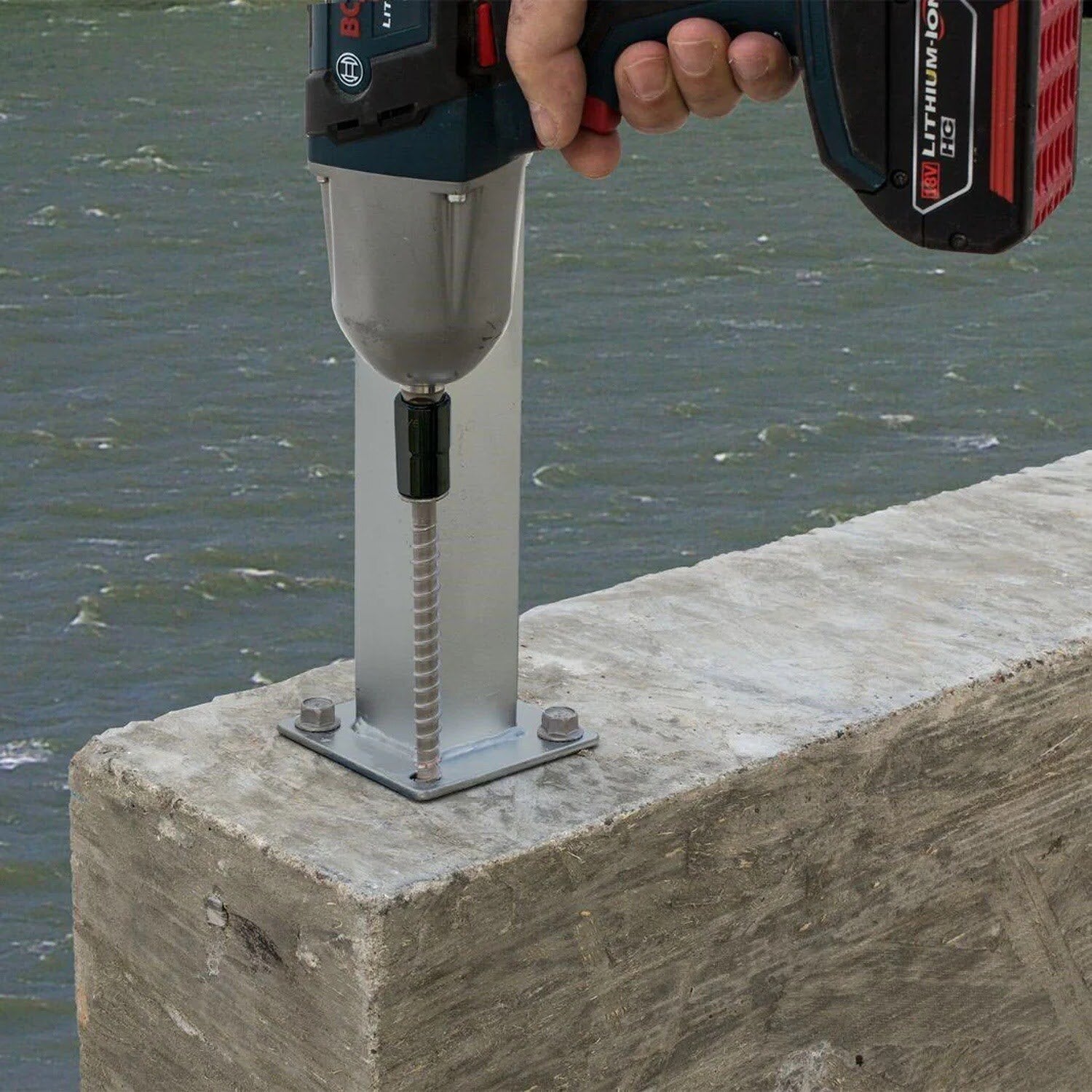

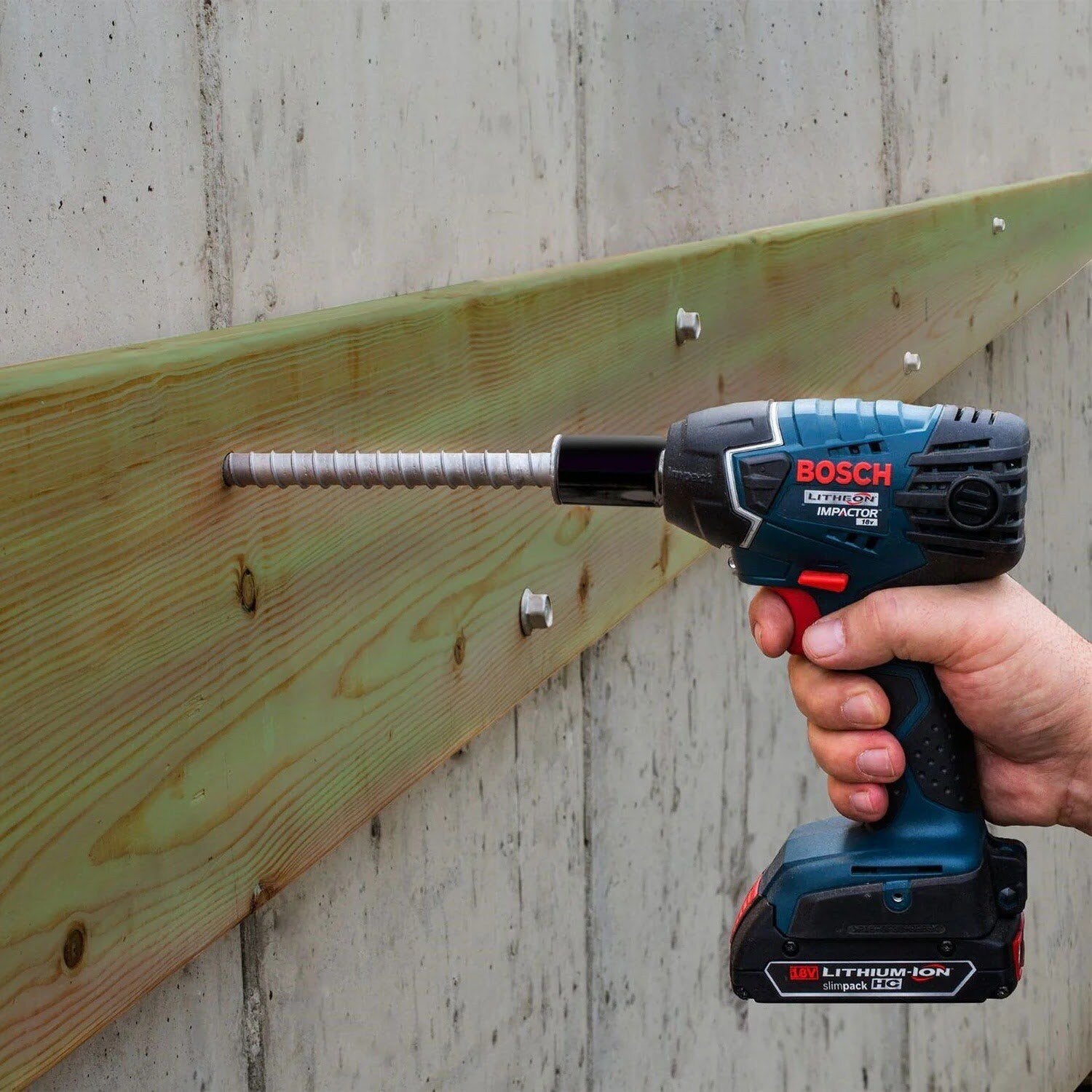

Simpson Strong-Tie THDB62500H4SSF1 Installation Overview
- Prepare the drill site and ensure proper alignment.
- Drill the hole using a standard-sized ANSI tolerance drill bit.
- Insert the Titen HD Screw Anchor into the drilled hole.
- Tighten the anchor using a 15/16 in. wrench or impact tool.
- Ensure the anchor is securely fastened and properly seated.
Simpson Strong-Tie THDB62500H4SSF1 Specifications
| Material | Type 304 Stainless Steel |
| Diameter | 5/8 in. |
| Length | 5 in. |
| Drill Bit Diameter | 5/8 in. |
| Fixture Hole Size | 3/4 to 13/16 in. |
| Head Type | Hex Head |
WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
