Simpson Anchors | SKU: THDB62600HF1 | Barcode: 707392662945

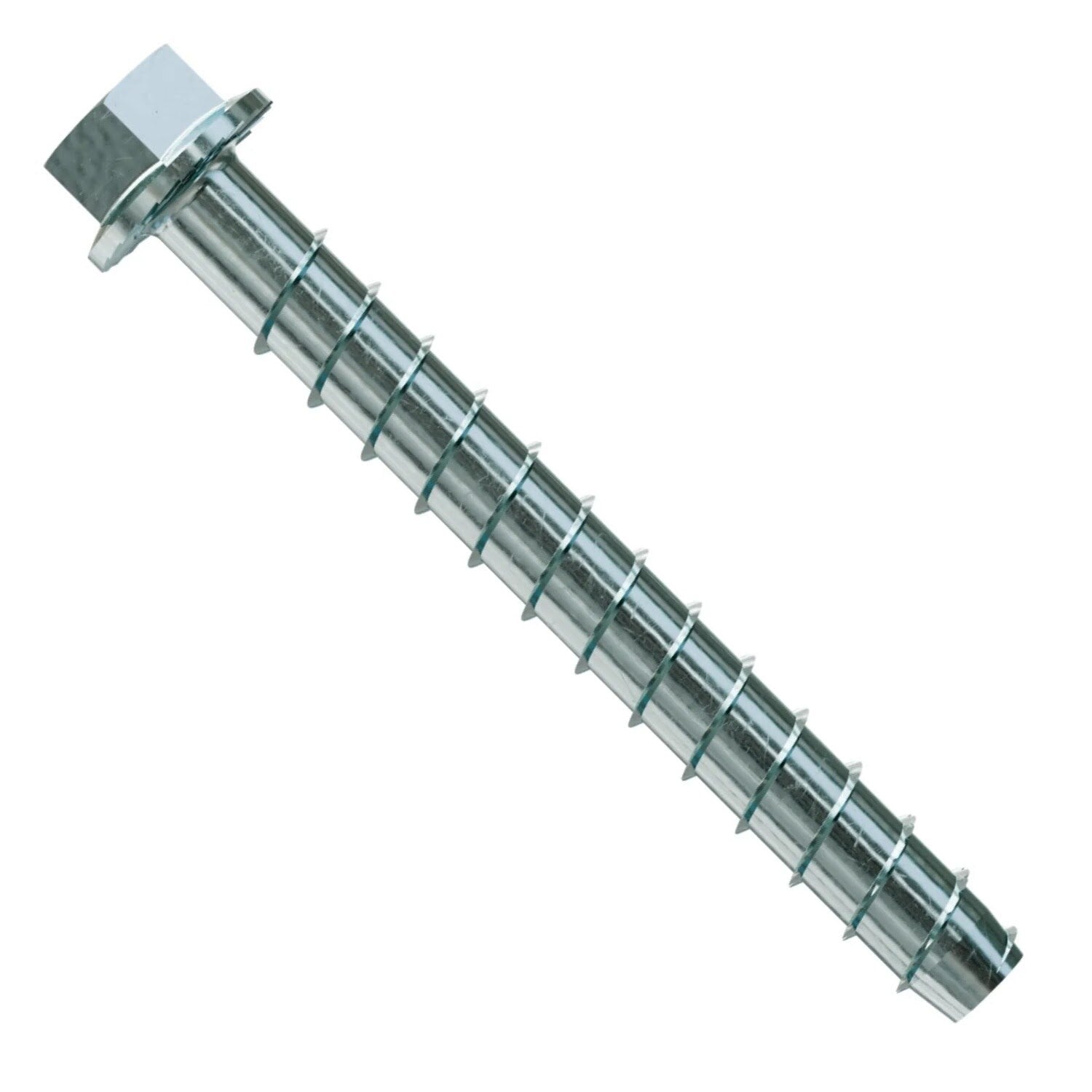

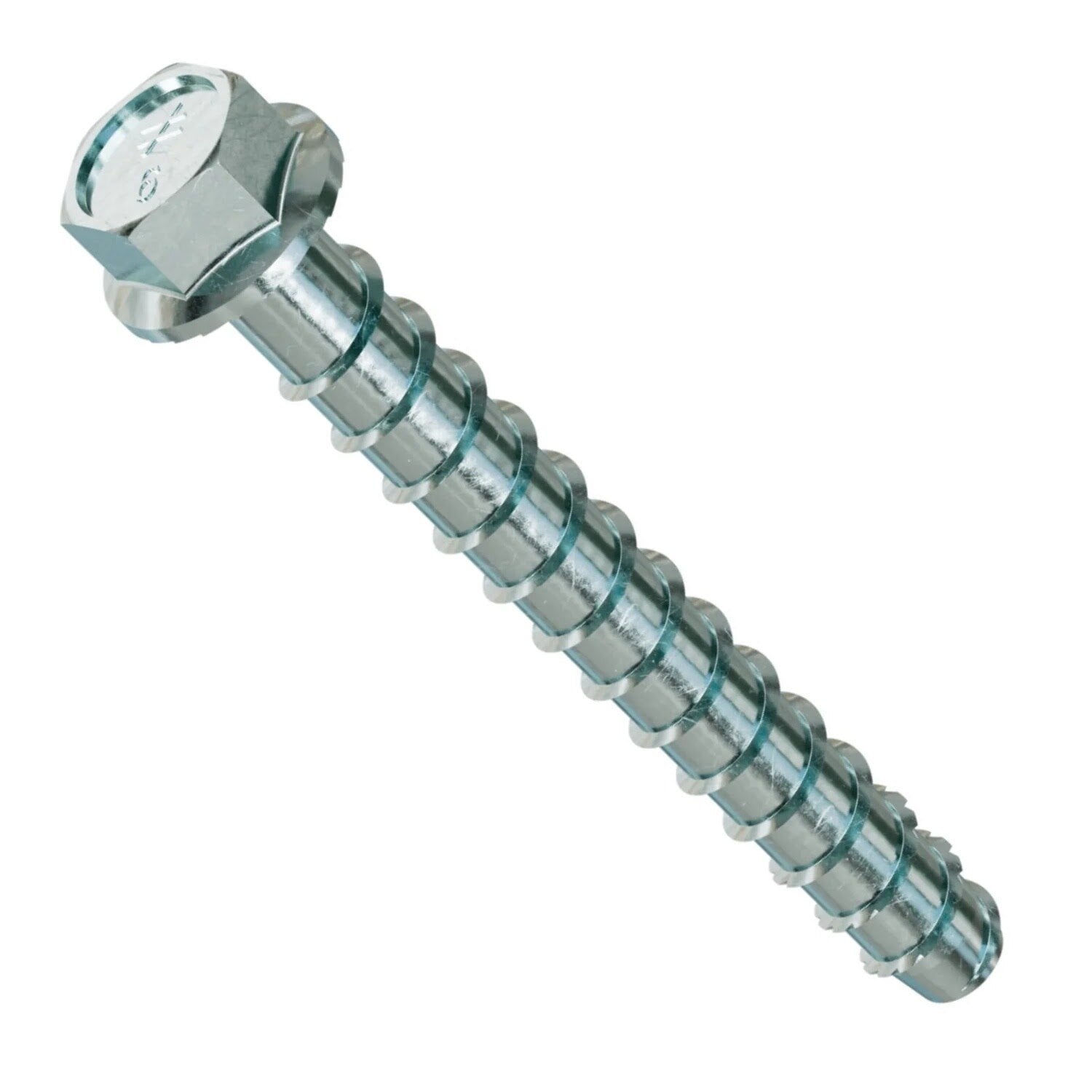

Simpson Strong-Tie THDB62600HF1 Titen HD (5/8" x 6") Heavy-Duty Screw Anchor for Concrete and Masonry

Name: Simpson Strong-Tie THDB62600HF1 Titen HD (5/8" x 6") Heavy-Duty Screw Anchor for Concrete and Masonry
Brand: Simpson Anchors
SKU: 824640
Price: 4.66 USD
Availability: InStock

$4.66

Shipping calculated at checkout.

Stock Up & Save

1-Pack

$4.66

10-Pack

10% OFF

$41.94

$46.60

10, 10,

default, percentage,

1, 10,

{ "Default Title":{"price":"466","compare_at_price":"","id":"52011285840239","quantity":"10","inv_p":"continue","inv_m":"shopify"} }

{ "Default Title":{"price":"466","compare_at_price":"","id":"52011285840239","quantity":"10","title":"Default Title","inventory_policy":"continue","inventory_management":"shopify"} }

{ "Default Title":{"id":"52011285840239"} }

Bulk Pricing Available

Need to place a large order? Request a quote

Key Specifications

Diameter: 5/8"

Finish: Zinc Plated

Head type: Hex Head

Length: 6"

Material: Carbon Steel

Type: Screw Anchor

Description

Simpson THDB62600HF1 Description

The Simpson THDB62600HF1 Heavy-Duty Screw Anchor is designed for reliable performance in concrete and masonry applications. Featuring a zinc-plated finish and a hex head design, it ensures durability and ease of installation.

Simpson THDB62600HF1 Includes

(1) Heavy-Duty Screw Anchor for Concrete and Masonry, Zinc Plated, 5/8 in. x 6 in.

Simpson THDB62600HF1 Features

Tested in accordance with ACI 355.2, AC193 and AC106
Qualified for static, wind and seismic loading conditions
Thread design undercuts to efficiently transfer the load to the base material

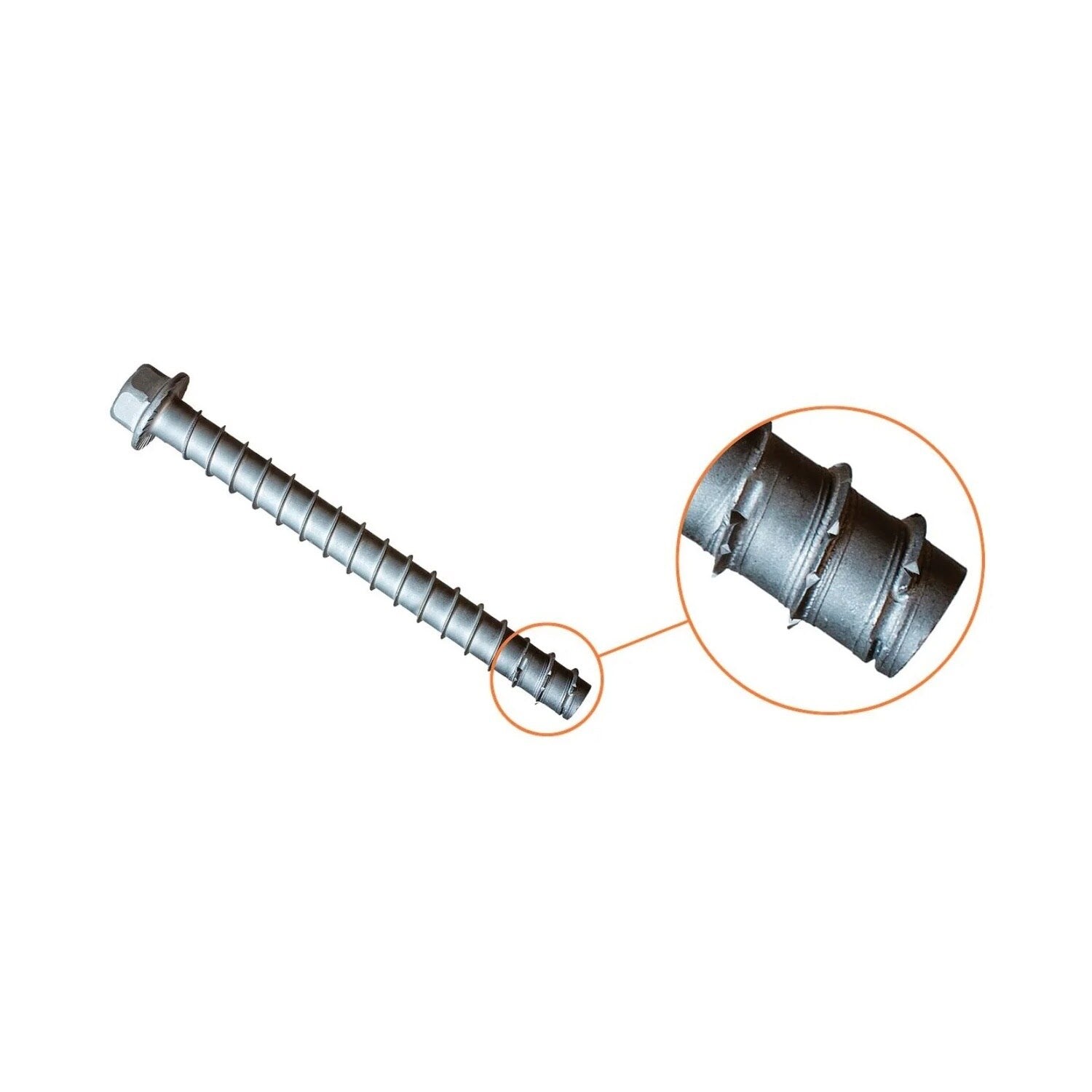

Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
No special drill bit required—designed to install using standard-sized ANSI tolerance drill bits
Hex-washer head requires no separate washer, unless required by code, and provides a clean installed appearance
Removable—ideal for temporary anchoring or applications where fixtures may need to be moved
Use in dry interior environments only

Simpson THDB62600HF1 Applications

Concrete and masonry anchoring
Temporary anchoring for formwork and bracing
Interior dry environments

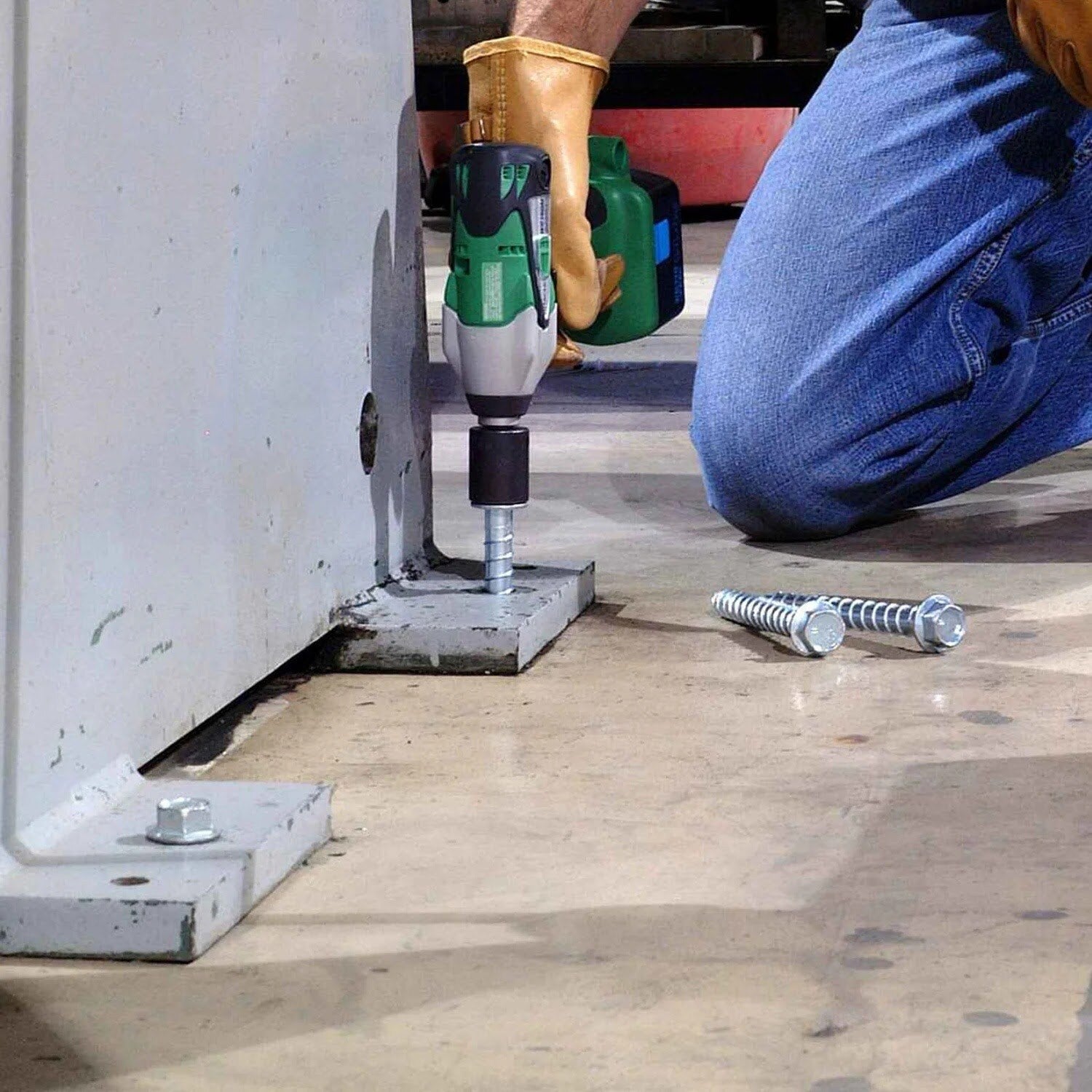

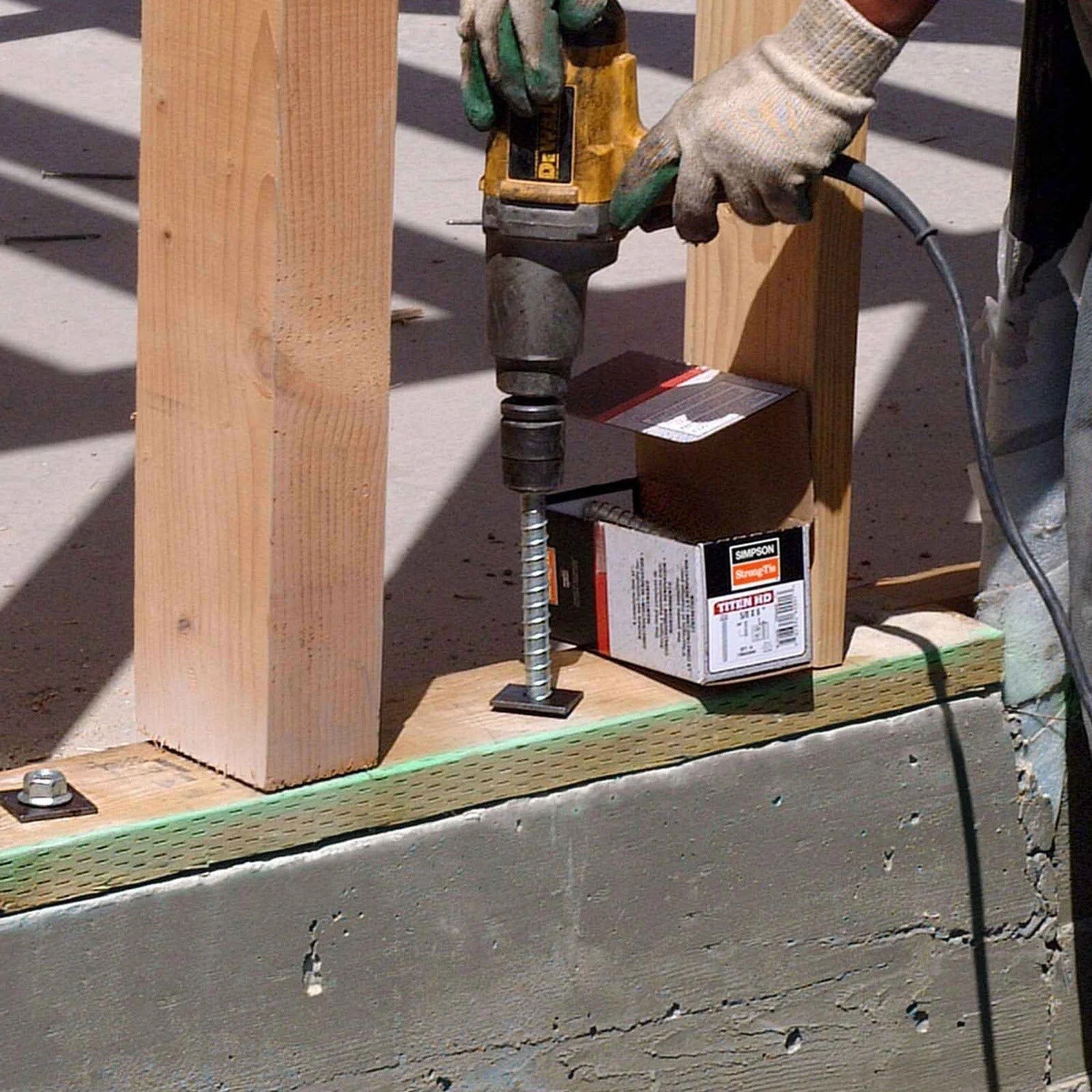

Simpson THDB62600HF1 Installation Overview

Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor.
Insert the anchor through the fixture and into the hole.
Tighten the anchor into the base material until the hex-washer head contacts the fixture.

Simpson THDB62600HF1 Specifications

Diameter	5/8"
Length	6"
Material	Carbon Steel
Finish	Zinc Plated
Drill Bit Size	5/8"
Drive Type	15/16" Hex
Fixture Hole Size	3/4"-13/16"
Head Type	Hex Head

NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
