Simpson Strong-Tie THDB62800HF1 Titen HD (5/8" x 8") Heavy-Duty Screw Anchor for Concrete and Masonry
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THDB62800HF1 Titen HD (5/8" x 8") Heav...
Key Specifications
Description
Description
Simpson Strong-Tie THDB62800HF1 Description

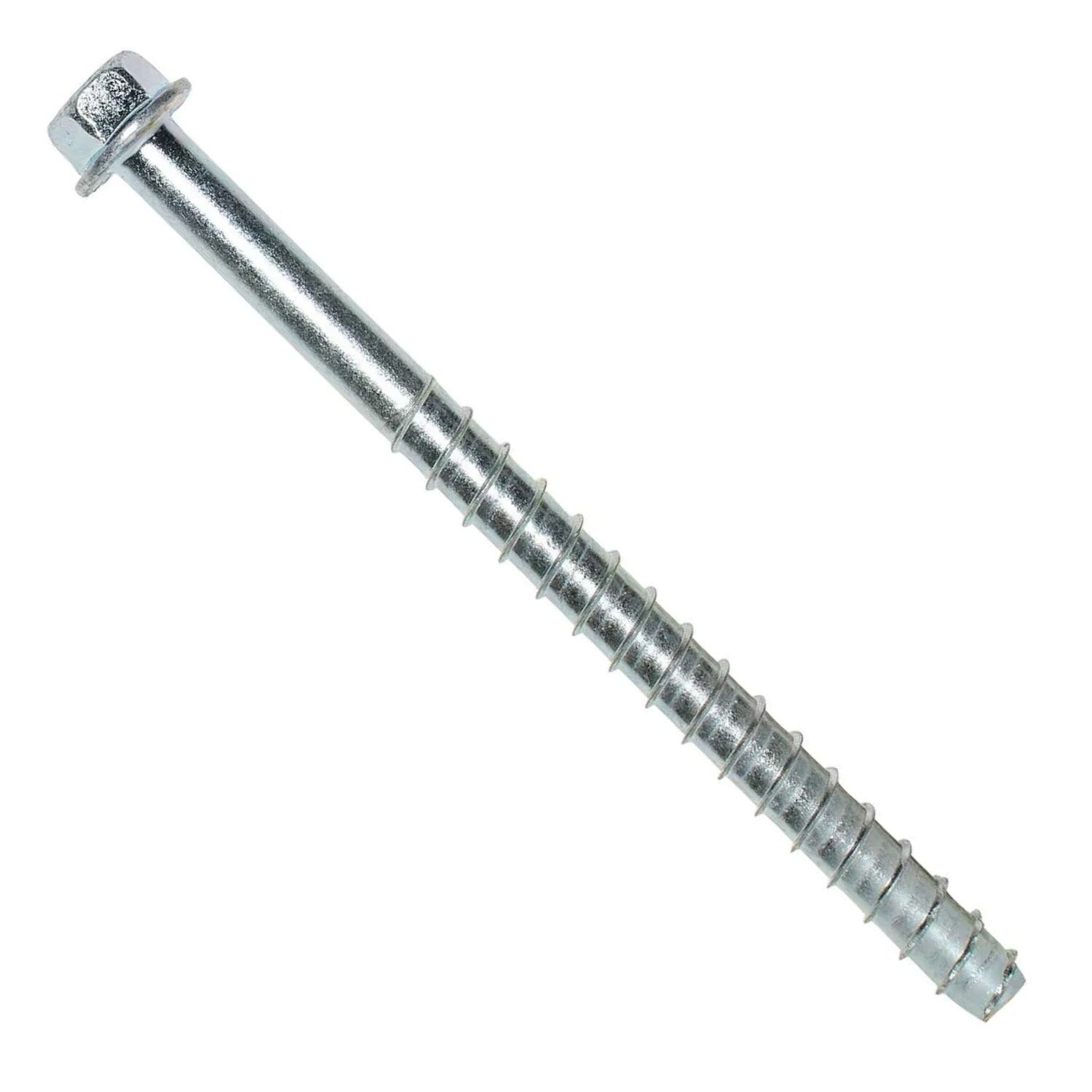

The Titen HD Screw Anchor is a high-strength, zinc-plated anchor designed for quick installation in concrete and masonry applications.
Simpson Strong-Tie THDB62800HF1 Includes
- (1) 5/8 in. x 8 in. Titen HD Screw Anchor
Simpson Strong-Tie THDB62800HF1 Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions

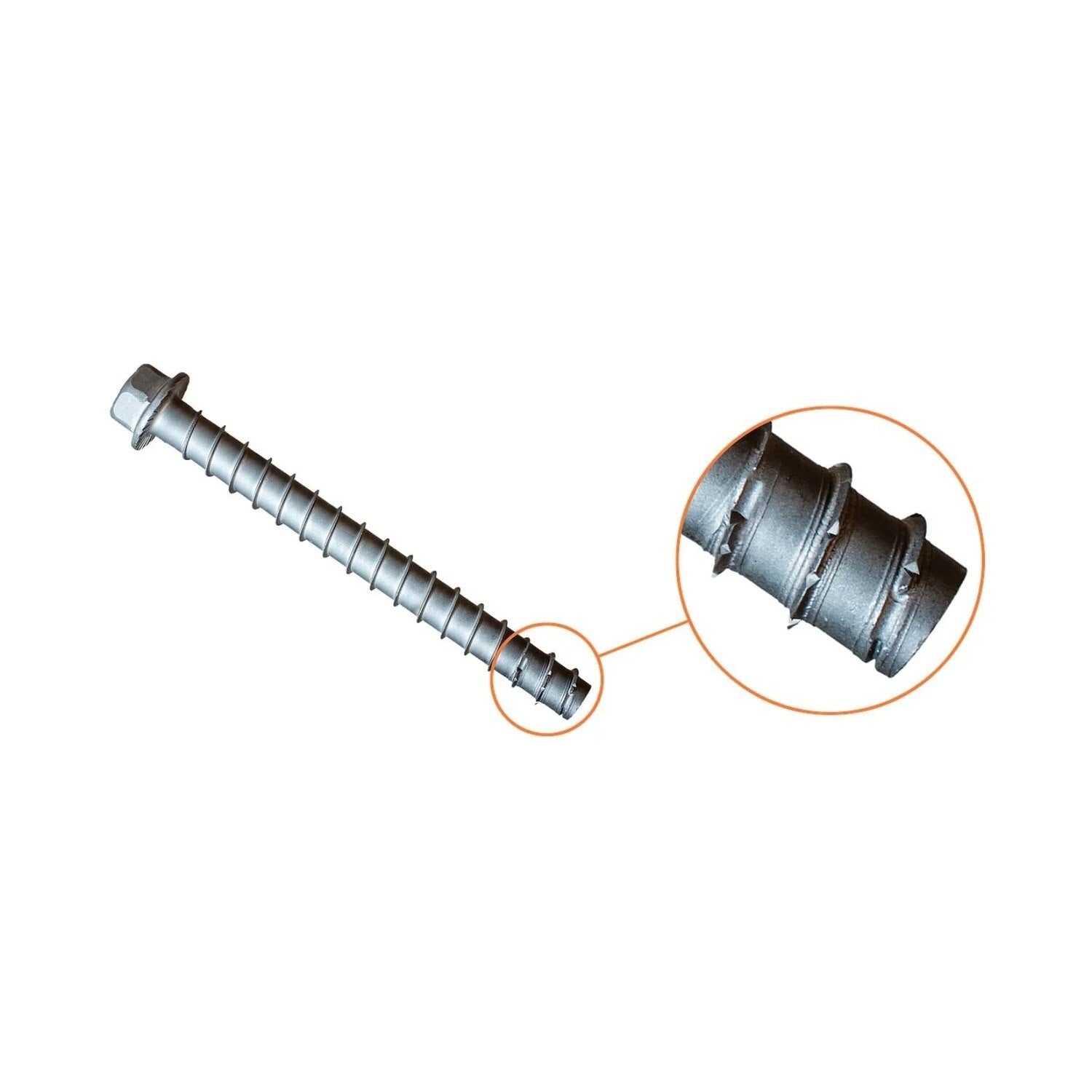

- Thread design efficiently transfers load to base material
- Specialized heat-treating process for enhanced cutting and ductility
- Hex-washer head provides a clean installed appearance
- Removable for temporary anchoring applications
- Designed for use in dry interior environments
Simpson Strong-Tie THDB62800HF1 Applications
- Concrete and masonry anchoring
- Temporary anchoring for formwork and bracing
- Interior dry environments

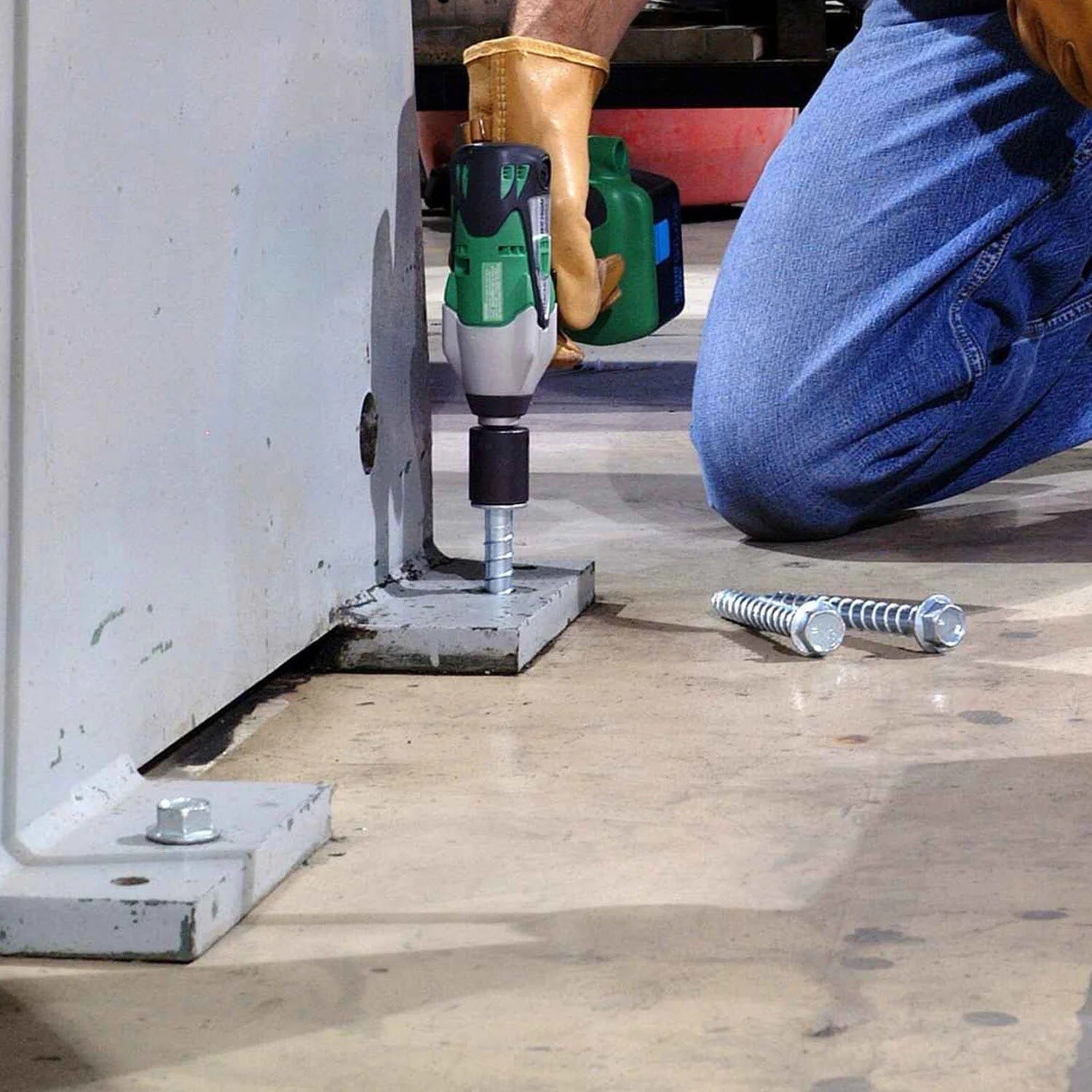

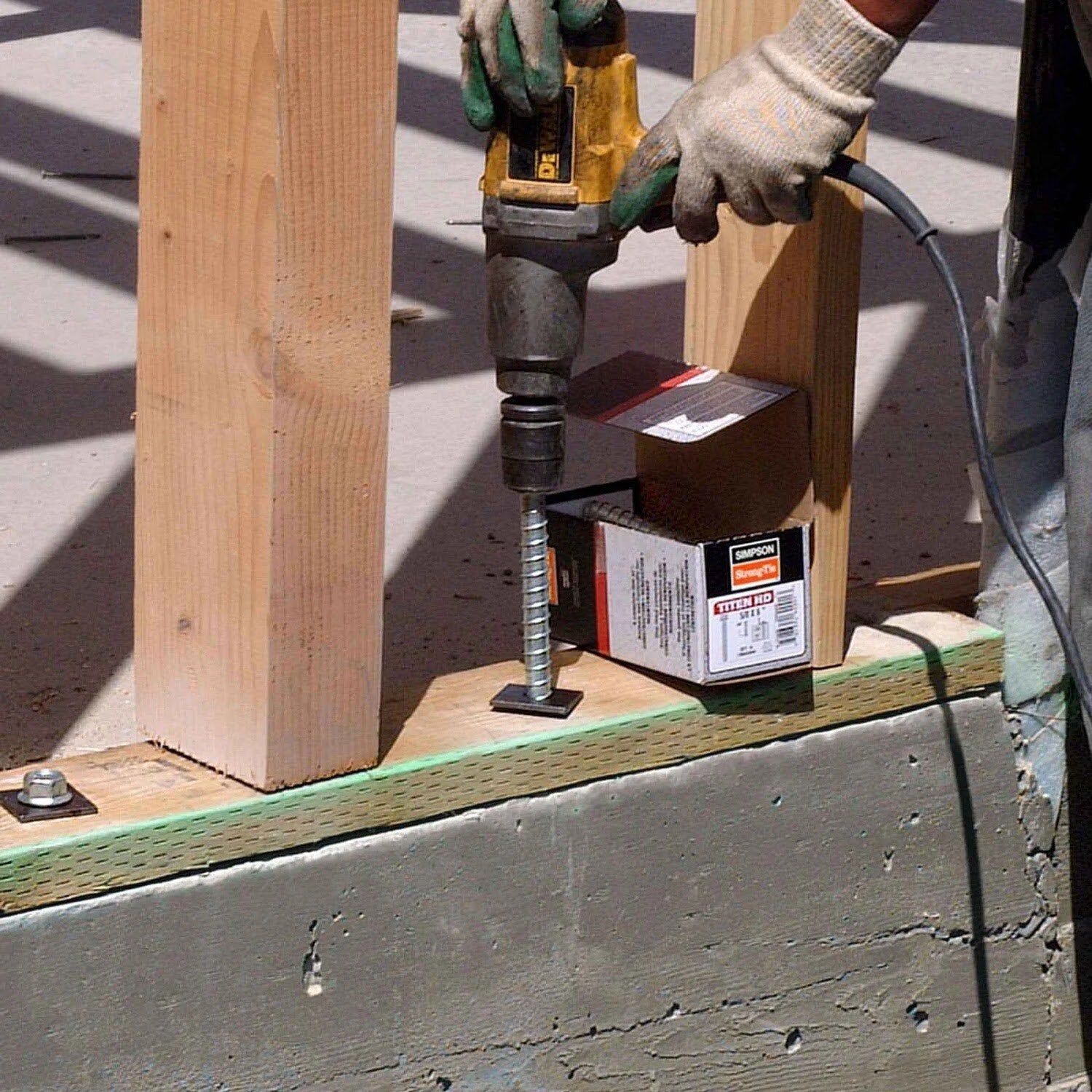

Simpson Strong-Tie THDB62800HF1 Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Blow the hole clean using compressed air.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson Strong-Tie THDB62800HF1 Specifications
| Diameter | 5/8 in. |
| Length | 8 in. |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Drill Bit Size | 5/8 in. |
| Drive Type | 15/16 in. Hex |
| Fixture Hole Size | 3/4 in. - 13/16 in. |
| Head Type | Hex Head |
| Quantity | 1 |
NOTE: Use the correct fasteners in the specified positions to achieve the published load values.
