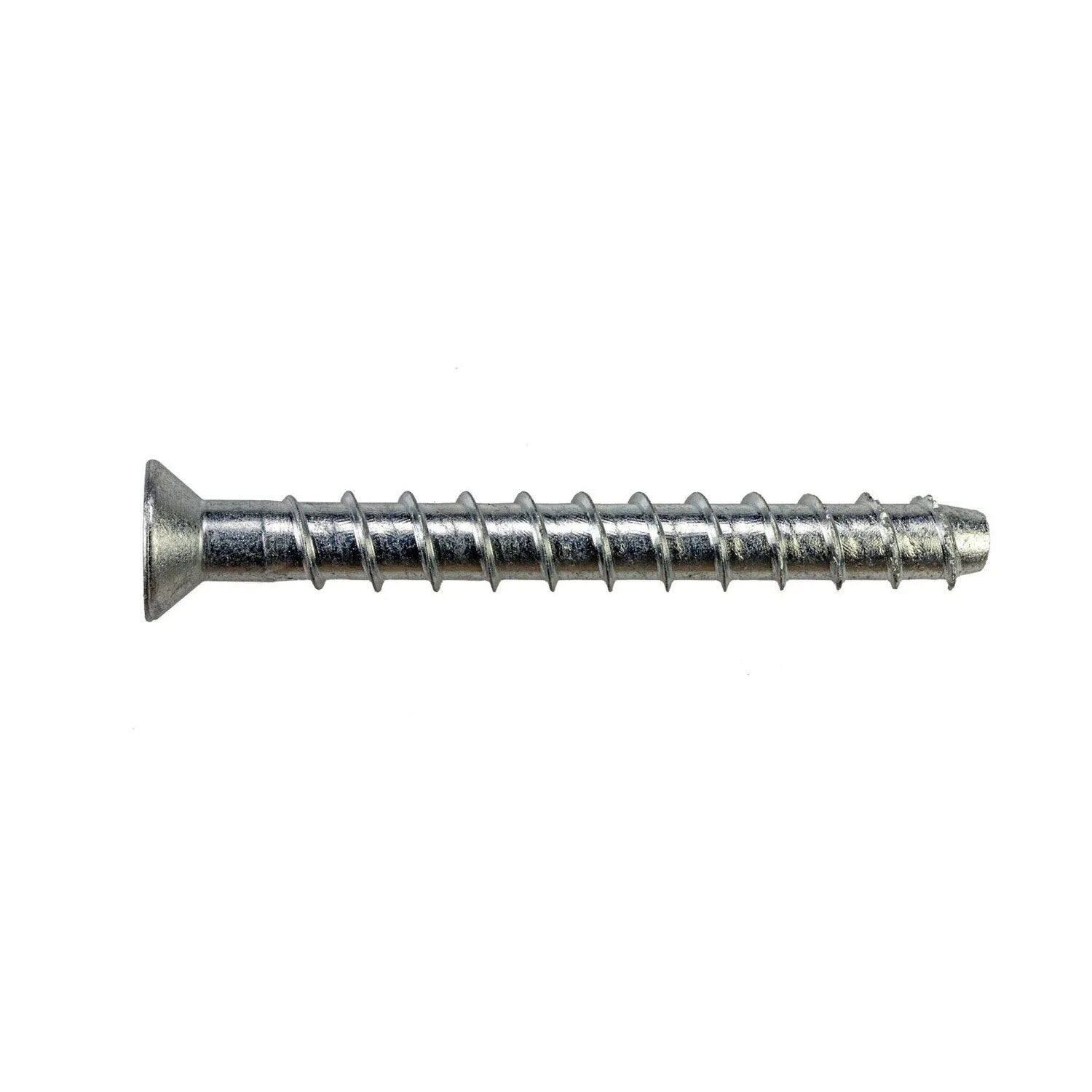

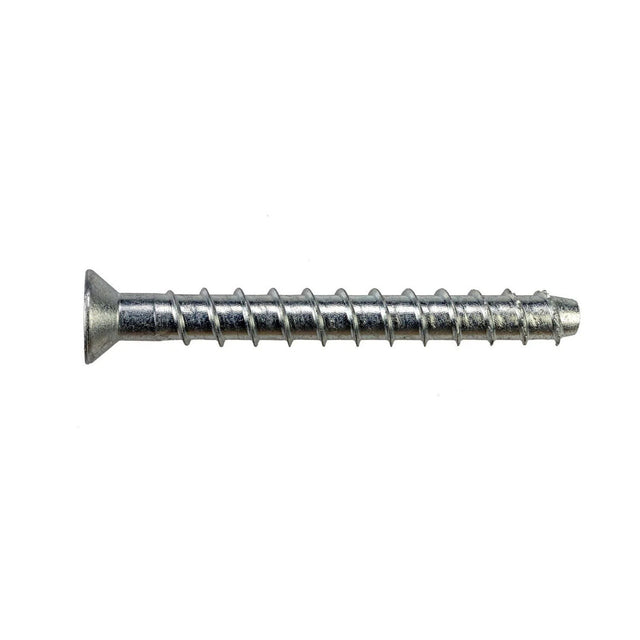

Simpson Strong-Tie THDC25238CS6SS Titen HD (1/4" x 2-3/8") Countersunk Head Heavy-Duty Screw Anchor (25 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THDC25238CS6SS Titen HD (1/4" x 2-3/8"...
Key Specifications
Description
Description
Simpson Strong-Tie THDC25238CS6SS Description
Simpson Titen HD anchors are high-performance screw anchors designed for easy installation. The countersunk head allows for a flush installation, and the stainless finish offers high corrosion resistance.
Simpson Strong-Tie THDC25238CS6SS Includes
- (25) Titen HD Countersunk Head Heavy-Duty Screw Anchor 1/4 in. x 2-3/8 in.
- (1) Driver bit
Simpson Strong-Tie THDC25238CS6SS Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Standard fractional sizes, hole size same as anchor size
- No special drill bit required
- Removable, ideal for temporary anchoring
- 6-lobe drive reduces driver-bit cam-outs
- Countersunk head allows for flush installation
- Available in 1/4" and 3/8" diameters
Simpson Strong-Tie THDC25238CS6SS Applications
- Temporary anchoring for fixtures that may need to be moved
- Anchoring in corrosive environments
- Structural applications requiring flush installation

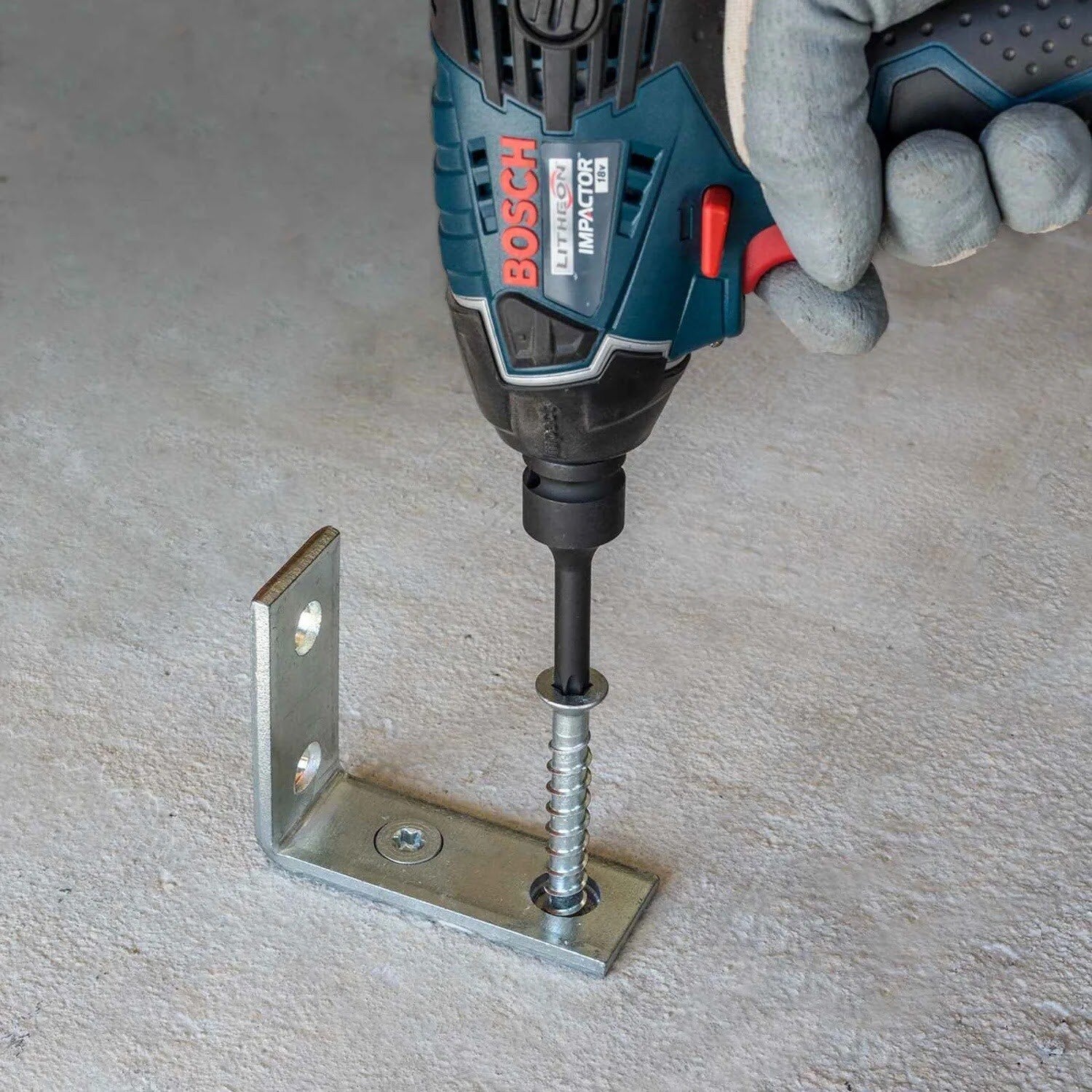

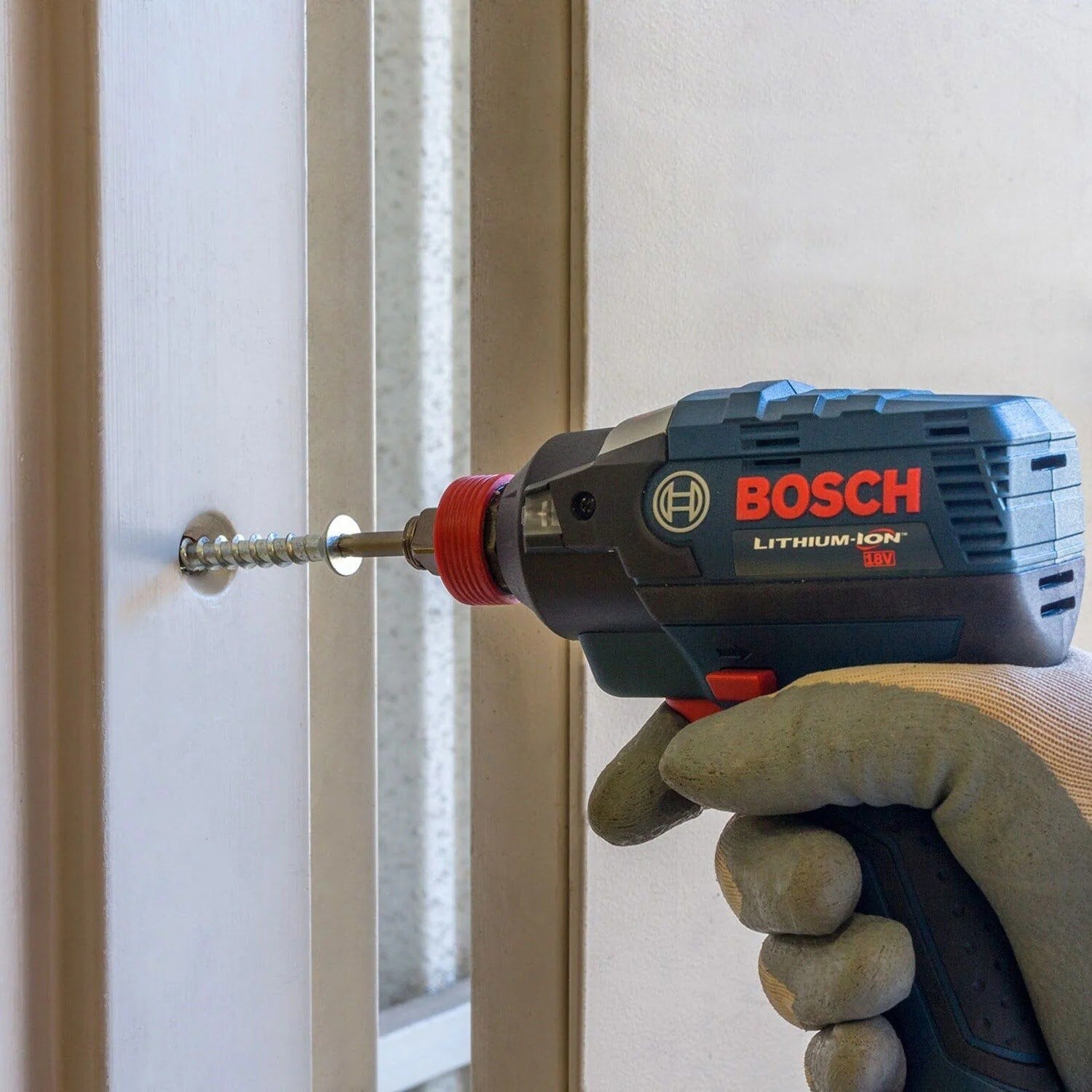

Simpson Strong-Tie THDC25238CS6SS Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the countersunk head contacts the fixture.
Simpson Strong-Tie THDC25238CS6SS Specifications
| Diameter | 1/4" |
| Length | 2-3/8" |
| Material | 316 Stainless Steel |
| Drill bit size | 1/4" |
| Drive type | T30 6-Lobe |
| Fixture hole size | 3/8"-7/16" |
| Head type | Flat Head |
| Quantity | 25 |
NOTE: Use a Titen HD screw anchor one time only — installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
