Simpson Strong-Tie BP 5/8HDG Description
The BP 5/8HDG is a hot-dip galvanized bearing plate designed for use with 5/8" bolt diameters, providing a greater bearing surface and enhanced corrosion resistance.
Simpson Strong-Tie BP 5/8HDG Includes
- (1) Hot-Dip Galvanized Bearing Plate
Simpson Strong-Tie BP 5/8HDG Features
- Replaces standard cut-washers while providing a greater bearing surface
- Sized for most common anchor bolt sizes: 3/8", 1/2", 5/8", 3/4", 7/8" and 1"
- May be ordered HDG for higher corrosion resistance
Simpson Strong-Tie BP 5/8HDG Applications

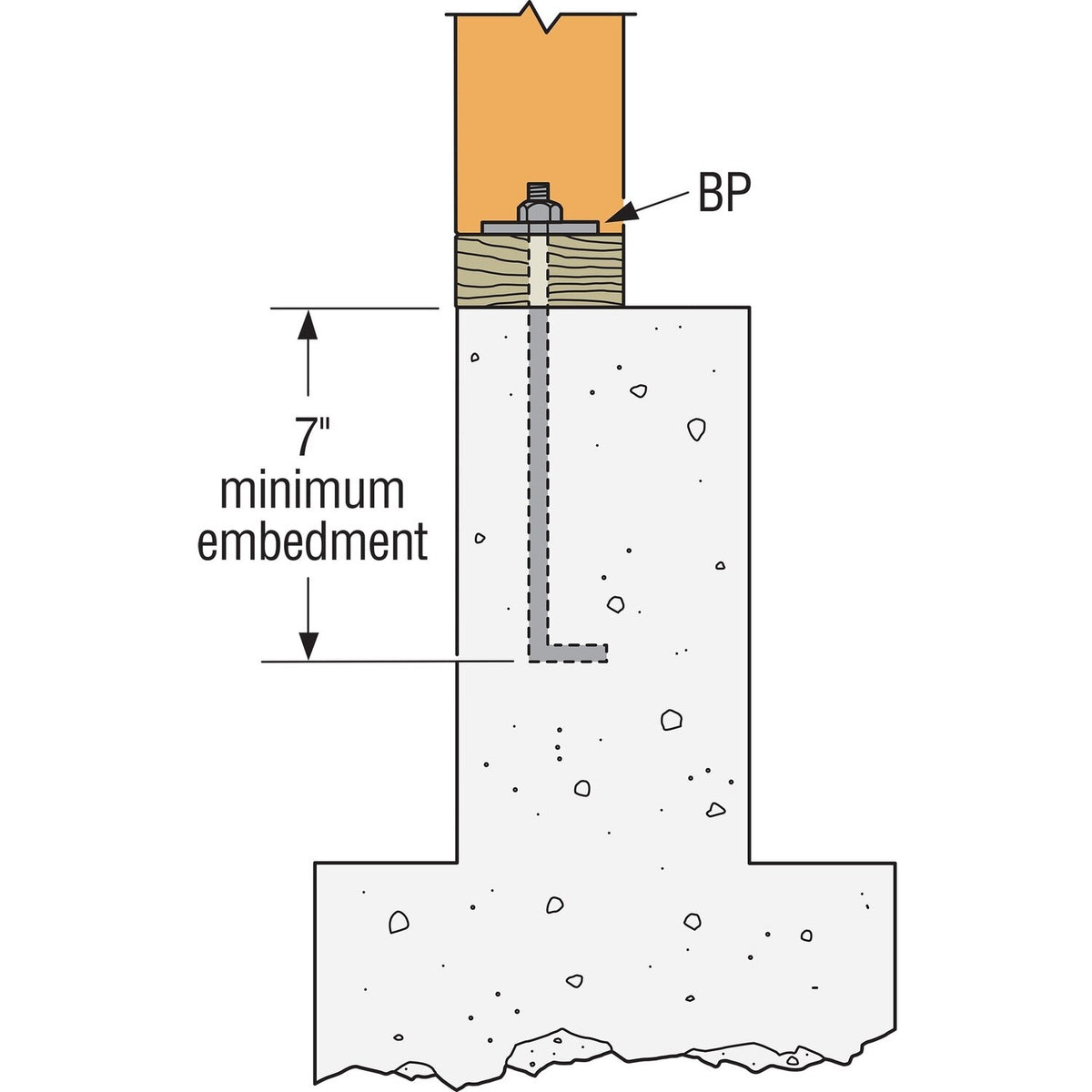

- Fastening wood to concrete or masonry

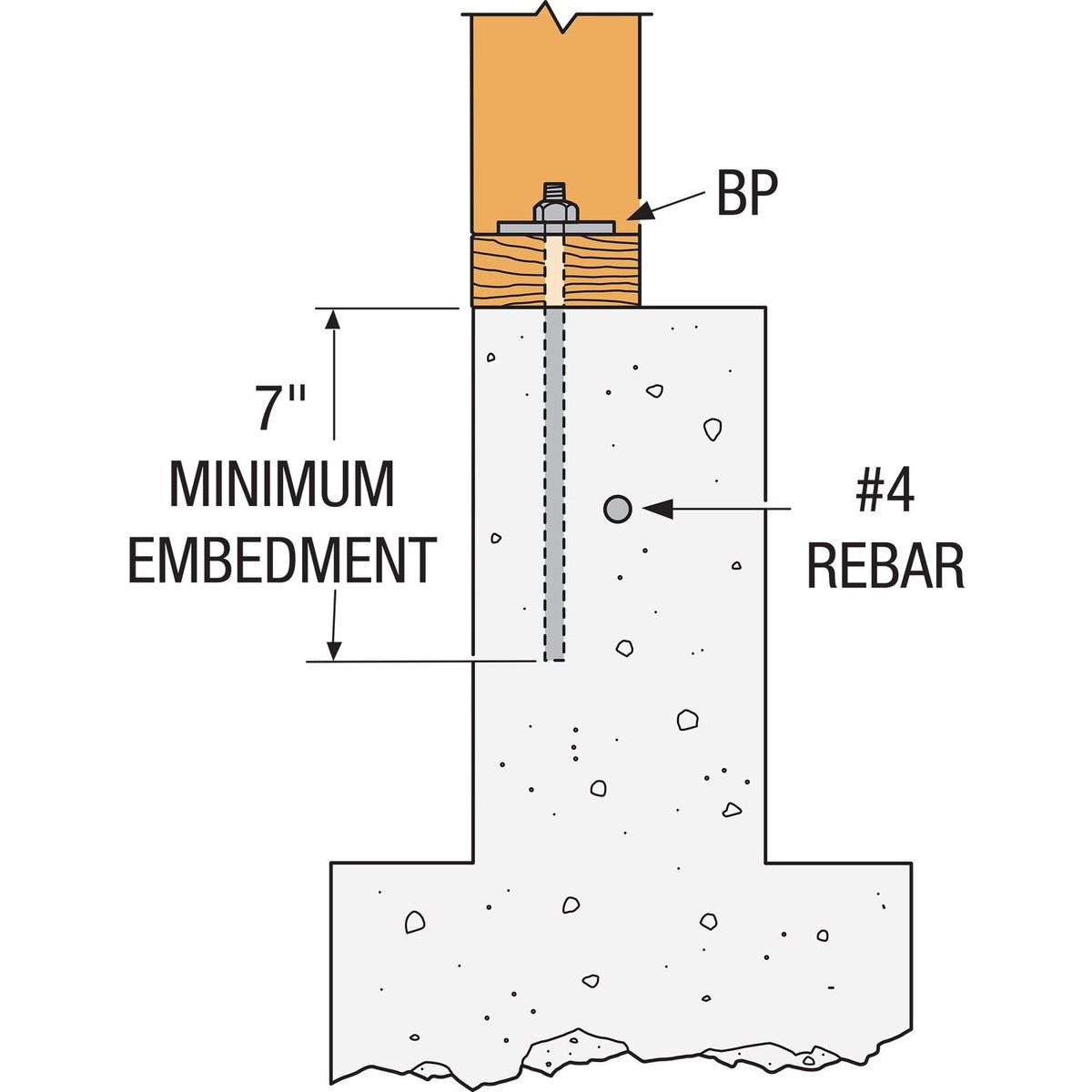

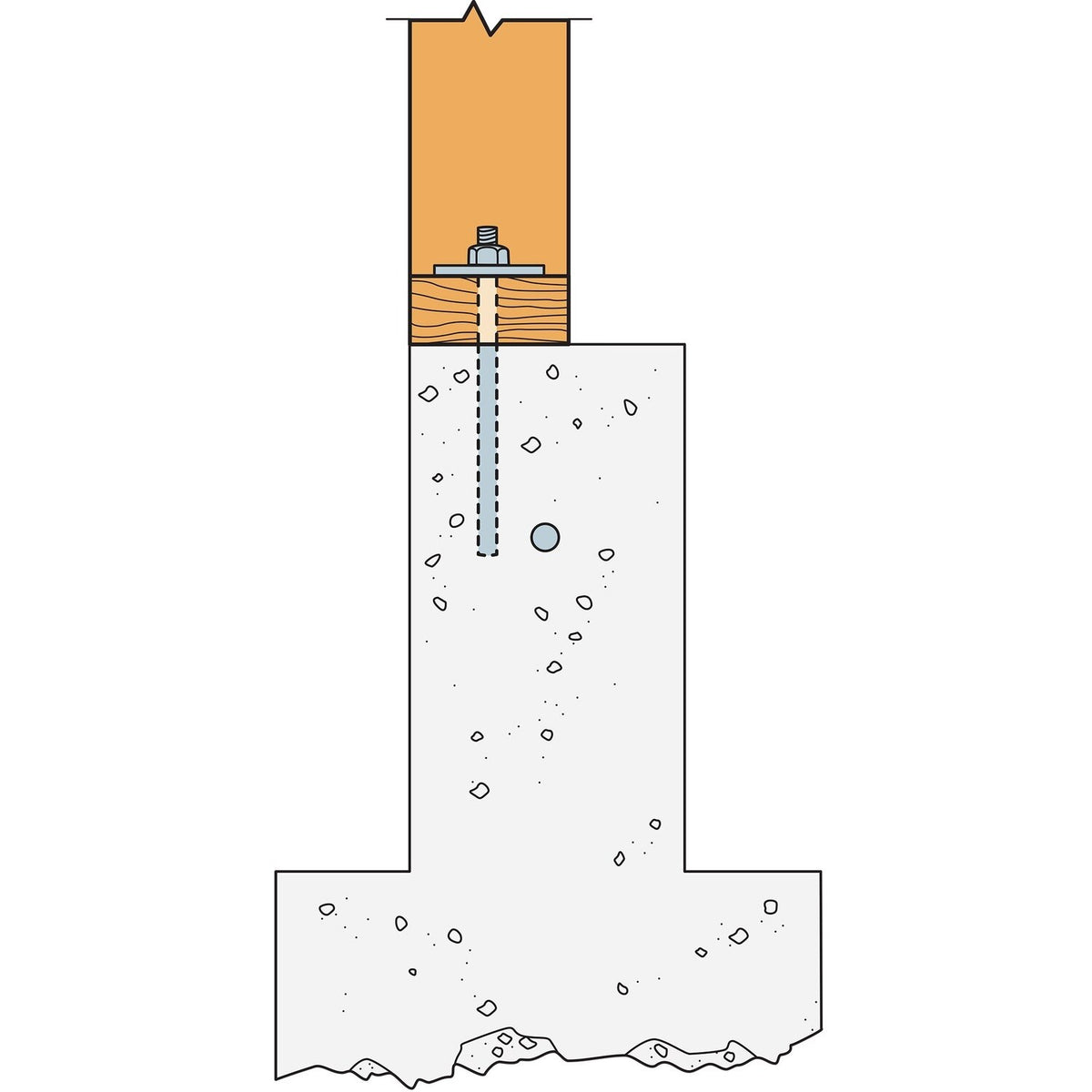

Simpson Strong-Tie BP 5/8HDG Installation Overview
- Position edge of plate washer within 1/2" of sheathed edge of sill plate for shearwall applications
- Tighten each anchor bolt with a nut and BP

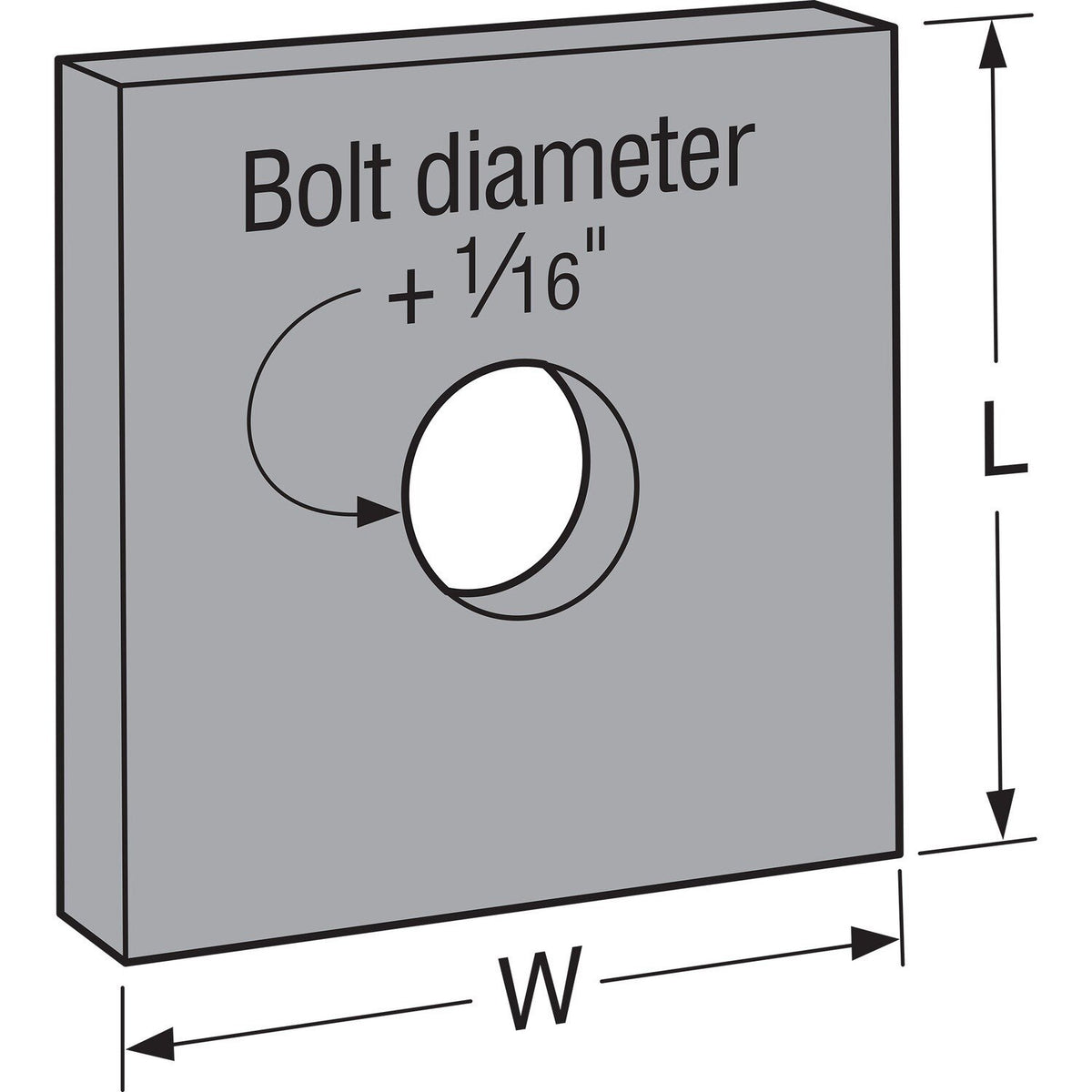

Simpson Strong-Tie BP 5/8HDG Specifications
| Bolt Diameter | 5/8" |
| Thickness | 1/4" |
| Width | 2 1/2" |
| Length | 2 1/2" |
| Coating/Material | Hot-Dip Galvanized |
