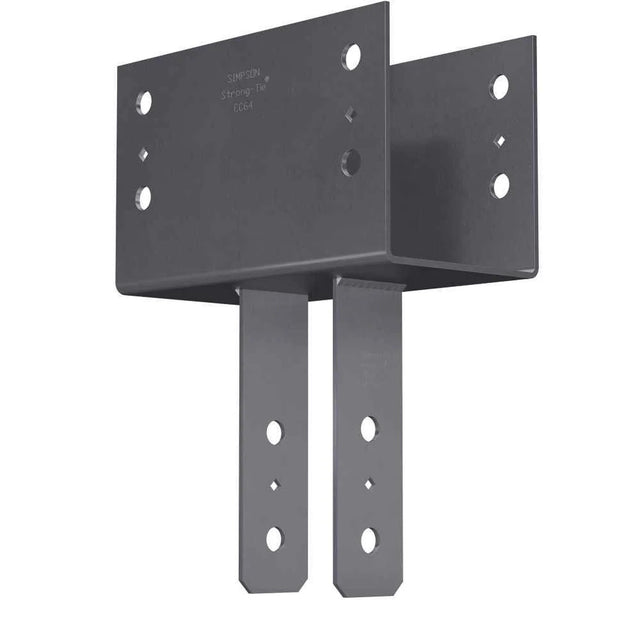

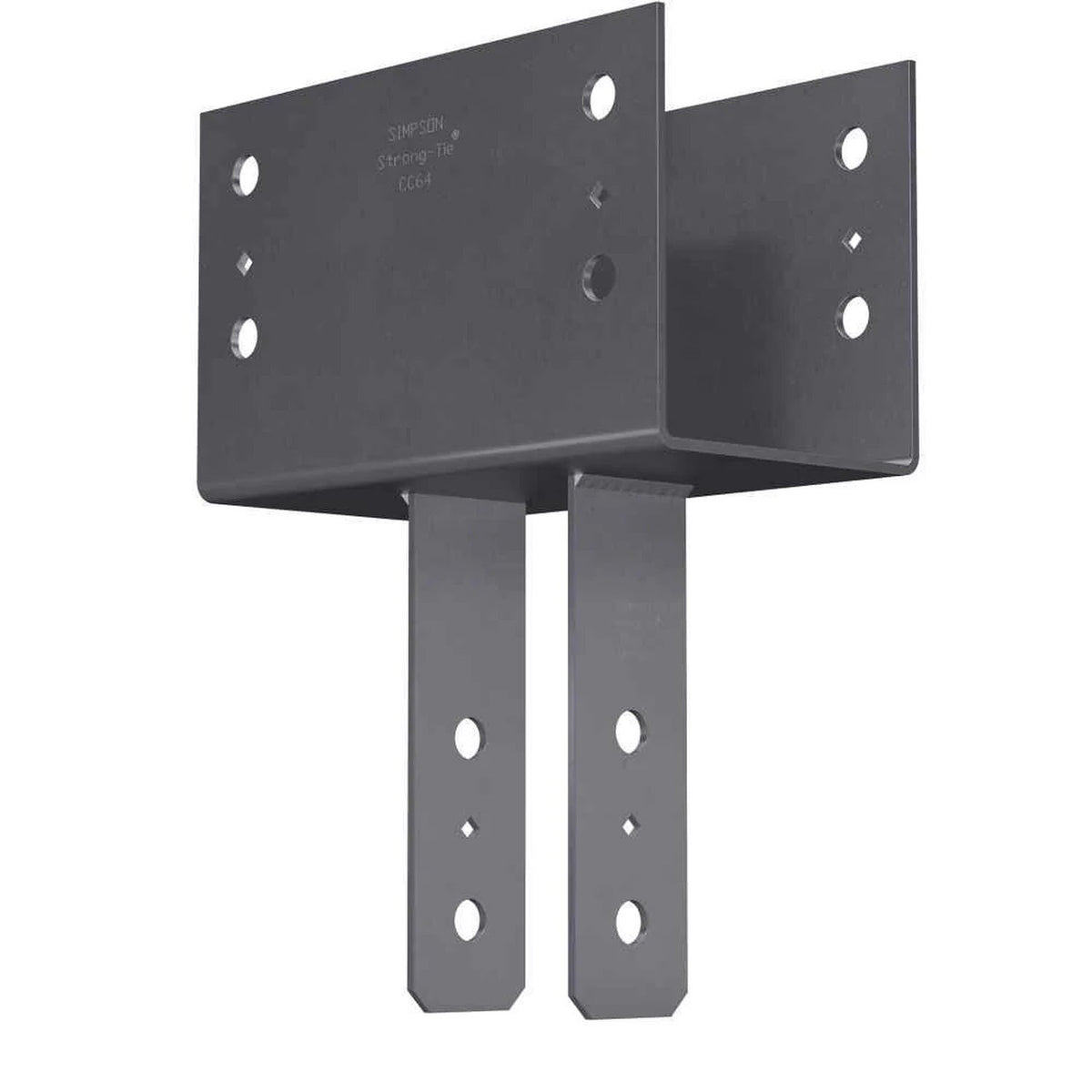

Simpson Strong-Tie CC64HDG Hot Dip Galvanized Column Cap for 6x Beam to 4x Post Connection
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CC64HDG Hot Dip Galvanized Column Cap for 6x Bea...
Key Specifications
Description
Description
Simpson Strong-Tie CC64HDG Description
The Simpson CC64HDG Column Cap enhances the strength and stability of your construction projects, providing durable column-to-beam connections in wood construction.
Simpson Strong-Tie CC64HDG Includes
- (4) 5/8" Machine Bolts for Beam
- (2) 5/8" Machine Bolts for Post
Simpson Strong-Tie CC64HDG Features
- Provides strong column to beam connection
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Heavy Gauge Steel for durability
- Finished with Hot Dip Galvanized coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC64HDG Applications
- Wood construction requiring column-to-beam connections
- Projects needing enhanced load distribution and stability
- Construction involving 6x beams and 4x posts
Simpson Strong-Tie CC64HDG Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using diamond holes
- Fasten using specified machine bolts
- Ensure bolt spacing complies with NDS code requirements
Simpson Strong-Tie CC64HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Heavy Gauge Steel |
| Beam size | 6x |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 4x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
