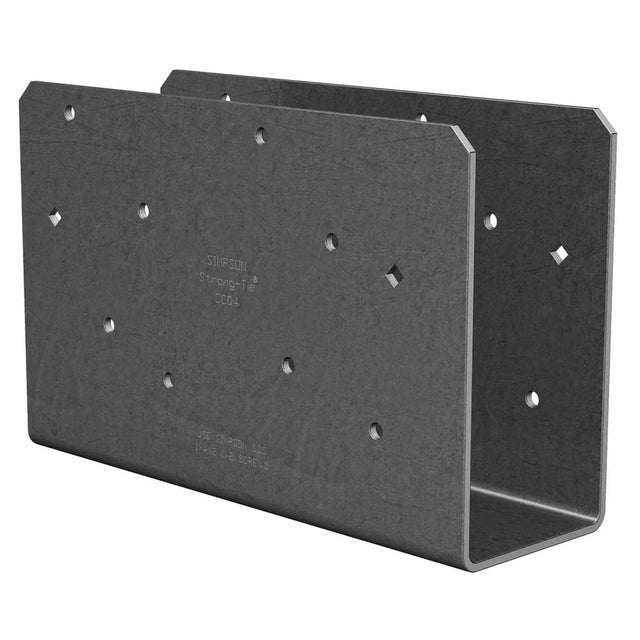

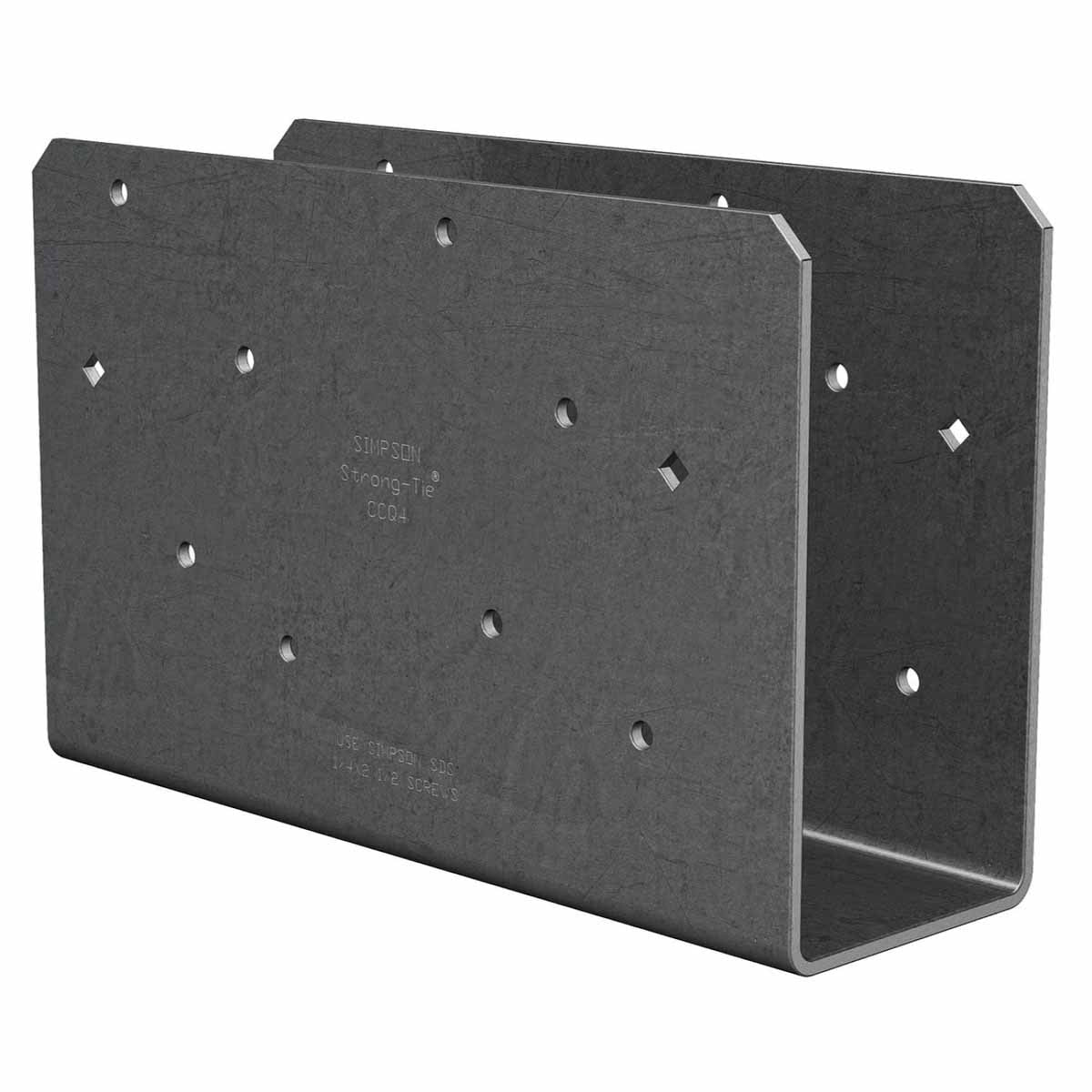

Simpson Strong-Tie CCOQ4-SDS2.5HDG (3-1/2") 7Ga Quick Install Column Cap Only - Hot-Dip Galvanized
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CCOQ4-SDS2.5HDG (3-1/2") 7Ga Quick Install ...
Key Specifications
Description
Description
Simpson Strong-Tie CCOQ4-SDS2.5HDG Description
The Simpson CCOQ4-SDS2.5HDG Column Cap enhances the strength and stability of construction projects, providing durable column-to-beam connections in wood construction.
Simpson Strong-Tie CCOQ4-SDS2.5HDG Includes
- (1) Column Cap
- (1) Set of 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie CCOQ4-SDS2.5HDG Features
- Provides strong column-to-beam connection

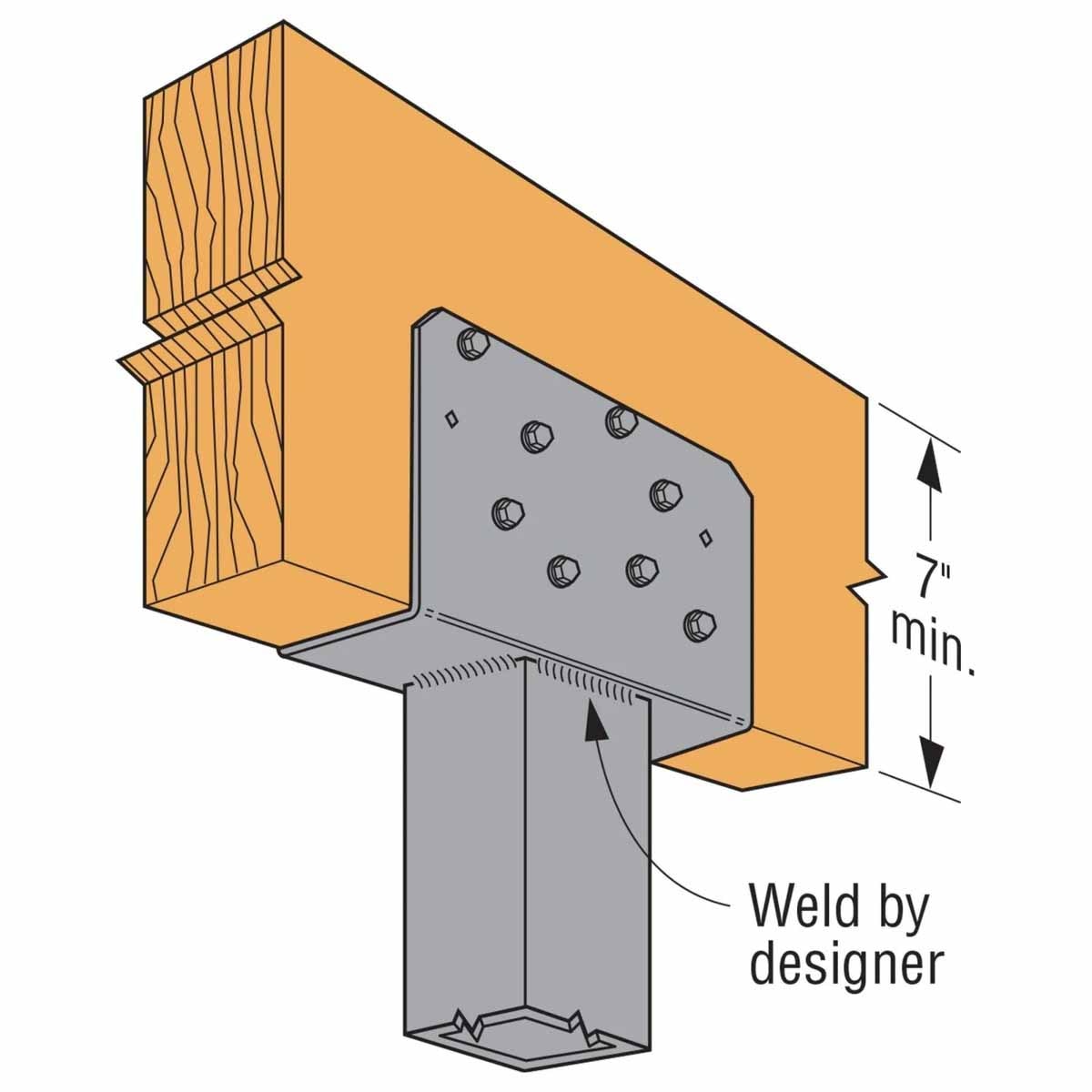

- Strapless design for field welding to steel columns
- Made from durable steel with Hot Dip Galvanized finish
- Extended surface area for additional load distribution
- Includes necessary SDS screws for quick installation
Simpson Strong-Tie CCOQ4-SDS2.5HDG Applications
- Column-to-beam connections in wood construction
- Field welding to steel columns
Simpson Strong-Tie CCOQ4-SDS2.5HDG Installation Overview
- Position the column cap on the column and beam
- Secure using the included SDS screws
- Ensure proper alignment and load distribution
Simpson Strong-Tie CCOQ4-SDS2.5HDG Specifications
| Finish | Hot Dip Galvanized |
| Length | 11" |
| Material | Steel |
| Beam size | 4x |
| Fasteners required | 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws |
| Height | 7" |
| Thickness | 7 Gauge |
| Width | Beam 3-1/2" |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
