Simpson Strong-Tie CCOQ6-SDS2.5 Description

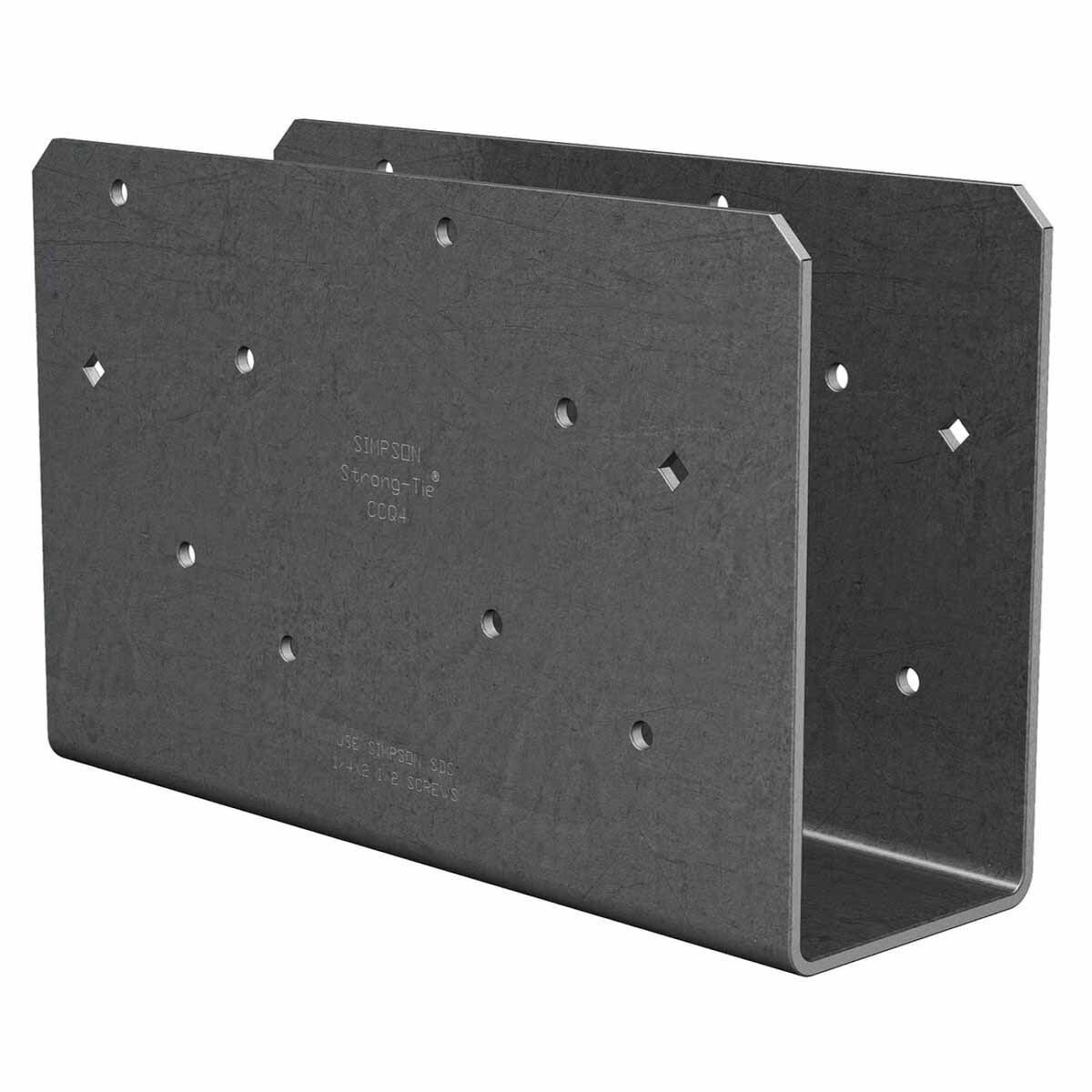

The Simpson CCOQ6-SDS2.5 Column Cap enhances the strength and stability of your construction projects. Designed for 6x beams, it features a strapless design for field welding and includes SDS screws for quick installation.

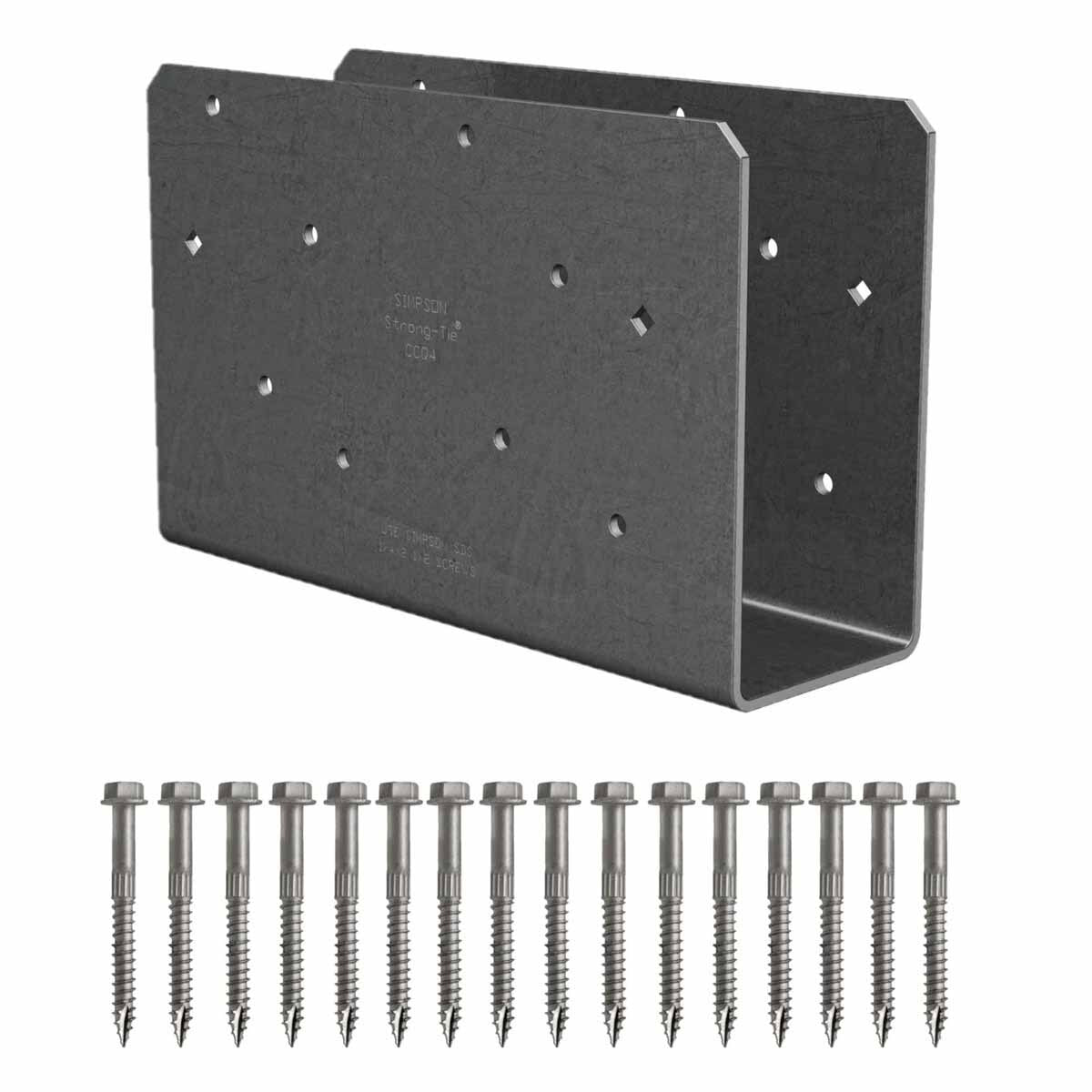

Simpson Strong-Tie CCOQ6-SDS2.5 Includes
- (1) Column Cap
- (16) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie CCOQ6-SDS2.5 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from durable 7-gauge steel
- Includes SDS screws for quick installation
- Extended surface area for better load distribution
Simpson Strong-Tie CCOQ6-SDS2.5 Applications
- Wood-to-wood column-to-beam connections

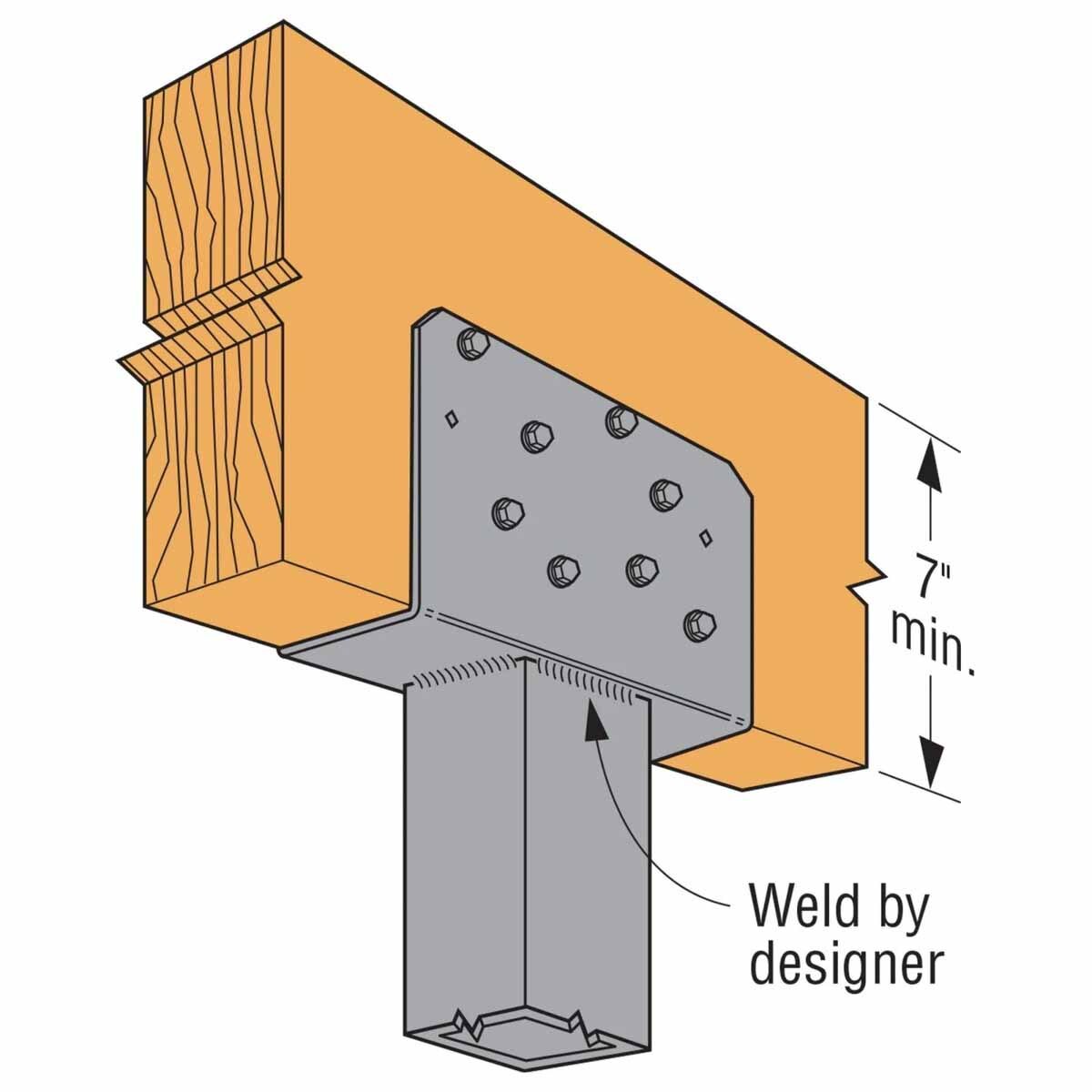

- Field welding to steel columns
Simpson Strong-Tie CCOQ6-SDS2.5 Installation Overview
- Fasten with 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
- Use stainless-steel screws with stainless-steel connectors
- May be ordered for field welding to pipe or other columns
Simpson Strong-Tie CCOQ6-SDS2.5 Specifications
| Material | Steel |
| Thickness | 7 Gauge |
| Beam size | 6x |
| Width | Beam 5-1/4", 5-1/2" |
| Height | 7" |
| Length | 11" |
| Fasteners required | 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
