Simpson Strong-Tie CCQ3-4SDS2.5 (3-1/8" Beam, 14 Post) Quick-Install Column Cap with SDS Screws
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CCQ3-4SDS2.5 (3-1/8" Beam, 14 Post) Quick-I...
Key Specifications
Description
Description
Simpson Strong-Tie CCQ3-4SDS2.5 Description

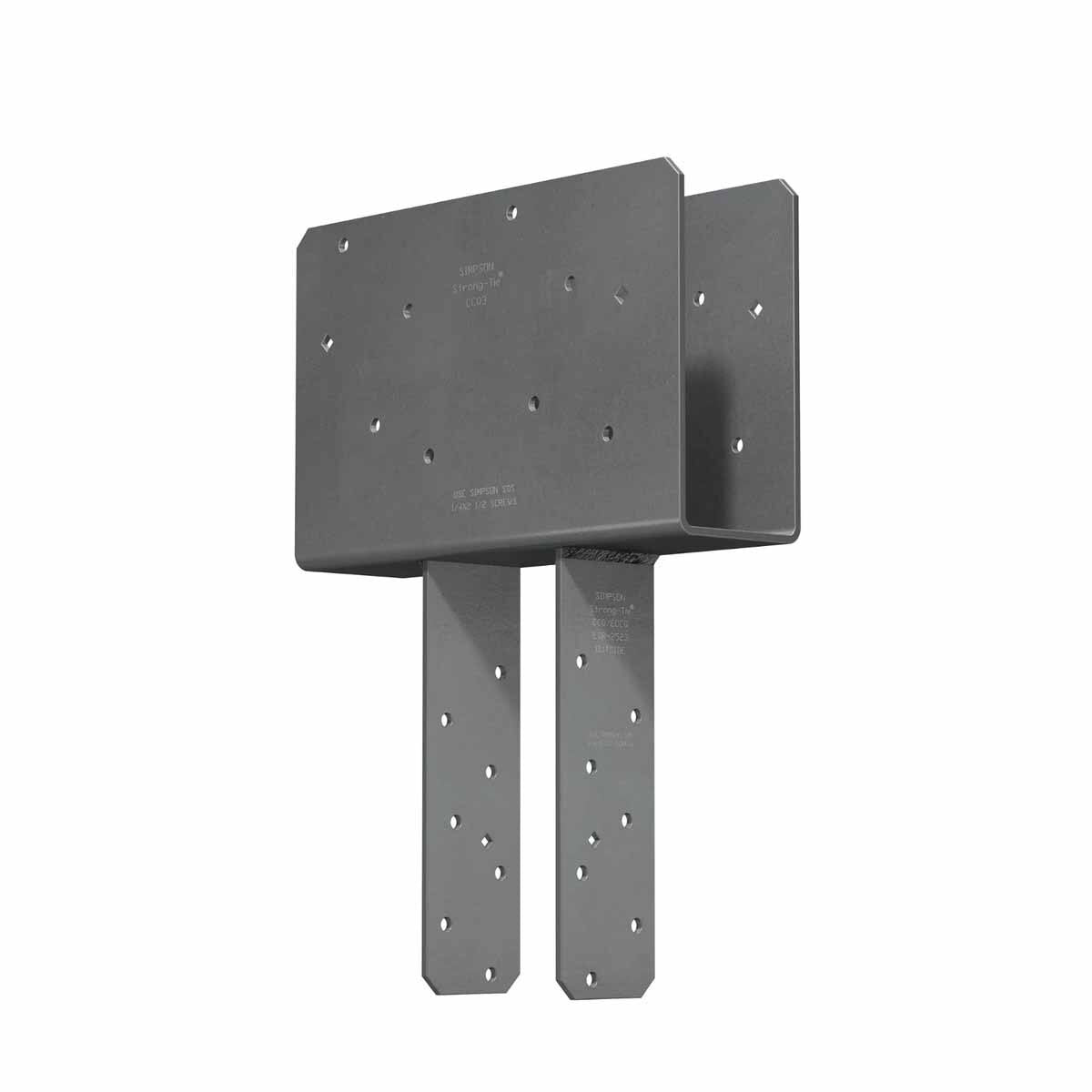

The Simpson CCQ3-4SDS2.5 Column Cap enhances the strength and stability of your construction projects, providing durable column-to-beam connections in wood construction.

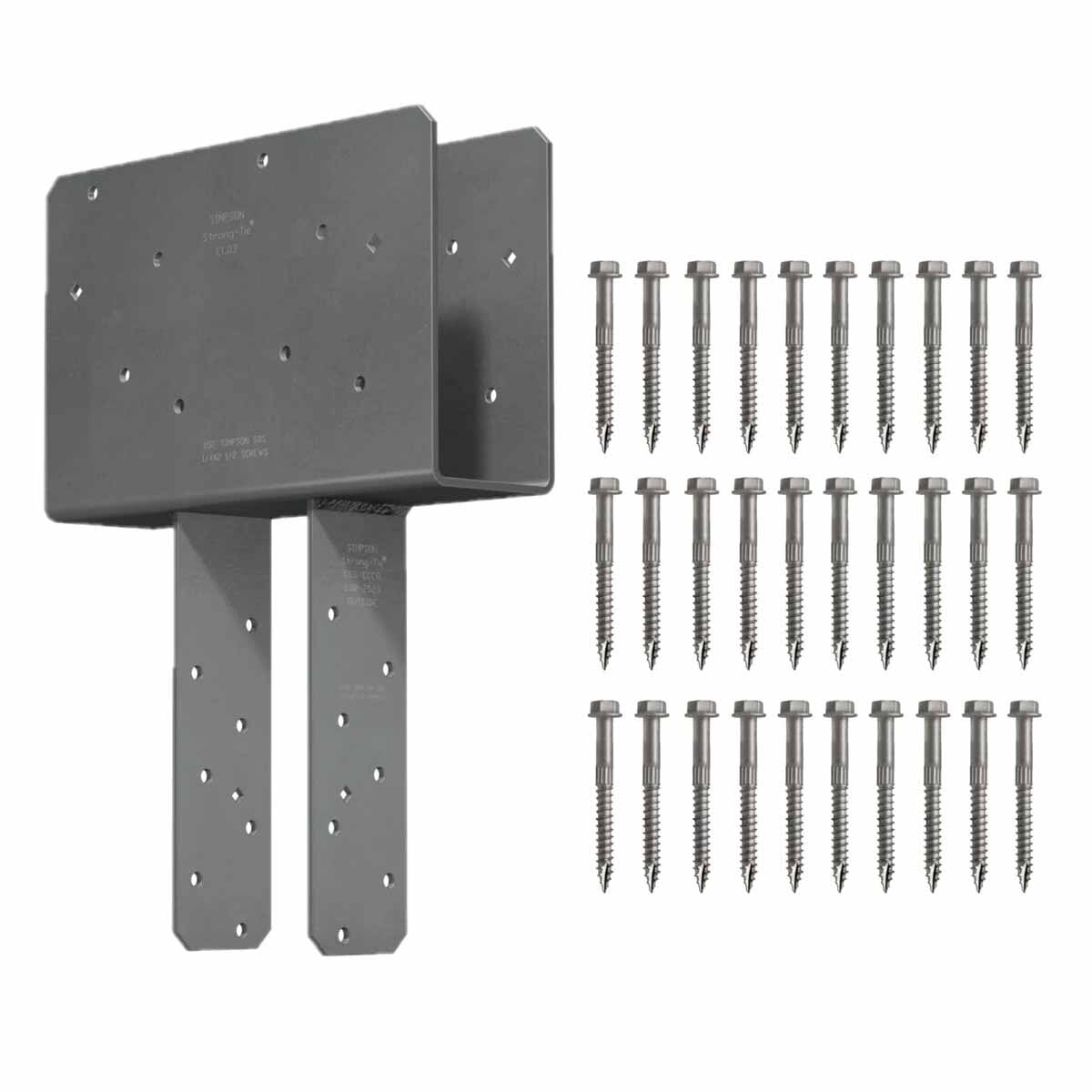

Simpson Strong-Tie CCQ3-4SDS2.5 Includes
- (1) Column Cap
- (SDS Screws)
Simpson Strong-Tie CCQ3-4SDS2.5 Features
- Provides strong column-to-beam connection
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable heavy-gauge steel
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CCQ3-4SDS2.5 Applications

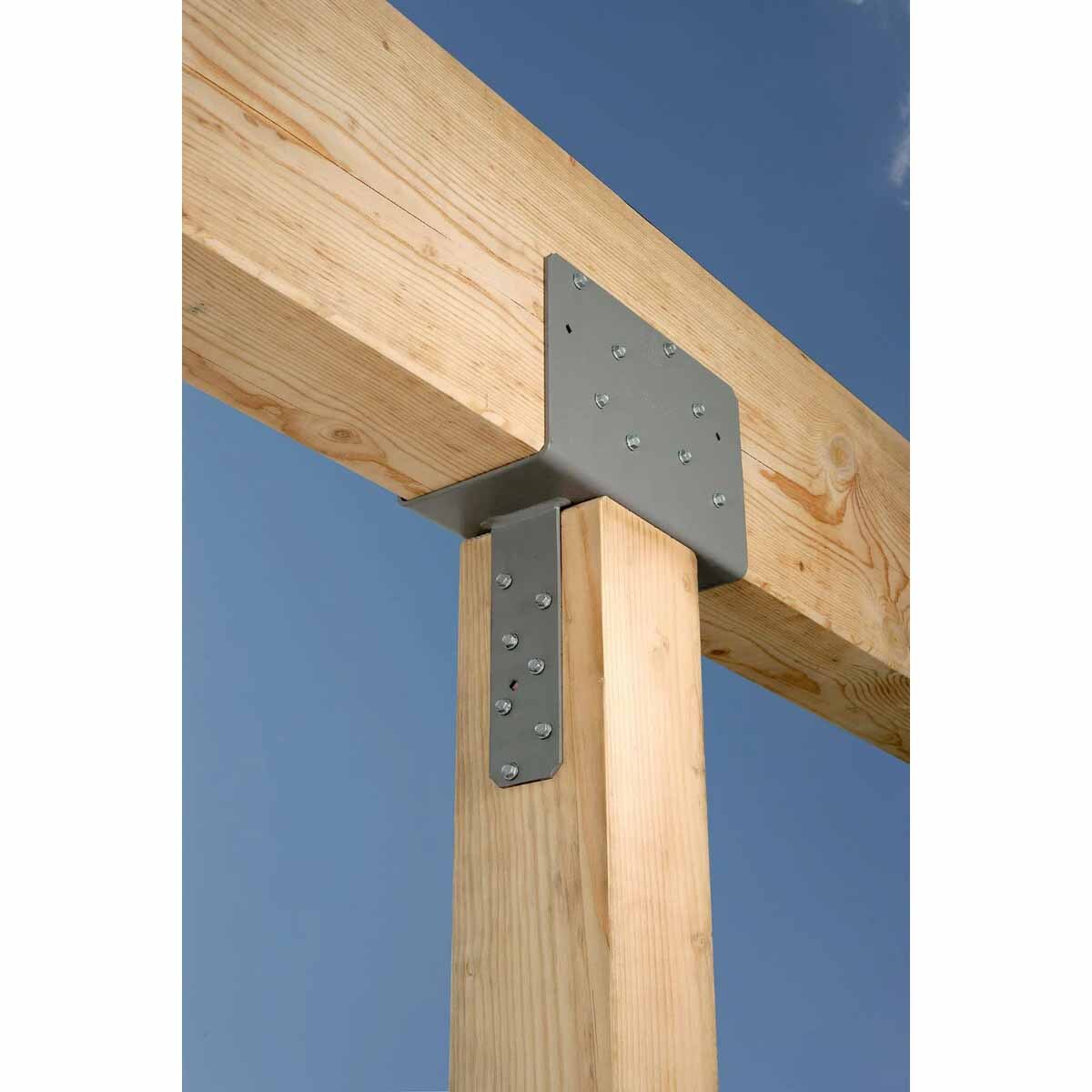

- Wood construction requiring column-to-beam connections
- Projects needing enhanced load distribution and stability
- Construction in earthquake or wind-prone areas
Simpson Strong-Tie CCQ3-4SDS2.5 Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using diamond holes
- Fasten permanently with SDS screws
- Ensure bolt spacing complies with NDS code requirements

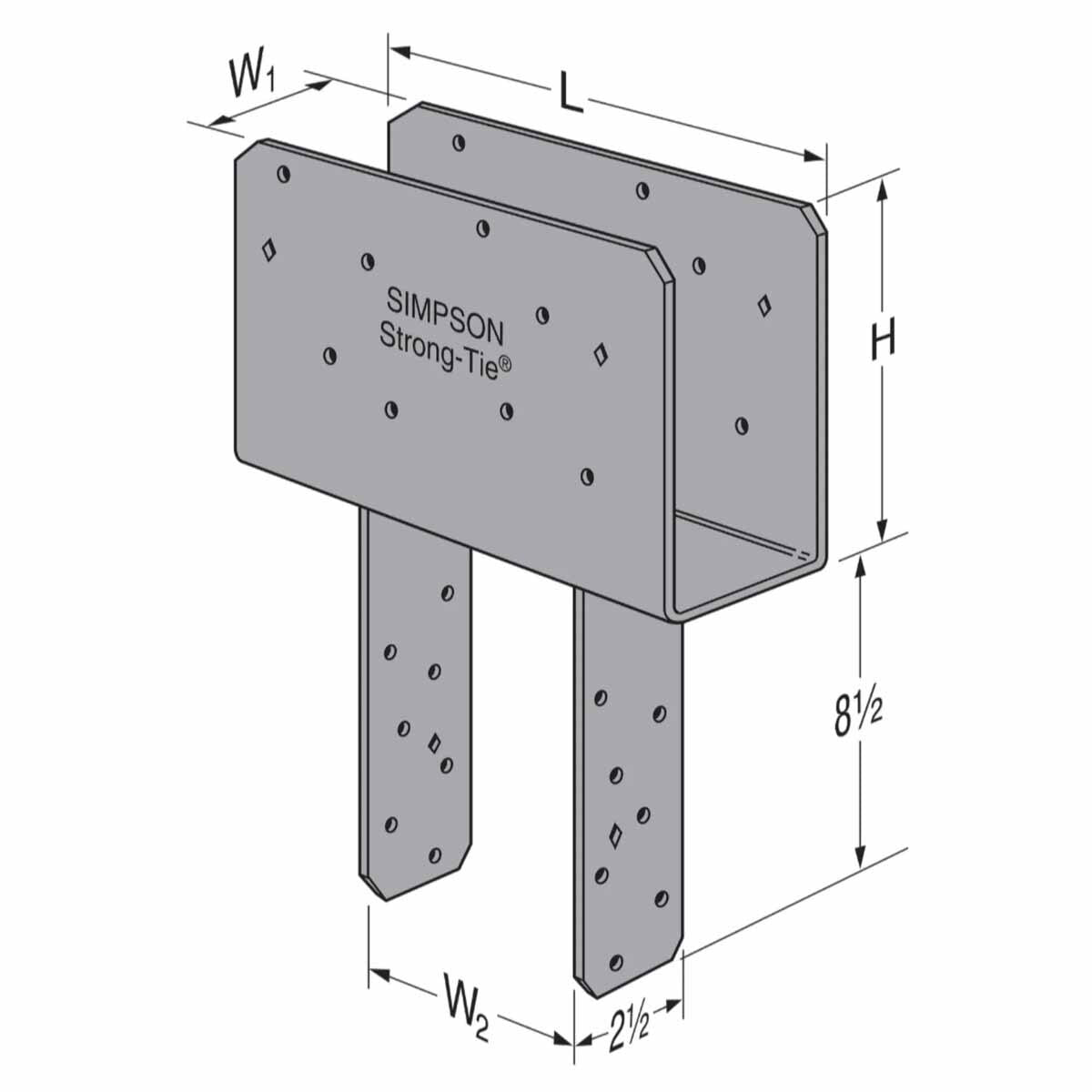

Simpson Strong-Tie CCQ3-4SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 3-1/8x |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 7 Gauge |
