Simpson Strong-Tie CCQ46SDS2.5-R (4x Beam, 6x Post) Quick-Install Column Cap with SDS Screws
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CCQ46SDS2.5-R (4x Beam, 6x Post) Quick-Install C...
Key Specifications
Description
Description
Simpson Strong-Tie CCQ46SDS2.5-R Description

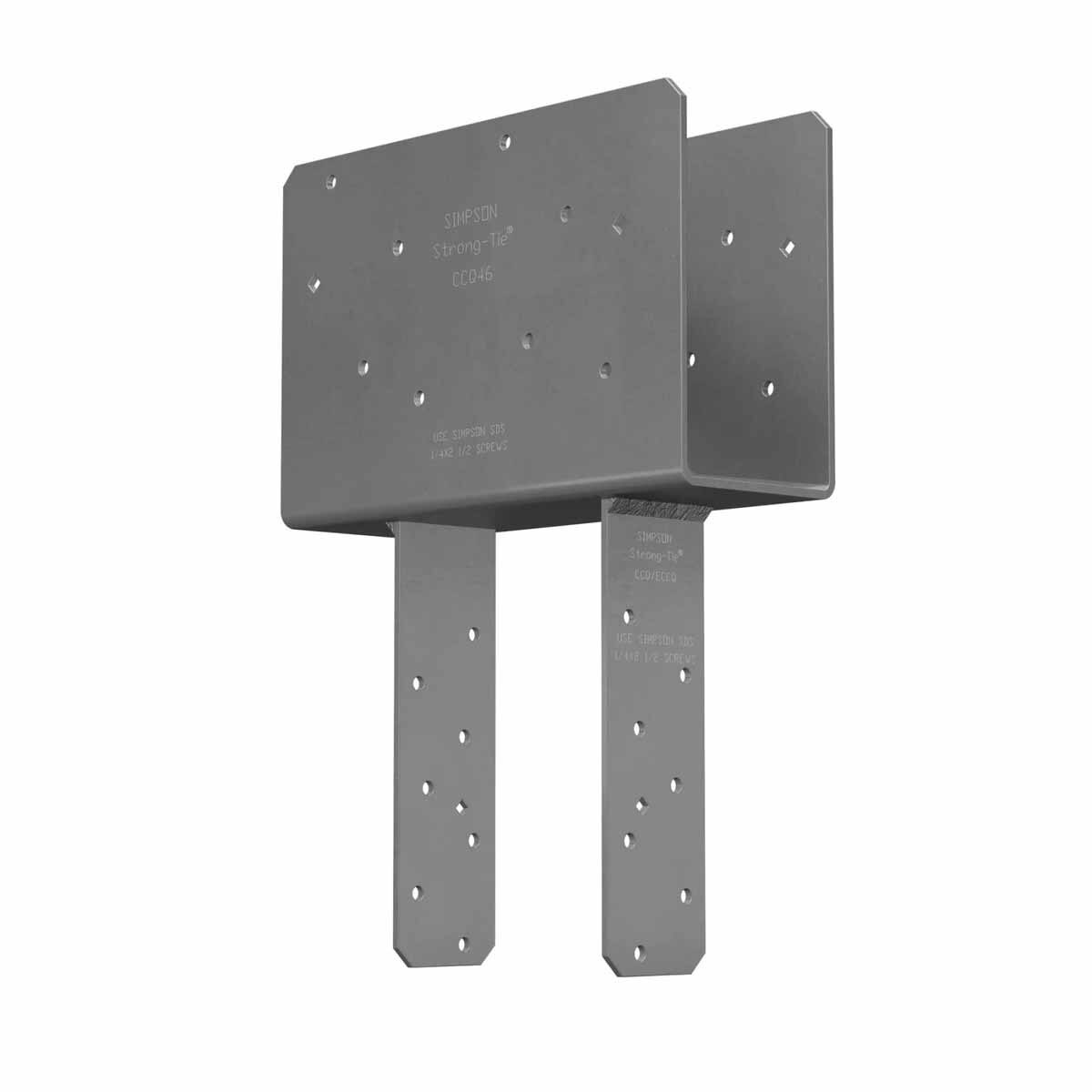

The CCQ46SDS2.5-R Column Cap is designed to provide strong column-to-beam connections for multiple wood beams on top of a column, ensuring load distribution and connection support.

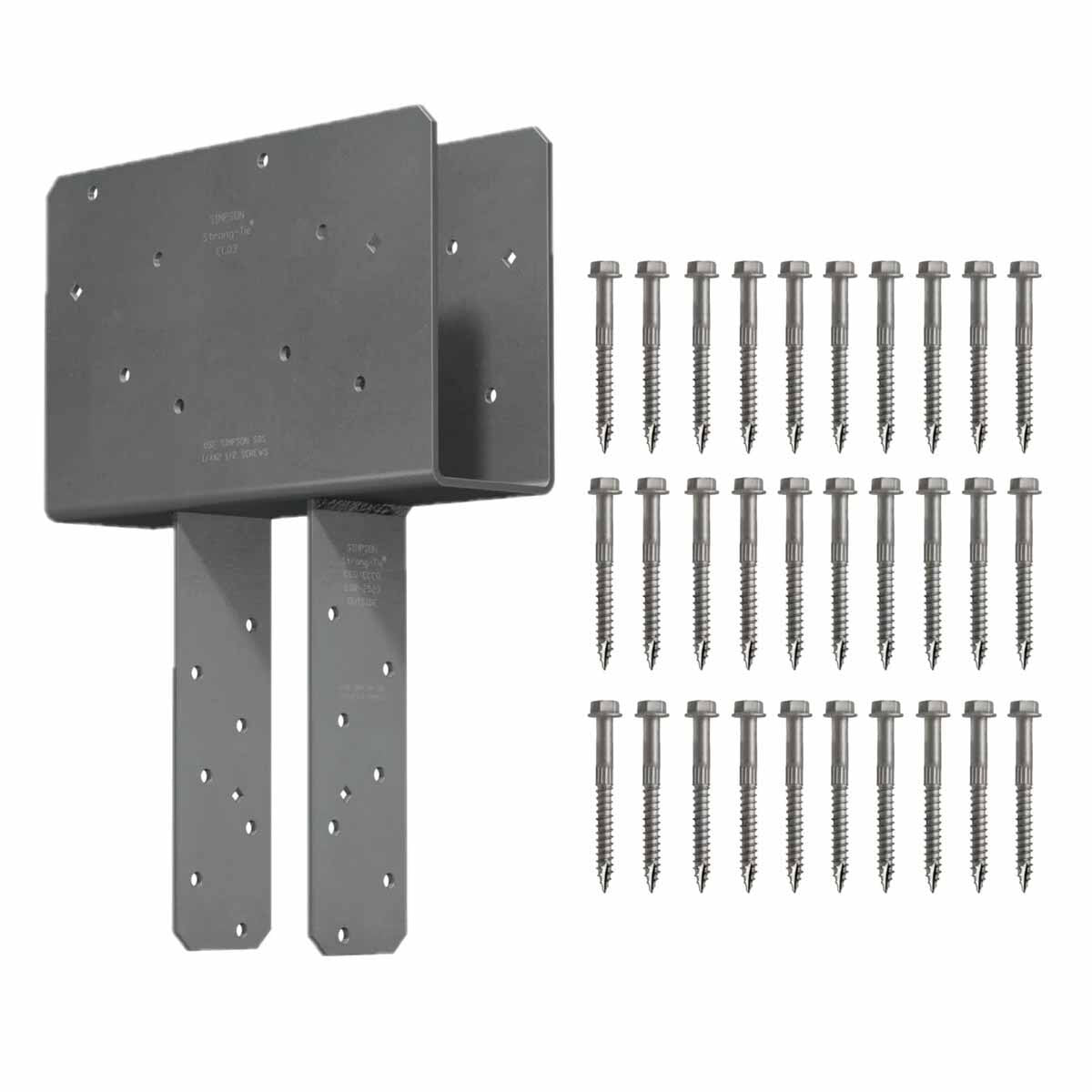

Simpson Strong-Tie CCQ46SDS2.5-R Includes
- (1) CCQ46SDS2.5-R Column Cap
- (1) Set of Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie CCQ46SDS2.5-R Features
- Simpson Strong-Tie gray paint finish
- Screws configured for high uplift design values
- Certified welds for strength and loading
- Diamond holes for temporary fastening
- Includes Strong-Drive SDS Heavy-Duty Connector screws for installation
- Available in widths up to 8" wide
- Customizable for various beam and post sizes
Simpson Strong-Tie CCQ46SDS2.5-R Applications
- Column-to-beam connections in wood construction
- Load distribution for intersecting beams
- Structural support for beams and posts

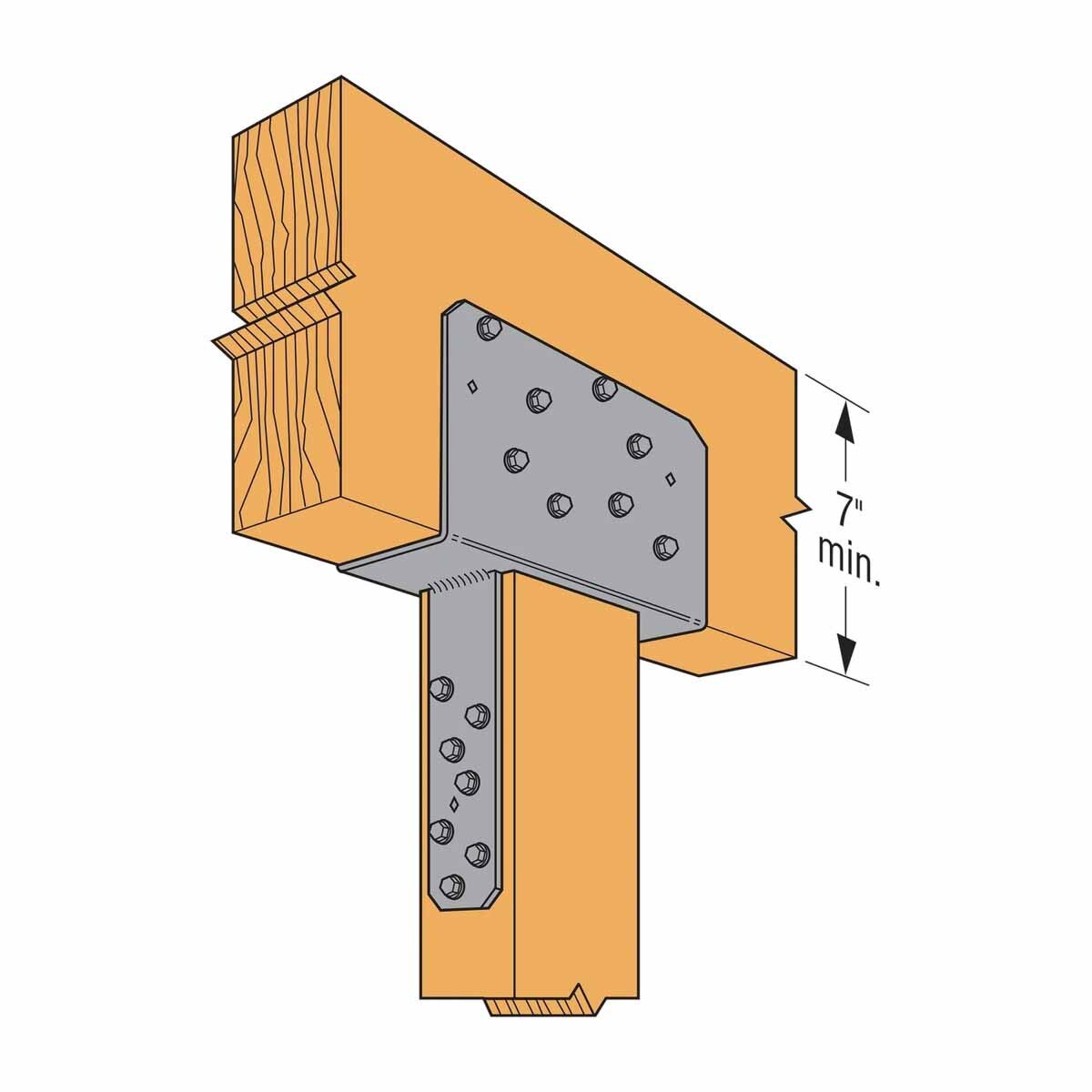

Simpson Strong-Tie CCQ46SDS2.5-R Installation Overview
- Verify beam and post dimensions and alignment.
- Position the column cap on the post.
- Fasten using the provided Strong-Drive SDS Heavy-Duty Connector screws.
- Ensure all screws are installed in round holes.
- Perform a final check for secure installation.

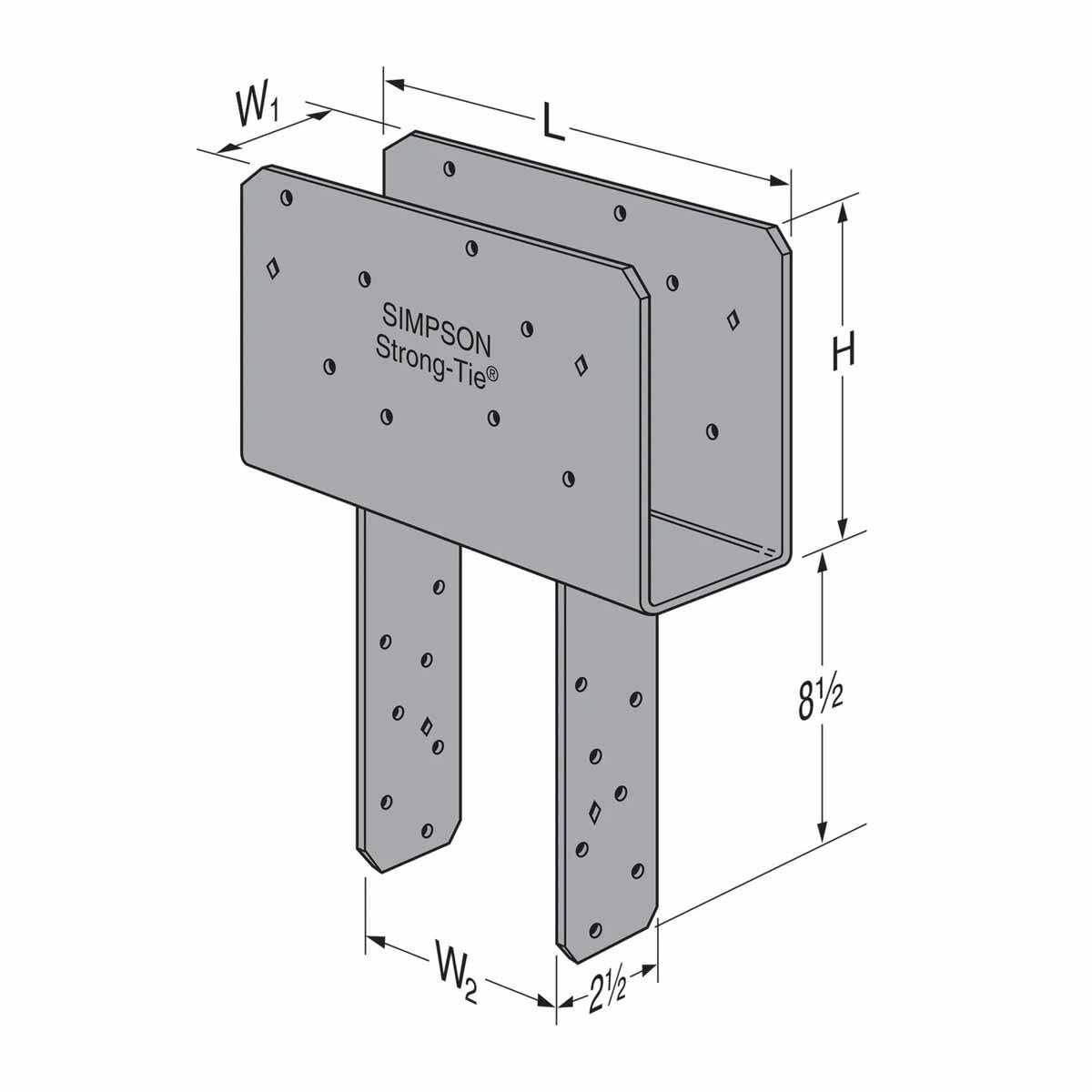

Simpson Strong-Tie CCQ46SDS2.5-R Specifications
| Finish | Gray Paint |
| Beam size | 4X |
| Thickness | 7 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
