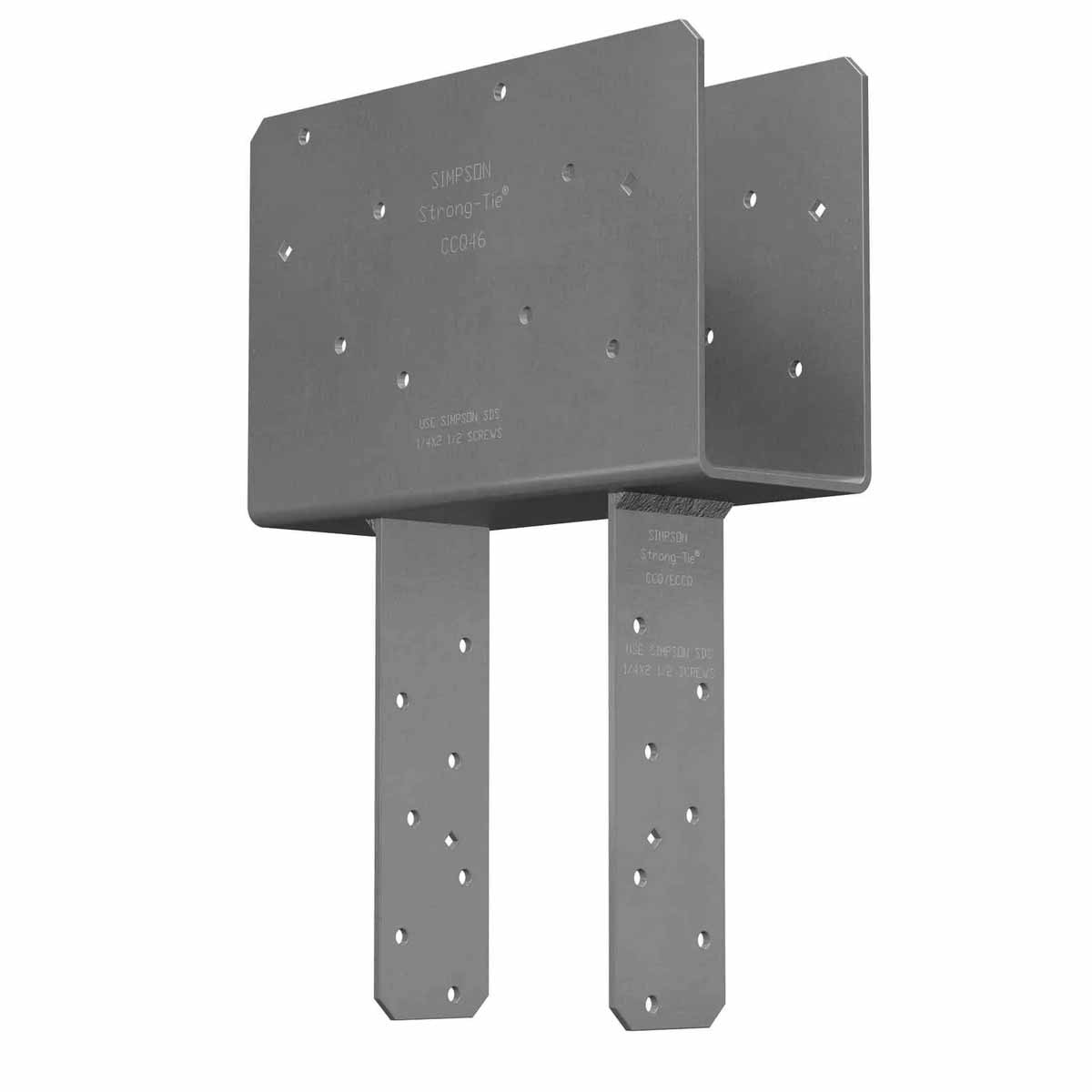

Simpson Strong-Tie CCQ46SS-SDS2.5 Stainless Steel Column Cap with SDS Screws for 4x Beam to 6x Post Connections
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CCQ46SS-SDS2.5 Stainless Steel Column Cap with S...
Key Specifications
Description
Description
Simpson Strong-Tie CCQ46SS-SDS2.5 Description
The Simpson CCQ46SS-SDS2.5 Column Cap enhances the strength and stability of your construction projects, providing strong column-to-beam connections with durable stainless steel construction.
Simpson Strong-Tie CCQ46SS-SDS2.5 Includes
- (1) Column Cap
- (16) 1/4" x 2-1/2" SDS Screws for Beam
- (14) 1/4" x 2-1/2" SDS Screws for Post
Simpson Strong-Tie CCQ46SS-SDS2.5 Features
- Provides strong column-to-beam connections
- Extended column seat area for enhanced load distribution
- Made from durable stainless steel
- Includes necessary SDS screws for quick installation
- Certified welds for strength and loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CCQ46SS-SDS2.5 Applications

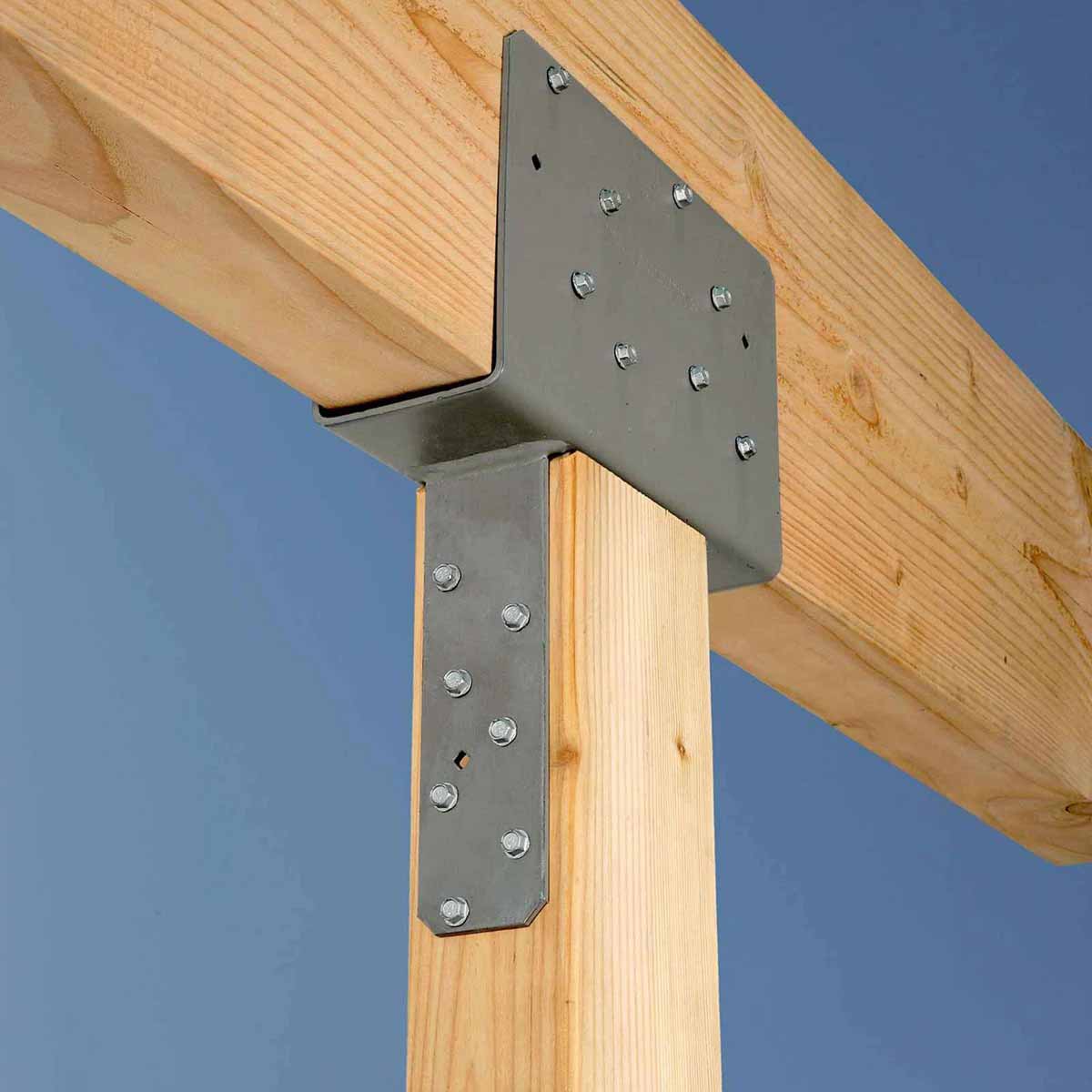

- Column-to-beam connections in wood construction
- Use with 4x beams and 6x posts/columns
- Suitable for earthquake or wind loading scenarios
Simpson Strong-Tie CCQ46SS-SDS2.5 Installation Overview
- Align the column cap with the beam and post.
- Secure the cap using the included SDS screws.
- Ensure bolt spacing meets NDS code requirements.
- Use diamond holes for temporary fastening during installation.
Simpson Strong-Tie CCQ46SS-SDS2.5 Specifications
| Length | 11" |
| Material | Stainless Steel |
| Beam size | 4x |
| Fasteners required | 1/4" x 2-1/2" SDS Screws: Beam (16), Post (14) |
| Height | 7" |
| Post size | 6x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
