Simpson Strong-Tie CCQ5-8SDS2.5 (5-1/8" Beam, 8x Post) Column Cap with SDS Screws - Heavy-Duty Steel, Gray Paint
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CCQ5-8SDS2.5 (5-1/8" Beam, 8x Post) Column ...
Key Specifications
Description
Description
Simpson Strong-Tie CCQ5-8SDS2.5 Description

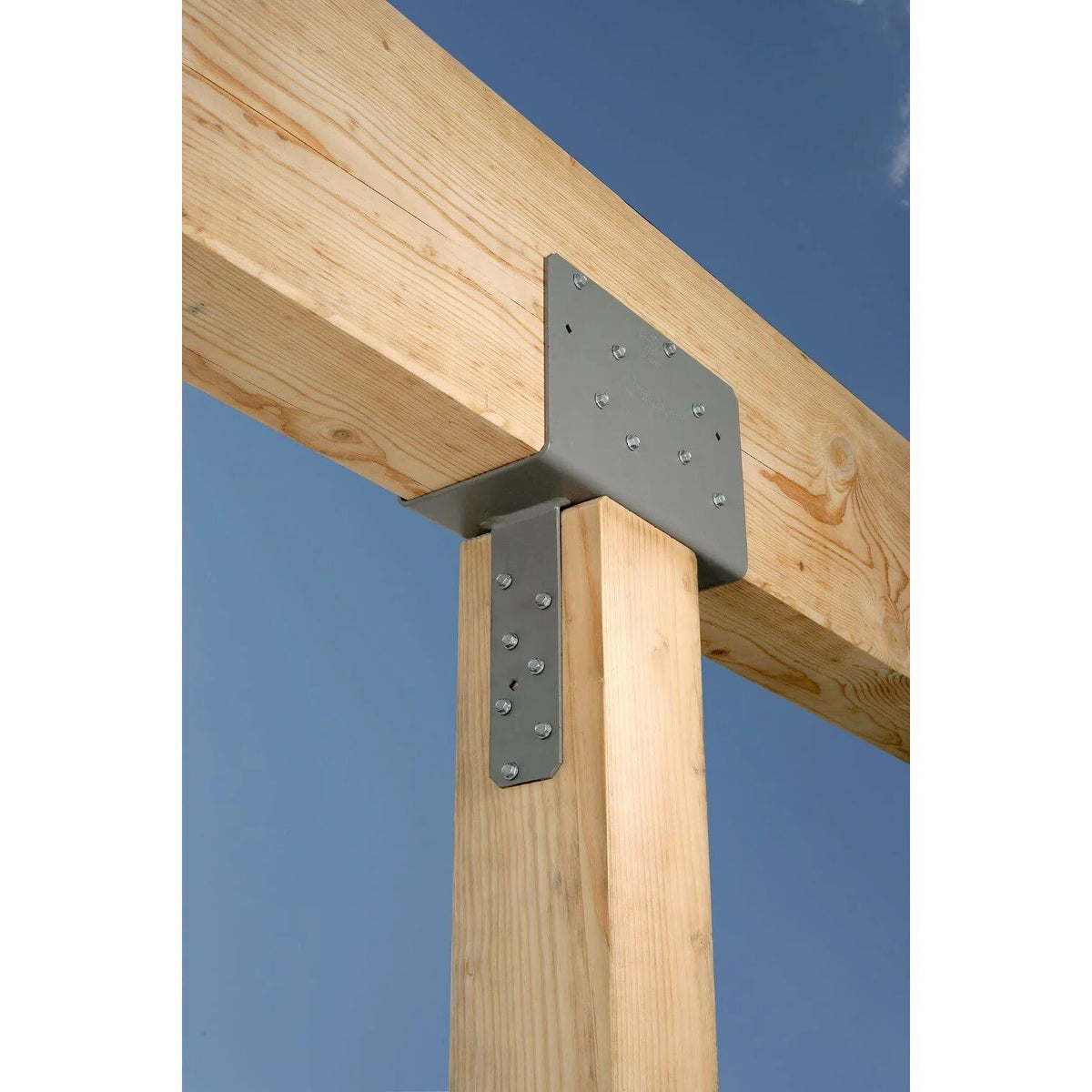

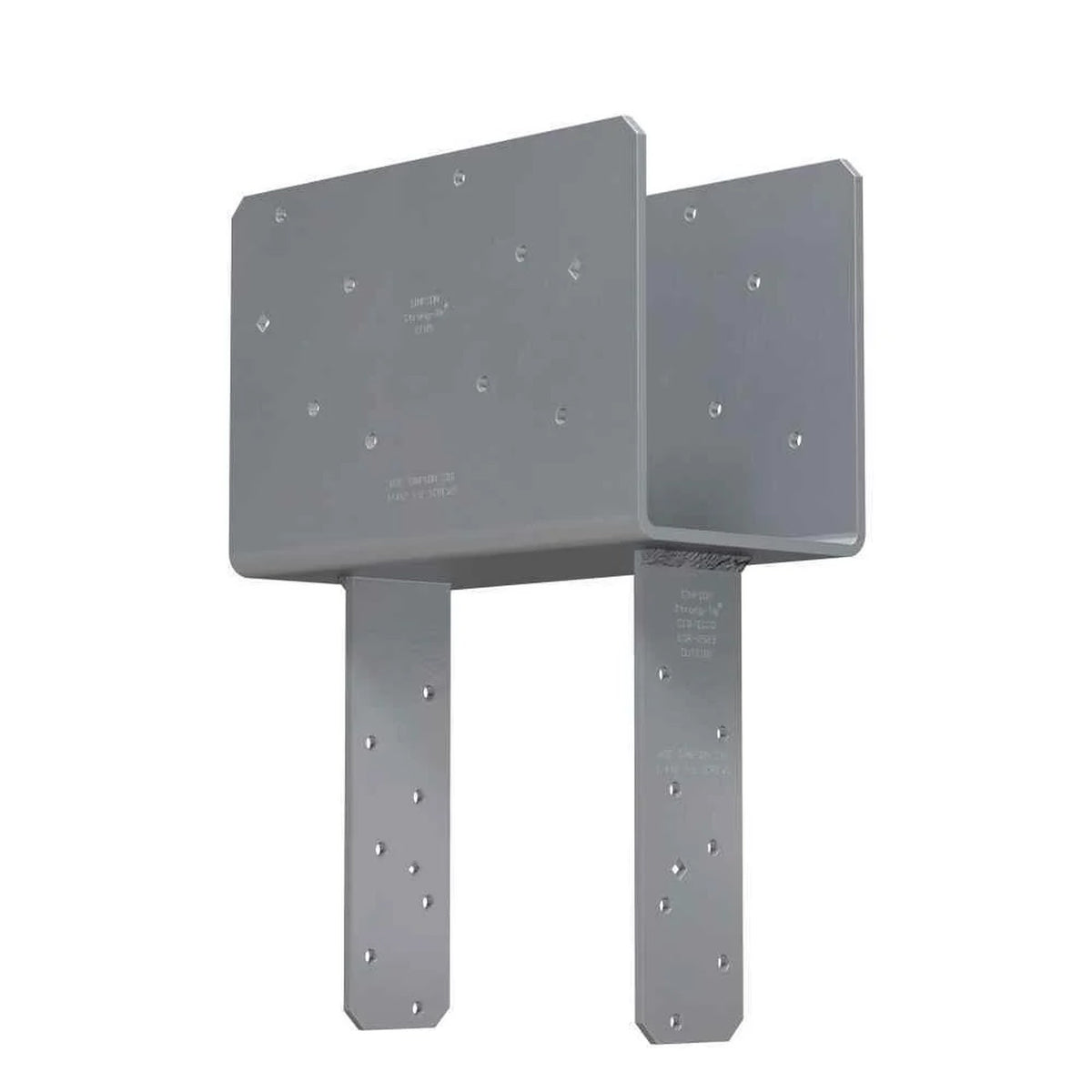

The Simpson Strong-Tie CCQ5-8SDS2.5 Column Cap is a heavy-duty steel connector designed for 5-1/8" beams and 8x posts, featuring SDS screws for secure and efficient installation.
Simpson Strong-Tie CCQ5-8SDS2.5 Includes
- (1) Strong-Tie Column Cap for 5-1/8" Beam, 8x Post with SDS Screws
Simpson Strong-Tie CCQ5-8SDS2.5 Features
- Provides strong column-to-beam connection
- Extended column seat for additional bearing surface
- Made from durable heavy-gauge steel
- Finished with gray paint for corrosion resistance
- Includes SDS screws for quick installation
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Diamond holes for temporary fastening
Simpson Strong-Tie CCQ5-8SDS2.5 Applications
- Wood construction requiring column-to-beam connections
- Structural support for beams and posts
- Projects needing enhanced load distribution
Simpson Strong-Tie CCQ5-8SDS2.5 Installation Overview
- Fasten with provided SDS screws
- Ensure proper alignment of column and beam
- Use diamond holes for temporary fastening
- Follow NDS code requirements for bolt spacing
Simpson Strong-Tie CCQ5-8SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 5-1/8" |
| Post size | 8x |
| Thickness | 3 Gauge |
| For Treated Lumber | No |
NOTE: Ensure proper installation using the provided SDS screws to achieve the specified load values.
