Simpson Strong-Tie CCQ66SDS2.5ROT Column Cap with SDS Screws for 6x Beam and Post, 90 Degree Rotated Straps, Gray Paint
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CCQ66SDS2.5ROT Column Cap with SDS Screws for 6x...
Key Specifications
Description
Description
Simpson Strong-Tie CCQ66SDS2.5ROT Description

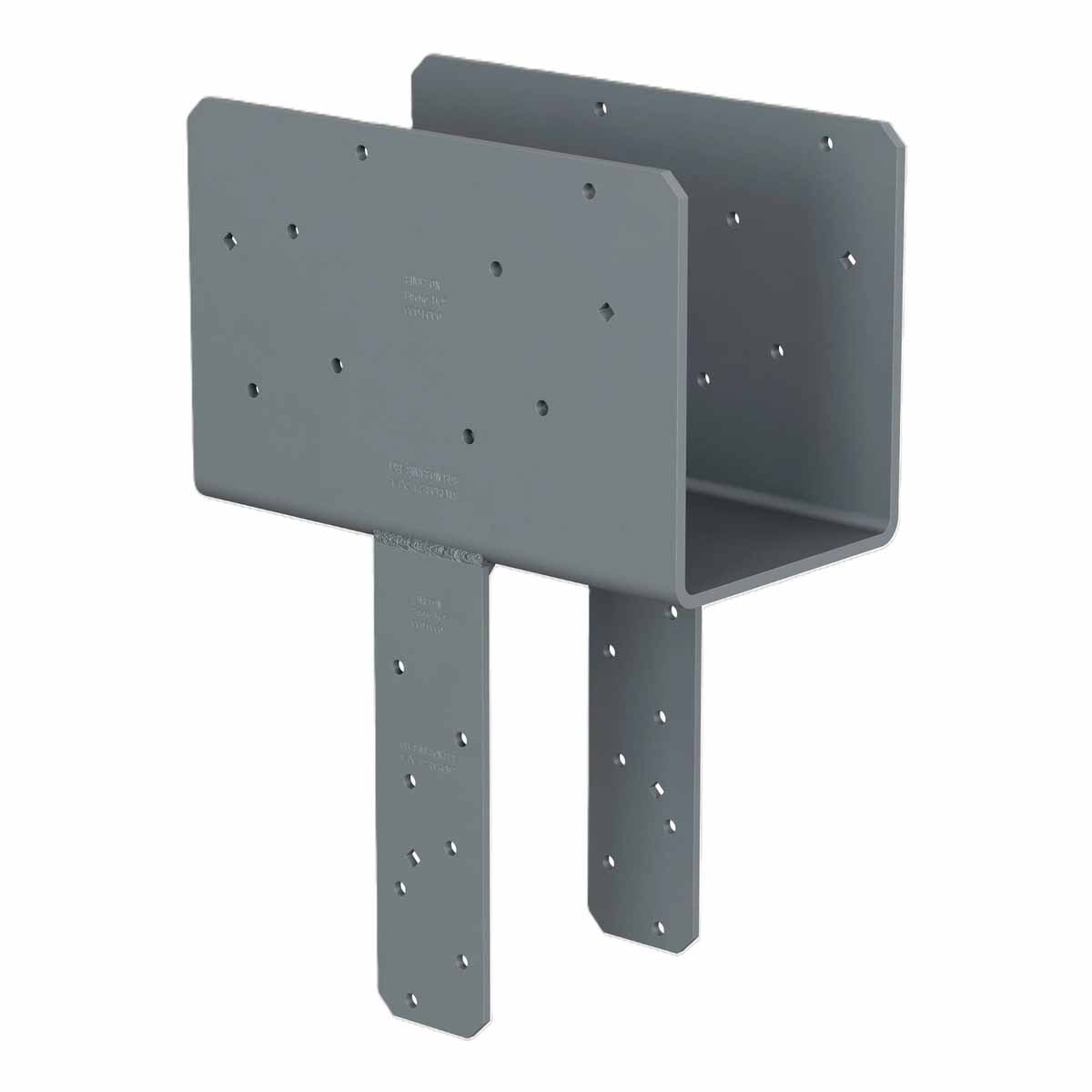

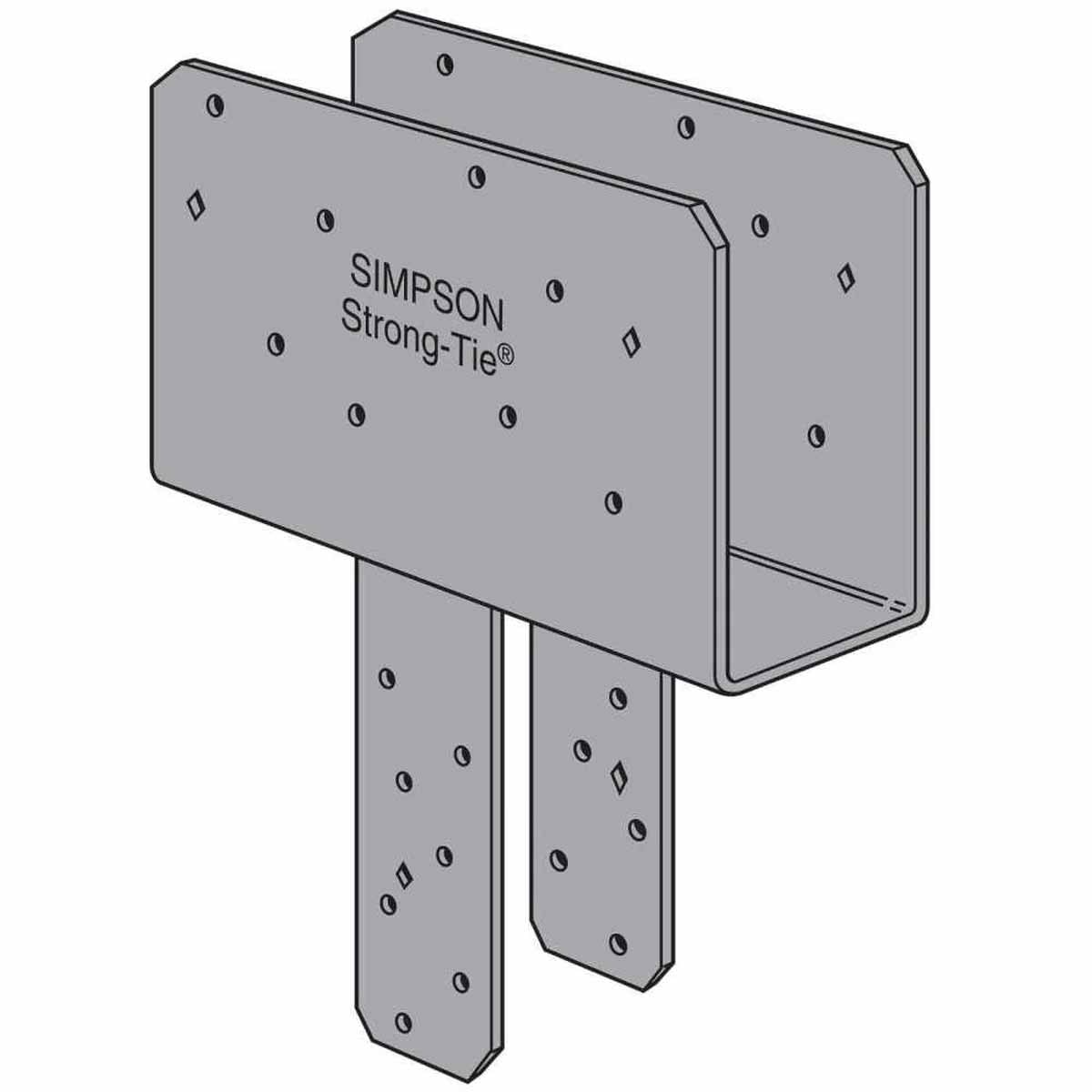

The Simpson CCQ66SDS2.5ROT Column Cap enhances the strength and stability of your construction projects, designed for 6x beams and posts with a durable gray paint finish.
Simpson Strong-Tie CCQ66SDS2.5ROT Includes
- (1) Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie CCQ66SDS2.5ROT Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable steel with a gray paint finish
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CCQ66SDS2.5ROT Applications
- Column-to-beam connections in end-of-beam applications for wood construction
- Enhancing structural stability in construction projects
Simpson Strong-Tie CCQ66SDS2.5ROT Installation Overview
- Align the column cap with the beam and post
- Secure the cap using the included SDS screws
- Ensure proper alignment and fastening according to the manufacturer's guidelines
Simpson Strong-Tie CCQ66SDS2.5ROT Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 6x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 7 Gauge |
