Simpson Strong-Tie CCTQ666SDS Description

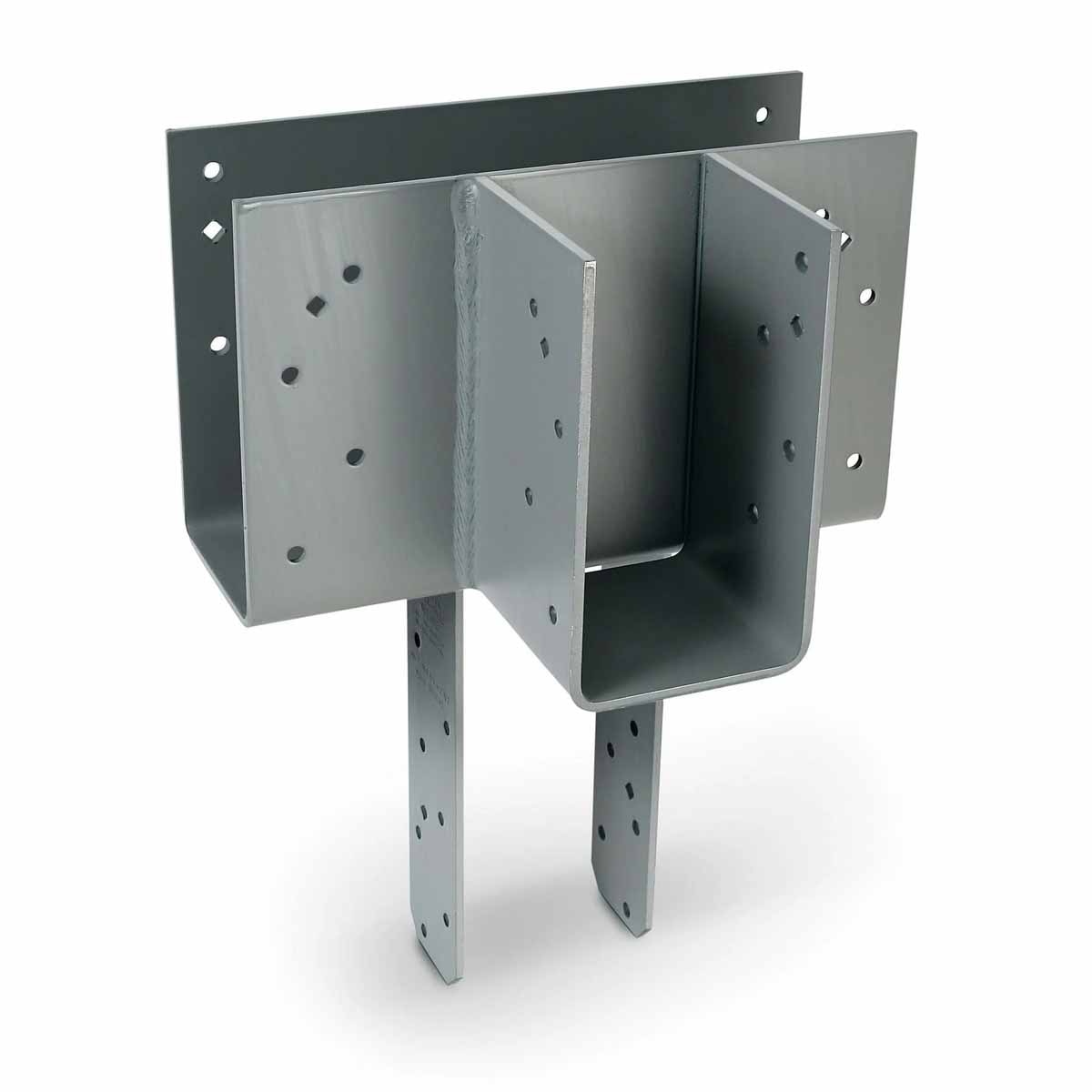

The CCTQ666SDS T-Shape Column Cap is designed to provide strong column-to-beam connections for 6x beams and posts, ensuring structural integrity and ease of installation.
Simpson Strong-Tie CCTQ666SDS Includes
- (1) T-Shape Column Cap
- (1) Set of Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie CCTQ666SDS Features
- Provides strong column-to-beam connections in a 'T' formation
- Includes Strong-Drive SDS Heavy-Duty Connector screws for faster installation
- Certified welds ensure strength and loading
- Diamond holes for temporary fastening
- Available in HDG and widths up to 8 inches
Simpson Strong-Tie CCTQ666SDS Applications
- Structural connections for columns and beams in a 'T' formation
- Support for bisecting beams on top of a column
- Heavy-duty structural applications requiring high uplift design values

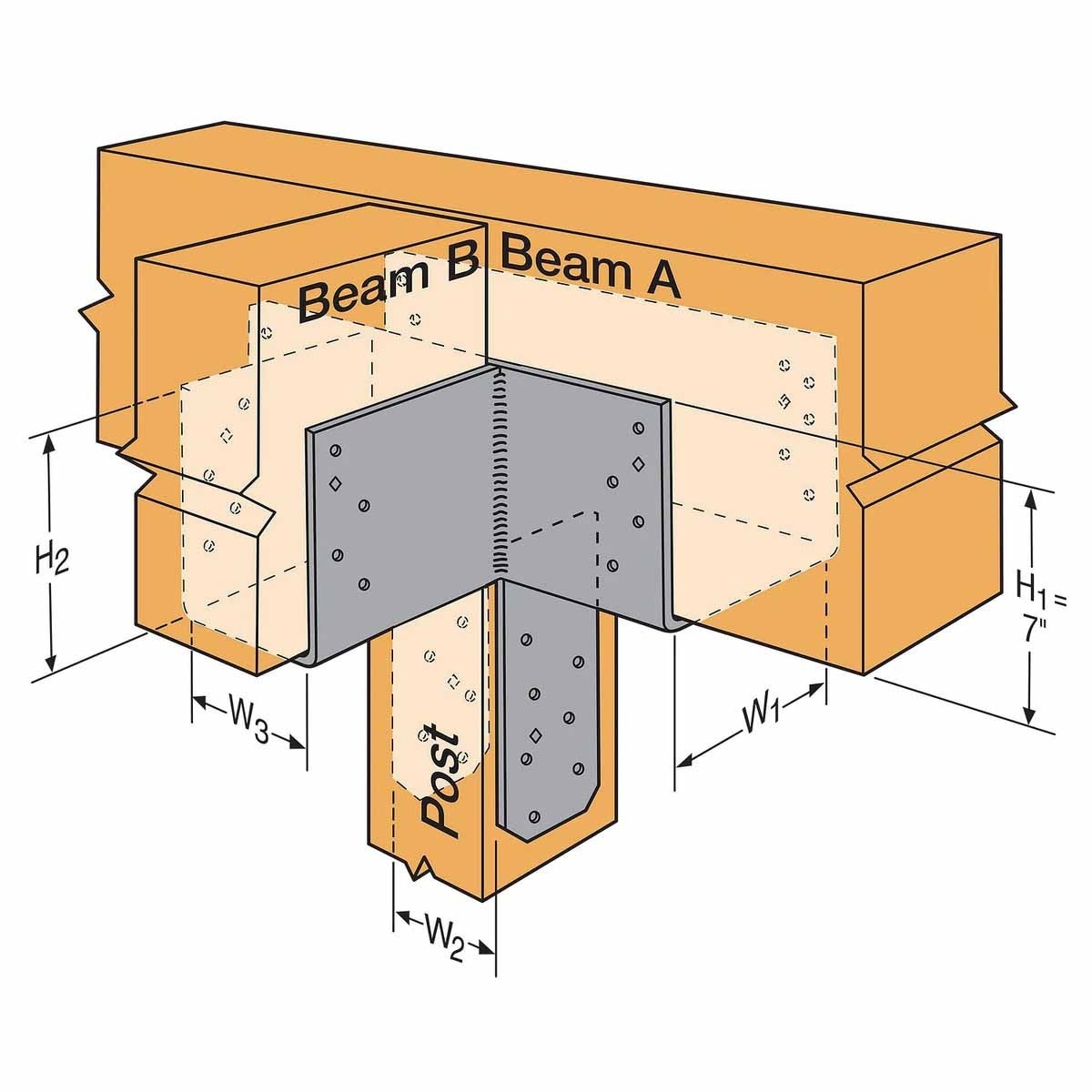

Simpson Strong-Tie CCTQ666SDS Installation Overview
- Install Strong-Drive SDS Heavy-Duty Connector screws in all round holes
- Ensure screws are configured for high uplift design values
- Use diamond holes for temporary fastening
- Follow designer specifications for beam and post sizes
Simpson Strong-Tie CCTQ666SDS Specifications
| Finish | Gray Paint |
| Beam size | 6X |
| Post size | 6X POST |
| Weight | 22.0 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
