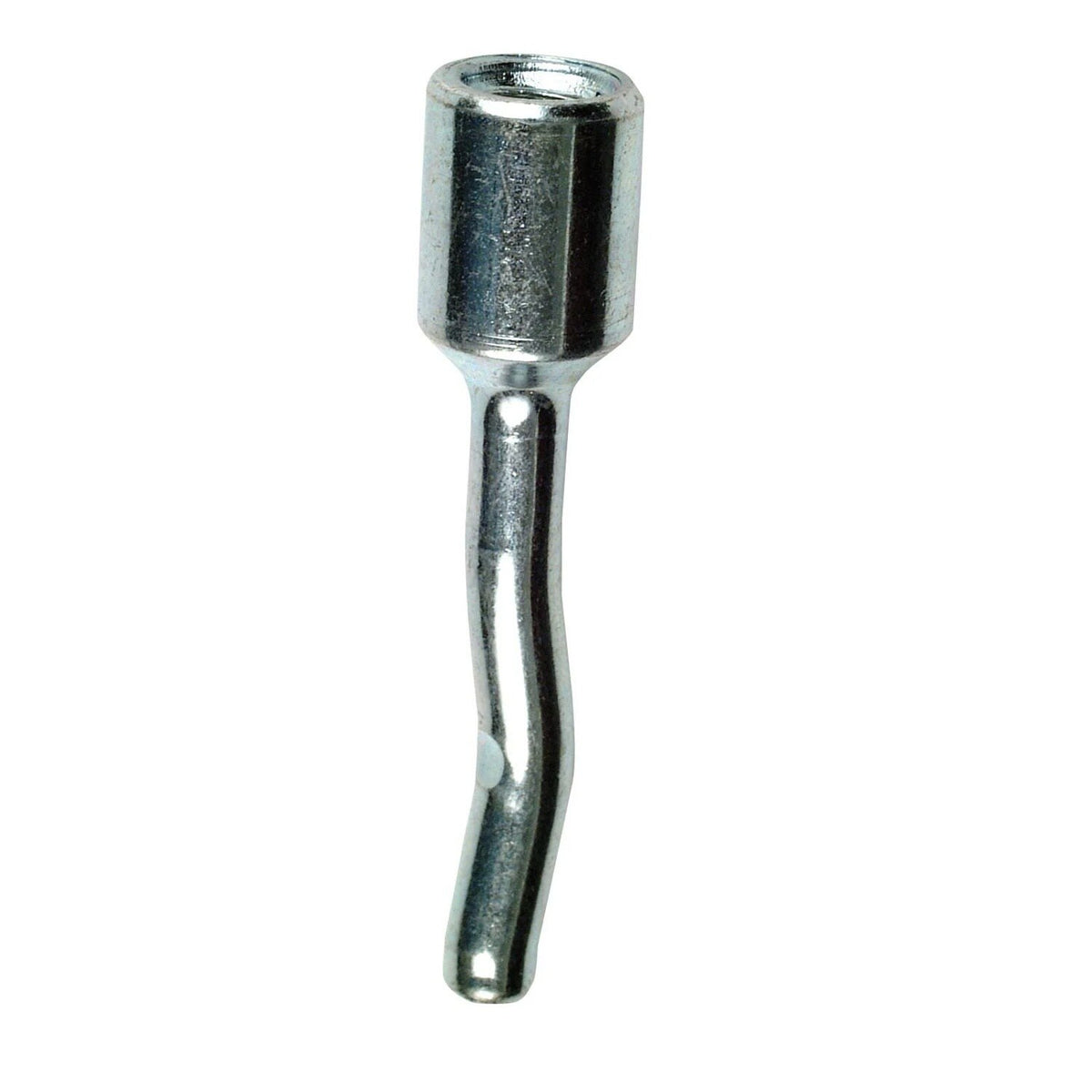

Simpson Strong-Tie CD37112RC (3/8") Crimp Drive Anchor Zinc-Plated Rod-Coupler Head (50 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CD37112RC (3/8") Crimp Drive Anchor Zinc-Pl...
Key Specifications
Description
Description
Simpson Strong-Tie CD37112RC Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The Rod Coupler head is designed for 3/8" threaded rod, commonly used for hanging sprinkler pipes and suspended ceiling panels.
Simpson Strong-Tie CD37112RC Includes
- (50) Crimp Drive Anchor Zinc-Plated Rod-Coupler Head
Simpson Strong-Tie CD37112RC Features
- Unique curved shaft design for faster installation
- Reduces overall project cost
- Available in five different head styles
Simpson Strong-Tie CD37112RC Applications
- Brick — Solid
- Mushroom head provides a tamper-proof solution
- Countersunk head provides a zero-profile solution
- Rod-coupler head allows for threaded rod attachments
- Tie-wire head for suspended ceiling applications
- Duplex head allows for easy removal in temporary applications
Simpson Strong-Tie CD37112RC Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
Simpson Strong-Tie CD37112RC Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/4" |
| Length | 1-1/2" |
| Accepts rod size | 3/8" |
| Drill bit size | 1/4" |
| Head type | Rod Coupler |
| Minimum embedment depth | 1-1/4" |
| Quantity | 50 |
NOTE: Use these products in dry, interior, and non-corrosive environments only.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
