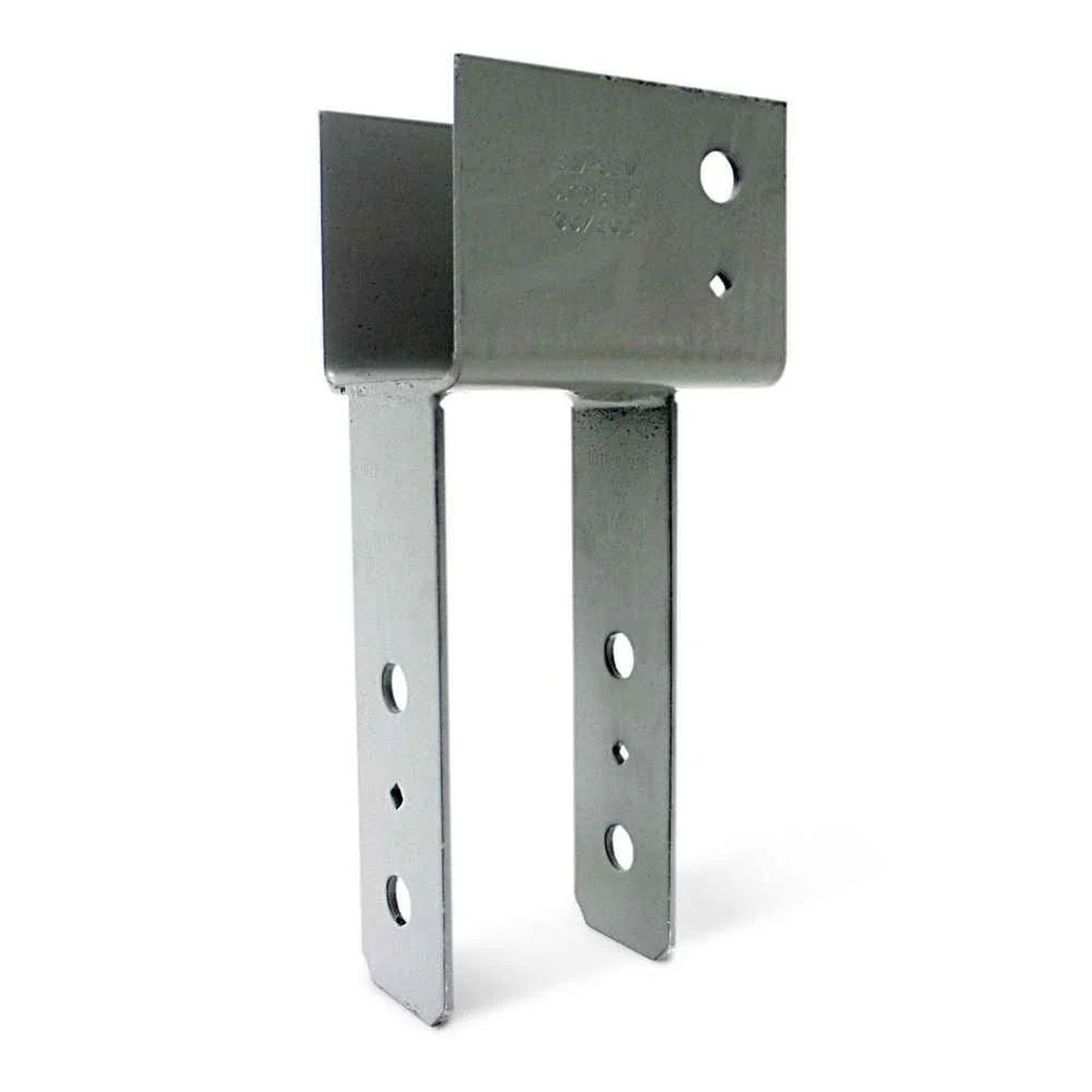

Simpson Strong-Tie ECC44HDG End Column Cap Hot-Dip Galvanized for 4x Beam and 4x Post
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECC44HDG End Column Cap Hot-Dip Galvanized for 4...
Key Specifications
Description
Description
Simpson Strong-Tie ECC44HDG Description
The Simpson ECC44HDG End Column Cap enhances the strength and stability of construction projects, providing durable column-to-beam connections for wood construction.
Simpson Strong-Tie ECC44HDG Includes
- (1) End Column Cap Hot-Dip Galvanized for 4x Beam and 4x Post
Simpson Strong-Tie ECC44HDG Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Intended for use with 4x beams and 4x posts/columns
- Made from Steel for durability and finished with Hot Dip Galvanized coating
- Certified welds for strength and loading with increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECC44HDG Applications

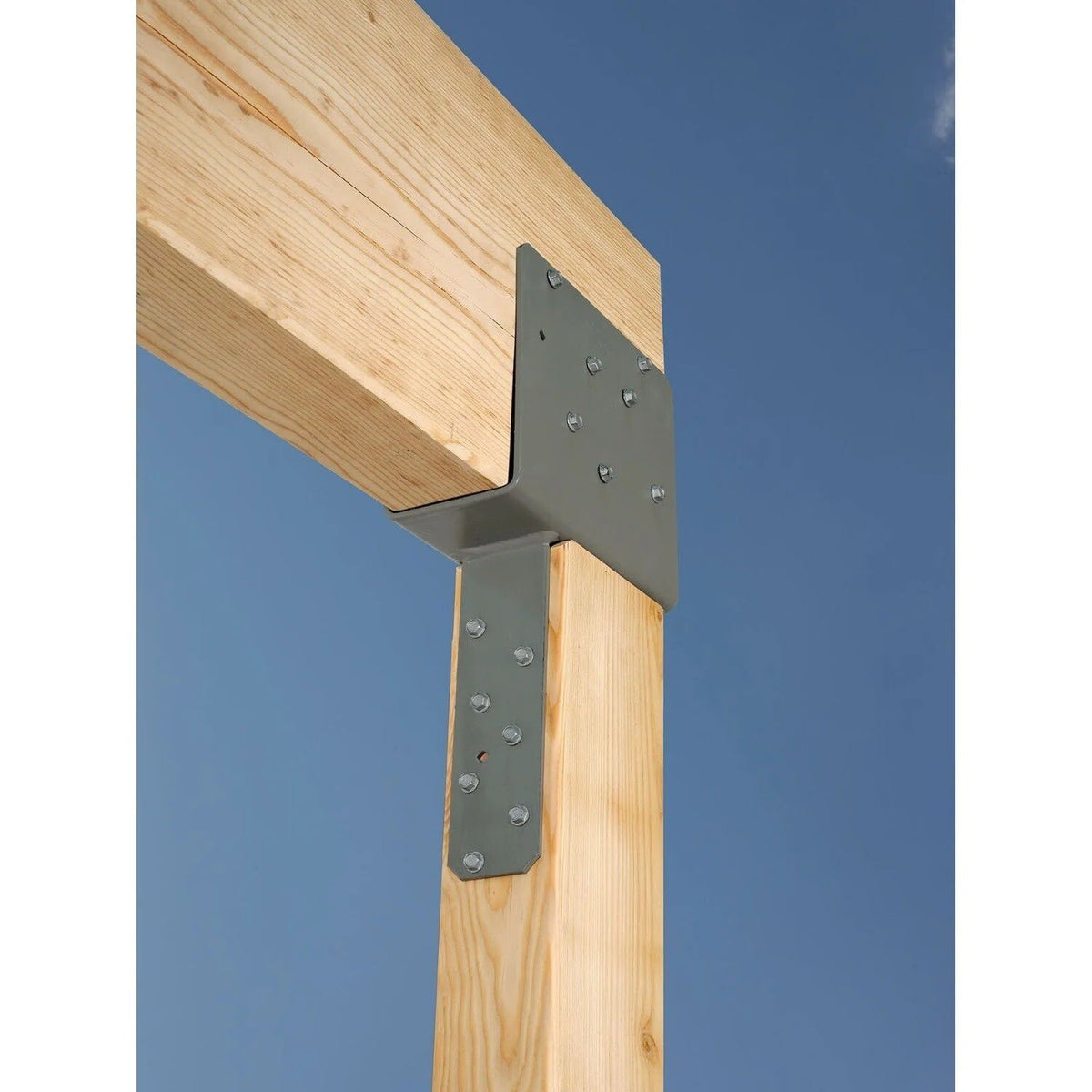

- Column-to-beam connections in wood construction
- End-of-beam applications requiring enhanced load distribution
- Projects requiring increased uplift loads for earthquake or wind loading
Simpson Strong-Tie ECC44HDG Installation Overview
- Position the column cap on the post or column
- Align the beam with the cap seat
- Secure using specified fasteners: Beam - (1) 5/8" Machine Bolt, Post - (2) 5/8" Machine Bolts
- Ensure bolt spacing meets NDS code requirements
- Verify the connection is secure and properly aligned
Simpson Strong-Tie ECC44HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Galvanized Steel |
| Beam size | 4x |
| Fasteners required | Beam - (1) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 4x |
| Thickness | 7 Gauge |
