Simpson Strong-Tie ECC46HDG (4x Beam, 6x Post) Hot-Dip Galvanized End Column Cap
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECC46HDG (4x Beam, 6x Post) Hot-Dip Galvanized E...
Key Specifications
Description
Description
Simpson Strong-Tie ECC46HDG Description

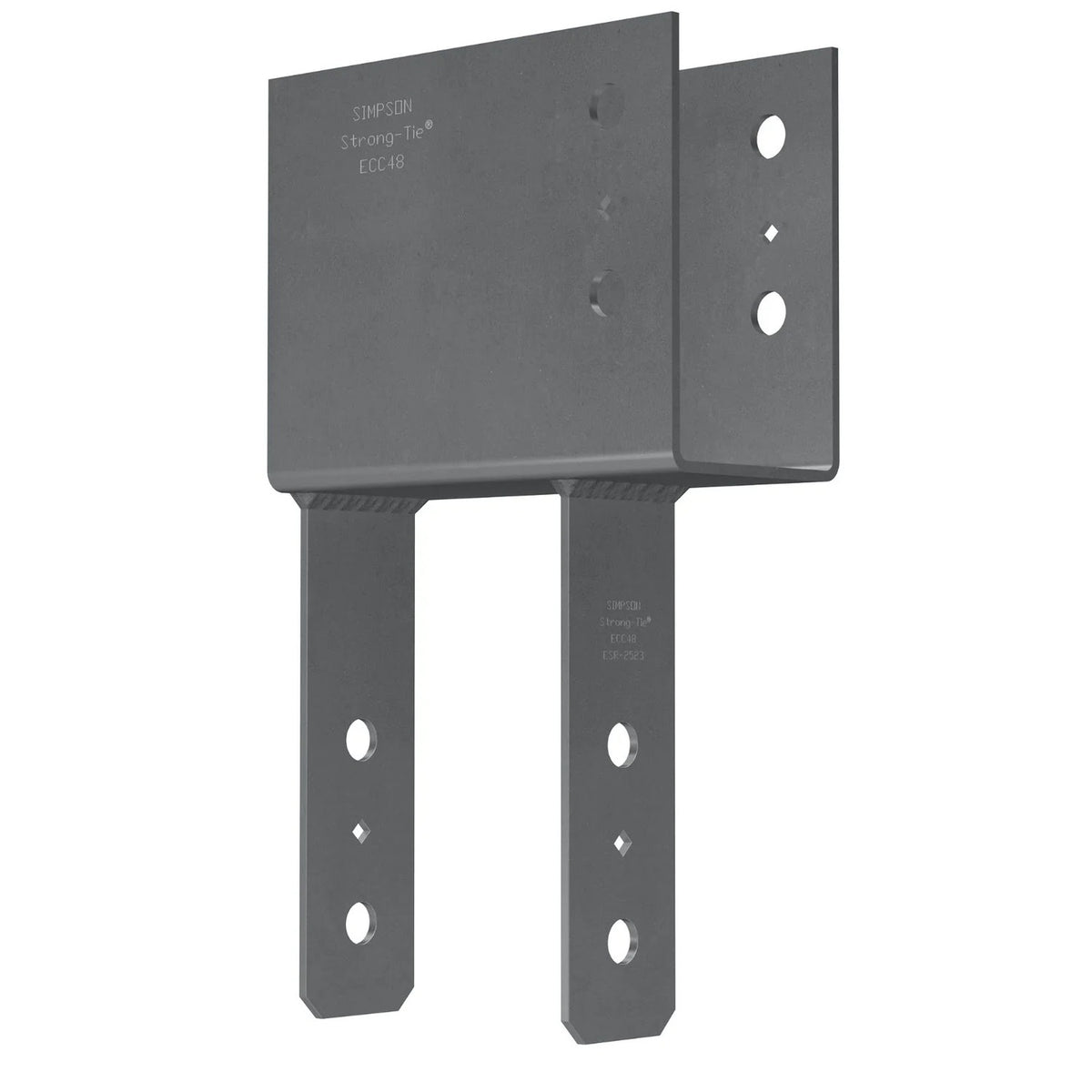

The ECC46HDG is a hot-dip galvanized end column cap designed for 4x beams and 6x posts, providing robust wood-to-wood connections.
Simpson Strong-Tie ECC46HDG Includes
- (1) Hot-Dip Galvanized End Column Cap for 4x Beam, 6x Post
Simpson Strong-Tie ECC46HDG Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Simpson Strong-Tie ECC46HDG Applications

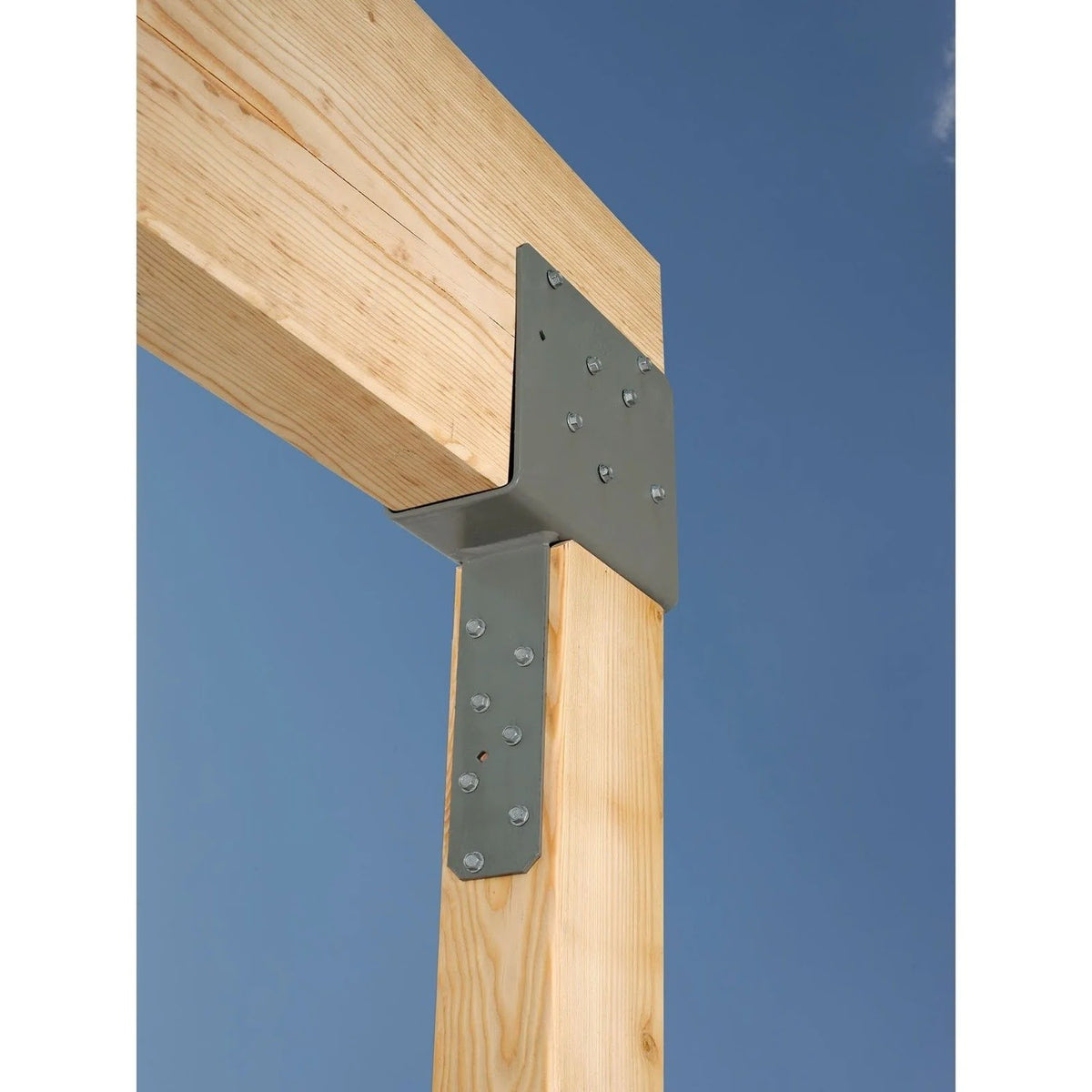

- Fastening wood-to-wood connections in construction projects
Simpson Strong-Tie ECC46HDG Installation Overview
- Use all specified fasteners as per the general notes
- Ensure bolt holes are drilled from one side through the beam to maintain tolerances
- Consult engineered wood manufacturers for non-standard connections
Simpson Strong-Tie ECC46HDG Specifications
| Material | 7 gauge for ECC46 |
| Finish | Hot-Dip Galvanized |
