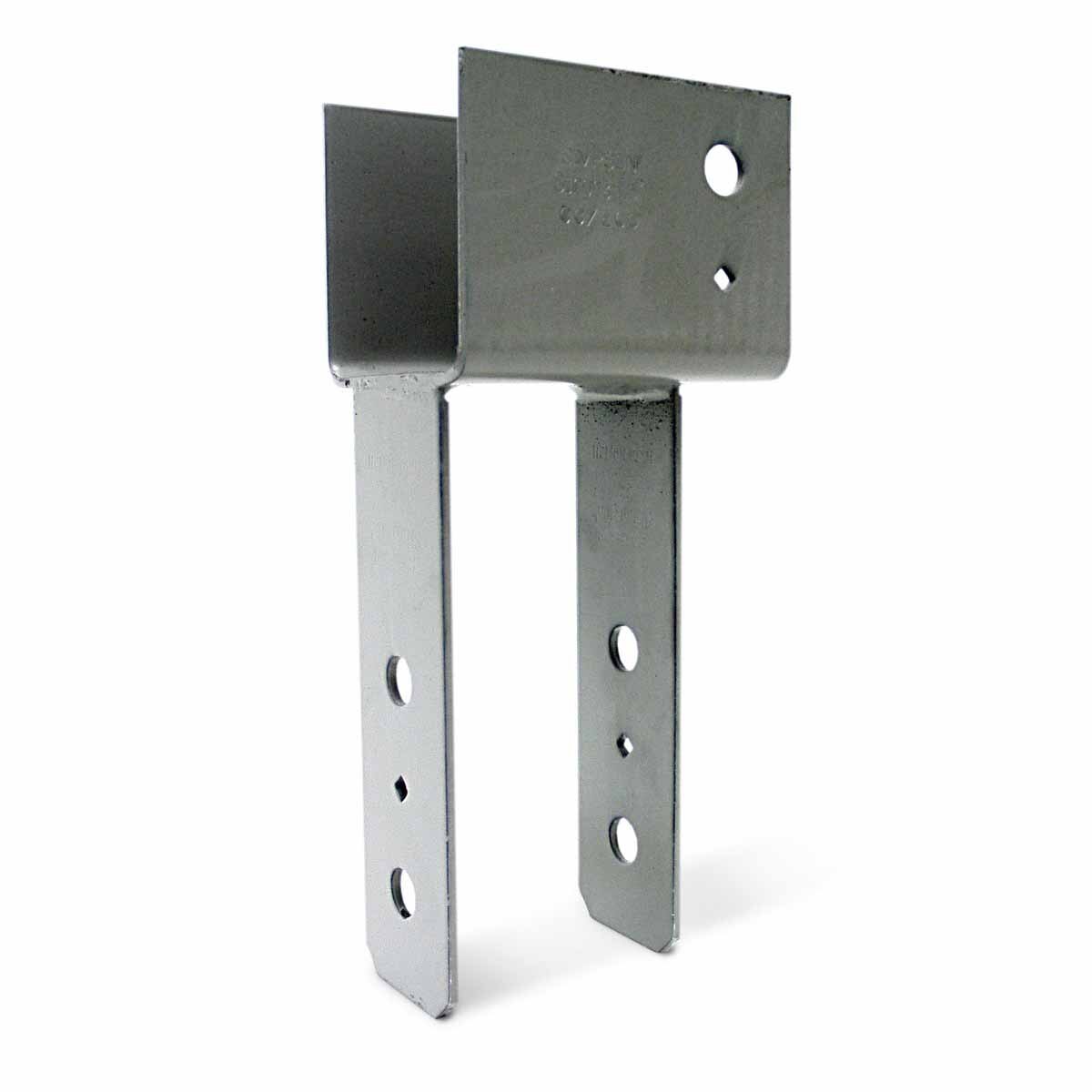

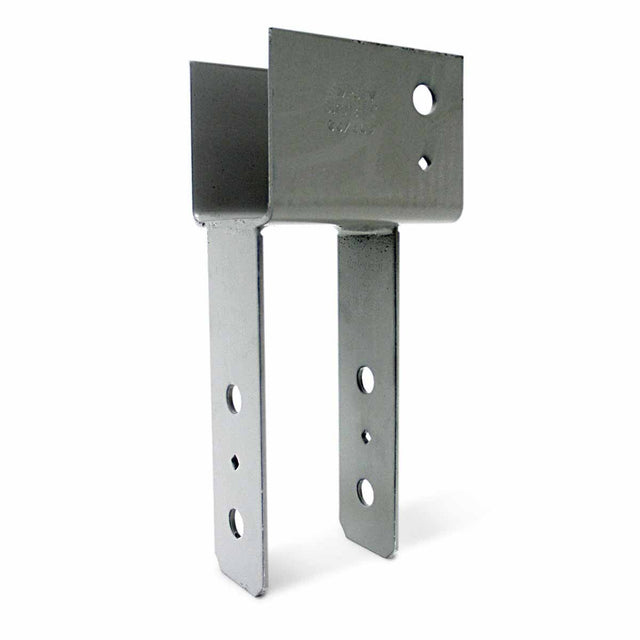

Simpson Strong-Tie ECC7 1/8-6 End Column Cap for 7x Beam to 6x Post Connection, Gray Paint
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECC7 1/8-6 End Column Cap for 7x Beam to 6x Post...
Key Specifications
Description
Description
Simpson Strong-Tie ECC7 1/8-6 Description
The Simpson ECC7 1/8-6 End Column Cap enhances the strength and stability of your construction projects, designed for 7x beams and 6x posts.
Simpson Strong-Tie ECC7 1/8-6 Includes
- (2) 3/4" Machine Bolts for Beam
- (2) 3/4" Machine Bolts for Post
Simpson Strong-Tie ECC7 1/8-6 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability and finished with Gray Paint coating
- Certified welds for strength and loading with increased uplift loads for earthquake or wind loading
- Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements
Simpson Strong-Tie ECC7 1/8-6 Applications

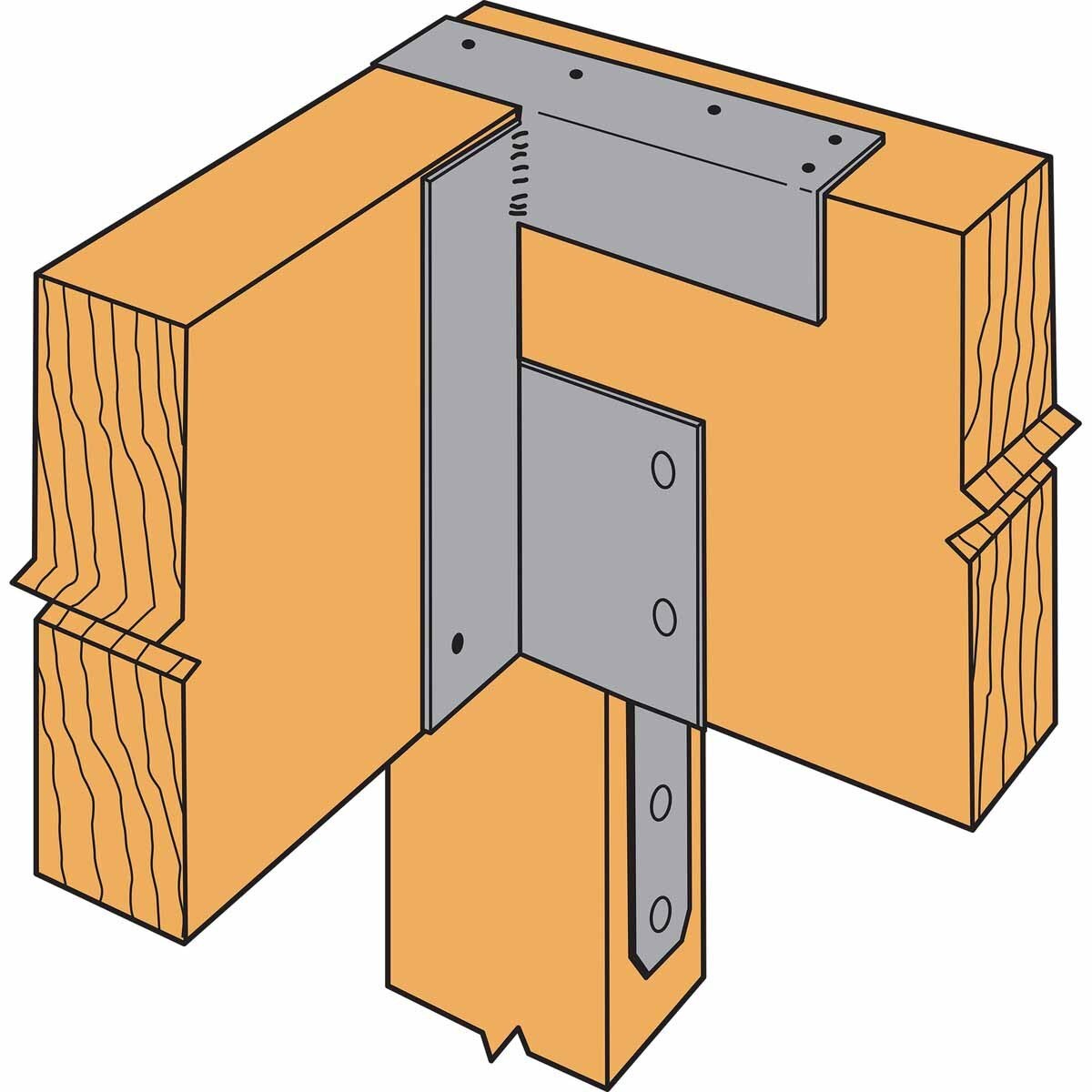

- Column-to-beam connections in end-of-beam applications for wood construction
- Enhancing structural stability in construction projects
Simpson Strong-Tie ECC7 1/8-6 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 7x |
| Fasteners required | Beam - (2) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
