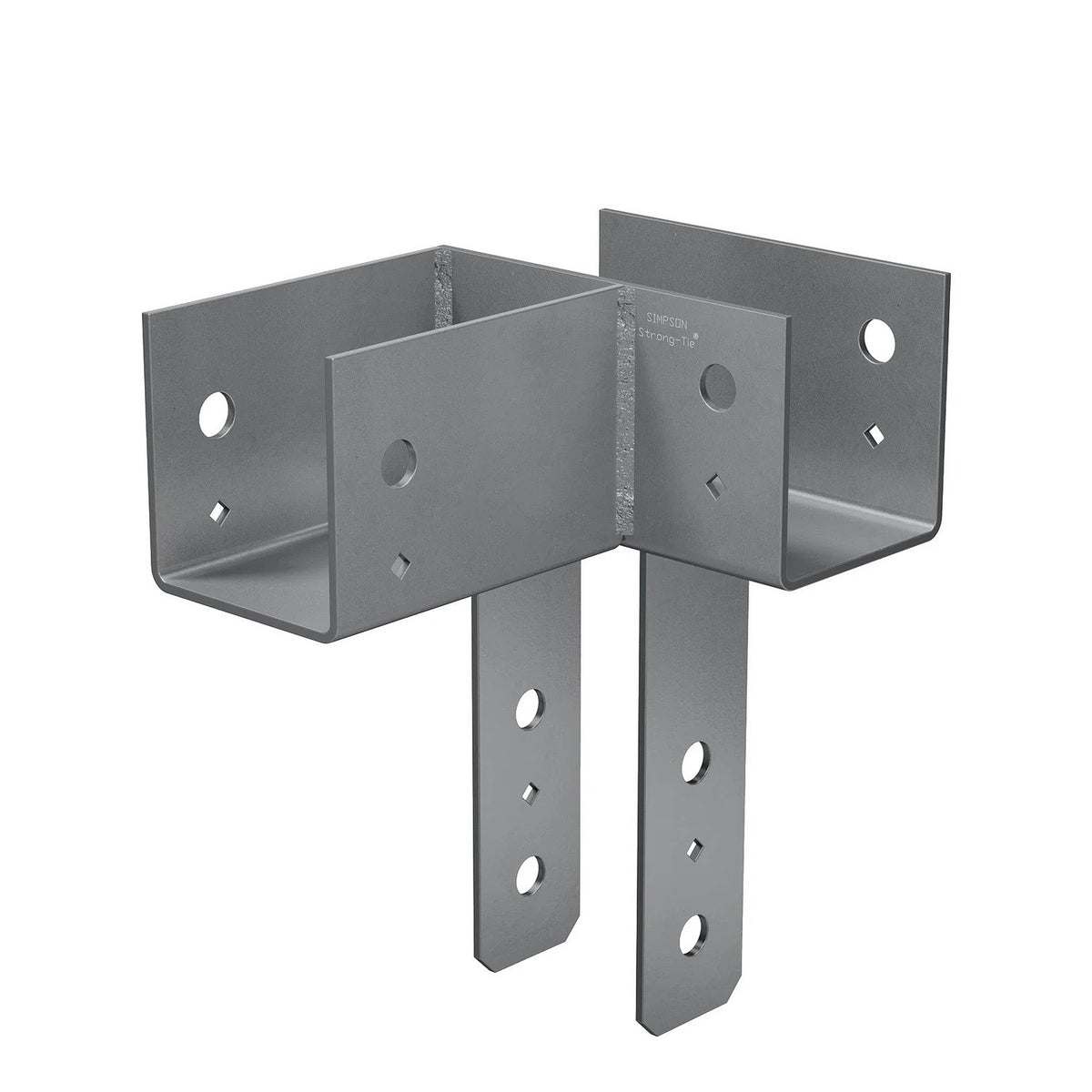

Simpson Strong-Tie ECCLL444TC Tall Corner End Column Cap Left Direction Gray Paint - For 4x Beams and 4x Posts
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCLL444TC Tall Corner End Column Cap Left Direc...
Key Specifications
Description
Description
Simpson Strong-Tie ECCLL444TC Description
The Simpson ECCLL444TC Tall Corner End Column Cap enhances the strength and stability of construction projects, providing durable column-to-beam connections for end-of-beam applications.
Simpson Strong-Tie ECCLL444TC Includes
- (1) Simpson ECCLL444TC Tall Corner End Column Cap
Simpson Strong-Tie ECCLL444TC Features
- Provides strong end-of-beam connection for column-to-beams forming an "L".
- Extended column seat offers additional surface area for load distribution.
- Made from heavy-gauge steel with a Gray Paint finish.
- Certified welds for increased strength and loading.
- Features diamond holes for temporary fastening during installation.
- Bolt spacing meets NDS code requirements.
Simpson Strong-Tie ECCLL444TC Applications
- Column-to-beam connections in end-of-beam applications.
- Construction projects requiring enhanced load distribution.
- Use with 4x posts or columns and 4x beams.

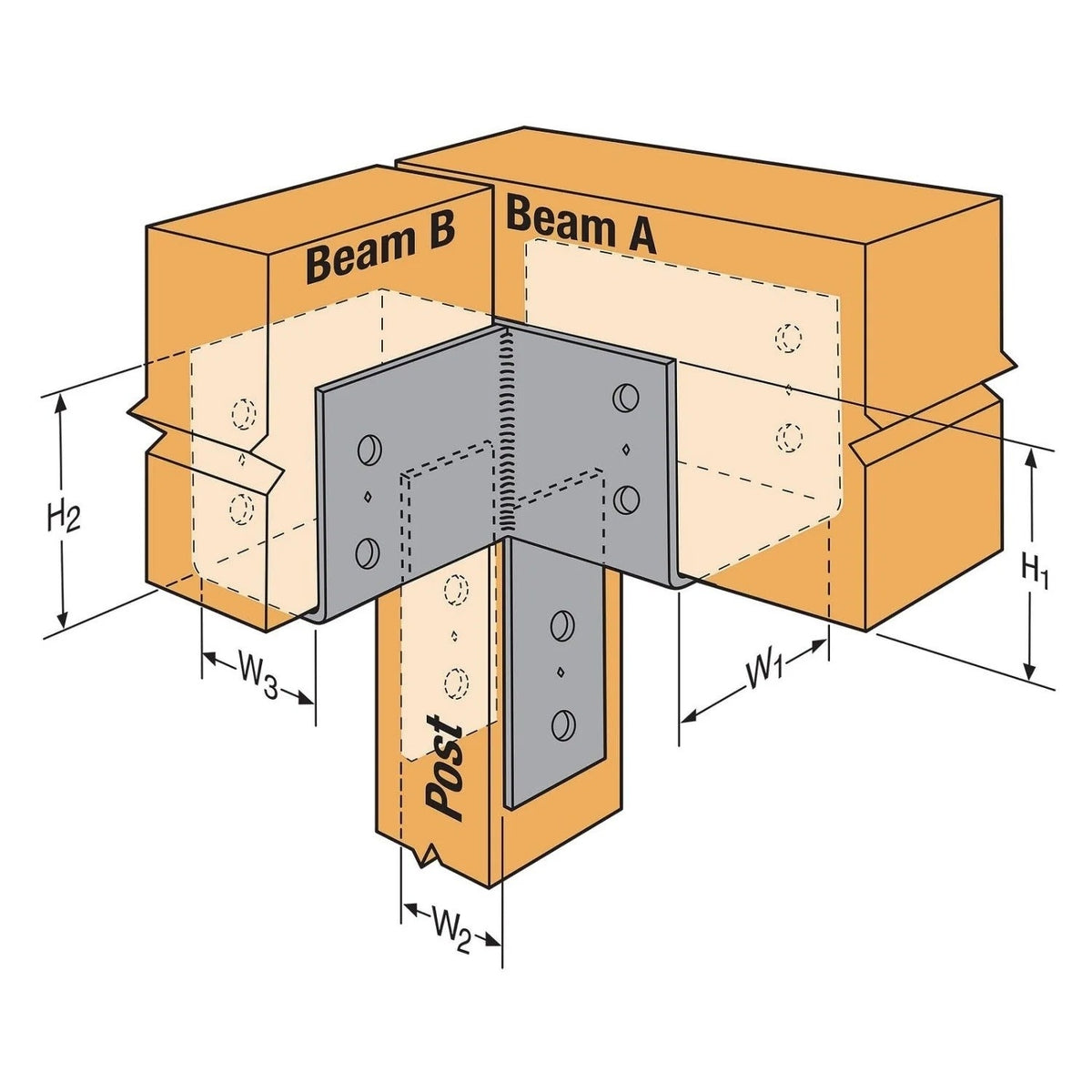

Simpson Strong-Tie ECCLL444TC Installation Overview
- Align the column cap with the beams and column.
- Secure temporarily using diamond holes.
- Fasten with specified bolts and screws as per guidelines.
- Ensure proper alignment and load distribution.

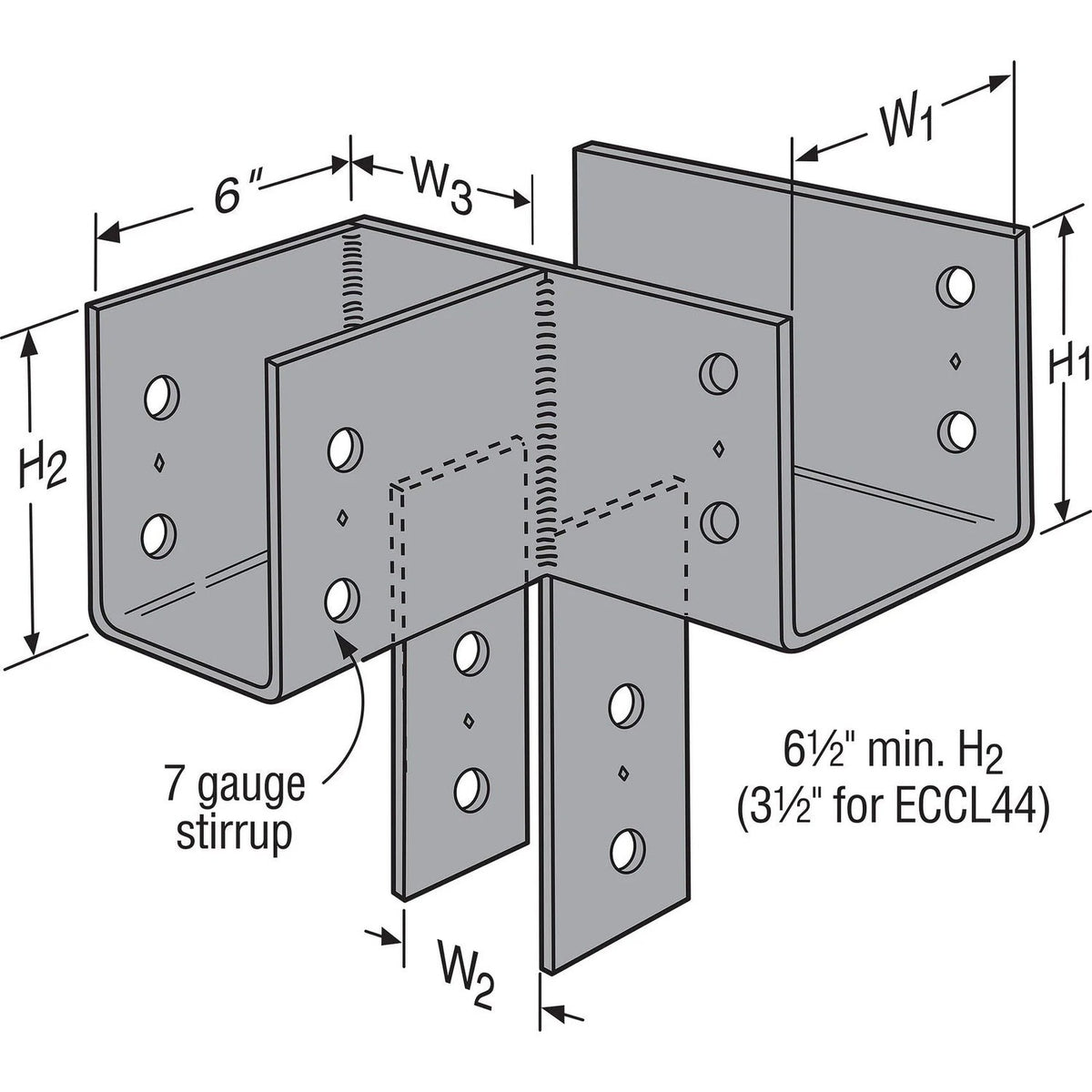

Simpson Strong-Tie ECCLL444TC Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 4x |
| Fasteners required | Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2" |
| Height | H1&H2 = 6-1/2" |
| Post size | 4x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
