Simpson Strong-Tie ECCLLQ444HDG L-Shape End Column Cap for 4x Beams and 4x Post with SDS Screws, Skewed Left - Hot-Dip Galvanized
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCLLQ444HDG L-Shape End Column Cap for 4x Beams...
Key Specifications
Description
Description
Simpson Strong-Tie ECCLLQ444HDG Description

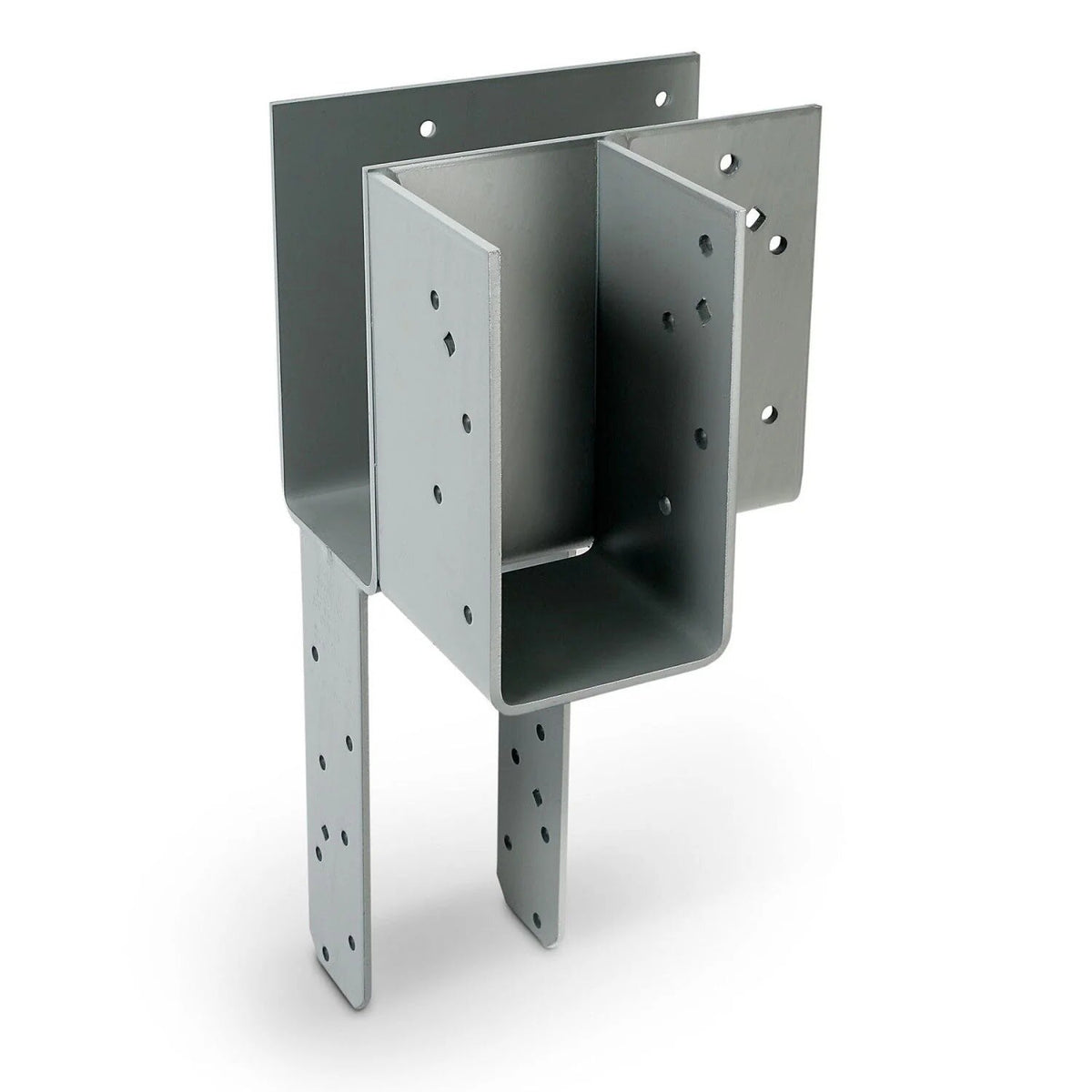

The Simpson ECCLLQ444HDG End Column Cap is a durable, hot-dip galvanized steel connector designed for 4x beams and posts, providing strong end-of-beam connections with enhanced load distribution.
Simpson Strong-Tie ECCLLQ444HDG Includes
- (1) L-Shape End Column Cap
- (1) Set of 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie ECCLLQ444HDG Features

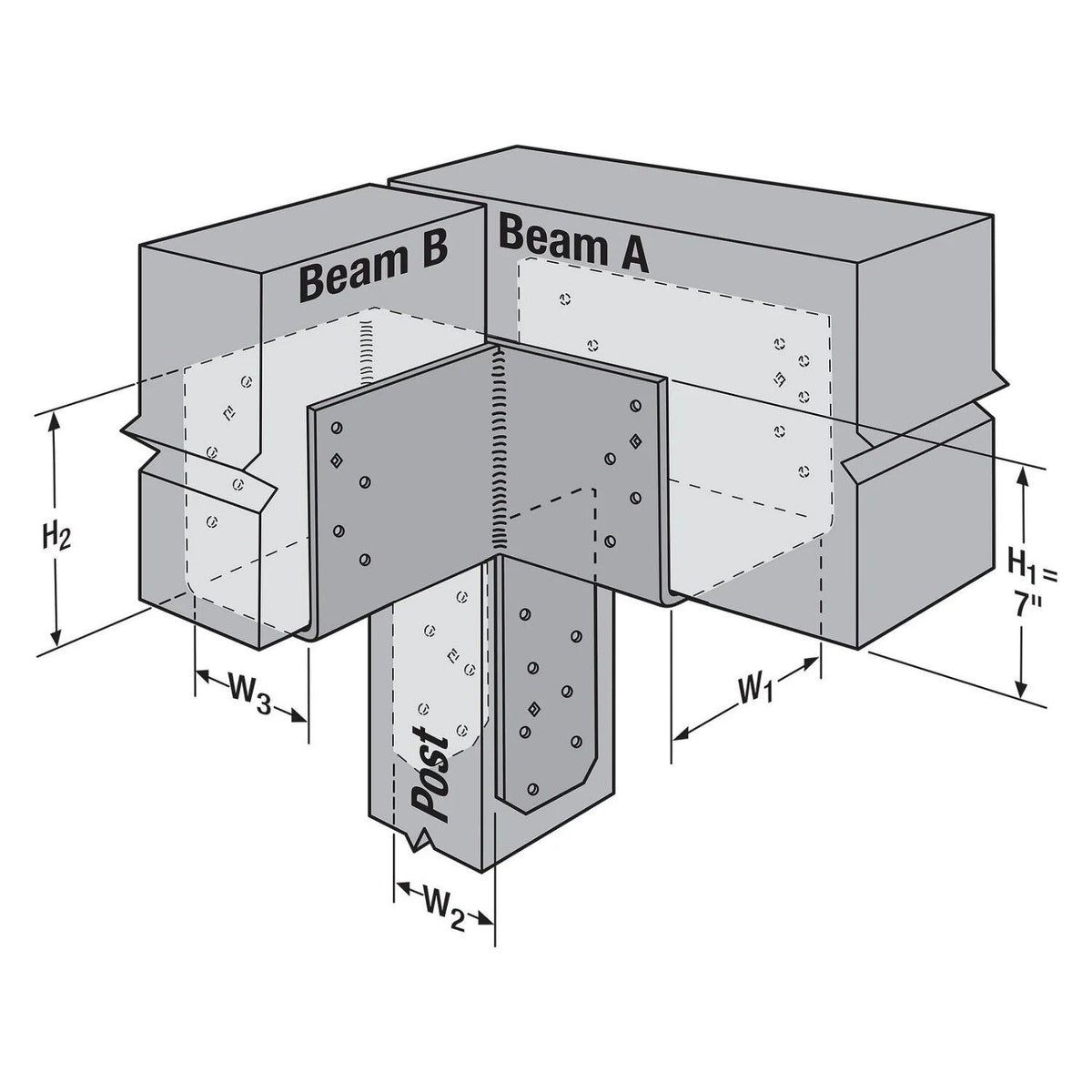

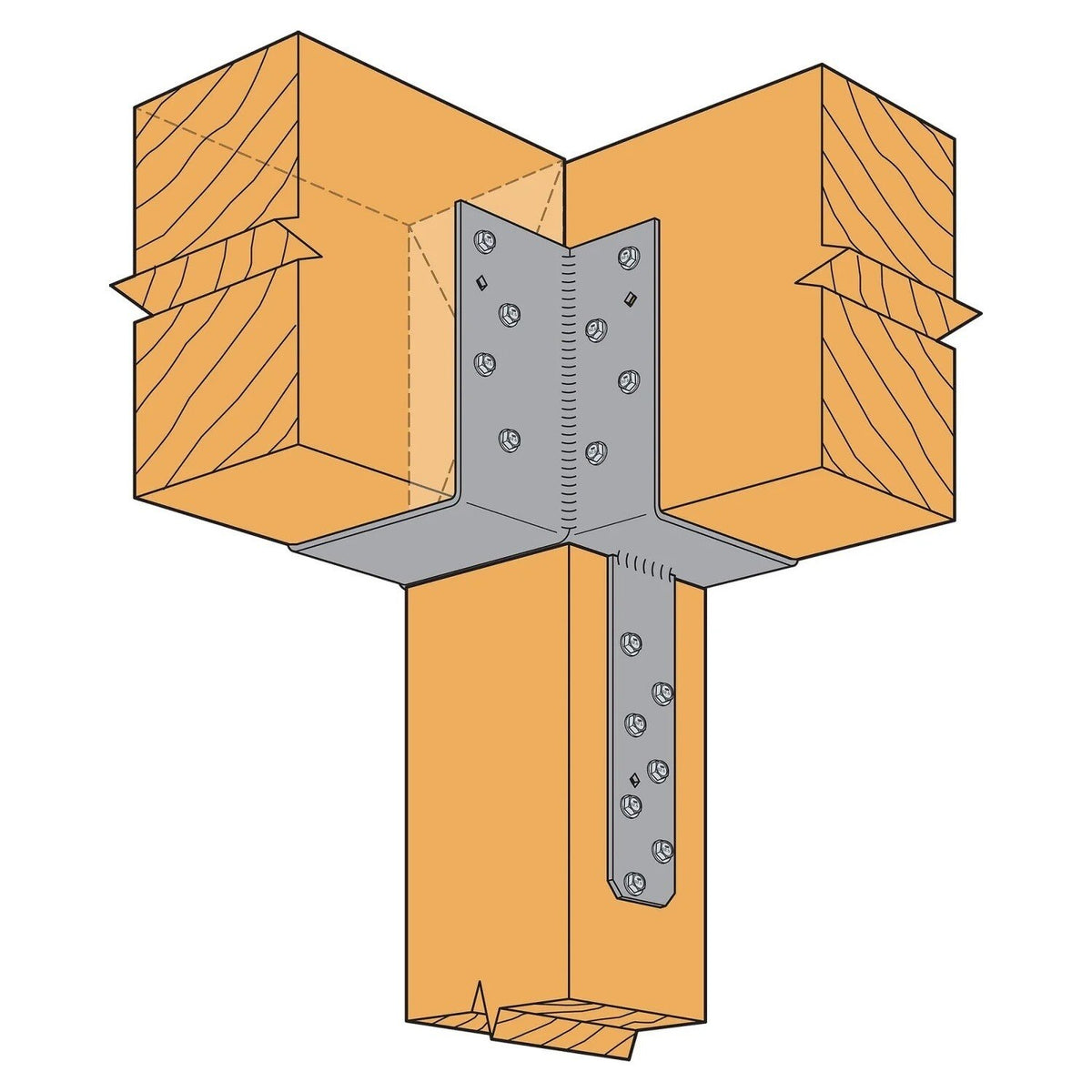

- Provides strong end-of-beam connection for column-to-beams forming an 'L'
- Extended column seat area for enhanced load distribution
- Made from durable hot-dip galvanized steel
- Certified welds for increased strength and loading
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie ECCLLQ444HDG Applications
- End-of-beam connections in construction projects
- Column-to-beam connections for 4x beams and posts
- Applications requiring enhanced load distribution
Simpson Strong-Tie ECCLLQ444HDG Installation Overview
- Align the column cap with the 4x post and beams.
- Secure the cap using the provided SDS screws.
- Ensure proper alignment and fastening for optimal load distribution.
Simpson Strong-Tie ECCLLQ444HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Galvanized Steel |
| Beam size | 4x |
| Fasteners required | 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws, provided |
| Post size | 4x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
