Simpson Strong-Tie ECCLR444HDG L-Shape End Column Cap for 4x Beams and 4x Post, Skewed Right, Hot-Dip Galvanized
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCLR444HDG L-Shape End Column Cap for 4x Beams ...
Key Specifications
Description
Description
Simpson Strong-Tie ECCLR444HDG Description

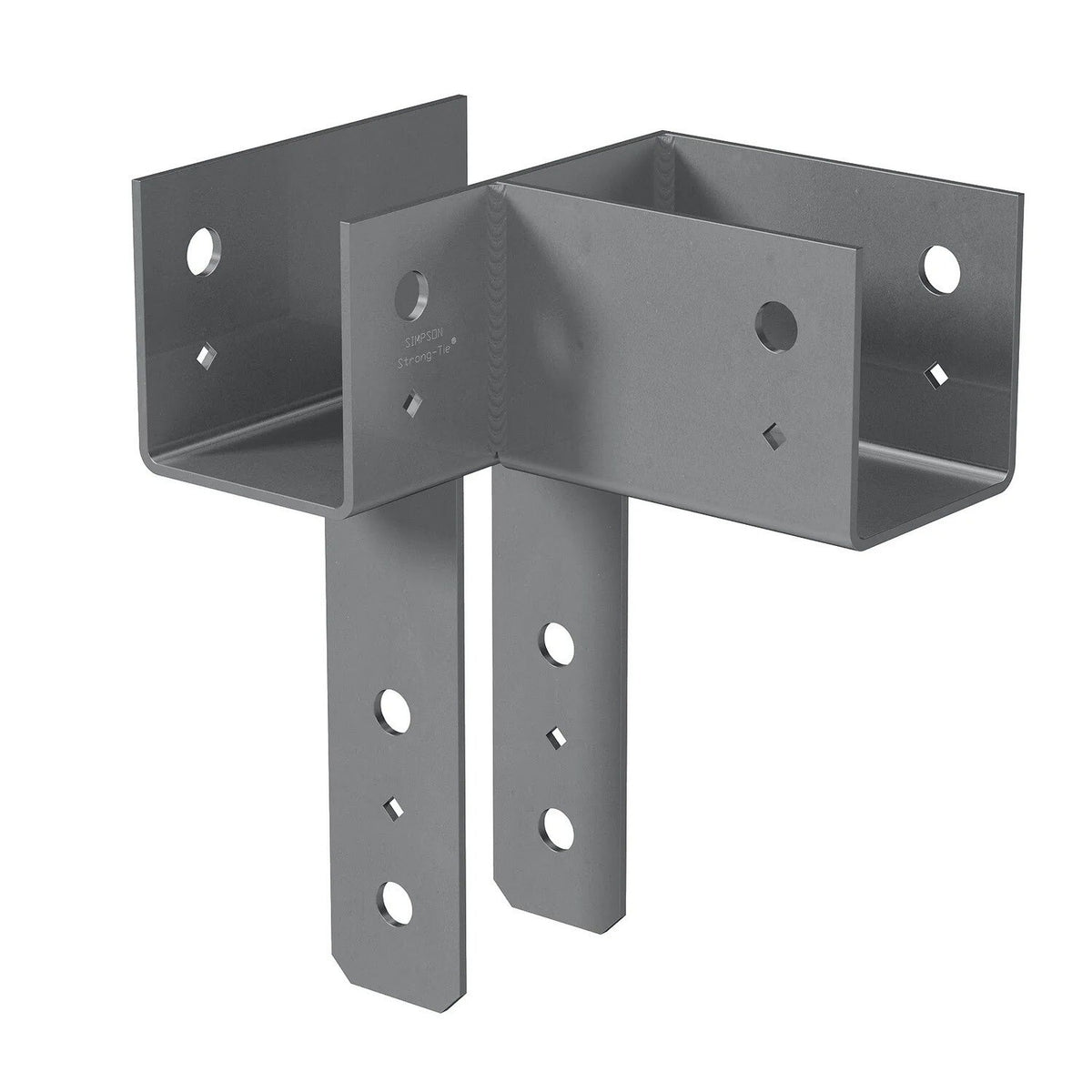

The Simpson ECCLR444HDG is a durable end column cap designed for 4x beams and posts, providing strong and stable connections in end-of-beam applications.
Simpson Strong-Tie ECCLR444HDG Includes
- (1) Strong-Tie L-Shape End Column Cap for 4x Beams and 4x Post, Skewed Right, Hot-Dip Galvanized
Simpson Strong-Tie ECCLR444HDG Features
- Certified welds for strength and loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Hot Dip Galvanized finish for corrosion resistance
- Designed for 4x beams and posts
Simpson Strong-Tie ECCLR444HDG Applications

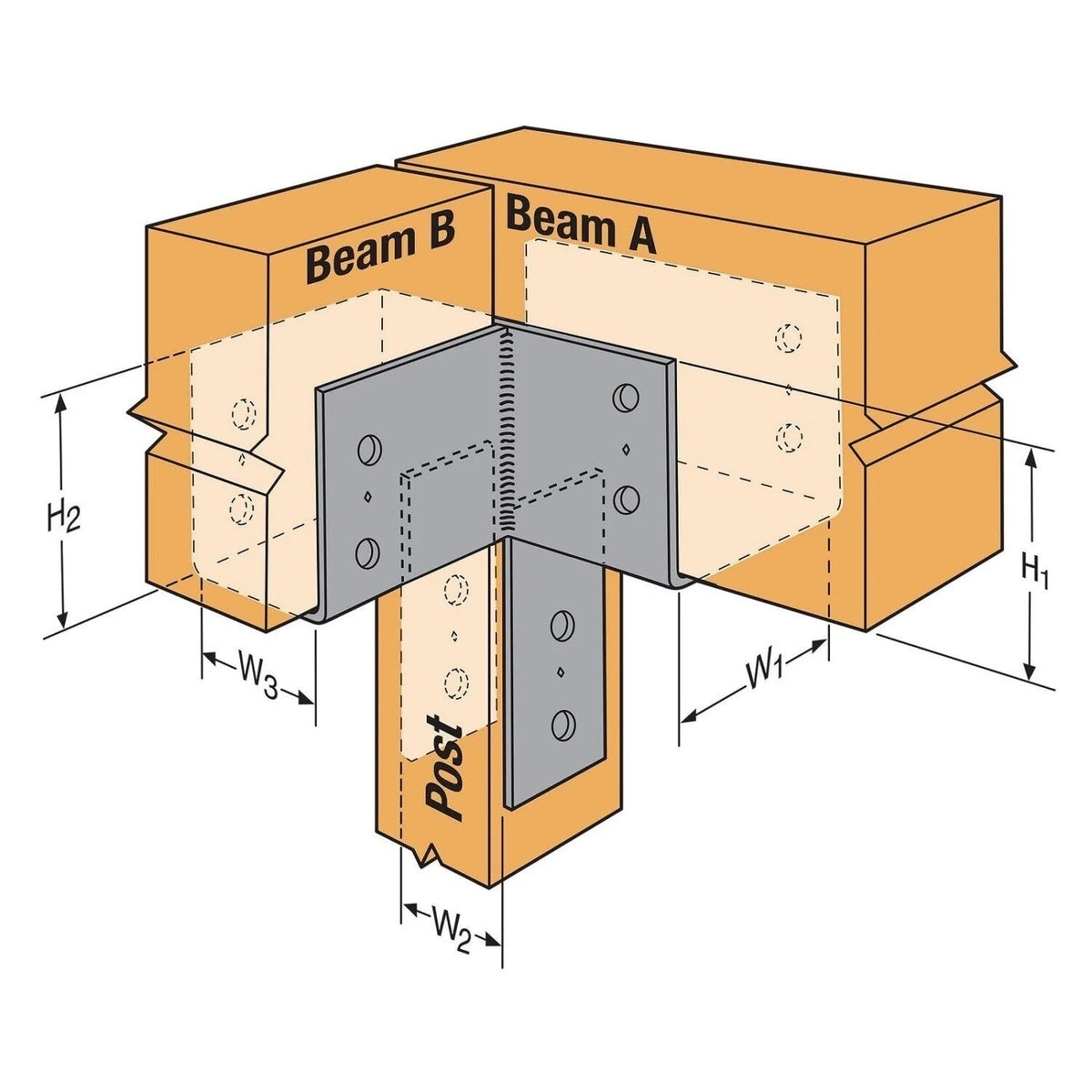

- Provides strong end-of-beam connections for column-to-beam configurations
- Ideal for wood-to-wood fastening in construction projects
Simpson Strong-Tie ECCLR444HDG Installation Overview
- Use all specified fasteners as per guidelines
- Ensure bolt holes are sized correctly as per NDS standards
Simpson Strong-Tie ECCLR444HDG Specifications
| Material | Galvanized Steel |
| Finish | Hot Dip Galvanized |
| Beam size | 4x |
| Post size | 4x |
| Thickness | 7 Gauge |
| Weight | 11.2 lb |
